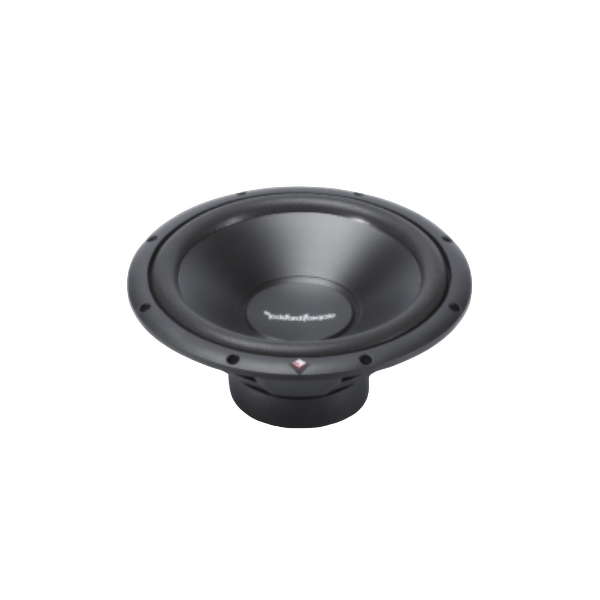

R2D2-12 – Rockford Fosgate – Prime 12″ R2 2-Ohm DVC Subwoofer

R2D2-12 – Rockford Fosgate – Prime 12″ R2 2-Ohm DVC Subwoofer

R2,995.00 inc. VAT

In stock

SKU: R2D2-12 Categories: , , , Tag:

Description

Car Audio Fanatics who want Rockford Fosgate quality can rely on the Prime Series 12″ subwoofers to get the job done, and the Dual Voice Coil provides awesome installation flexibility. These drivers can pump out the bass due to their mica injected polypropylene cone, and their stamp-cast baskets with spider venting – typically reserved for more expensive models – keep the motor running cool! These R2 subwoofers are optimized for sealed and vented enclosures.

  • 12 AWG compression terminals
  • Anodized aluminum voice coil former
  • Optimized for both sealed and vented enclosures
  • Mica injected polypropylene cone
  • Linear spider with embedded 16 AWG tinsel leads
  • StampCast basket with integrated spider venting
  • Integrated PVC trim ring
  • 1 Year Warranty

Additional information

Weight 4.49 kg
Dimensions 38 × 38 × 19 cm
Brand

Product Type

Good, Better, Best

Power Rating

Size

Nominal Impedance

Subwoofer Depth

Overview

When you have no space for bass, our R2 12″ shallow subwoofer can help satisfy your need for low frequency music. These drivers can fit in tight spaces due to an elevated motor structure that reduces speaker depth. Mica injected polypropylene cones make sure bass notes are clean and accurate. Stamp-cast baskets feature spider venting typically reserved for traditional depth mounted models to keep the motor cool! These shallow subwoofers are optimized for sealed enclosures.

FEATURES AT A GLANCE

  • 12 AWG compression terminals
  • Linear spider with embedded 16 AWG tinsel leads
  • Optimized for sealed enclosures
  • Mica injected polypropylene cone
  • Shallow Motor Assembly
  • Integrated PVC trim ring
  • Anodized aluminum voice coil former
  • StampCast basket with integrated spider venting
  • 1 Year Warranty

Specification

ower Handling (Watts RMS)
250 Watts RMS
500 Watts Max
Speaker Connector
Dual 12 AWG compression
Shipping Weight
12.013 Lbs. (5.44 kg.)
Voice Coil Diameter
2″ (50 mm)
Fs (Hz)
29.7
Cutout Diameter
11.25 in. (285 mm)
Qes
0.71
Qms
9.00
Qts
0.66
Woofer Displacement
0.039 cu. ft. (1.1 Liters)
Sd (cm2)
534.8
Size
12″
Nominal Impedance
Dual 2-Ohm
SPL (dB @ 1w/1m)
85
Mounting Depth
3.602 in. (91 mm)
Magnet Weight (oz)
51 oz. (1.45 kg.)
CEA-2031 Compliant
CEA-2031 Guidelines
Le (mH)
4.2
Re (Ohms)
3.80
Vas (Liters)
65.4
Xmax (mm)
10
Subwoofer Type
Shallow
Voice Coil Type
Dual Voice Coil
Sealed Box Volume (Vb)
0.9 cu. ft. (25.4 Liters)
Vented Box Volume (Vb)
1.79 cu. ft. (50.6 Liters)

Owners Manual

R2D2-12.pdf Owners Manual
