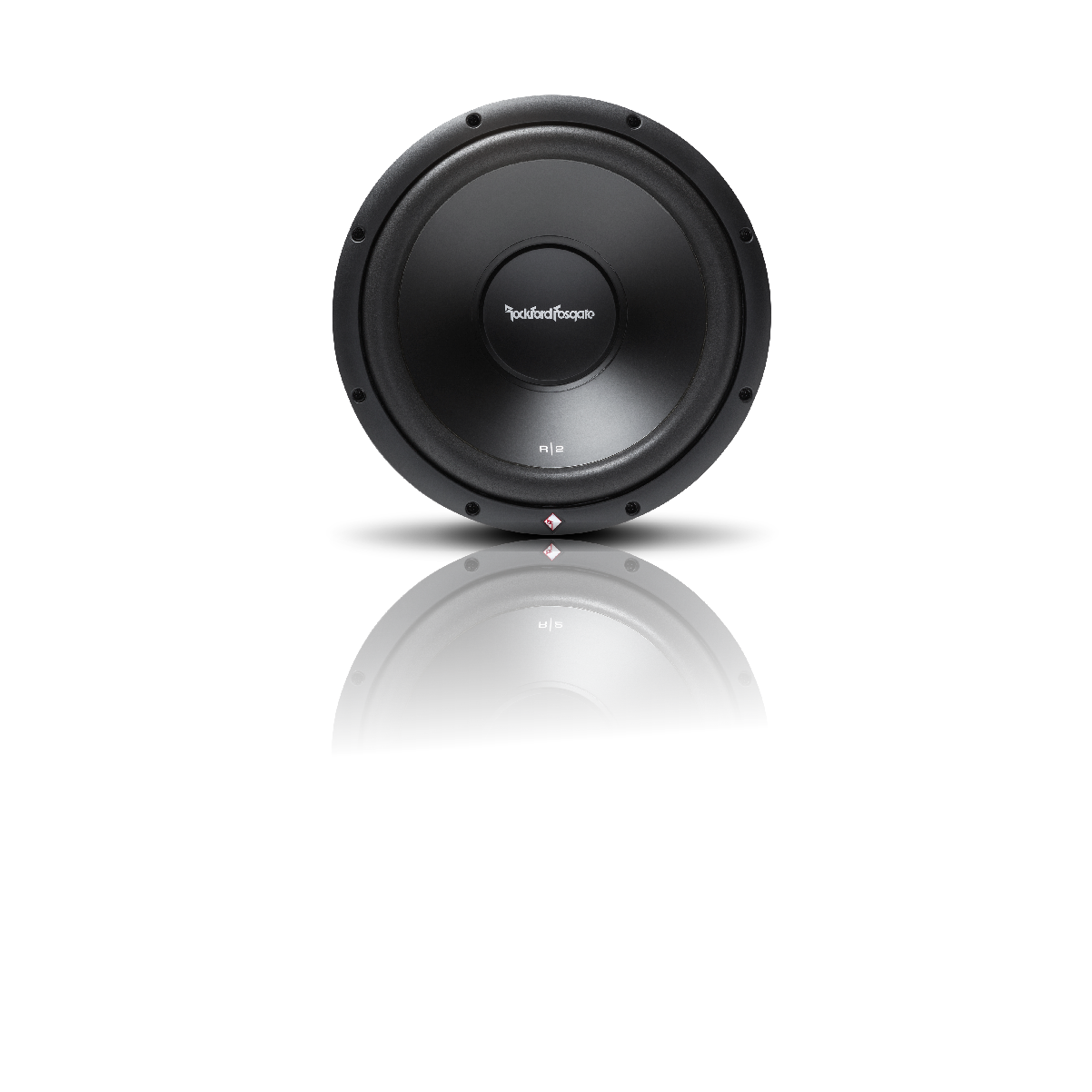

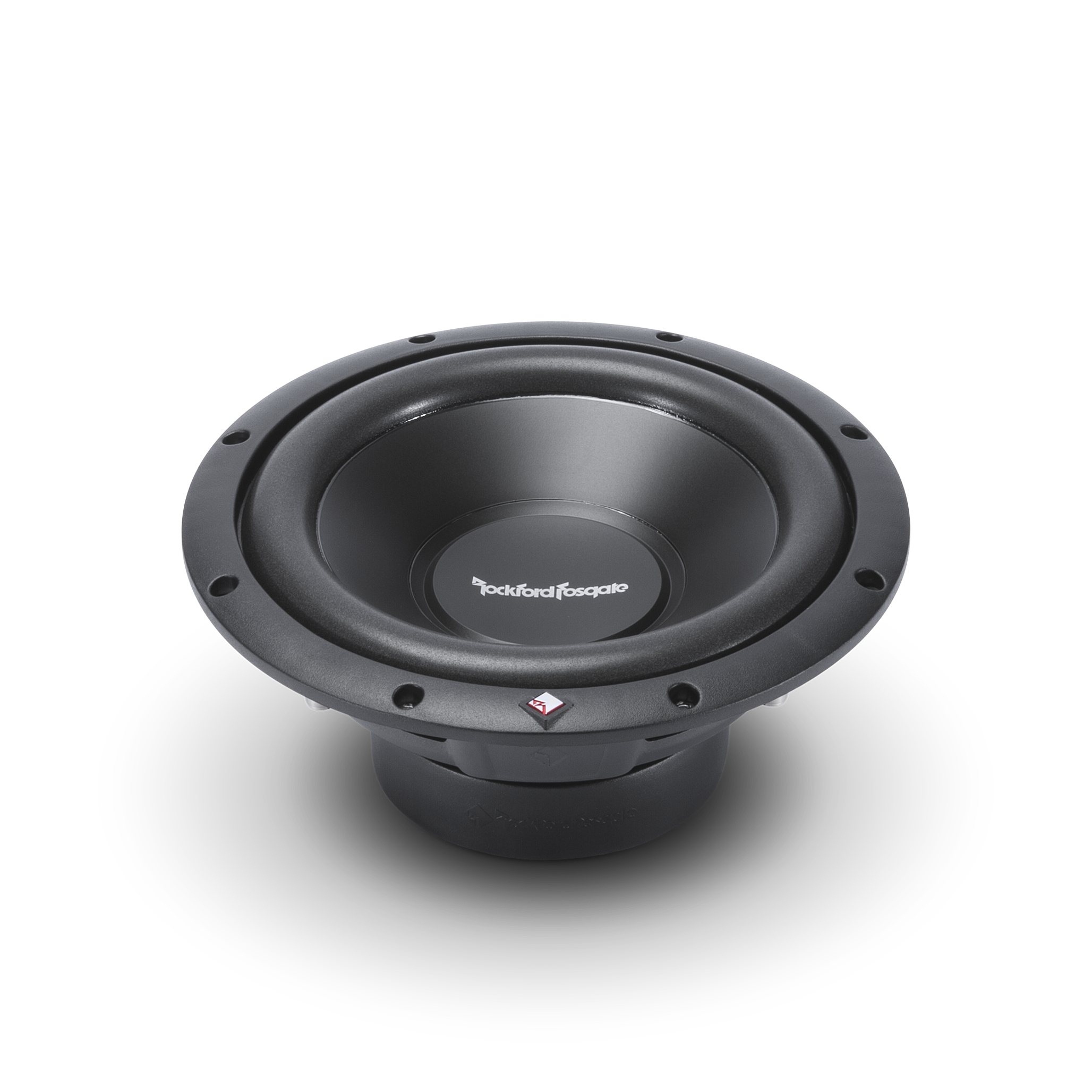

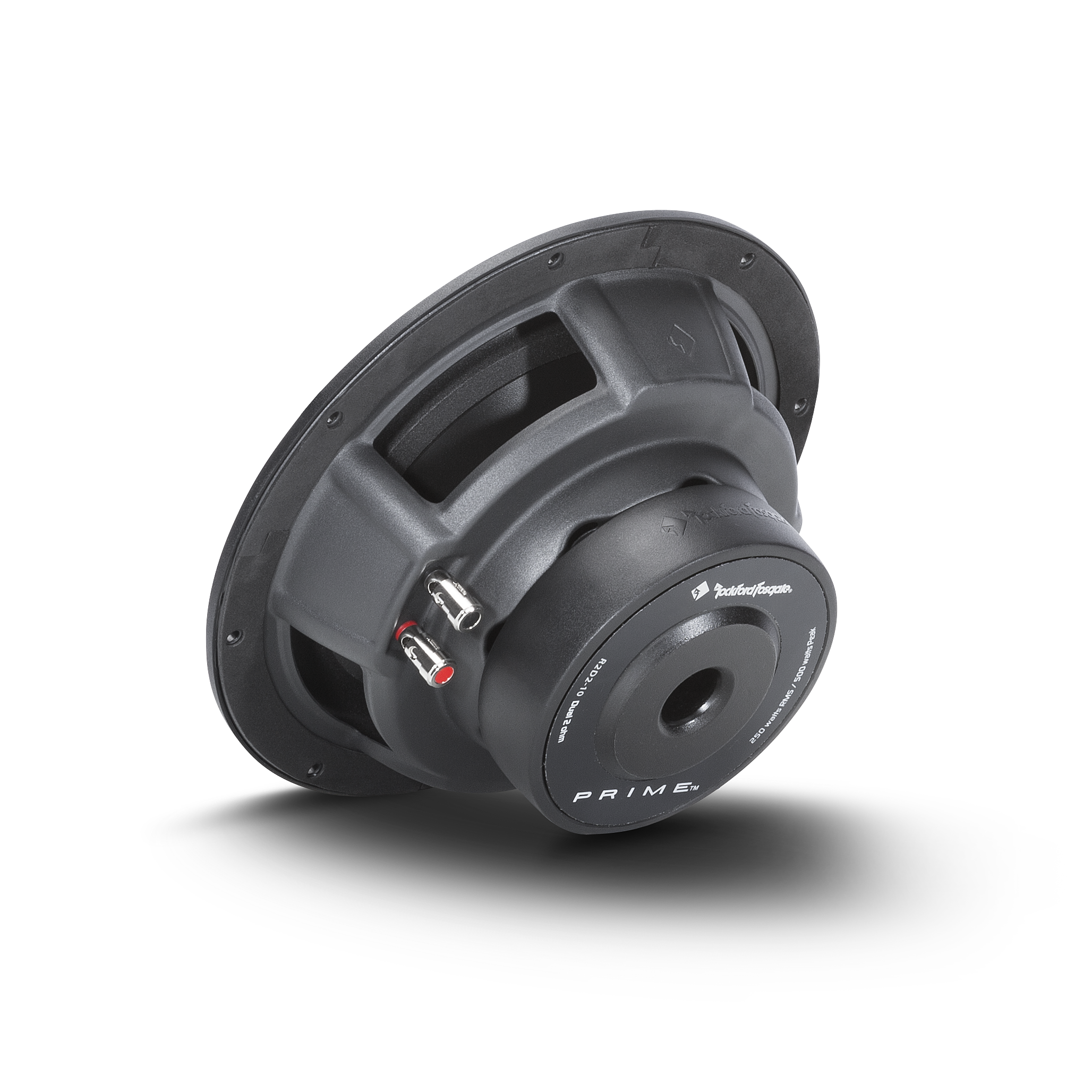

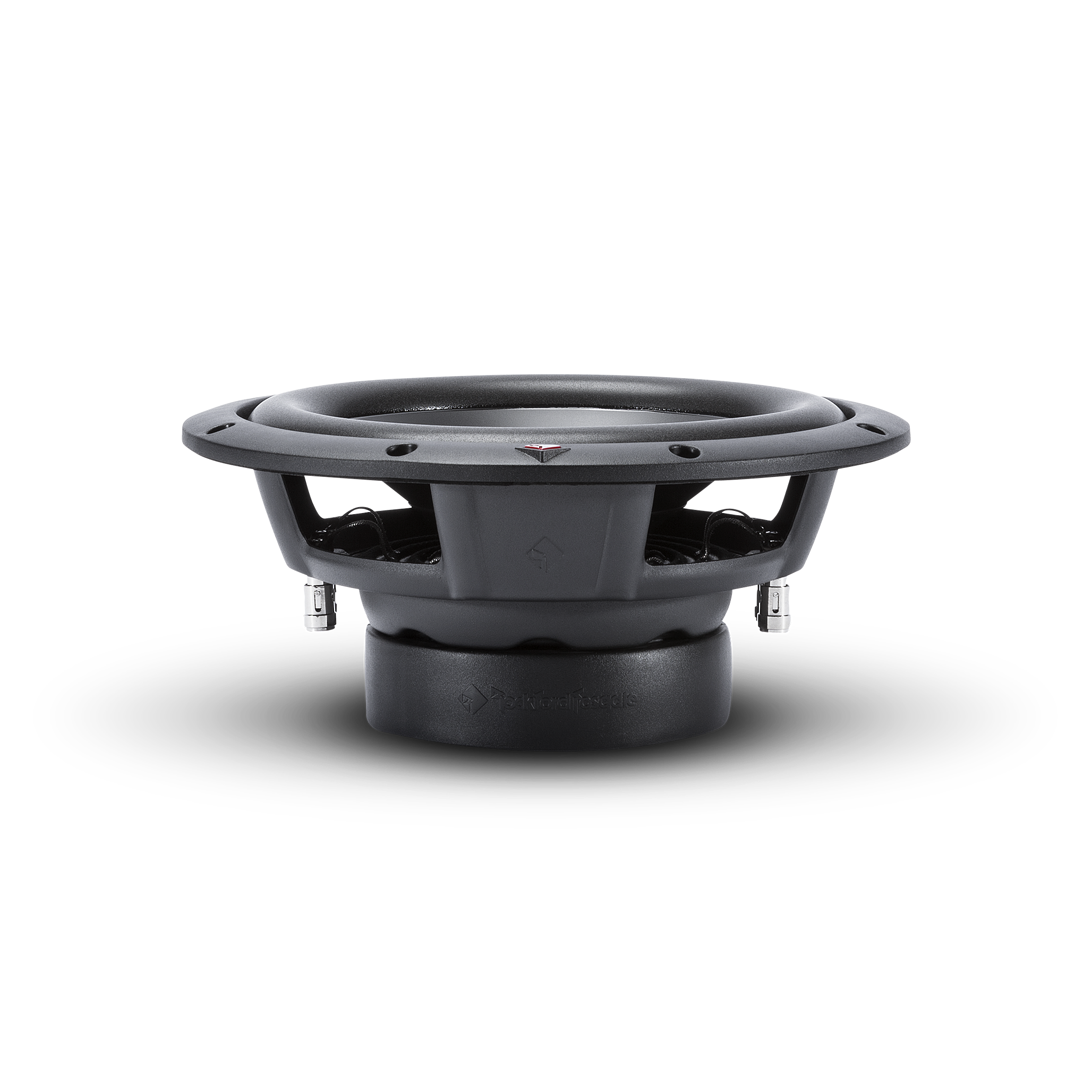

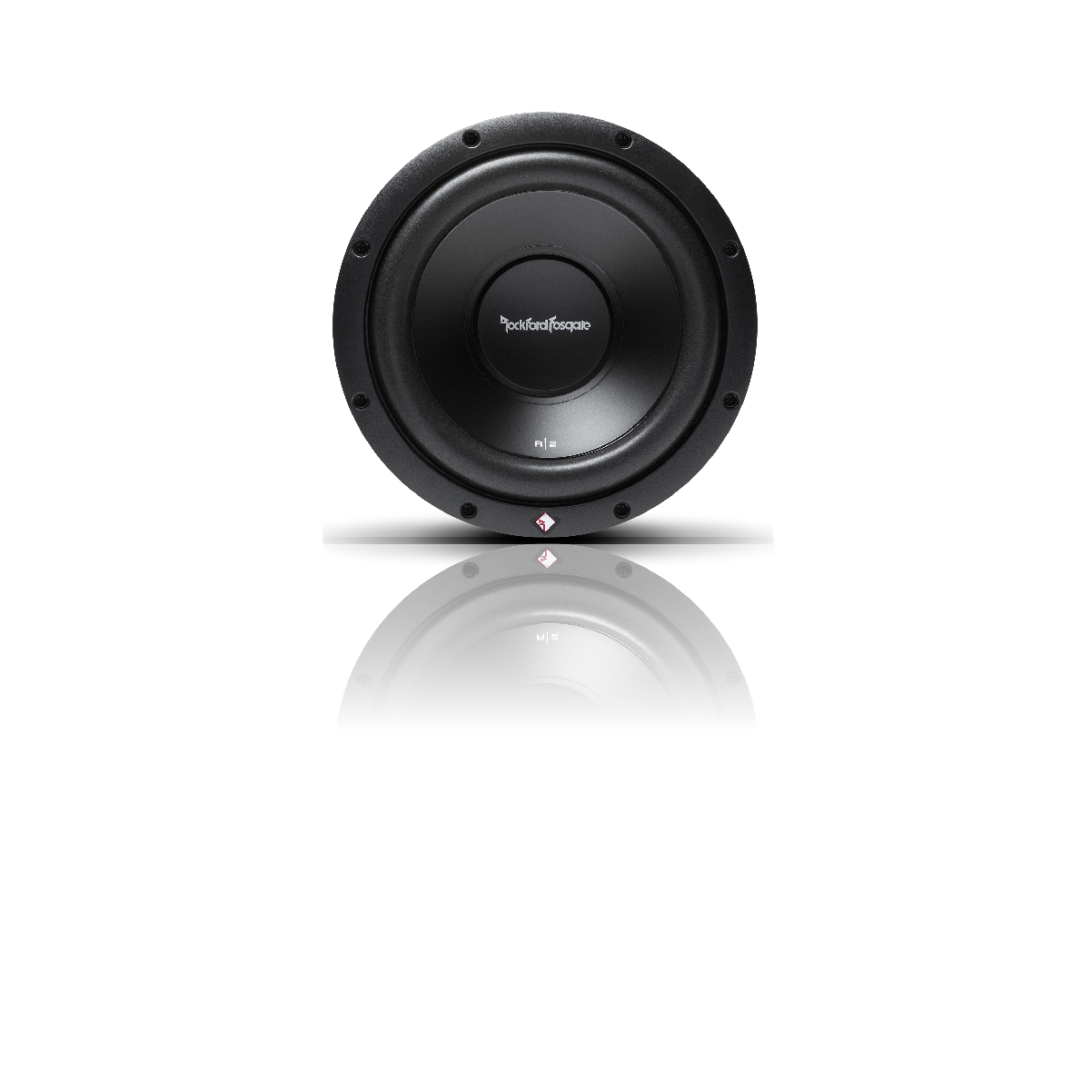

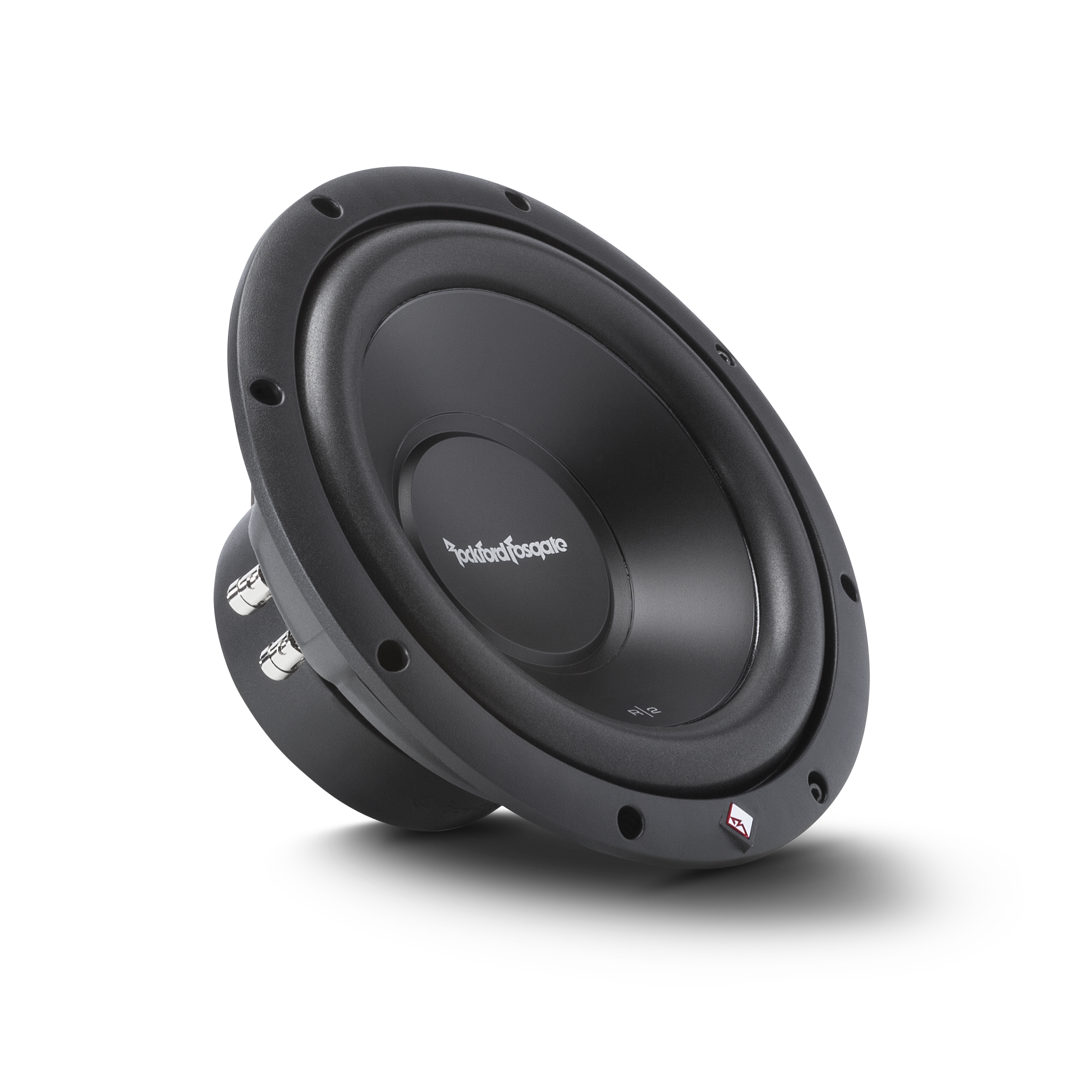

R2D4-10 – Rockford Fosgate – Prime 10″ R2 4-Ohm DVC Subwoofer

R2,475.00 inc. VAT

In stock

Description

Car Audio Fanatics who want Rockford Fosgate quality can rely on the Prime Series 10″ subwoofers to get the job done, and the Dual Voice Coil provides awesome installation flexibility. These drivers can pump out the bass due to their mica injected polypropylene cone, and their stamp-cast baskets with spider venting – typically reserved for more expensive models – keep the motor running cool! These R2 subwoofers are optimized for sealed and vented enclosures.

  • 12 AWG compression terminals
  • Anodized aluminum voice coil former
  • Optimized for both sealed and vented enclosures
  • Mica injected polypropylene cone
  • Linear spider with embedded 16 AWG tinsel leads
  • StampCast basket with integrated spider venting
  • Integrated PVC trim ring
  • 1 Year Warranty

Additional information

Weight 3.99 kg
Dimensions 32 × 32 × 17 cm
Brand

Product Type

Good, Better, Best

Power Rating

Size

Nominal Impedance

Subwoofer Depth

Overview

ar Audio Fanatics who want Rockford Fosgate quality can rely on the Prime Series 10″ subwoofers to get the job done, and the Dual Voice Coil provides awesome installation flexibility. These drivers can pump out the bass due to their mica injected polypropylene cone, and their stamp-cast baskets with spider venting – typically reserved for more expensive models – keep the motor running cool! These R2 subwoofers are optimized for sealed and vented enclosures.



FEATURES AT A GLANCE

  • Linear spider with embedded 16 AWG tinsel leads
  • 12 AWG compression terminals
  • Mica injected polypropylene cone
  • Anodized aluminum voice coil former
  • Optimized for both sealed and vented enclosures
  • StampCast basket with integrated spider venting
  • 1 Year Warranty
  • Integrated PVC trim ring

Specification

Magnet Weight (oz)
43 oz. (1.22 kg)
Size
10″
Xmax (mm)
6.5
Shipping Weight
8.8 Lbs. (3.99 kg)
SPL (dB @ 1w/1m)
86.6
Woofer Displacement
0.039 cu. ft. (1.1 Liters)
Le (mH)
3.9
Cutout Diameter
9.125 in. (232 mm)
Voice Coil Diameter
2″ (51 mm)
Nominal Impedance
Dual 4-Ohm
Speaker Connector
Dual 12 AWG compression
Fs (Hz)
34.9
Mounting Depth
4.319 in. (109 mm)
Qts
0.53
Qes
0.58
Qms
6.44
Vas (Liters)
38.4
Power Handling (Watts RMS)
250 Watts RMS
500 Watts Max
CEA-2031 Compliant
CEA-2031 Guidelines
Re (Ohms)
7.83
Sd (cm2)
339.8
Subwoofer Type
Standard
Voice Coil Type
Dual Voice Coil
Sealed Box Volume (Vb)
0.59 cu. ft. (16.7 Liters)
Vented Box Volume (Vb)
1.4 cu. ft. (39.6 Liters)

Owner's Manual

R2D4-10.pdf Owners Manual
