T1S2-12 – Rockford Fosgate – Power 12″ T1 Slim Single 2-Ohm Subwoofer

R11,955.18 inc. VAT

In stock

Description

Need bass but don’t have a lot of space? How about more power handling than your average shallow subwoofer? Well, the T1 “Slimline” subwoofers are not your average shallow, in fact, they have been painstakingly designed to near exact performance characteristics of traditional sized Power T1 subwoofers you’re already familiar with.

We’re calling these “slim” subwoofers because they don’t take a lot of depth and offer bass response similar to a traditional sized model. How can this be true? Well, let’s just say the Wizards-of-Fos engineered an ingenious slotted voice coil assembly that exhibits long excursion travel. Don’t worry, you don’t need to understand it, you just have to listen to how awesome they sound!
  • Carbon fiber/PMI/glass fiber cone with aluminum dustcap
  • Injection molded foam surround with VAST™
  • Dual Nomex progressive spiders with integrated lead wires
  • Aluminum diecast frame with integrated heat sink fins
  • Custom insulated push spring 10 AWG terminals
  • Dual wound 2.5″ voice coil with interior/exterior windings
  • Encapsulating voice coil to former coupling technology (patent pending)
  • Detachable die cast aluminum trim ring
  • Vented pole piece
  • High temp high energy neodymium motor structure
  • Proprietary split yoke pass thru motor technology (patent pending)
  • Integrated copper cap heat sinking shorting ring (IDHS)

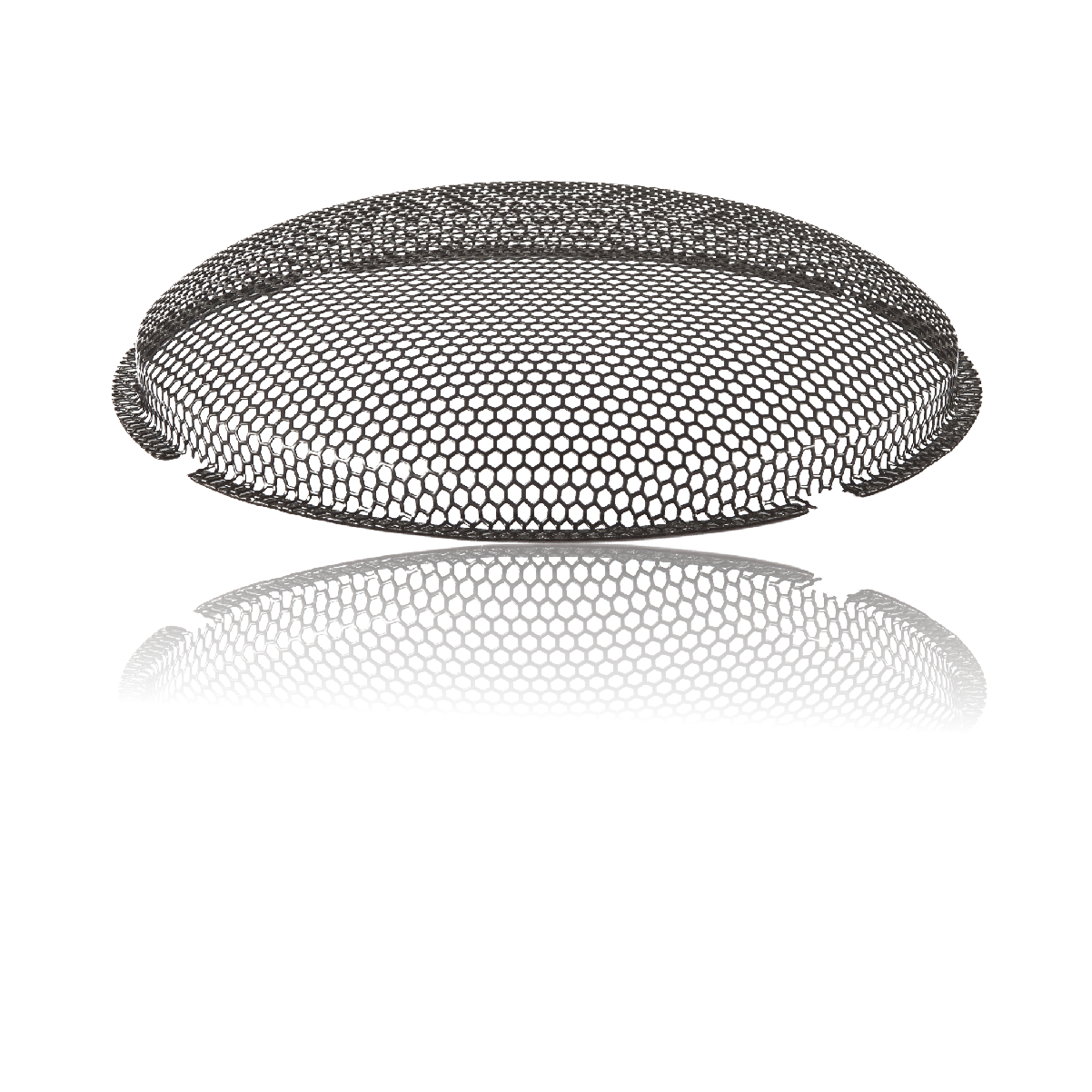

  • Optional grille insert available
  • Optimized for sealed enclosures
  • 1 Year Warranty

Additional information

Weight 7.3 kg
Dimensions 37 × 37 × 16 cm
Brand

Product Type

Good, Better, Best

Power Rating

Size

Nominal Impedance

Subwoofer Depth

Overview

Need bass but don’t have a lot of space? How about more power handling than your average shallow subwoofer? Well, the T1 “Slimline” subwoofers are not your average shallow, in fact, they have been painstakingly designed to near exact performance characteristics of traditional sized Power T1 subwoofers you’re already familiar with.

We’re calling these “slim” subwoofers because they don’t take a lot of depth and offer bass response similar to a traditional sized model.  How can this be true? Well, let’s just say the Wizards-of-Fos engineered an ingenious slotted voice coil assembly that exhibits long excursion travel. Don’t worry, you don’t need to understand how it works, you just have to listen to how awesome they sound!

FEATURES AT A GLANCE

  • Carbon fiber/PMI/glass fiber cone with aluminum dustcap
  • Injection molded foam surround with VAST™
  • Dual Nomex progressive spiders with integrated lead wires
  • Aluminum diecast frame with integrated heat sink fins
  • Custom insulated push spring 10 AWG terminals
  • Dual wound 2.5″ voice coil with interior/exterior windings
  • Encapsulating voice coil to former coupling technology (patent pending)
  • Detachable die cast aluminum trim ring
  • Proprietary split yoke pass thru motor technology (patent pending)
  • High temp high energy neodymium motor structure
  • Vented pole piece
  • Integrated copper cap heat sinking shorting ring (IDHS)
  • 1 Year Warranty
  • Optional grille insert available
  • Optimized for sealed enclosures

Specification

Magnet Weight (oz)
14.42 oz. (0.41 Kg)
CEA-2031 Compliant
CEA-2031 Guidelines
Subwoofer Type
Shallow
Size
12″
Power Handling (Watts RMS)
600 Watts RMS
1200 Watts Max
Voice Coil Diameter
2.98″ (75 mm)
Fs (Hz)
36
Xmax (mm)
15
Nominal Impedance
1-Ohm
Speaker Connector
10 AWG slot loaded
Qes
1.17
Qts
1.06
Qms
11.22
Sd (cm2)
560
Re (Ohms)
0.9
Le (mH)
0.31
SPL (dB @ 1w/1m)
85
Vas (Liters)
32.4
SPL (dB @ 2.8v/1m)
88
Voice Coil Type
Single Voice Coil
Mounting Depth
3.01 in. (76.5 mm)
Cutout Diameter
11.22 in. (285 mm)
Woofer Displacement
0.042 cu. ft. (1.2 Liters)
Sealed Box Volume (Vb)
1.1 cu. ft. (31.1 Liters)
Vented Box Volume (Vb)
2.0 cu. ft. (56.6 Liters)
