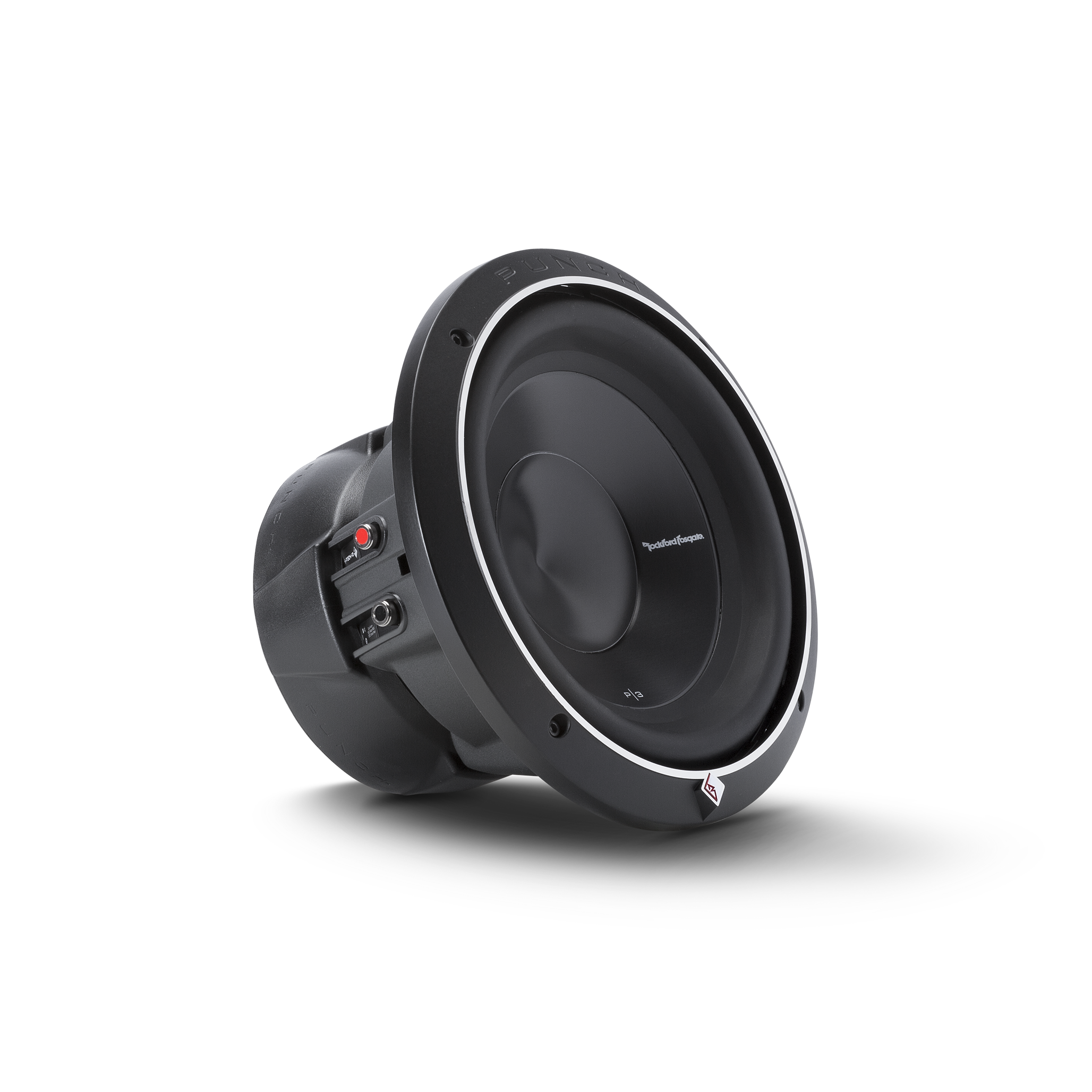

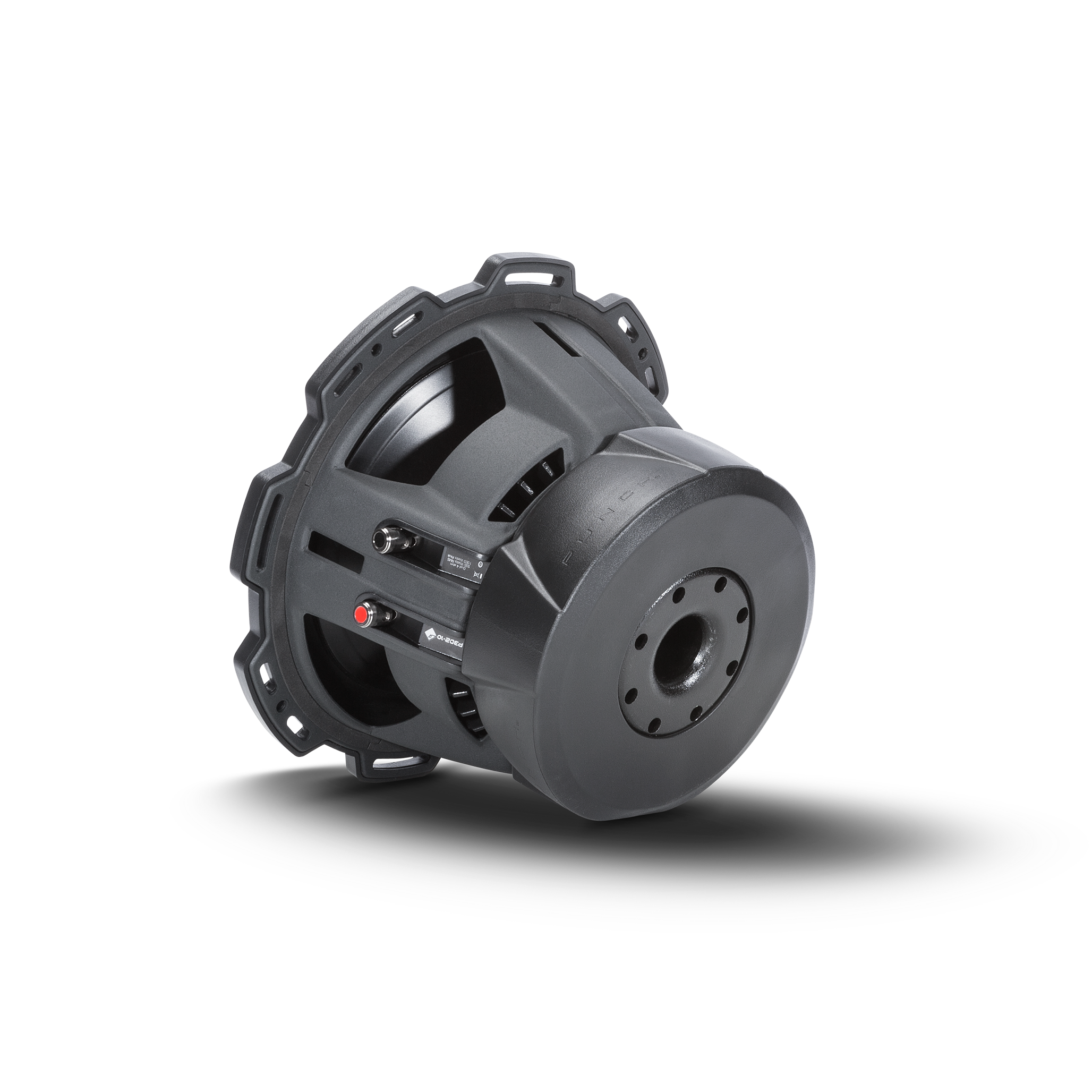

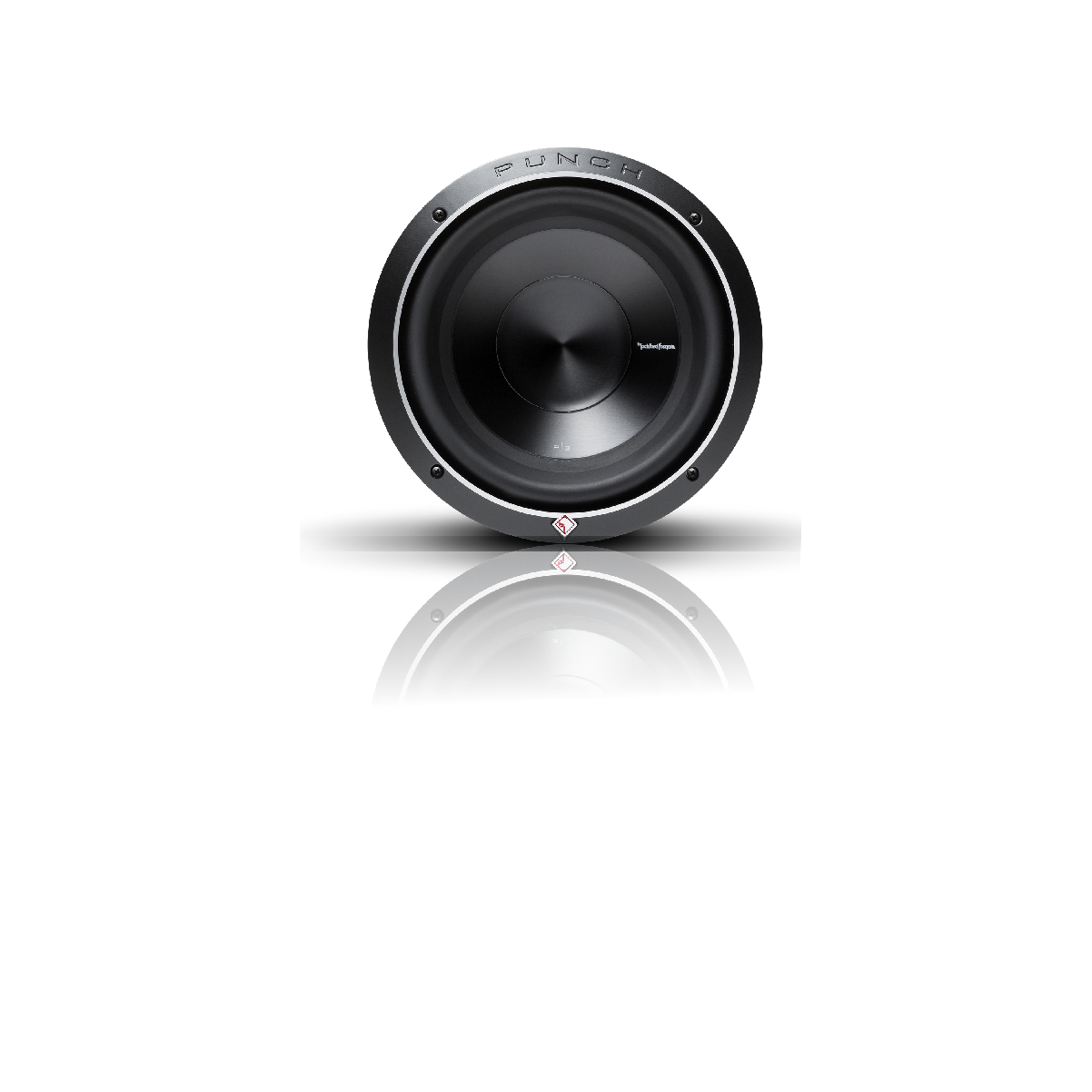

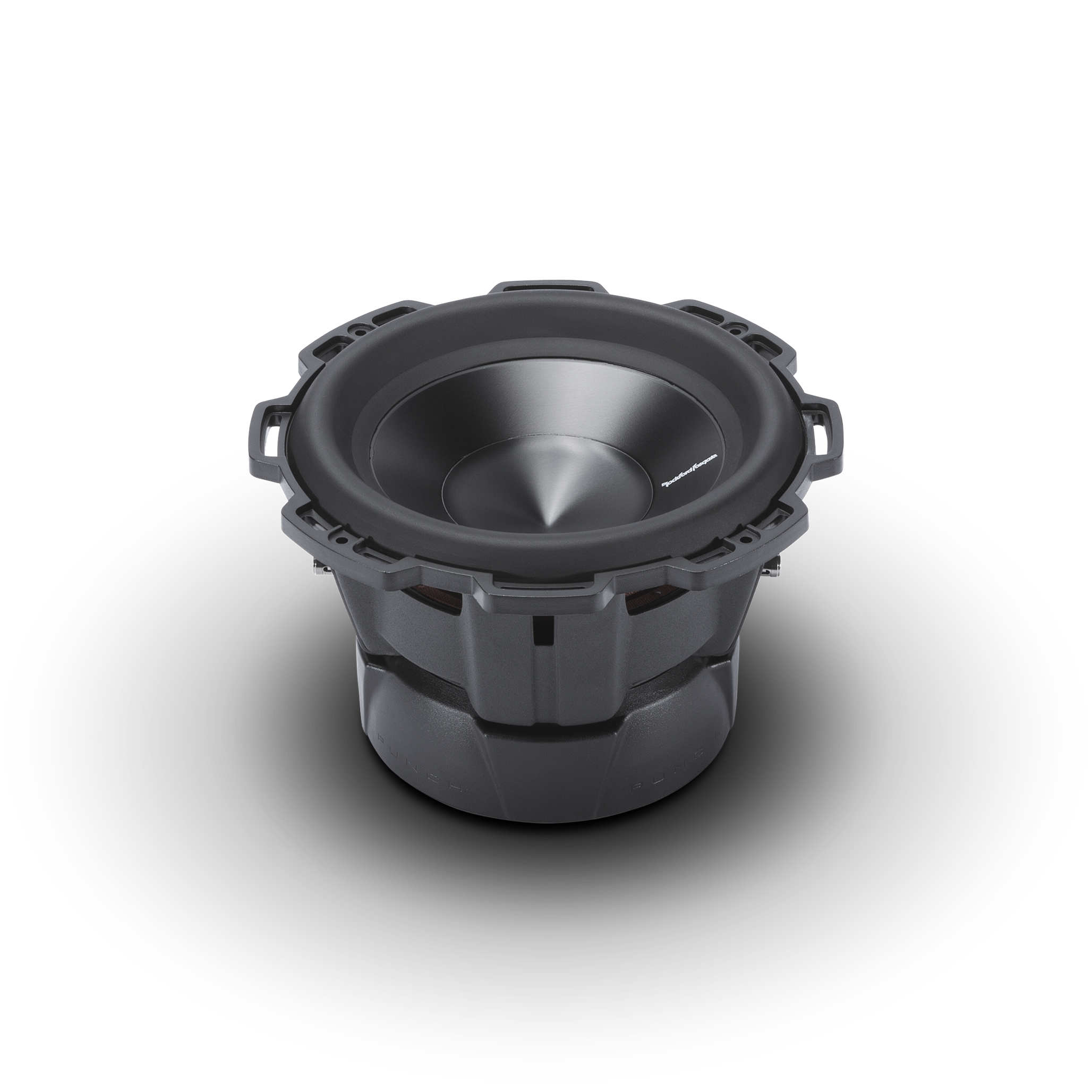

P3D2-10 – Rockford Fosgate – Punch 10″ P3 2-Ohm DVC Subwoofer

R5,938.99 inc. VAT

In stock

Description

The P3D2-10 is Rockford Fosgate’s best performing Punch series subwoofer. The P3 subwoofers now feature anodized aluminum cones and dustcaps along with unique spider venting to keep the motor cooler than previous versions. These feature VAST technology to increase surface cone area up to 25% and a FlexFit basket for extreme installations. Best of all, a new hybrid stamp-cast basket offers the best of both worlds by providing super strength while minimizing weight and resonance.

  • Custom 10-AWG nickel plated push terminals
  • Rubberized over-mold for greater grip
  • Extended pole piece and bumped vented backplate
  • High-temp voice coil with spun-laced Nomex® re-inforcement collar
  • Anodized aluminum cone and dustcap
  • Protective PVC textured magnet cover
  • Diamond cut cast aluminum trim ring with optional grille
  • StampCast basket with integrated spider venting
  • 1 Year Warranty

Additional information

Weight 7.8 kg
Dimensions 30 × 30 × 23 cm
Product Type

Good, Better, Best

Power Rating

Size

Nominal Impedance

Subwoofer Depth

Overview

The P3D2-10 is Rockford Fosgate’s best performing Punch series subwoofer. The P3 subwoofers now feature anodized aluminum cones and dustcaps along with unique spider venting to keep the motor cooler than previous versions. These feature VAST technology to increase surface cone area up to 25% and a FlexFit basket for extreme installations. Best of all, a new hybrid stamp-cast basket offers the best of both worlds by providing super strength while minimizing weight and resonance.

FEATURES AT A GLANCE

  • Extended pole piece and bumped vented backplate
  • Rubberized over-mold for greater grip
  • Anodized aluminum cone and dustcap
  • Custom 10-AWG nickel plated push terminals
  • Protective PVC textured magnet cover
  • High-temp voice coil with spun-laced Nomex® re-inforcement collar
  • Diamond cut cast aluminum trim ring with optional grille
  • 1 Year Warranty
  • StampCast basket with integrated spider venting

Specification

Power Handling (Watts RMS)
500 Watts RMS
1000 Watts Max
Nominal Impedance
Dual 2-Ohm
Mounting Depth
6.18 in. (156.8 mm)
Voice Coil Diameter
2.5″ (65.5 mm)
Fs (Hz)
26.6
Woofer Displacement
0.070 cu. ft. (2.0 Liters)
Qes
0.54
Qms
6.00
Vas (Liters)
27.0
Size
10″
Sd (cm2)
360
Speaker Connector
Dual 10 AWG compression
SPL (dB @ 1w/1m)
82
Qts
0.49
Cutout Diameter
9.13 in. (232 mm)
Magnet Weight (oz)
81 oz. (2.30 kg.)
Le (mH)
4.5
Re (Ohms)
3.20
CEA-2031 Compliant
CEA-2031 Guidelines
Xmax (mm)
15.2
Subwoofer Type
Standard
Voice Coil Type
Dual Voice Coil
Sealed Box Volume (Vb)
0.59 cu. ft. (16.7 Liters)
Vented Box Volume (Vb)
1.4 cu. ft. (39.6 Liters)

Videos

Owners Manual

P3D2-10.pdf Owners Manual
