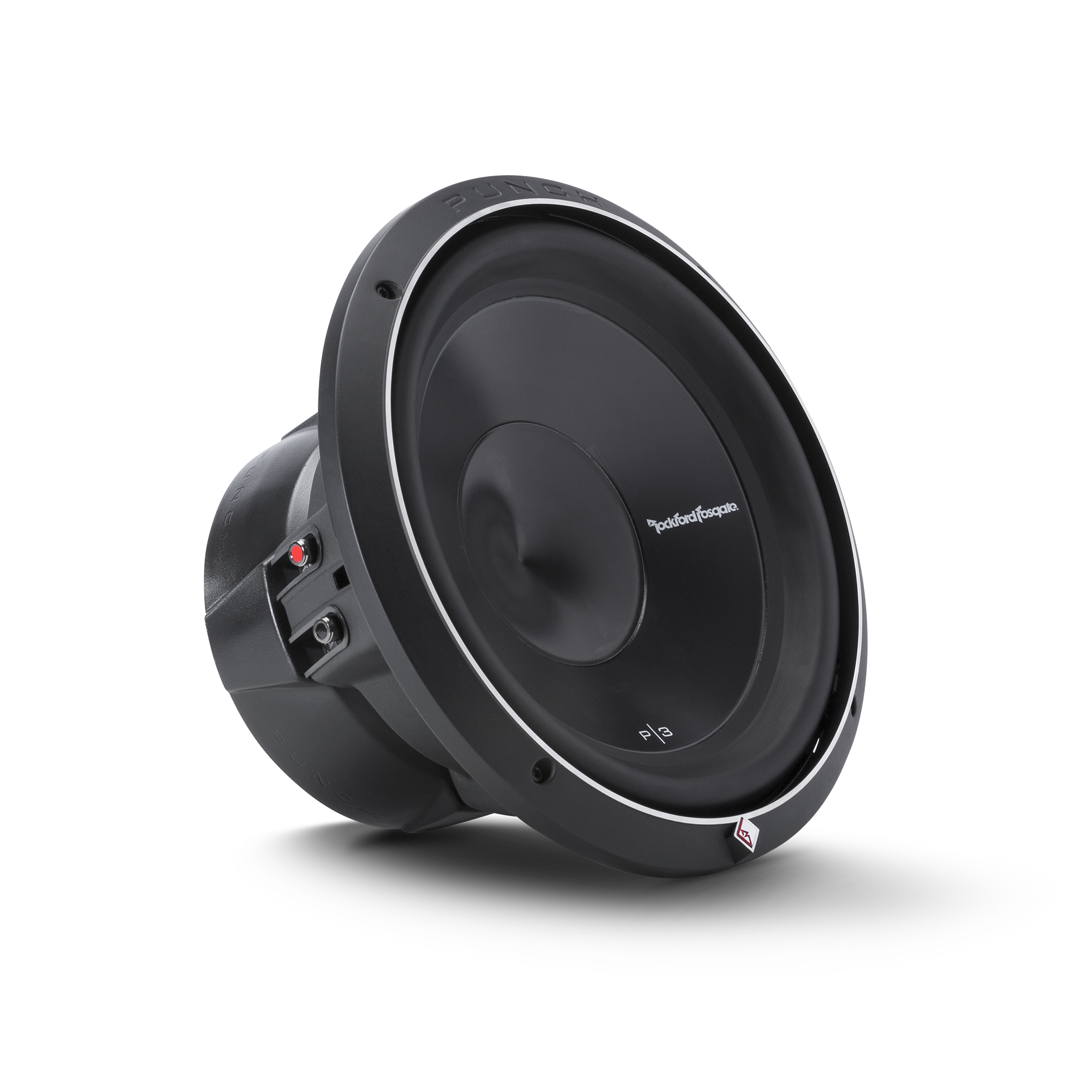

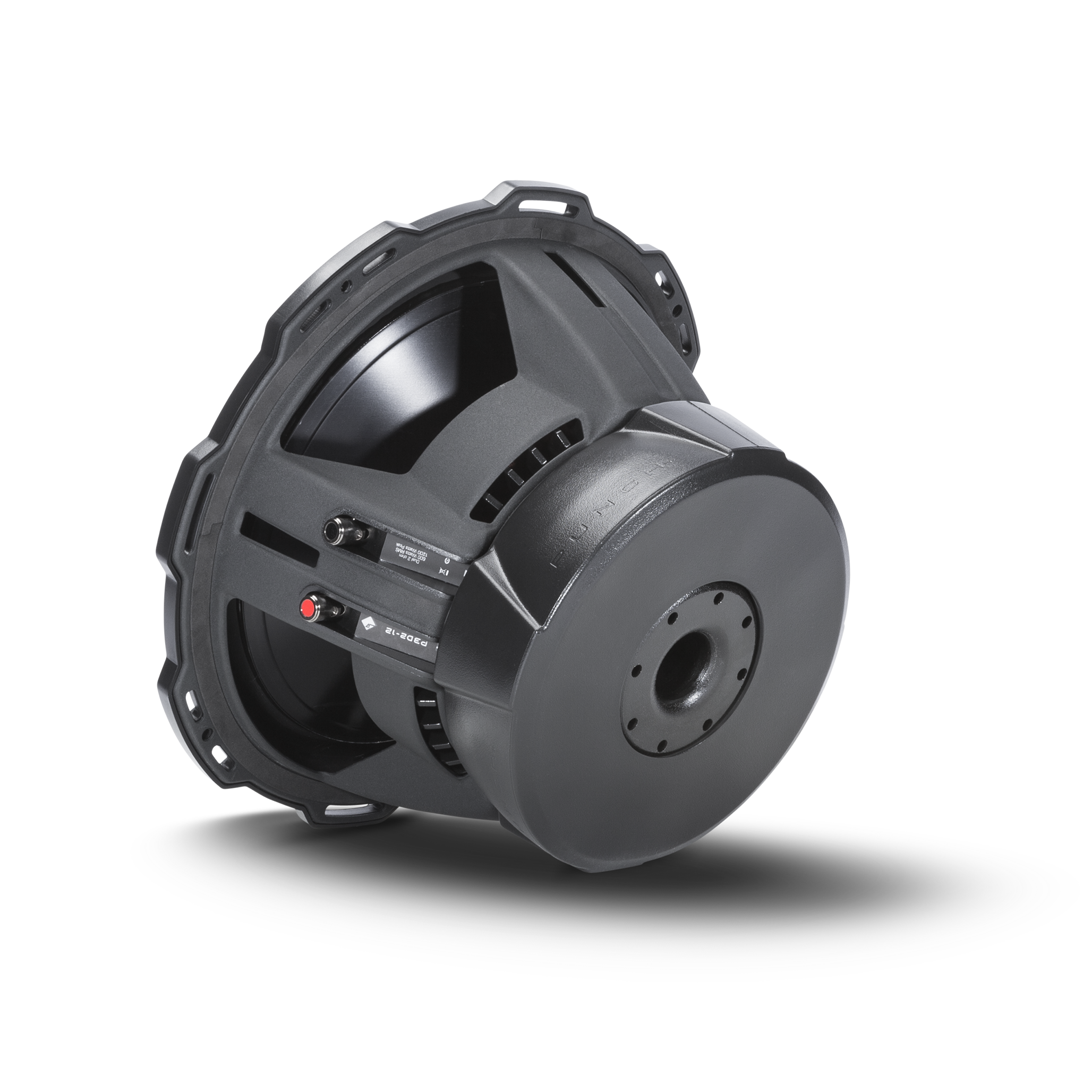

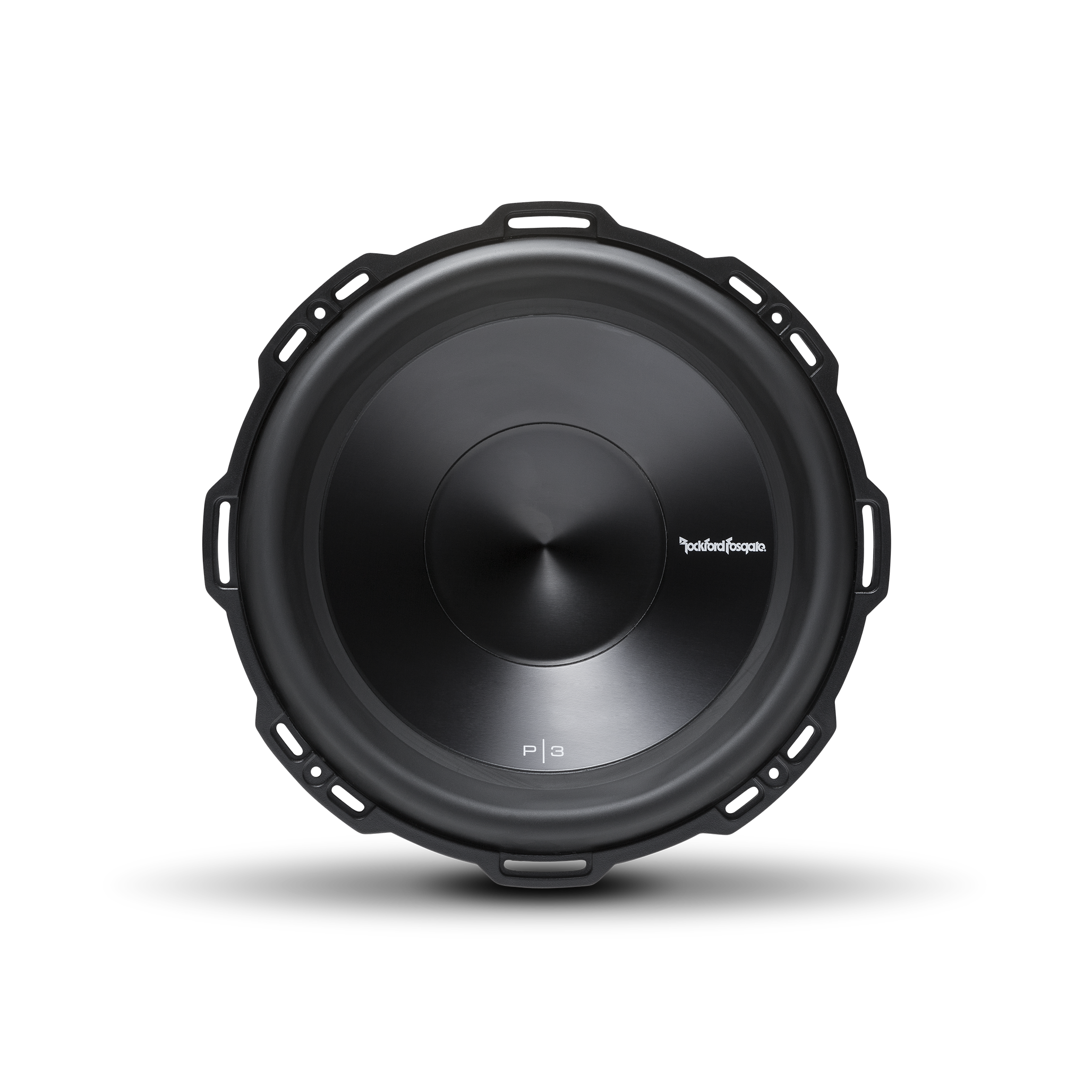

P3D2-12 – Rockford Fosgate – Punch 12″ P3 2-Ohm DVC Subwoofer

R7,445.00 inc. VAT

In stock

Description

The P3D2-12 is Rockford Fosgate’s best performing Punch series subwoofer for cars and trucks. The P3 12 inch subwoofers now feature anodized aluminum cones and dustcaps along with unique spider venting to keep the motor cooler than previous versions. These feature VAST technology to increase surface cone area up to 25% and a FlexFit basket for extreme car and truck installations. Best of all, a new hybrid stamp-cast basket offers the best of both worlds by providing super strength while minimizing weight and resonance.

  • Custom 10-AWG nickel plated push terminals
  • Dual linear spider with embedded 16 AWG tinsel leads
  • Extended pole piece and bumped vented backplate
  • High-temp voice coil with spun-laced Nomex® re-inforcement collar
  • Anodized aluminum cone and dustcap
  • Protective PVC textured magnet cover
  • Diamond cut cast aluminum trim ring with optional grille
  • StampCast basket with integrated spider venting
  • 1 Year Warranty

Additional information

Weight 9.48 kg
Dimensions 37 × 37 × 24 cm
Brand

Product Type

Good, Better, Best

Power Rating

Size

Nominal Impedance

Subwoofer Depth

Overview

he P3D2-12 is Rockford Fosgate’s best performing Punch series subwoofer for cars and trucks. The P3 12 inch subwoofers now feature anodized aluminum cones and dustcaps along with unique spider venting to keep the motor cooler than previous versions. These feature VAST technology to increase surface cone area up to 25% and a FlexFit basket for extreme car and truck installations. Best of all, a new hybrid stamp-cast basket offers the best of both worlds by providing super strength while minimizing weight and resonance.



FEATURES AT A GLANCE

  • High-temp voice coil with spun-laced Nomex® re-inforcement collar
  • Dual linear spider with embedded 16 AWG tinsel leads
  • Custom 10-AWG nickel plated push terminals
  • Anodized aluminum cone and dustcap
  • Extended pole piece and bumped vented backplate
  • StampCast basket with integrated spider venting
  • Diamond cut cast aluminum trim ring with optional grille
  • Protective PVC textured magnet cover
  • 1 Year Warranty

Specification

Power Handling (Watts RMS)
600 Watts RMS
1200 Watts Max
Magnet Weight (oz)
96 oz. (2.73 kg.)
Voice Coil Diameter
2.5″ (65.5 mm)
Size
12″
Nominal Impedance
Dual 2-Ohm
Mounting Depth
6.66 in. (169.3 mm)
Woofer Displacement
0.106 cu. ft. (3.0 Liters)
Re (Ohms)
3.20
Speaker Connector
Dual 10 AWG compression
SPL (dB @ 1w/1m)
85
Fs (Hz)
26.5
Qts
0.49
Qes
0.53
Qms
6.70
Cutout Diameter
11.25 in. (285 mm)
CEA-2031 Compliant
CEA-2031 Guidelines
Le (mH)
4.25
Vas (Liters)
57.7
Xmax (mm)
15.2
Sd (cm2)
570
Subwoofer Type
Standard
Voice Coil Type
Dual Voice Coil
Sealed Box Volume (Vb)
1.02 cu. ft. (28.8 Liters)
Vented Box Volume (Vb)
1.79 cu. ft. (50.6 Liters)

Videos

Owners Manual

P3D2-12.pdf Owners Manual
