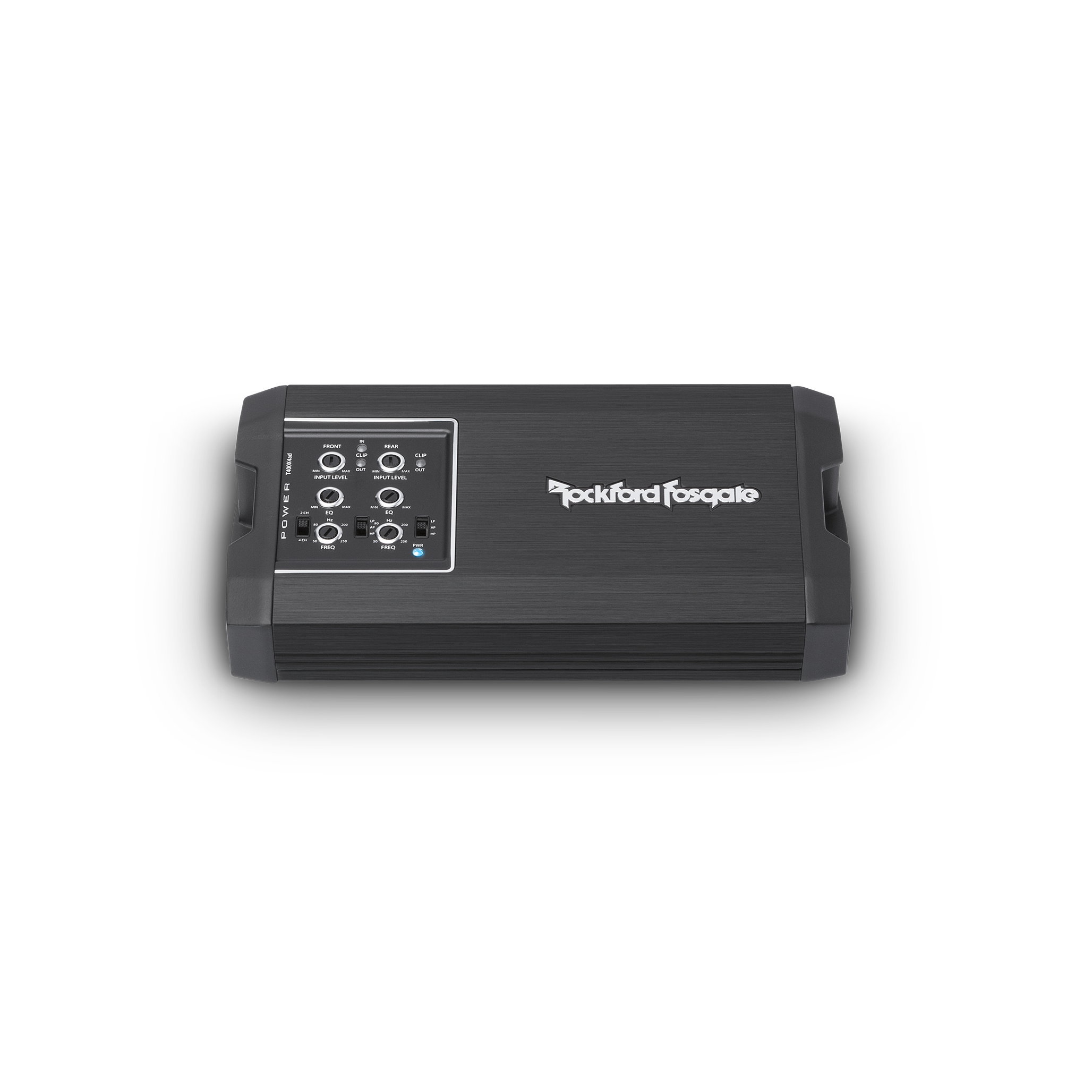

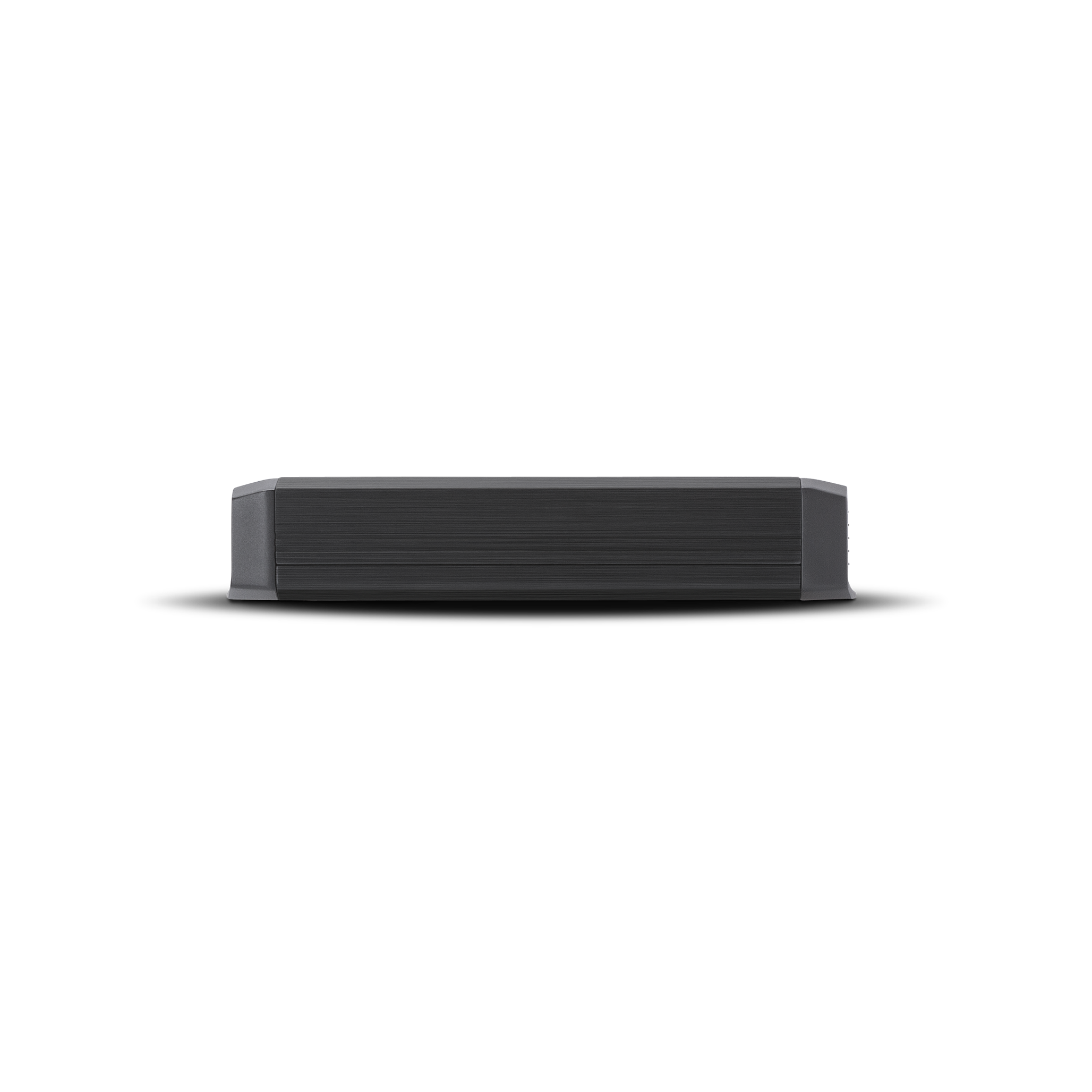

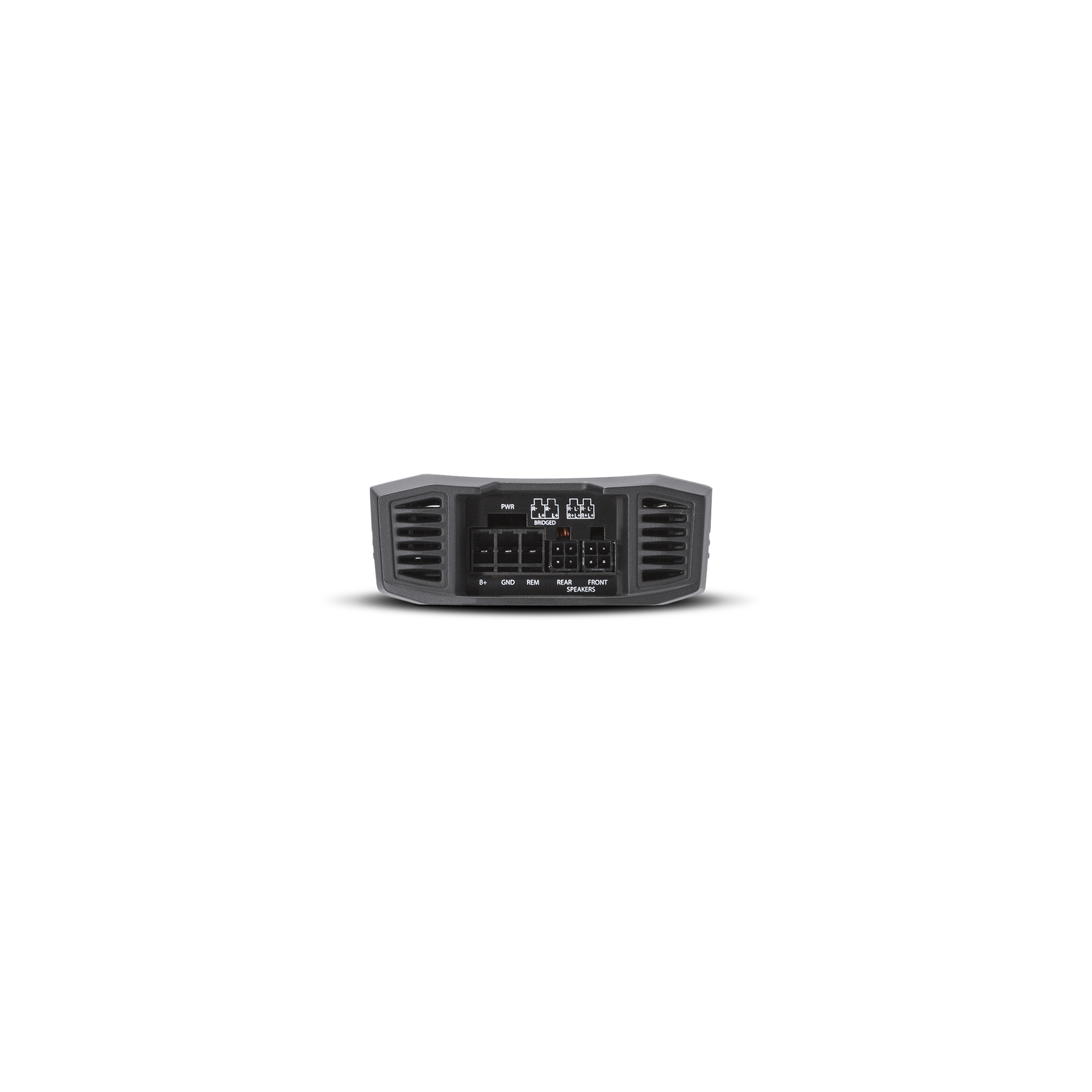

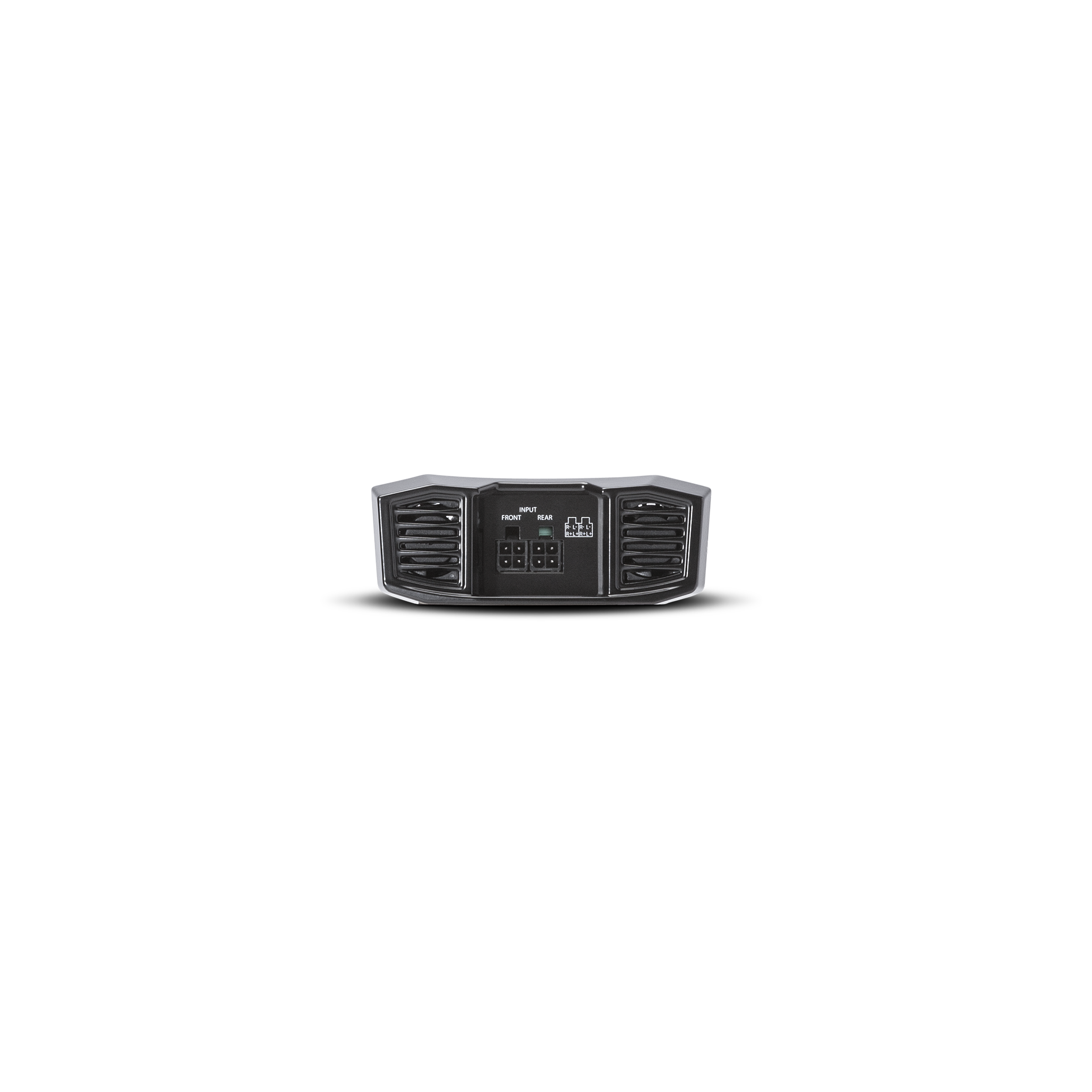

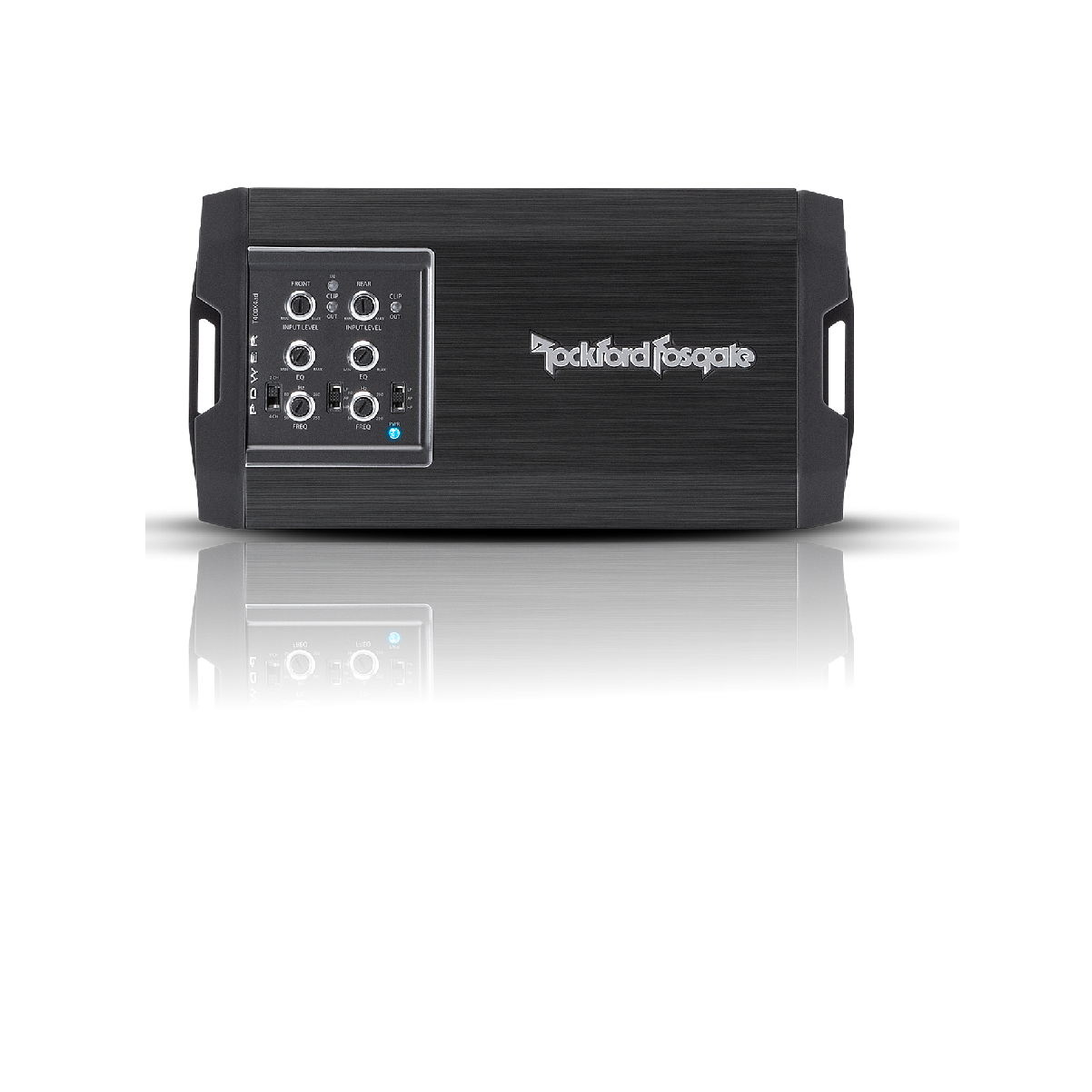

T400X4AD – Rockford Fosgate – Power 400 Watt Class-ad 4-Channel Amplifier

T400X4AD – Rockford Fosgate – Power 400 Watt Class-ad 4-Channel Amplifier

R10,400.00 inc. VAT

In stock

SKU: T400X4AD Categories: , , , Tag:

Description

The Power T400X4ad 400 Watt 4-channel ultra-compact, amplifier is built on Rockford Fosgate’s proprietary Class-AD technology, featuring Constant Power to produce the same output at both 4-Ohm and 2-Ohm impedances. Flexible vehicle integration enabled through low-level and high-level inputs with auto turn-on. Top mounted controls allow easy access to built-in crossover and C.L.E.A.N. input/output clip detection circuits. The 3-stage thermal lock extrusion with dual fan forced induction keeps everything cool while real-time thermal/protection schemes safeguard the amplifier.

  • Rockford Fosgate proprietary Class AD technology
  • 4/2 Ohm muti-impedance Constant Power
  • Differential inputs with high level auto turn-on feature
  • 8 AWG power/ground connector w/ upgraded RCA connectors
  • Remote-Out feature when using high level inputs
  • 2/4 channel input switch
  • 4 Ohm bridged capable
  • C.L.E.A.N. input/output clip detection and indicator LEDs
  • Top mounted controls
  • Dual fan cooled
  • Real time thermal sensing
  • Dual extruded heat sinks
  • Discrete surface mount technology
  • 2-Year Warranty

Additional information

Weight 1.31 kg
Dimensions 23 × 16 × 8 cm
Brand

Product Type

Good, Better, Best

Channels

Power Rating

Circuit Topology Class

Power Wire Gauge

Overview

The Power T400X4ad 400 Watt 4-channel ultra-compact, amplifier is built on Rockford Fosgate’s proprietary Class-AD technology, featuring Constant Power to produce the same output at both 4-Ohm and 2-Ohm impedances. Flexible vehicle integration enabled through low-level and high-level inputs with auto turn-on. Top mounted controls allow easy access to built-in crossover and C.L.E.A.N. input/output clip detection circuits. The 3-stage thermal lock extrusion with dual fan forced induction keeps everything cool while real-time thermal/protection schemes safeguard the amplifier.

FEATURES AT A GLANCE

  • Rockford Fosgate proprietary Class AD technology
  • 8 AWG power/ground connector w/ upgraded RCA connectors
  • 4/2 Ohm muti-impedance Constant Power
  • Remote-Out feature when using high level inputs
  • C.L.E.A.N. input/output clip detection and indicator LEDs
  • 4 Ohm bridged capable
  • 2/4 channel input switch
  • Top mounted controls
  • Differential inputs with high level auto turn-on feature
  • Dual extruded heat sinks
  • Dual fan cooled
  • 2-Year Warranty
  • Real time thermal sensing
  • Discrete surface mount technology

Specification

Cta-2006 Compliant
Number of Channels
4
Total Power
(Sum of Rated Power)
400 Watts
Rated Power
(RMS Continuous Power)
100 Watts x 4 @ 4-Ohm
100 Watts x 4 @ 2-Ohm
200 Watts x 2 @ 4-Ohm Bridged
Dynamic Power
(PVC/PowerCube®)
128 Watts x 4 @ 4-Ohm
152 Watts x 4 @ 2-Ohm
290 Watts x 2 @ 4-Ohm Bridged
Bridgeable
Yes
Front Terminals: Left (+) Right (-)
Rear Terminals: Left (+) Right (-)
Frequency Response
20Hz-20kHz +/-1dB
Input Sensitivity
150 mV to 12 V
Circuit Topology Class
Class AD
Efficiency (average)
>75%
Total Harmonic Distortion (THD+Noise)
4-Ohm: <1.0%
2-Ohm: <1.0%
Signal Input
Front High/Low Level Input: 4-Pin harness
Rear High/Low Level Input: 4-Pin harness
Signal Output
—
Tone Controls
Treble: 0 to +14 dB @ 12.5 kHz
Bass: 0 to +18 dB @ 45 Hz
Crossover Controls
High-Pass: 50Hz – 250Hz @ 12dB/Octave Butterworth
Low-Pass: 50Hz – 250Hz @ 12dB/Octave Butterworth
All-Pass: Yes
Remote Controls
—
Visual Indicators
Power: Blue LED
Protect: Red LED
Input Clip: Red LED3
Output Clip: Blue/Violet/Red LED1,2,3LED Color Legend:
1BLUE: <0.5% THD
2VIOLET: 1% THD
3RED: 10%+ THD

Power Wire Gauge
8 AWG
Power Input Connector
Detachable Compression Terminal
Replacement 1040-57997
Speaker Wire Gauge
16 AWG
Speaker Output Connector
Front: 4-Pin Harness
Rear: 4-Pin Harness
Cooling
Dual Fan Cooled
Heatsink
Extruded Aluminum
Operating Voltage
9 – 16 VDC
Recommended Fuse
(not included)
60 A
Average Current Draw (13.8V Music)
28 A
Max. Current Draw (13.8V Sinewave)
55 A
Suggested Alternator
75 A
Included In The Box
Dimensions (H x W x D)
1.6 x 4.3 x 8.3 (in.)
4.1 x 10.8 x 21.1 (cm)

Videos

Owners Manual

T400X4AD Owners Manual
