R2-200X2 – Rockford Fosgate – Prime 200 Watt 2-Channel Amplifier

R2-200X2 – Rockford Fosgate – Prime 200 Watt 2-Channel Amplifier

R5,269.99 inc. VAT

ETA 15/03/2021

In stock

SKU: R2-200X2 Categories: , , , Tag:

Description

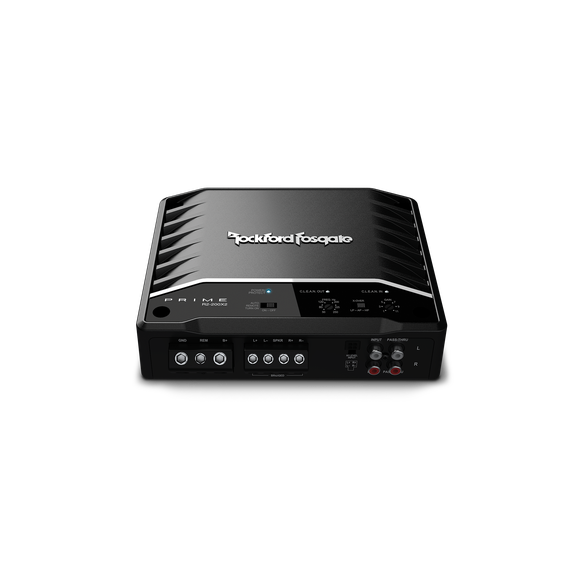

Primed for Performance, the R2-200X2 amplifier is a 200 watt, full-range class-D, capable of operating at 4Ω or 2Ω stereo, and 4Ω bridged/mono. This amplifier is extremely efficient because of its class D technology which reduces demand on the vehicles electrical system. The amp also features C.L.E.A.N. circuitry to help you adjust your gain settings, a P.O.W.E.R. Supply that generates more power as voltage increases, and integrated Punch EQ that corrects for acoustic deficiencies while delivering up to 3X the bass.

Additional information

Weight 2.13 kg
Dimensions 27 × 24 × 10 cm
Brand

Product Type

Good, Better, Best

Channels

Power Rating

Circuit Topology Class

Power Wire Gauge

Overview

The R2 models are developed for car audio fanatics that want a reliable amplifier – with all the power and performance you’ve come to expect from Rockford Fosgate – at an economical price. Rockford Fosgate amplifiers are renowned world-wide for being “under rated,” easily surpassing all specifications, and most importantly, generating more power than their ratings. These 3rd generation of Prime Series amplifiers are refined with the latest Rockford Fosgate technology for easy setup and configuration, making them perfect for use with factory audio or custom aftermarket systems.



FEATURES AT A GLANCE

  • Balanced Differential Inputs with RCA Pass Through Outputs
  • Variable Input Gain adjustment level
  • Auto-Sense bypass switch for vehicles with RAP (Retained Accessory Power)
  • High Level Input Capable
  • Features C.L.E.A.N. Set-up
  • Fully Adjustable 12 dB/octave High and Low pass Butterworth Crossovers
  • Short Circuit & Over Current Protection
  • Top Mounted Control Panel
  • Cast aluminum heat sink
  • CEA-2006 Compliant & CE Compliant
  • Full Range Class-D
  • 1 Year Warranty

Videos

Specification

Cta-2006 Compliant
Number of Channels
2
Total Power
(Sum of Rated Power)
200 Watts
Rated Power
(RMS Continuous Power)
50 Watts x 2 @ 4Ω
100 Watts x 2 @ 2Ω
200 Watts x 1 @ 4Ω Bridged/Mono
Dynamic Power
(PVC/PowerCube®)
60 Watts x 2 @ 4Ω
107 Watts x 2 @ 2Ω
215 Watts x 1 @ 4Ω Bridged/Mono
Bridgeable
Yes
Frequency Response
20 Hz – 20 kHz
Input Sensitivity
Low-Level: 150 mV – 4 V
High-Level: 450 mV – 12 V
Circuit Topology Class
Class-D
Efficiency (average)
Total Harmonic Distortion (THD+Noise)
4Ω: <1.0%
2Ω: <1.0%

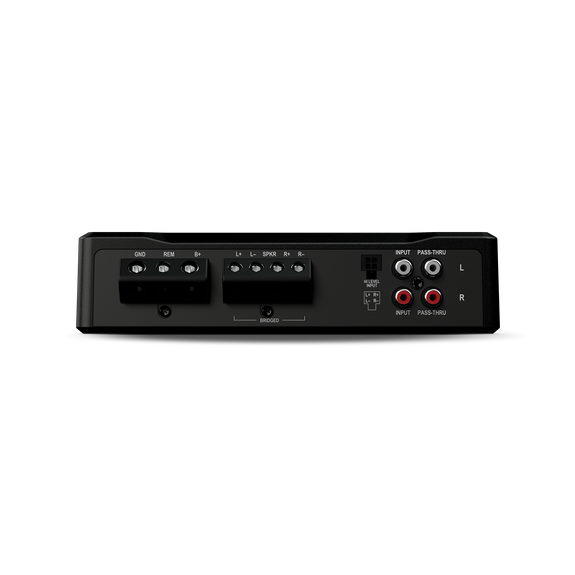

Signal Input
Low-Level: 2 RCA
High-Level: 4-Pin Molex
Signal Output
Low-Level: 2 RCA
(Pass-Thru active with RCA or Hi-Level input)
Tone Controls
No
Crossover Controls
High-Pass:
50 Hz – 250 Hz @ 12dB/Octave Butterworth
Low-Pass:
50 Hz – 250 Hz @ 12dB/Octave Butterworth
All-Pass: Yes
Remote Controls
No
Visual Indicators
Power/Protect
C.L.E.A.N. In
C.L.E.A.N. Out
Power Wire Gauge
4 AWG
Power Input Connector
Compression Terminal Block
Speaker Wire Gauge
8 AWG
Speaker Output Connector
Compression Terminal Block
Cooling
Convection
Heatsink
Operating Voltage
9 – 16 VDC
Recommended Fuse
(not included)
30 A
Average Current Draw (13.8V Music)
Max. Current Draw (13.8V Sinewave)
18 A
Suggested Alternator

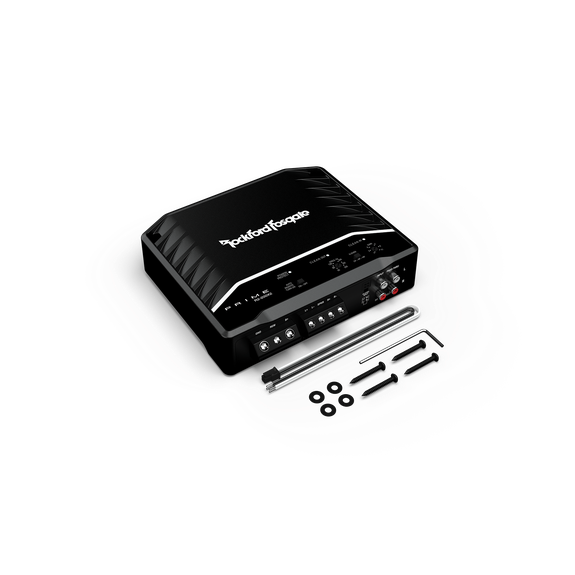

Included In The Box
Dimensions (H x W x D)
1.9″ x 6.8″ x 8.1″
(4.9 cm x 17.3 cm x 20.5 cm)

Owners Manual

R2-200X2
