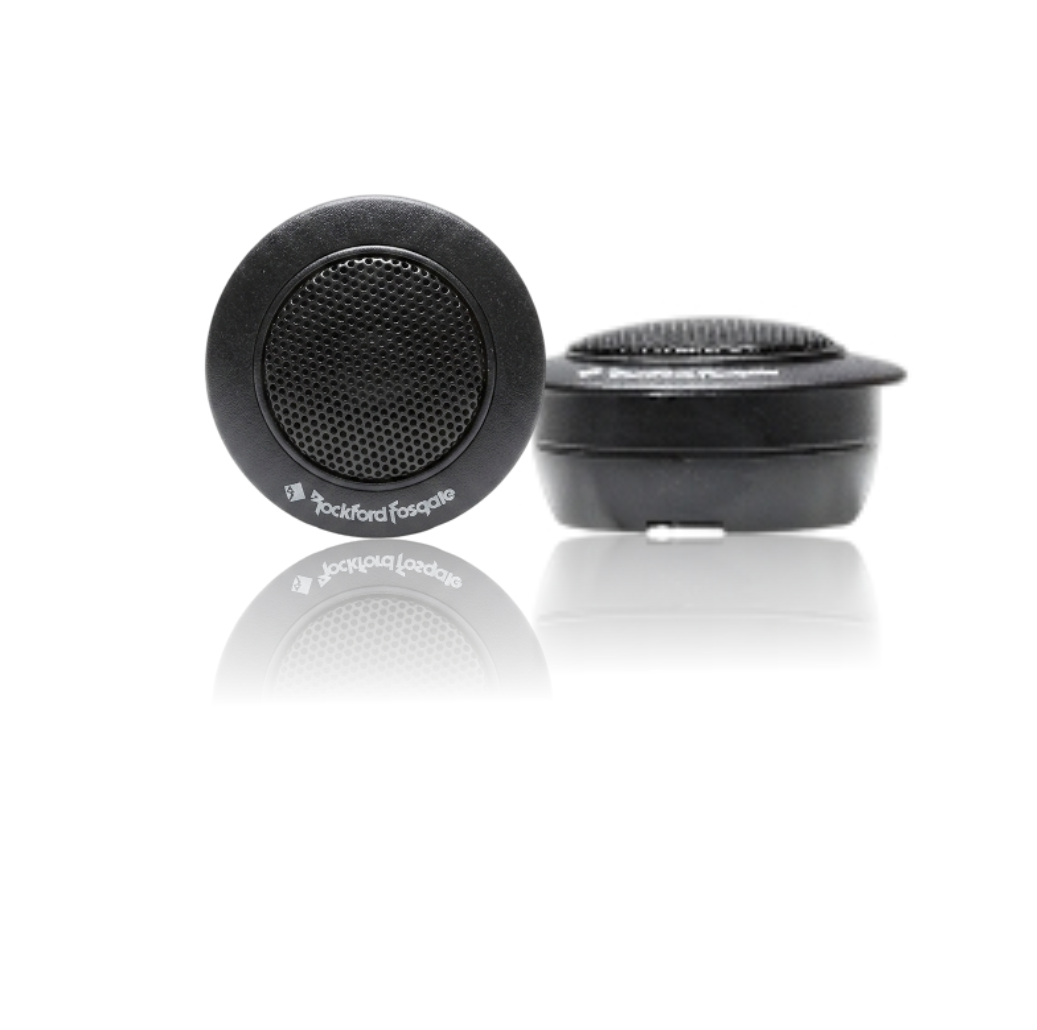

R1T-S – Rockford Fosgate – Prime 1″ Tweeter Kit + Crossover

R1,550.00 inc. VAT

In stock

Description

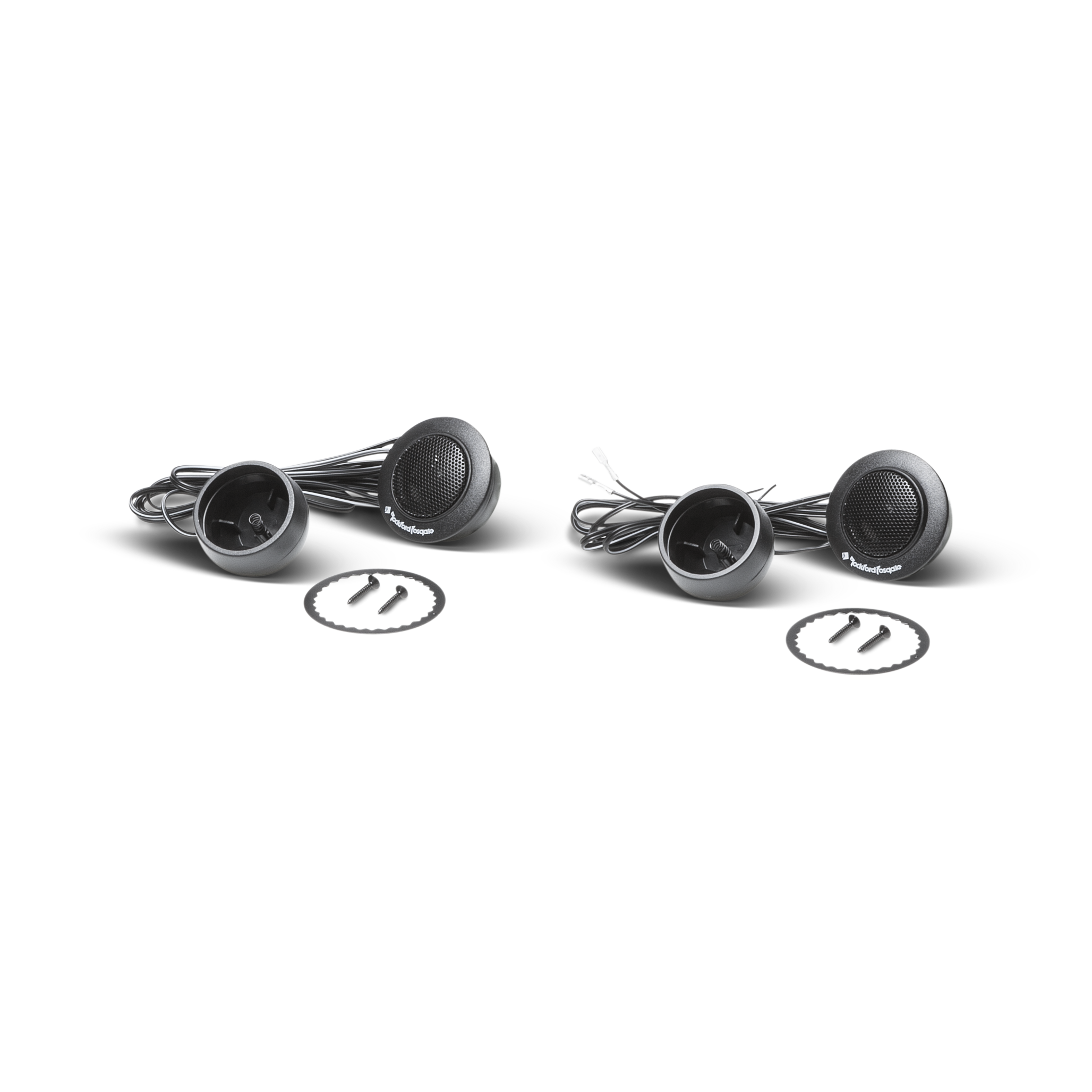

The R1T-S is a 1” tweeter kit rated at 40 watts RMS offering accurate reproduction of high frequencies, featuring a 0.5″ voice coil and Mylar® dome. Kit includes integrated high-pass crossovers and flush, surface and angle installation components.  Sold in pairs (2 each).

Additional information

Weight 0.31 kg
Dimensions 19 × 18 × 5 cm
Brand

Product Type

Good, Better, Best

Power Rating

Speaker Type

Size

Overview

The PRIME series Component System kits are a new generation of factory replacement speaker delivering authentic Rockford Fosgate sound. The R1T-S is a dedicated tweeter system featuring a lightweight Mylar® dome for high sensitivity and smooth extended frequency response. This low distortion material allows accurate reproduction of high frequencies for an open sound stage. Multiple tweeter mounting configurations allow flush, surface and angle configurations.

FEATURES AT A GLANCE

  • Multiple mounding configurations: flush-surface-angle
  • Sold in pairs (2 each)
  • 1/2″ (13mm) Mylar® balanced dome
  • 1 Year Warranty

Specification

CEA-2031 Compliant
CEA-2031 Guidelines
Speaker Type
Tweeter
Tweeter Mounting Depth
0.76″ (1.93cm) Flush Mount
1.06″ (2.68cm) Surface/Angle Mount
Tweeter Size
(Nominal Diameter)
1.0″ (25.4mm)
Midrange Mounting Depth
N/A
Midrange Size
(Nominal Diameter)
Midrange Mounting Diameter
Crossover
Tweeter High-Pass (HP): 4.5kHz @ 6dB/octave
Nominal Impedance (Ohms)
4-Ohm
Sensitivity
(dB @ 1W/1M)
72.5 dB
Power Handling (RMS)
40 Watts RMS
80 Watts Max
Frequency Response (Hz)
2.5kHz – 22kHz
Grille/Trim Ring Included
Yes
Shipping Weight
0.696 Lbs. (0.31 kg.)
Mounting Hardware
Yes

Owners Manual

R1T-S.pdf Owners Manual
