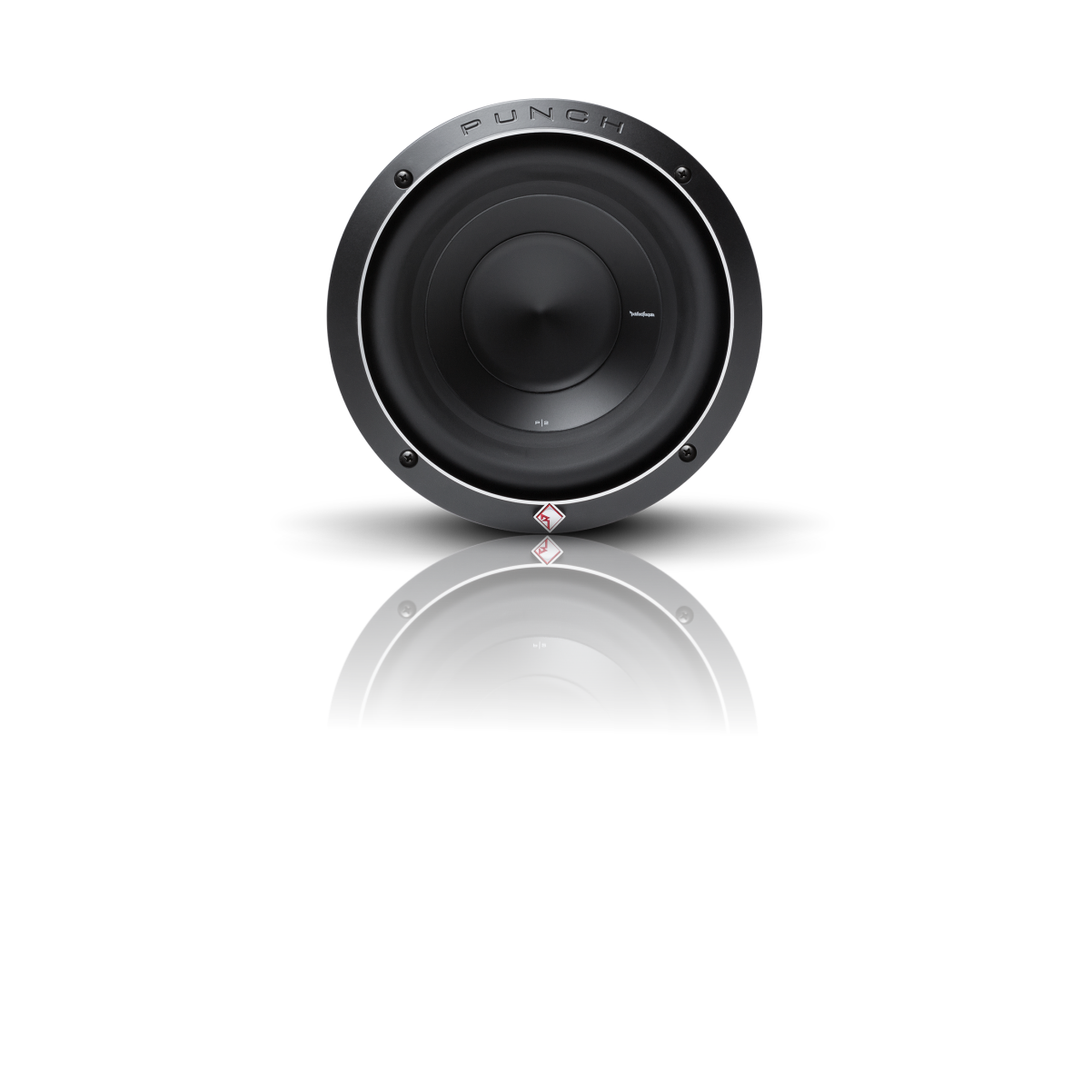

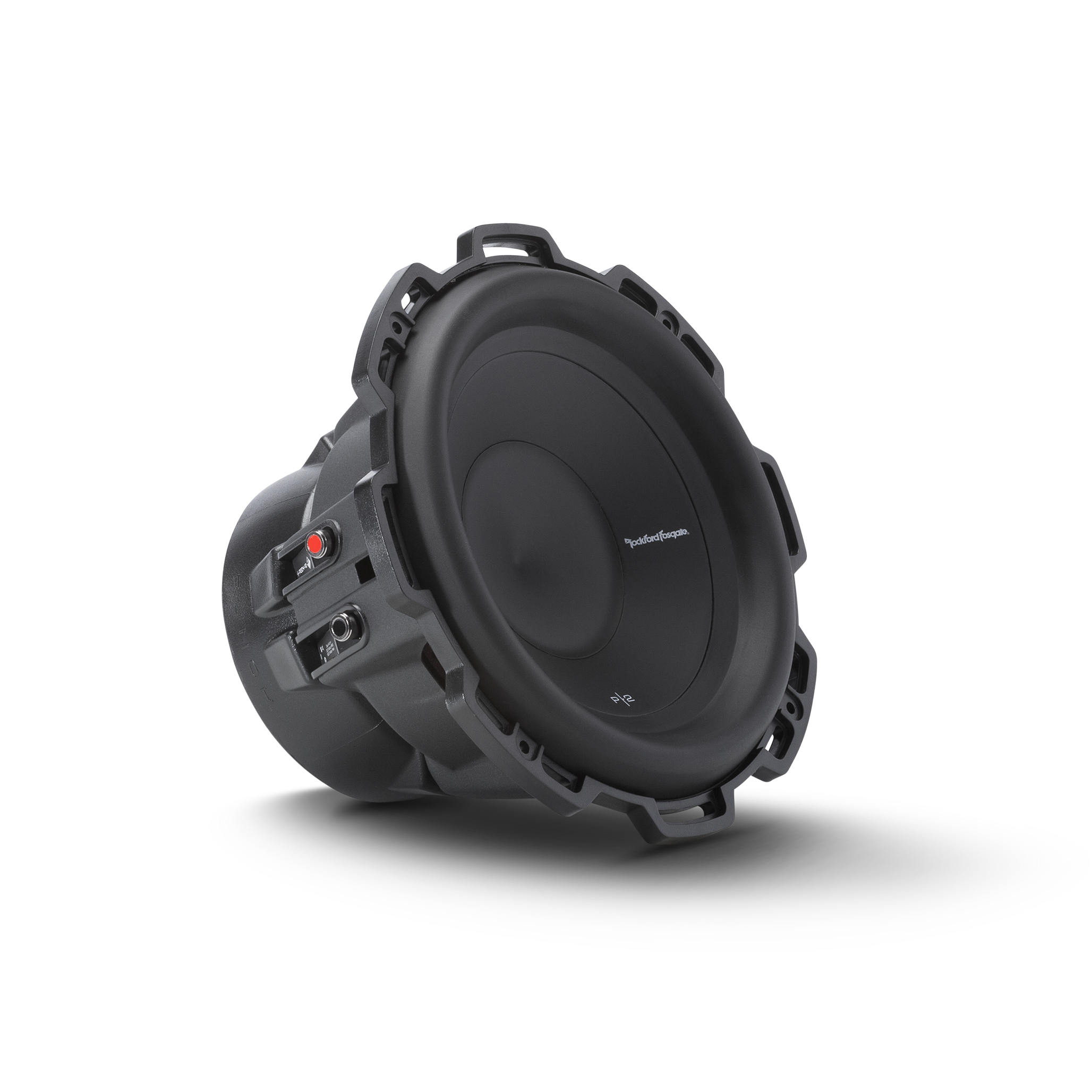

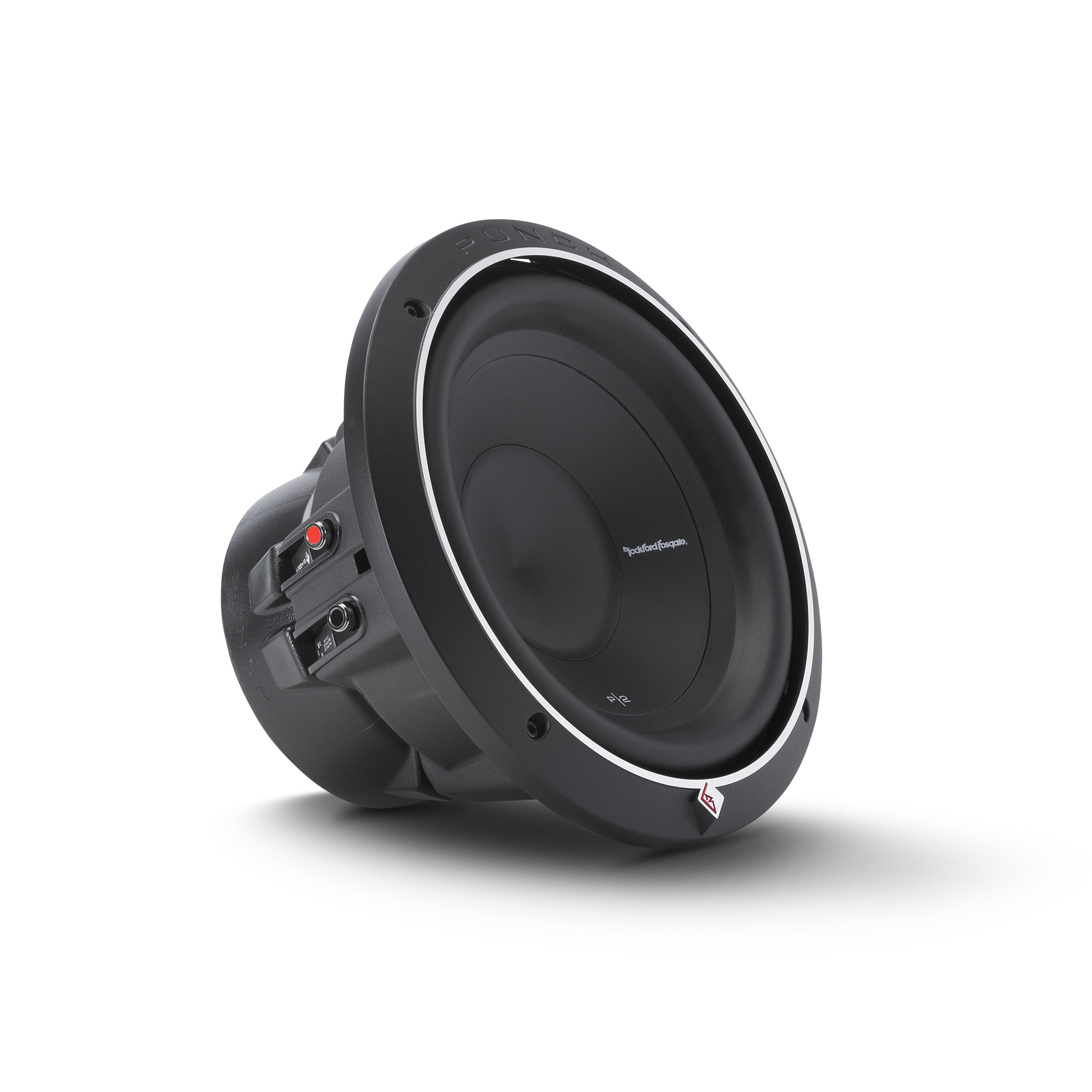

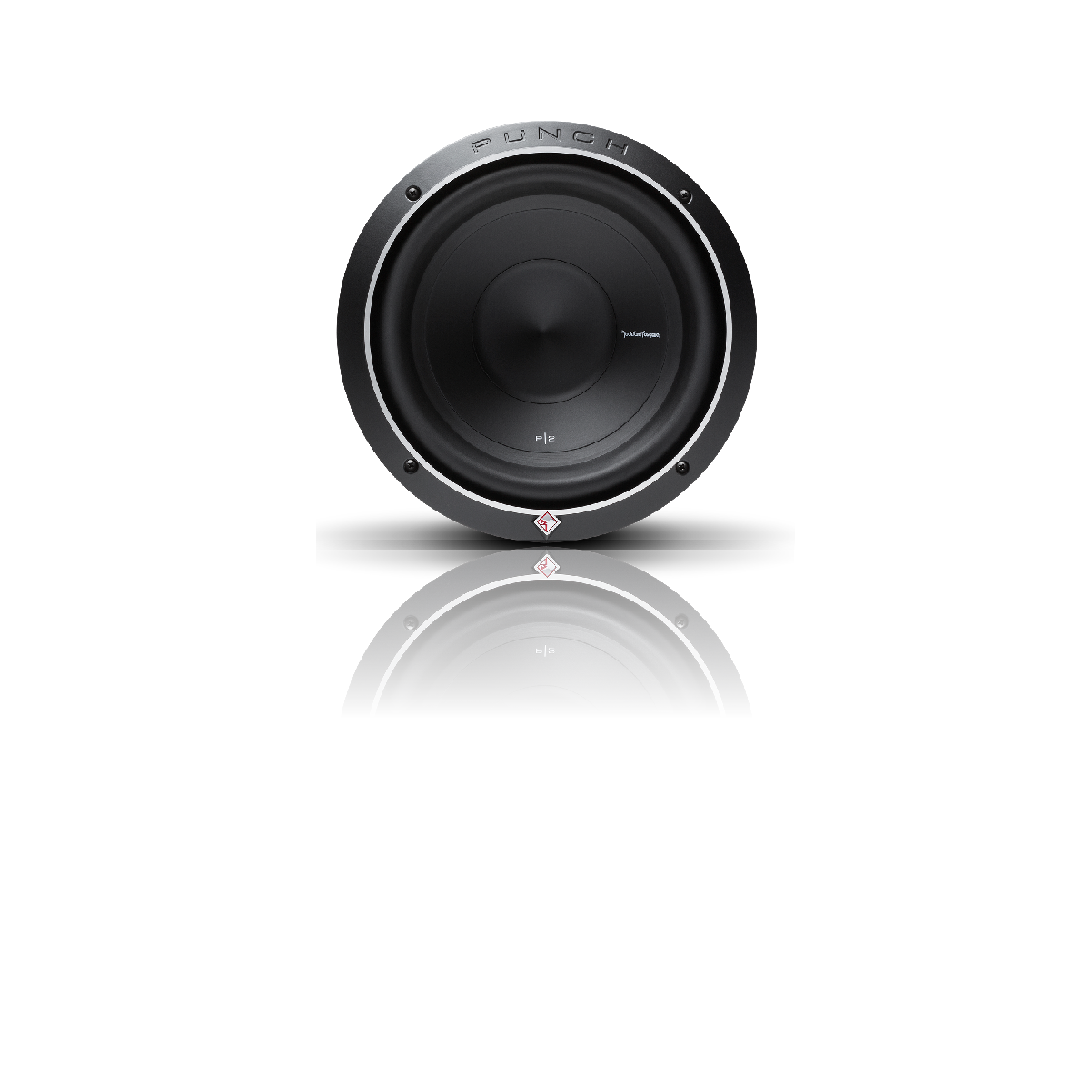

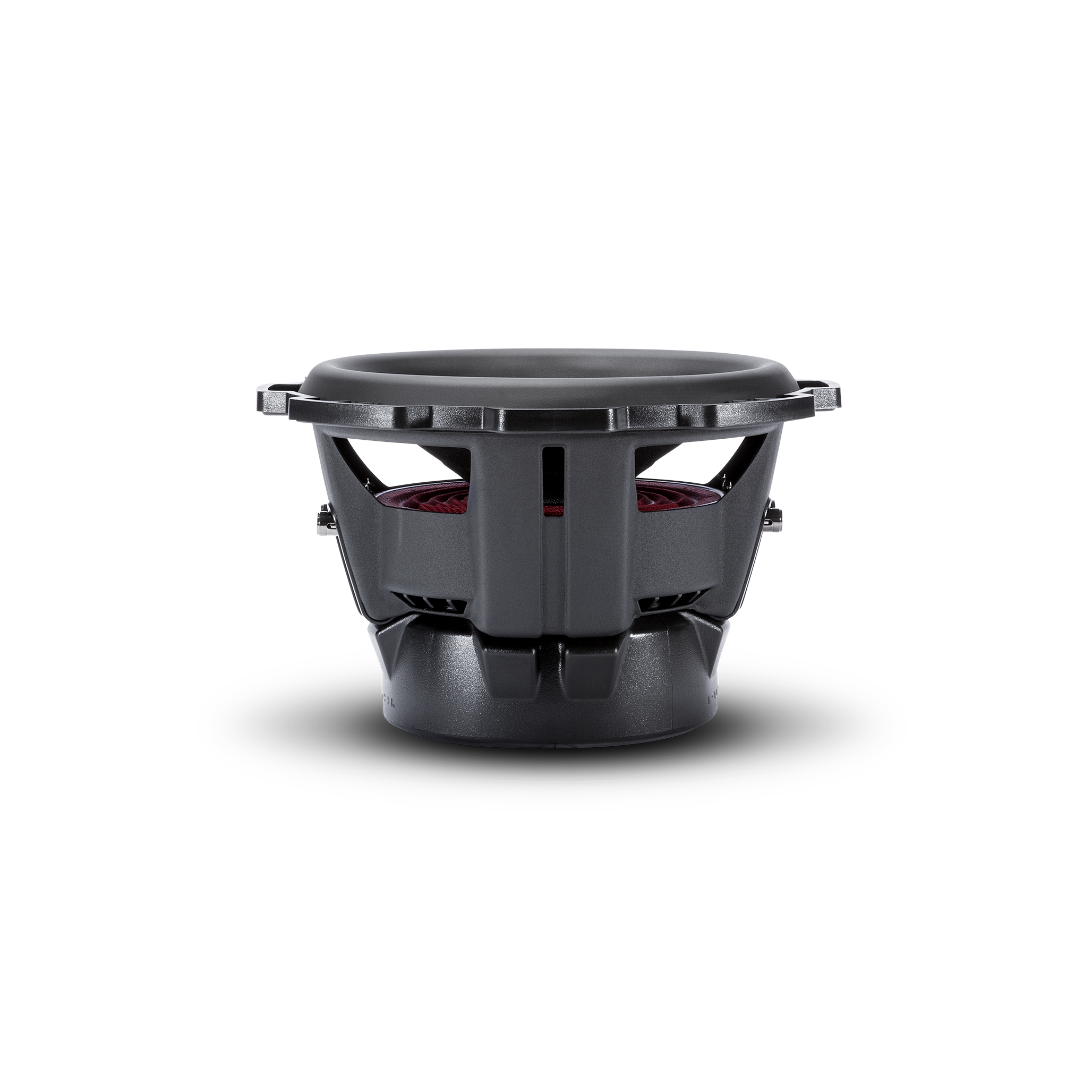

P2D2-10 – Rockford Fosgate – Punch 10″ P2 2-Ohm DVC Subwoofer
R4,180.00 inc. VAT
In stock
Description
Rockford Fosgate has always been known as “The PUNCH” and the P2 10″ Punch car subwoofer certainly continues with the tradition. Kevlar fiber reinforced paper cones deliver bass impact you can feel along with VAST technology to increase surface cone area up to 25%. The P2 10 inch subwoofers perform best in standard sealed and vented enclosures. Includes diamond cut cast aluminum trim ring. Optional grille insert available.
- Dual linear spider with embedded 16 AWG tinsel leads
- Custom 10-AWG nickel plated push terminals
- Extended pole piece and bumped vented backplate
- High-temp voice coil with spun-laced Nomex® re-inforcement collar
- Protective PVC textured magnet cover
- Kevlar fiber reinforced paper cone
- StampCast basket with integrated spider venting
- Diamond cut cast aluminum trim ring with optional grille
- 1 Year Warranty
Additional information
| Weight | 6.16 kg |
|---|---|
| Dimensions | 31 × 31 × 22 cm |
| Product Type | |
| Good, Better, Best | |
| Power Rating | |
| Size | |
| Nominal Impedance | |
| Subwoofer Depth |
Overview
Rockford Fosgate has always been known as “The PUNCH” and the P2 10″ Punch car subwoofer certainly continues with the tradition. Kevlar fiber reinforced paper cones deliver bass impact you can feel along with VAST technology to increase surface cone area up to 25%. The P2 10 inch subwoofers perform best in standard sealed and vented enclosures. Includes diamond cut cast aluminum trim ring. Optional grille insert available.
FEATURES AT A GLANCE
- High-temp voice coil with spun-laced Nomex® re-inforcement collar
- Dual linear spider with embedded 16 AWG tinsel leads
- Extended pole piece and bumped vented backplate
- Protective PVC textured magnet cover
- Custom 10-AWG nickel plated push terminals
- StampCast basket with integrated spider venting
- Diamond cut cast aluminum trim ring with optional grille
- Kevlar fiber reinforced paper cone
- 1 Year Warranty
Specification
Power Handling (Watts RMS)
300 Watts RMS
600 Watts Max
600 Watts Max
Size
10″
Nominal Impedance
Dual 2-Ohm
Mounting Depth
5.92 in. (150.4 mm)
Voice Coil Diameter
2.25″ (57.15 mm)
SPL (dB @ 1w/1m)
84
Qms
7.00
Vas (Liters)
35.4
Qes
0.54
Woofer Displacement
0.060 cu. ft. (1.7 Liters)
Le (mH)
3.32
Xmax (mm)
11
Magnet Weight (oz)
66.4 oz. (1.88 kg.)
Fs (Hz)
29
Shipping Weight
13.6 Lbs. (6.16 kg)
Speaker Connector
Dual 10 AWG compression
Qts
0.50
Re (Ohms)
3.20
Cutout Diameter
9.13 in. (232 mm)
CEA-2031 Compliant
Sd (cm2)
360
Subwoofer Type
Standard
Voice Coil Type
Dual Voice Coil
Sealed Box Volume (Vb)
0.59 cu. ft. (16.7 Liters)
Vented Box Volume (Vb)
1.4 cu. ft. (39.6 Liters)
