TMS57 – Rockford Fosgate – Power 5″x7″ Harley-Davidson® Replacement Bag Lid Speakers

R16,000.00 inc. VAT

In stock

SKU: TMS57 Categories: , , Tag:

Description

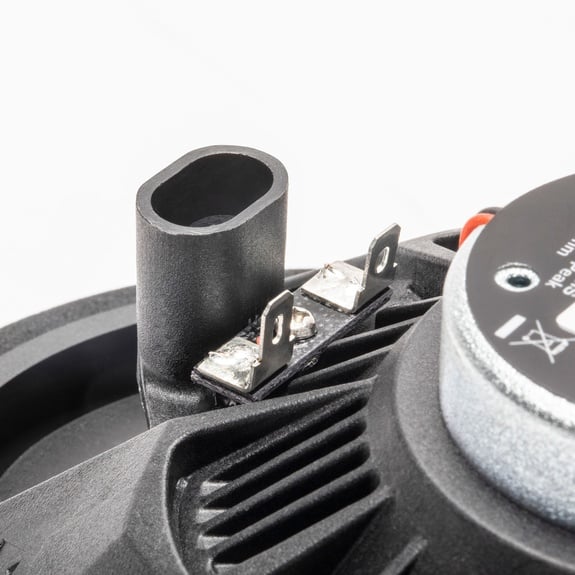

The TMS57 full range coaxial speaker is designed to replace existing 5″x7″ 2-way coaxial speakers in factory equipped Harley-Davidson® “Boom!™ Audio” and “Boom!™ Audio Stage-I” bag lids.  The TMS57 features a Neodymium motor structure driving a reinforced polypropylene cone with Santoprene surround. Highs are produced by an ultra-efficient 25mm dome tweeter with integrated phase plug and is made water/weather resistant with the addition of a Santoprene front isolation spider connecting between the tweeter housing and cone assembly. The speaker features two types of connectors, a standard set of terminals for 2013 and older generation motorcycles, and a new Deutsch style connector for 2014 and newer.

Compatibility Chart: Please review below tab for fitment before purchasing.

Additional information

Weight 5 kg
Dimensions 56 × 51 × 15 cm
Brand

Product Type

Features

FEATURES AT A GLANCE

  • 2-Year Warranty
  • Factory H-D® connector for plug-n-play operation
  • Element Ready design that is weather and water resistant
  • Carbon Fiber Reinforced Polypropylene Cone
  • Santoprene VAST Surround
  • Co‐Molded Cone and Surround
  • Poly‐Cotton Spider
  • Santoprene Front Isolation Spider
  • High Power 35mm Voice Coil
  • Ultra‐High Temperature Glass Reinforced Polymer Frame
  • Integrated Spade Terminals
  • Integrated 6dB Crossover with High Power Polyester Capacitor
  • Ultra-Efficient 25mm Proprietary Film Dome Tweeter
  • Neodymium Tweeter with Integrated Phase Plug and ASA Grill
  • Low Profile Coaxial Tweeter Design
  • Discreet (Hidden) Tweeter Wire
  • Includes Self-Adhesive Aluminum Diamond-R Badges
  • Ultra‐Efficient Neodymium Dual Magnet Motor Structure

Specifications

Sensitivity
89 dB (1w/1m)
92 dB (2.8V @ 1m)
Impedance
4Ω
CEA-2031
CEA-2013 Guidelines
Speaker Type
2-Way
Midrange Size
(Nominal Diameter)
5″ x 7″
Midrange Mounting Depth
2.2″ (55 mm)
Frequency Response
61 Hz – 20 kHz
Power Handling
100 Watts RMS
Grille/Trim Ring Included
No
Mounting Hardware
Yes
Included In The Box
(2) TMS57
(2) Aluminum Diamond-R Badges
Shipping Weight
2.95 Lbs. (1.34 Kg)

Compatibility

YEAR MAKE MODEL OPTION
2014 – Current Harley-Davidson® Electra Glide Boom!™ Audio Stage-I Saddlebag Speaker
2014 – Current Harley-Davidson® Ultra Limited Boom!™ Audio Stage-I Saddlebag Speaker
2014 – Current Harley-Davidson® Street Glide Boom!™ Audio Stage-I Saddlebag Speaker
2014 – Current Harley-Davidson® Road Glide Boom!™ Audio Stage-I Saddlebag Speaker
2006 – 2013 Harley-Davidson® Road King Boom!™ Audio Saddlebag Speaker
2006 – 2013 Harley-Davidson® Electra Glide Boom!™ Audio Saddlebag Speaker
2006 – 2013 Harley-Davidson® Street Glide Boom!™ Audio Saddlebag Speaker
2006 – 2013 Harley-Davidson® Road Glide Boom!™ Audio Saddlebag Speaker

* NOTE: This is NOT compatible with Boom!™ Audio Stage-II systems.

Owner's Manual

1230-62234-01-c_tms57_tms69-man
