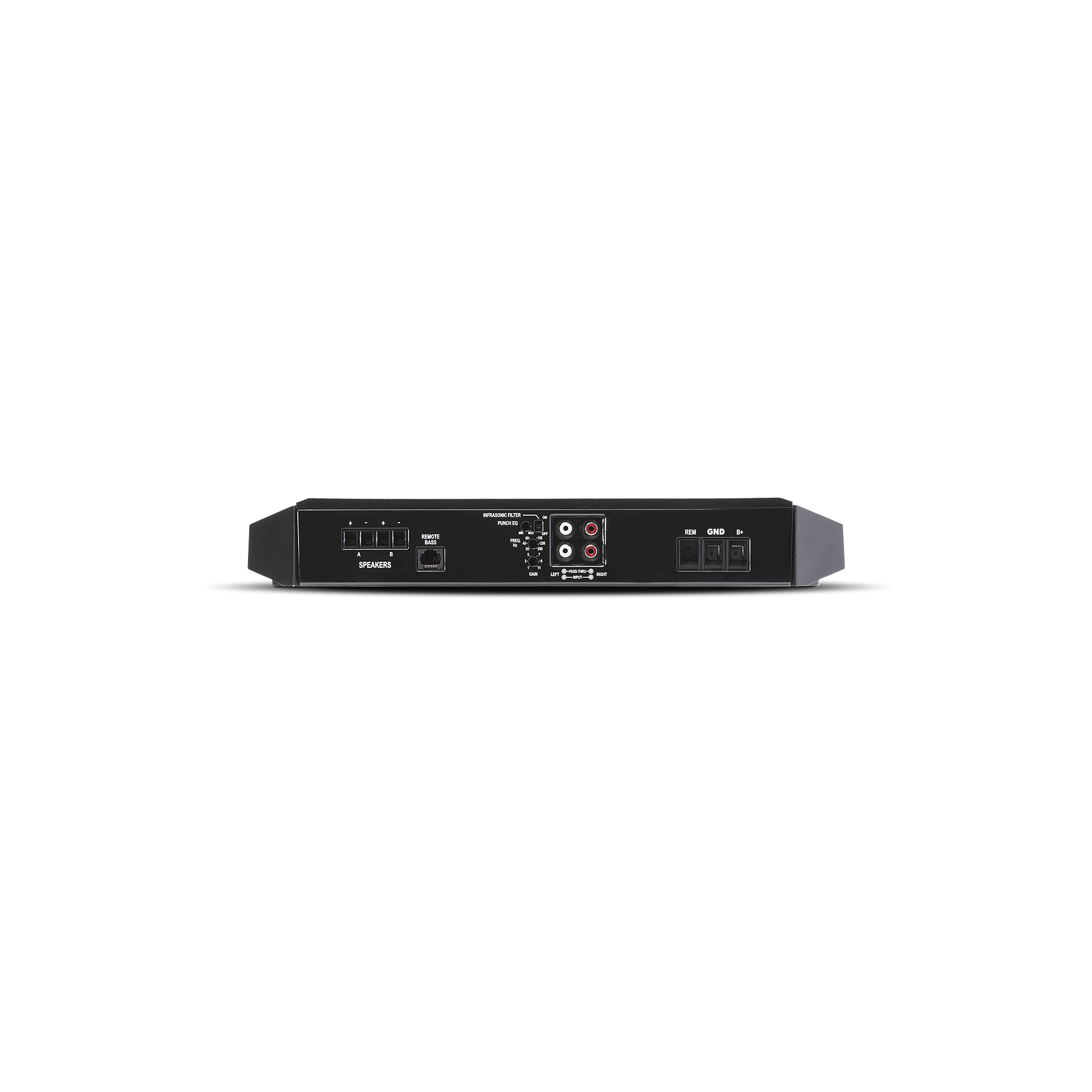

T1500-1BDCP – Rockford Fosgate – Power 1,500 Watt Class-bd Constant Power Amplifier

T1500-1BDCP – Rockford Fosgate – Power 1,500 Watt Class-bd Constant Power Amplifier

R19,995.00 inc. VAT

In stock

SKU: T1500-1BDCP Categories: , , , Tag:

Description

The new Constant Power amplifiers are the most powerful amplifiers on the market PERIOD! The T1500-1bdCP is an amplifier for subwoofers based on the legendary T1500-1bd amplifier design with a proprietary “Constant Power” configuration delivering up to 25% more power (Watts) across all impedance loads. The listening experience is cleaner, louder and more impressive than ever before. At 1,500 watts, this monster will run any demo vehicle competing in Sound Pressure Level.

  • 24dB/octave crossover
  • MOSFET power supply
  • MOSFET output stage
  • 4 Gauge power/ground connectors
  • Audiophile grade speaker connections
  • RCA pass-thru outputs
  • Infrasonic filter
  • 2-Year Warranty



Additional information

Weight 7 kg
Dimensions 38 × 21 × 6 cm
Brand

Product Type

Good, Better, Best

Channels

Power Rating

Circuit Topology Class

Power Wire Gauge

Overview

The new Constant Power amplifiers are the most powerful amplifiers on the market PERIOD! The T1500-1bdCP is an amplifier for subwoofers based on the legendary T1500-1bd amplifier design with a proprietary “Constant Power” configuration delivering up to 25% more power (Watts) across all impedance loads. The listening experience is cleaner, louder and more impressive than ever before. At 1,500 watts, this monster will run any demo vehicle competing in Sound Pressure Level.

Looking for more options? Check out all of our mobile power amps here.

FEATURES AT A GLANCE

  • MOSFET output stage
  • Audiophile grade speaker connections
  • 4 Gauge power/ground connectors
  • 24dB/octave crossover
  • Infrasonic filter
  • MOSFET power supply
  • RCA pass-thru outputs
  • 2-Year Warranty

Specification

Cta-2006 Compliant
Number of Channels
1
Total Power
(Sum of Rated Power)
1500 Watts RMS
Rated Power
(RMS Continuous Power)
1000 Watts x 1 @ 4-Ohm
1500 Watts x 1 @ 2-Ohm
1500 Watts x 1 @ 1-Ohm
Dynamic Power
(PVC/PowerCube®)
1045 Watts x 1 @ 4-Ohms
1549 Watts x 1 @ 2-Ohms
1715 Watts x 1 @ 1-Ohm
Bridgeable
No
Frequency Response
20Hz to 250Hz +/- 0.5dB
Input Sensitivity
150 mV to 4 V
Circuit Topology Class
Class BD
Efficiency (average)
86.2% @ 4-Ohm
74.6% @ 2-Ohm
63.0% @ 1-Ohm
Total Harmonic Distortion (THD+Noise)
4-Ohm: <1.0%
2-Ohm: <1.0%
1-Ohm: <1.0%
Signal Input
Low level: 1 RCA pair
Signal Output
Low Level: 1 RCA pair
Tone Controls
Bass: 0dB to +18dB @ 45Hz
Infrasonic Filter: -3dB @ 28Hz 12dB/Octave
Crossover Controls
Low-Pass (LP): 35-250Hz 24dB/octave Butterworth
Remote Controls
Optional Remote Punch Bass EQ
(overrides built-in Punch Bass EQ)
Visual Indicators
Power
Thermal
Protect
Power Wire Gauge
4 AWG
Power Input Connector
Block
Speaker Wire Gauge
8 AWG to 18 AWG
Speaker Output Connector
Screw terminal barrier strip
Cooling
Convection
Heatsink
Operating Voltage
9 – 16 VDC
Recommended Fuse
(not included)
200 A
Average Current Draw (13.8V Music)
100 A
Max. Current Draw (13.8V Sinewave)
200 A
Suggested Alternator
100 A
Included In The Box
Dimensions (H x W x D)
2.14 x 8.14 x 14.91 (in)
5.42 x 20.68 x 37.86 (cm)
