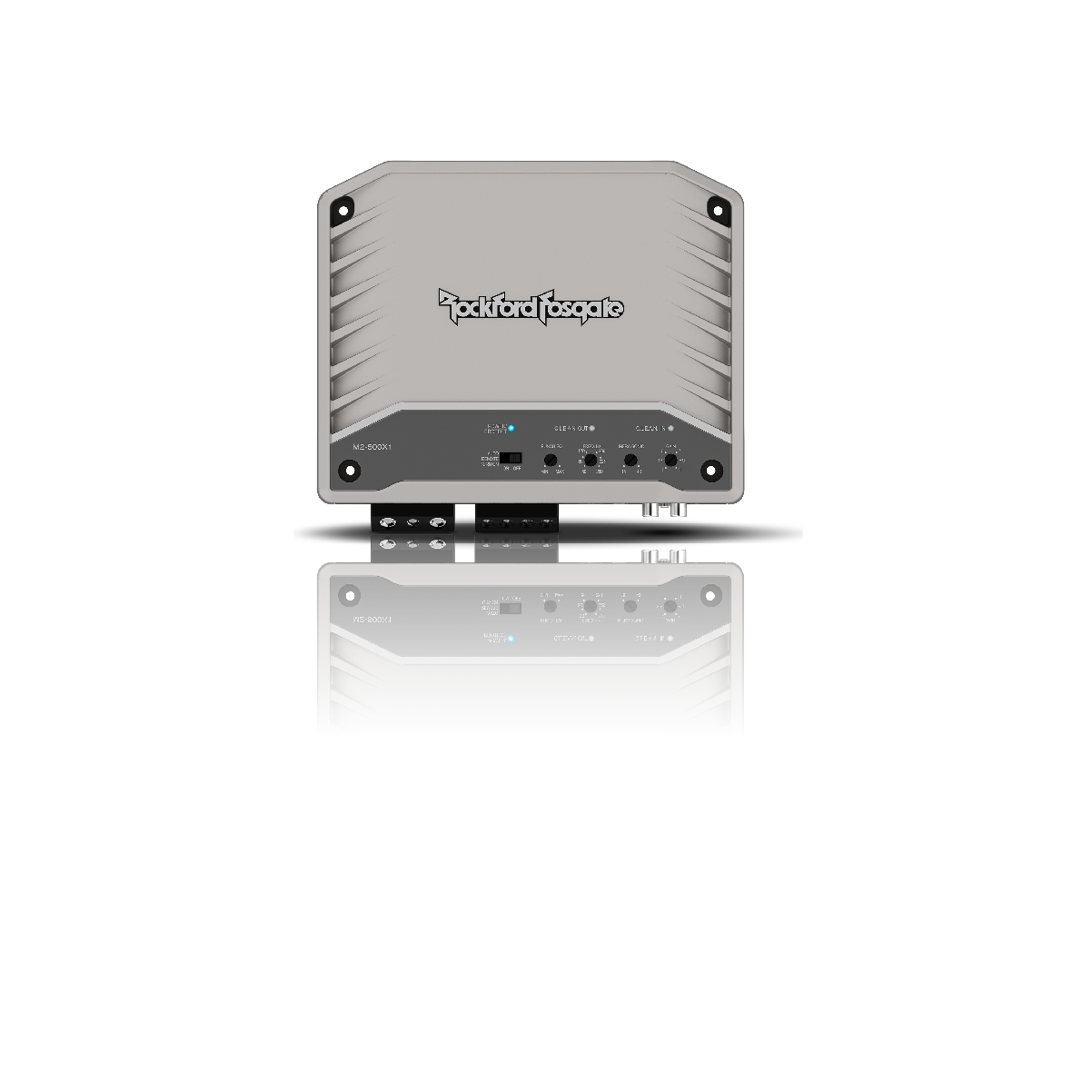

M-R2-500X1 – Rockford Fosgate – Prime 500 Watt Mono Coated Marine Amp

R5,734.75 inc. VAT

Limited Stock!

In stock

SKU: M-R2-500X1 Categories: , Tag:

Description

The M-R2-500X1 features UV resistant protection and special internal conformal coating that protect the electronics from water.

Primed for Performance, the R2-500X1 amplifier is a 500 watt, class-D, capable of operating at 4Ω or 2Ω mono. This amplifier is extremely efficient because of its class D technology which reduces demand on the vehicles electrical system. The amp also features C.L.E.A.N. circuitry to help you adjust your gain settings, a P.O.W.E.R. Supply that generates more power as voltage increases, and integrated Punch EQ that corrects for acoustic deficiencies while delivering up to 3X the bass. For subwoofers, a variable infrasonic filter and remote level control allows you to tune the bass for the desired level for the music.

Additional information

Weight 2.66 kg
Dimensions 21.5 × 17.3 × 4.9 cm
Brand

Product Type

Good, Better, Best

Channels

Power Rating

Circuit Topology Class

Power Wire Gauge

Overview

The R2 models were developed for car audio fanatics that want a reliable amplifier – with all the power and performance you’ve come to expect from Rockford Fosgate – at an economical price. Rockford Fosgate amplifiers are renowned world-wide for being “under rated,” easily surpassing all specifications, and most importantly, generating more power than their ratings. These 3rd generation of Prime Series amplifiers are refined with the latest Rockford Fosgate technology for easy setup and configuration, making them perfect for use with factory audio or custom aftermarket systems.

FEATURES AT A GLANCE
Variable Input Gain adjustment level
High Level Input Capable
Auto-Sense bypass switch for vehicles with RAP (Retained Accessory Power)
Balanced Differential Inputs with RCA Pass Through Outputs
Includes RLC Remote Level Control
Top Mounted Control Panel
Features C.L.E.A.N. Set-up
Variable Infrasonic Filter
Short Circuit & Over Current Protection
Cast aluminum heat sink
Continuously Variable On Board Punch EQ
Rollback Protection
CEA-2006 Compliant & CE Compliant
Class-D Topology
Fully Adjustable 12 dB/octave High and Low pass Butterworth Crossovers
1 Year Warranty

Specification

Cta-2006 Compliant
Number of Channels1
Total Power
(Sum of Rated Power)500 Watts
Rated Power
(RMS Continuous Power)300 Watts x 1 @ 4Ω
500 Watts x 1 @ 2Ω
Dynamic Power
(PVC/PowerCube®)350 Watts x 1 @ 4Ω
590 Watts x 1 @ 2Ω
BridgeableNo
Frequency Response20 Hz – 250 Hz
Input SensitivityLow-Level: 150 mV – 4 V
High-Level: 450 mV – 12 V
Circuit Topology ClassClass-D
Efficiency (average)
Total Harmonic Distortion (THD+Noise)4Ω: <1.0% 2Ω: <1.0% Signal InputLow-Level: 2 RCA High-Level: 4-Pin Molex Signal OutputLow-Level: 2 RCA (Pass-Thru active with RCA or Hi-Level input) Tone Controls0 to +18 dB @ 45 Hz Crossover ControlsLow-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth Infrasonic: 15 Hz - 40 Hz @ 12dB/Octave Butterworth Remote ControlsYes Visual IndicatorsPower/Protect C.L.E.A.N. In C.L.E.A.N. Out Power Wire Gauge4 AWG Power Input Connector Compression Terminal Block Speaker Wire Gauge8 AWG Speaker Output Connector Compression Terminal Block Cooling Convection Heatsink Operating Voltage9 - 16 VDC Recommended Fuse (not included)80 A Average Current Draw (13.8V Music) Max. Current Draw (13.8V Sinewave)52 A Suggested Alternator Included In The Box Dimensions (H x W x D)1.9" x 6.8" x 8.5" (4.9 cm x 17.3 cm x 21.5 cm)

Owners Manuals

Download Owners Manual
