PP4-T – Rockford Fosgate – Punch Pro 1.5″ 4-Ohm Tweeter

R2,800.00 inc. VAT

This is to be used with Crossover or active.

PP4-X – Rockford Fosgate – Punch Pro Crossover (Click here for link)

In stock

SKU: PP4-T Categories: , , , Tag:

Description

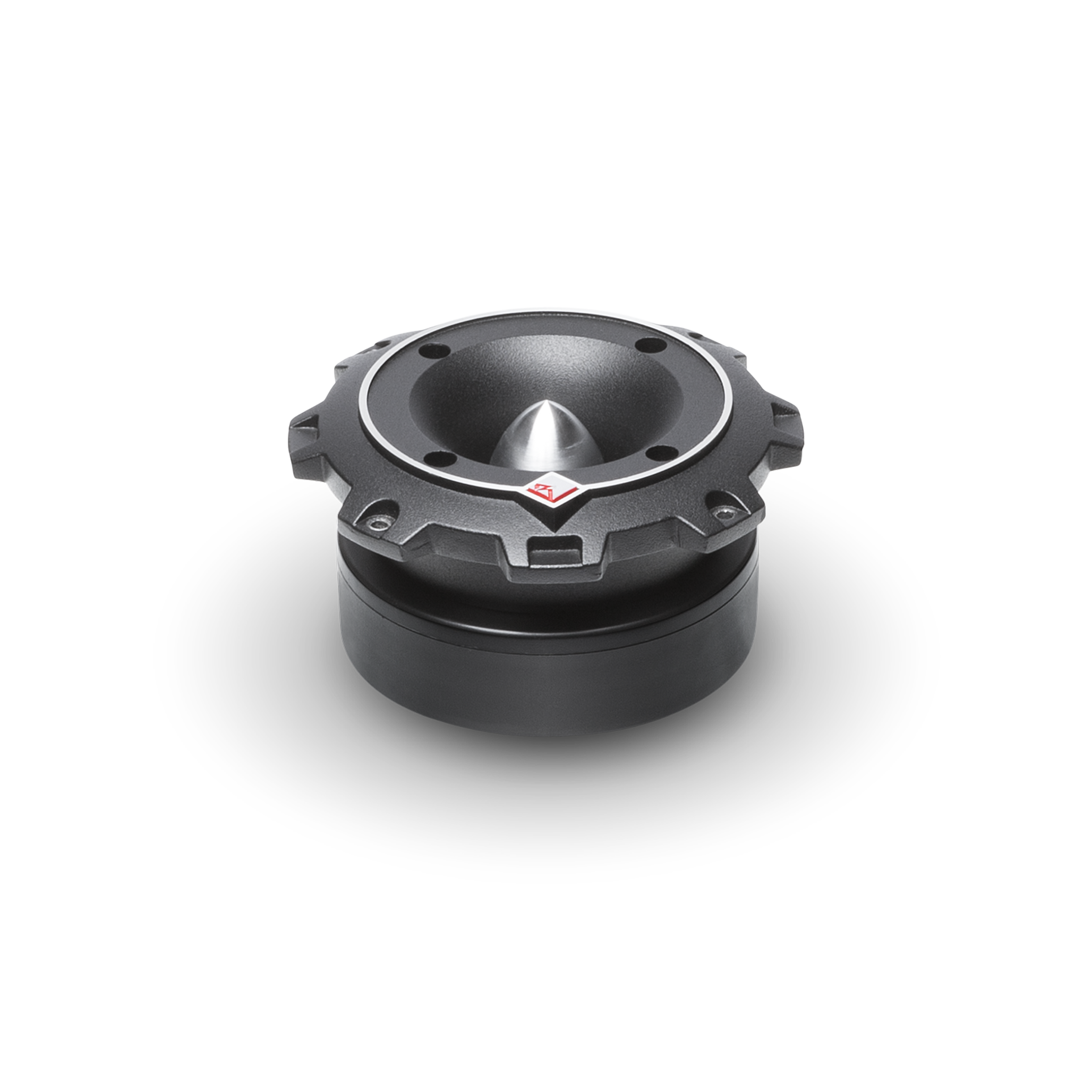

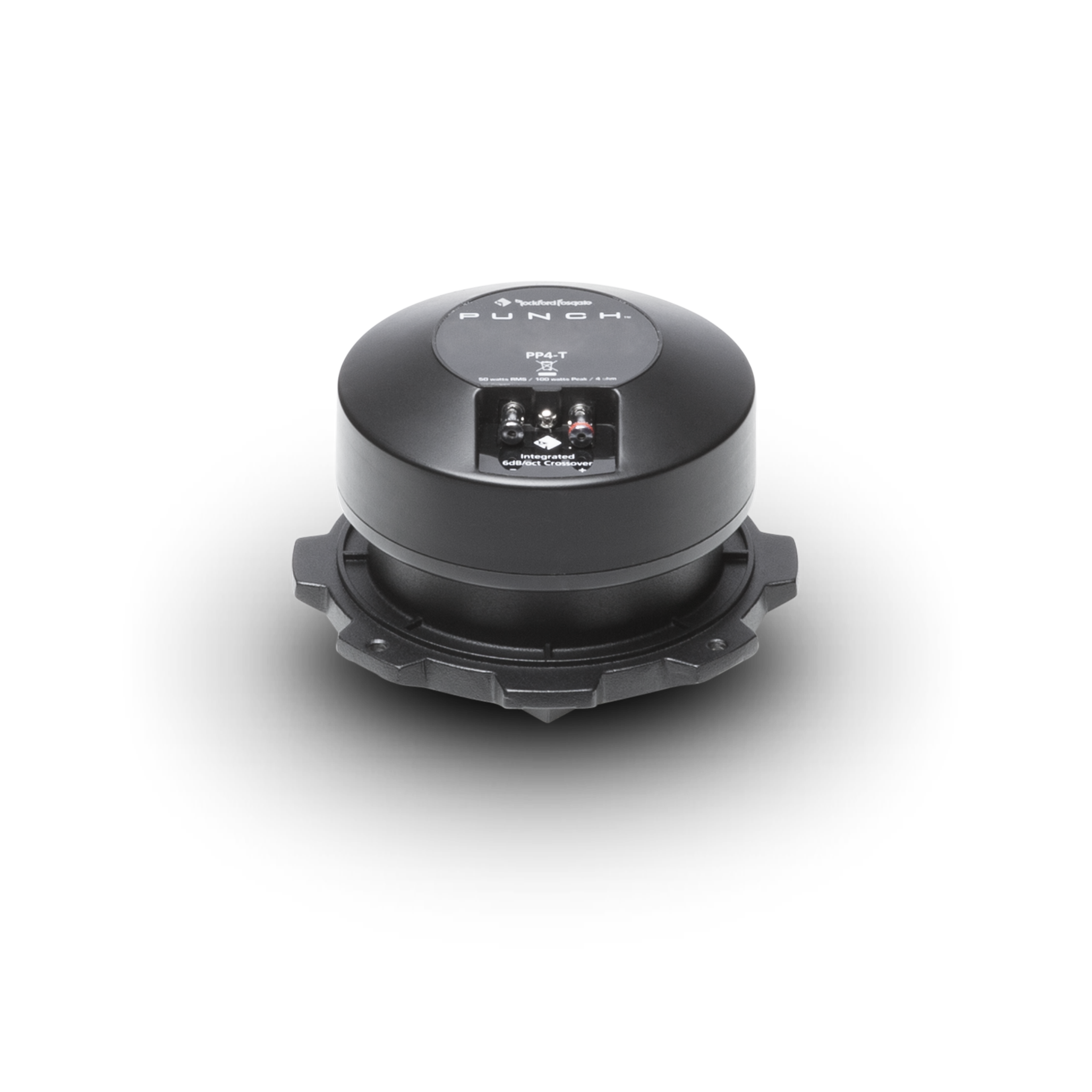

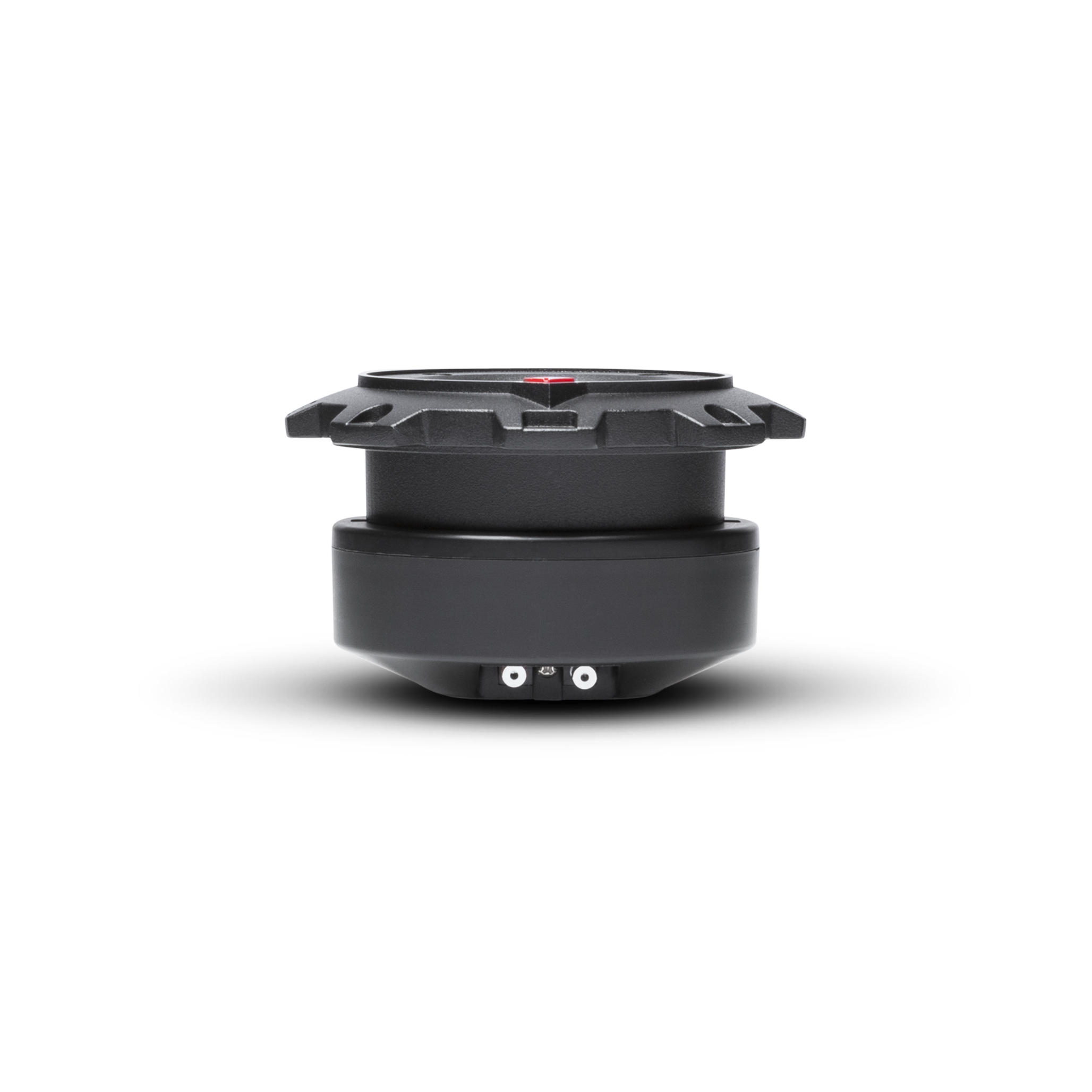

The PP4-T Punch Pro is a 1.5″ tweeter with integral 6dB high Pass crossover engineered for high SPL (Sound Pressure Level) conditions. The oversized motor structure and high power diaphragm, combined with a billet machined aluminum phase plug create the foundation for a highly sensitive speaker that can handle plenty of power. You’ll be proud, because these things are loud! Package includes mounting hardware.

  • Aluminum diaphragm
  • Billet stock machined aluminum phase plug
  • High Temp Kapton Former Voice Coil
  • Die Cast Aluminum Housing
  • All Metal Input Spring Terminal Connection

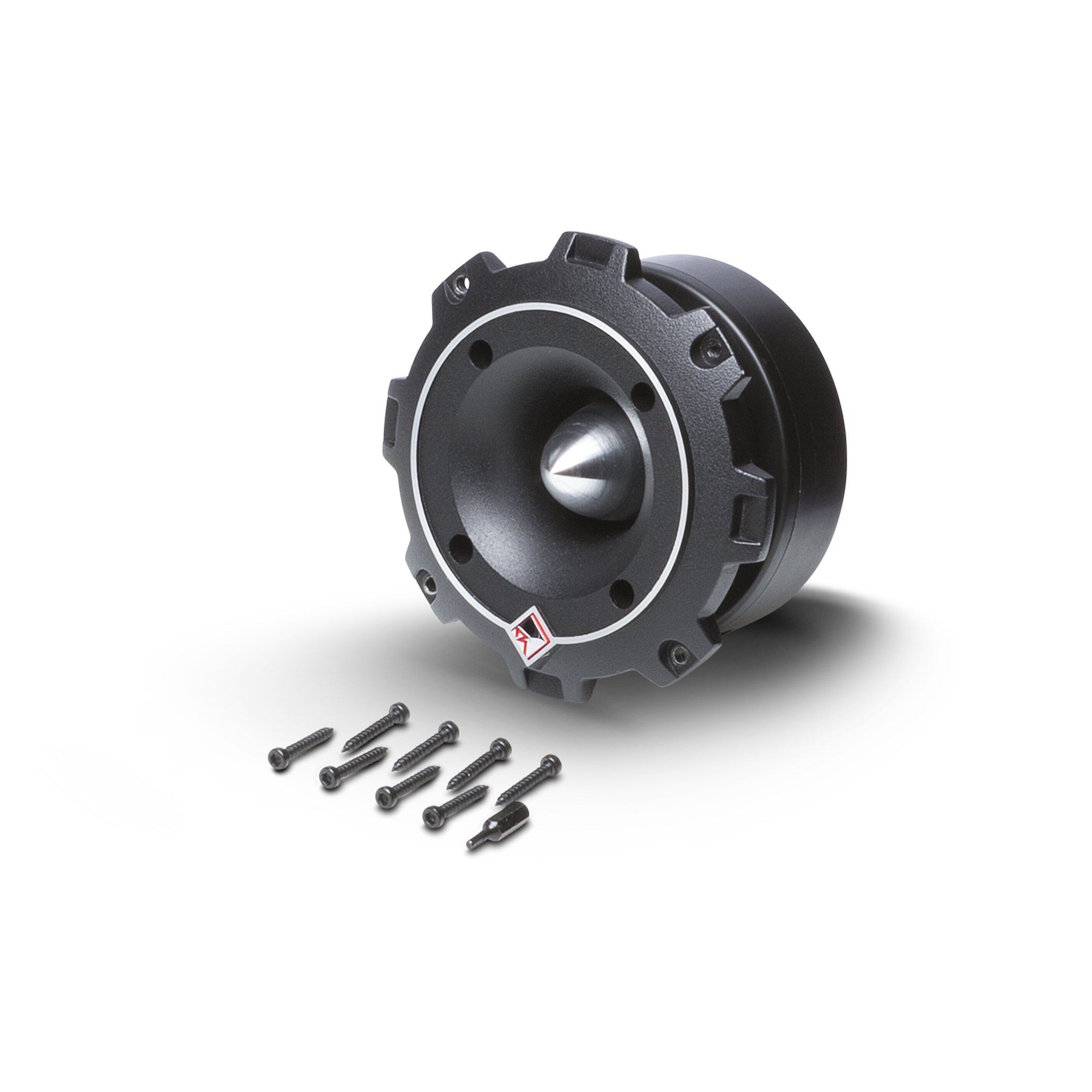

  • Mounting hardware included
  • Built-in 6dB/Octave crossover
  • Sold as individual units (not in pairs)
  • 1 Year Warranty

Additional information

Weight 1.83 kg
Dimensions 18 × 16 × 11 cm
Brand

Product Type

Good, Better, Best

Power Rating

Speaker Type

Size

Overview

The PP4-T Punch Pro is a 1.5″ tweeter with integral 6dB high Pass crossover engineered for high SPL (Sound Pressure Level) conditions. The oversized motor structure and high power diaphragm, combined with a billet machined aluminum phase plug create the foundation for a highly sensitive speaker that can handle plenty of power. You’ll be proud, because these things are loud! Package includes mounting hardware.

FEATURES AT A GLANCE

  • Aluminum diaphragm
  • High Temp Kapton Former Voice Coil
  • All Metal Input Spring Terminal Connection
  • Die Cast Aluminum Housing
  • Built-in 6dB/Octave crossover
  • Billet stock machined aluminum phase plug
  • Mounting hardware included
  • 1 Year Warranty
  • Sold individually (1 each)

Specification

CEA-2031 Compliant
CEA-2031 Guidelines
Voice Coil Diameter (in/mm)
1.475″ (37.5 mm)
Frequency Response (Hz)
4kHz – 20kHz
Midrange Mounting Depth
—
Tweeter Size
(Nominal Diameter)
1.5″
Tweeter Mounting Depth
2.59″ (65.8 mm)
Midrange Size
(Nominal Diameter)
—
Midrange Mounting Diameter
Speaker Type
Tweeter
Power Handling (RMS)
50 Watts RMS
100 Watts Max
Crossover
4.5kHz @ 6dB/Octave
Sensitivity
(dB @ 1W/1M)
105
Grille/Trim Ring Included
No
Tweeter Mounting Diameter
4.33″ (110 mm)
Mounting Hardware
Yes
Nominal Impedance (Ohms)
4-Ohm

Videos

Owner's Manuals

PP4-T.pdf Owners Manual
