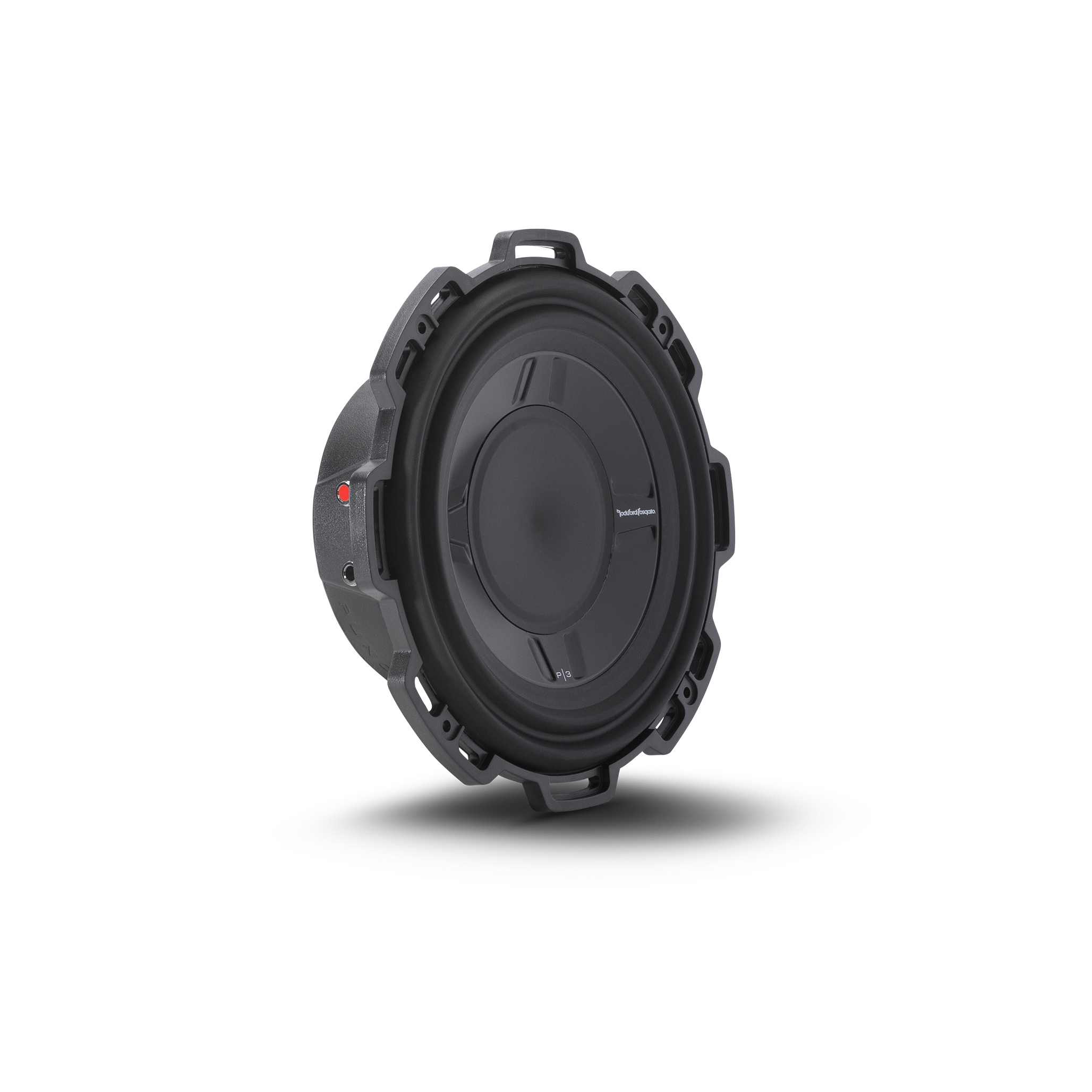

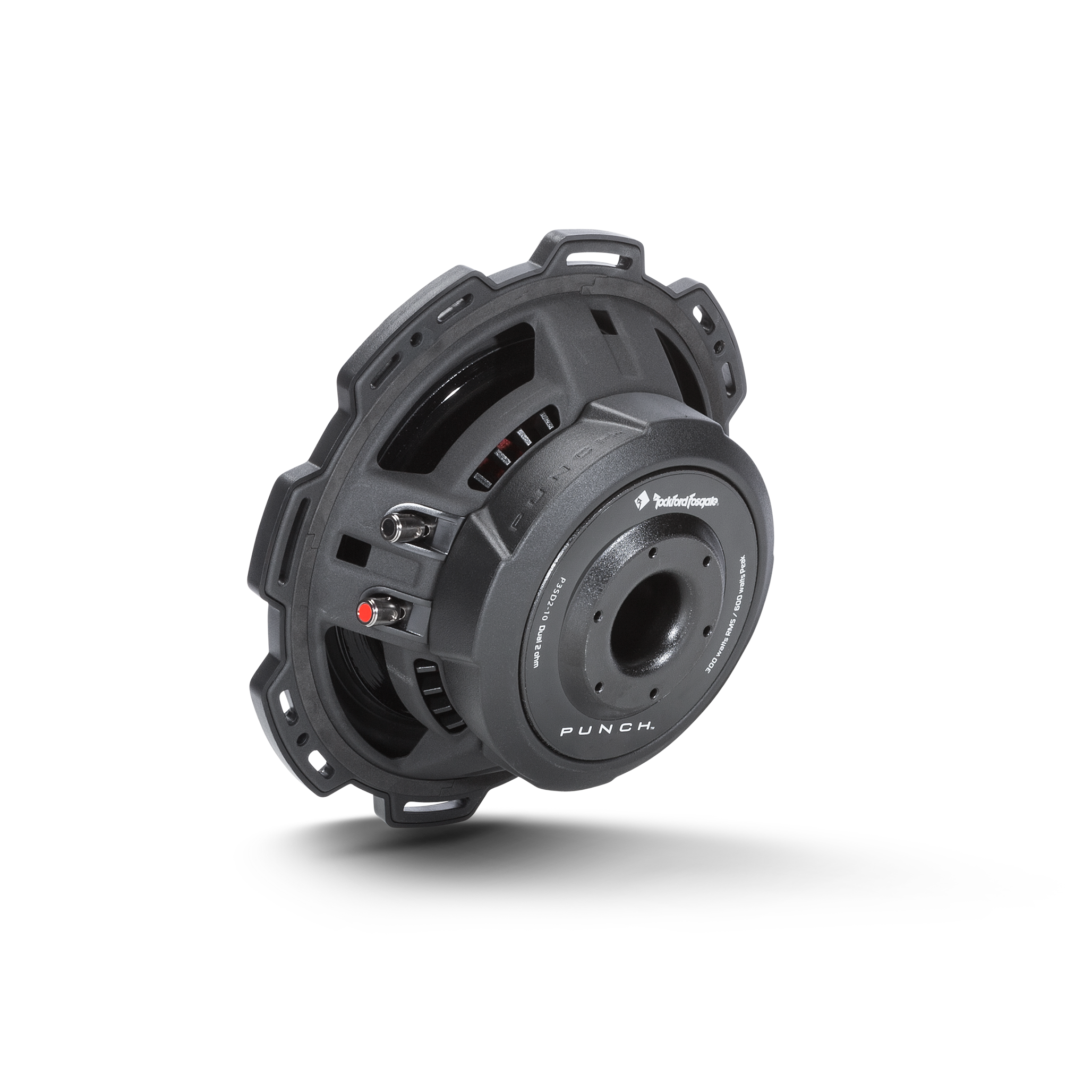

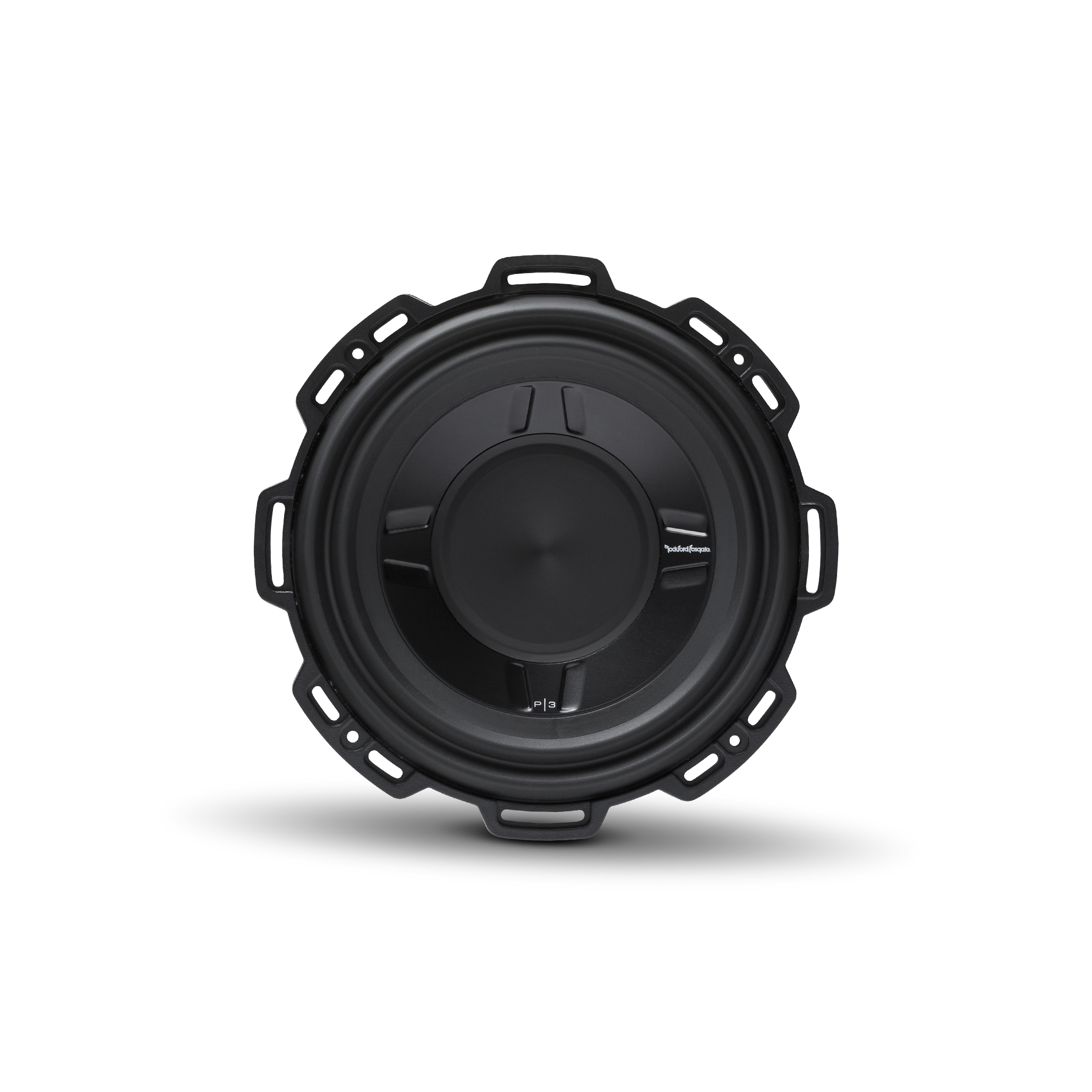

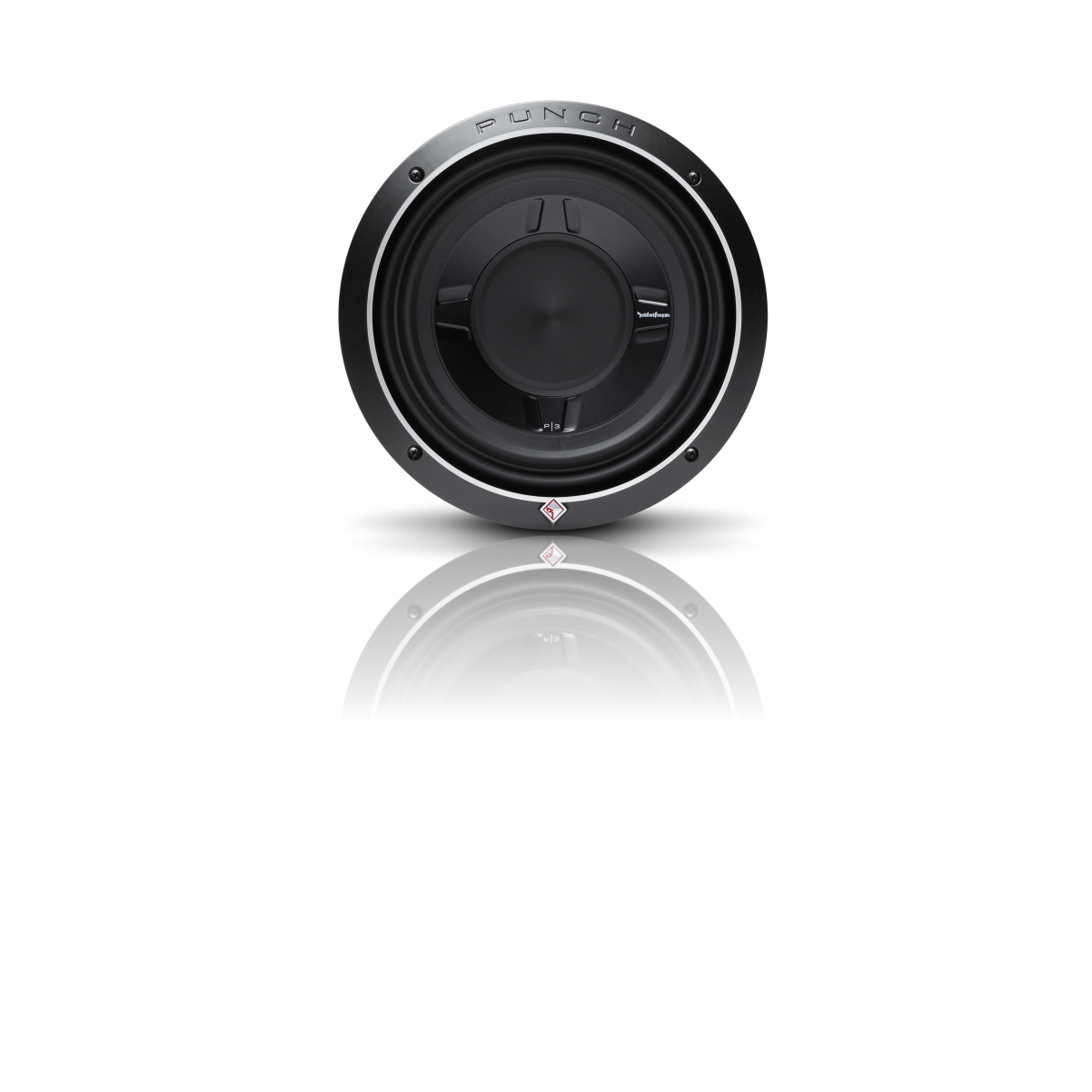

P3SD2-10 – Rockford Fosgate – Punch 10″ P3S Shallow 2-Ohm DVC Subwoofer

R5,269.99 inc. VAT

In stock

Description

The Rockford Fosgate P3S 10″ shallow mount subwoofer delivers Punch, even in depth limited situations. Rockford Fosgate understands all vehicles are not the same, because some cannot accommodate deep subwoofers. In the past, that meant no Bass. Not anymore! Now even depth challenged vehicles can have REAL Bass and the Dual Voice Coil allow configurations for every application. Shallow woofers are specifically designed for spaces where a traditional woofer cannot be used.

  • M-Roll Santoprene™ surround
  • StampCast basket with integrated spider venting
  • Anodized aluminum cone and dustcap
  • Dual linear spider with embedded 16 AWG tinsel leads
  • Diamond cut cast aluminum trim ring with optional grille
  • Shallow Motor Assembly
  • Optimized for both sealed and vented enclosures
  • 1 Year Warranty

Additional information

Weight 5.39 kg
Dimensions 31 × 31 × 16 cm
Brand

Product Type

Good, Better, Best

Power Rating

Size

Nominal Impedance

Subwoofer Depth

Overview

The Rockford Fosgate P3S 10″ shallow mount subwoofer delivers Punch, even in depth limited situations. Rockford Fosgate understands all vehicles are not the same, because some cannot accommodate deep subwoofers. In the past, that meant no Bass. Not anymore! Now even depth challenged vehicles can have REAL Bass and the Dual Voice Coil allow configurations for every application. Shallow woofers are specifically designed for spaces where a traditional woofer cannot be used.

FEATURES AT A GLANCE

  • Diamond cut cast aluminum trim ring with optional grille
  • Dual linear spider with embedded 16 AWG tinsel leads
  • StampCast basket with integrated spider venting
  • M-Roll Santoprene™ surround
  • Shallow Motor Assembly
  • Anodized aluminum cone and dustcap
  • Optimized for both sealed and vented enclosures
  • 1 Year Warranty



Specification

Size
10″
Speaker Connector
Dual 10 AWG Compression
Mounting Depth
3.50 in. (89.0 mm)
Magnet Weight (oz)
1.32 oz. (47 kg)
Voice Coil Diameter
2.5″ (65.5 mm)
Shipping Weight
11.9 Lbs. (5.39 kg.)
Qts
0.64
Vas (Liters)
14.3
SPL (dB @ 1w/1m)
83
Woofer Displacement
0.074 cu. ft. (2.1 Liters)
Le (mH)
2.8
Re (Ohms)
3.40
Nominal Impedance
Dual 2-Ohm
Fs (Hz)
40
Power Handling (Watts RMS)
300 Watts RMS
600 Watts Max
Qes
0.71
Qms
6.20
Cutout Diameter
9.06 in. (230.0 mm)
CEA-2031 Compliant
CEA-2031 Guidelines
Sd (cm2)
333
Xmax (mm)
8.4
Subwoofer Type
Shallow
Voice Coil Type
Dual Voice Coil
Sealed Box Volume (Vb)
0.5 cu. ft. (14.1 Liters)
Vented Box Volume (Vb)
1.0 cu. ft. (28.3 Liters)

Videos

Owner's Manual

P3SD2-10.pdf Owners Manual
