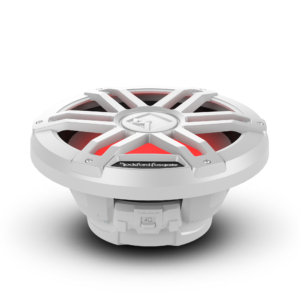

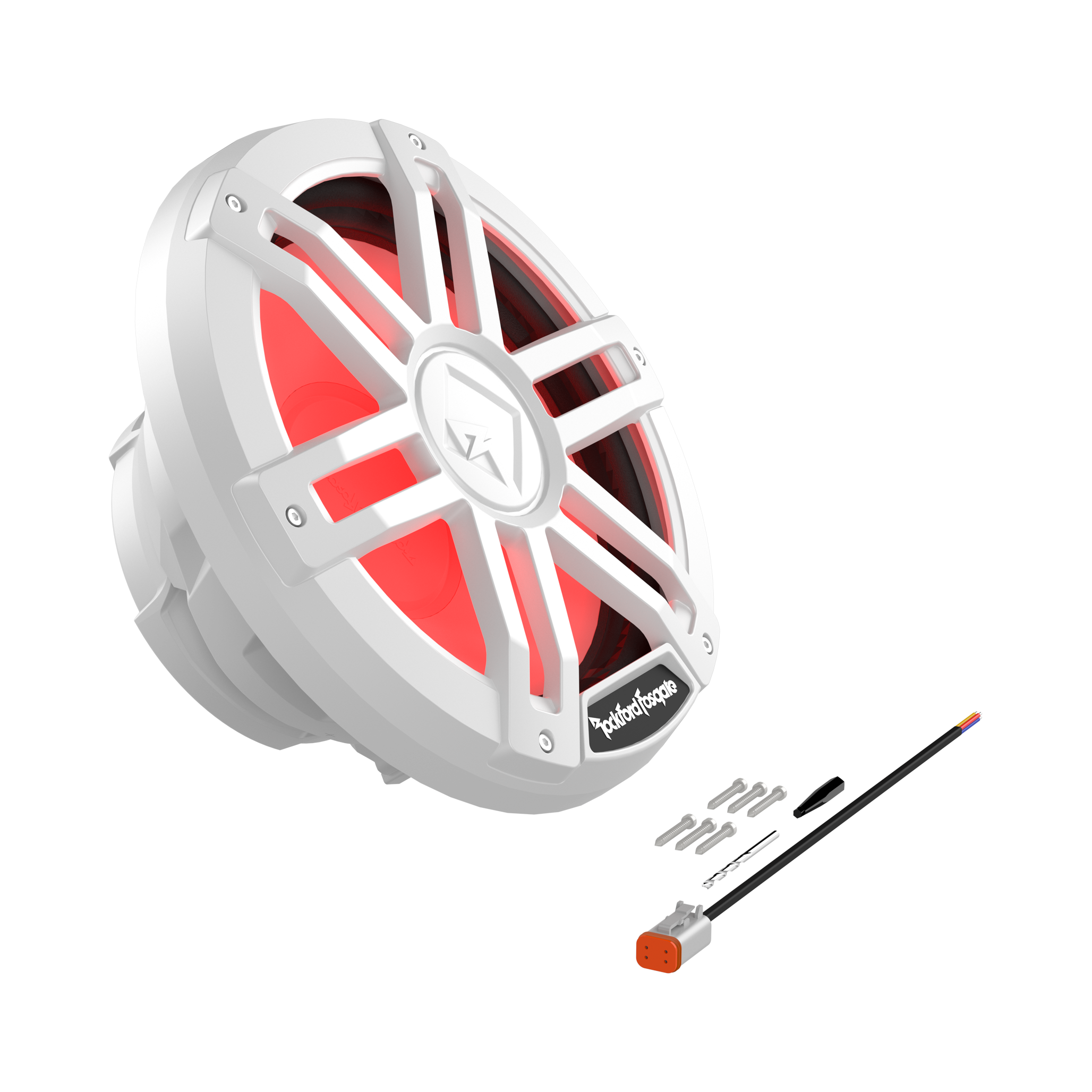

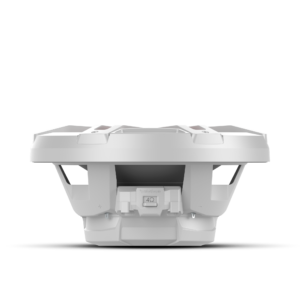

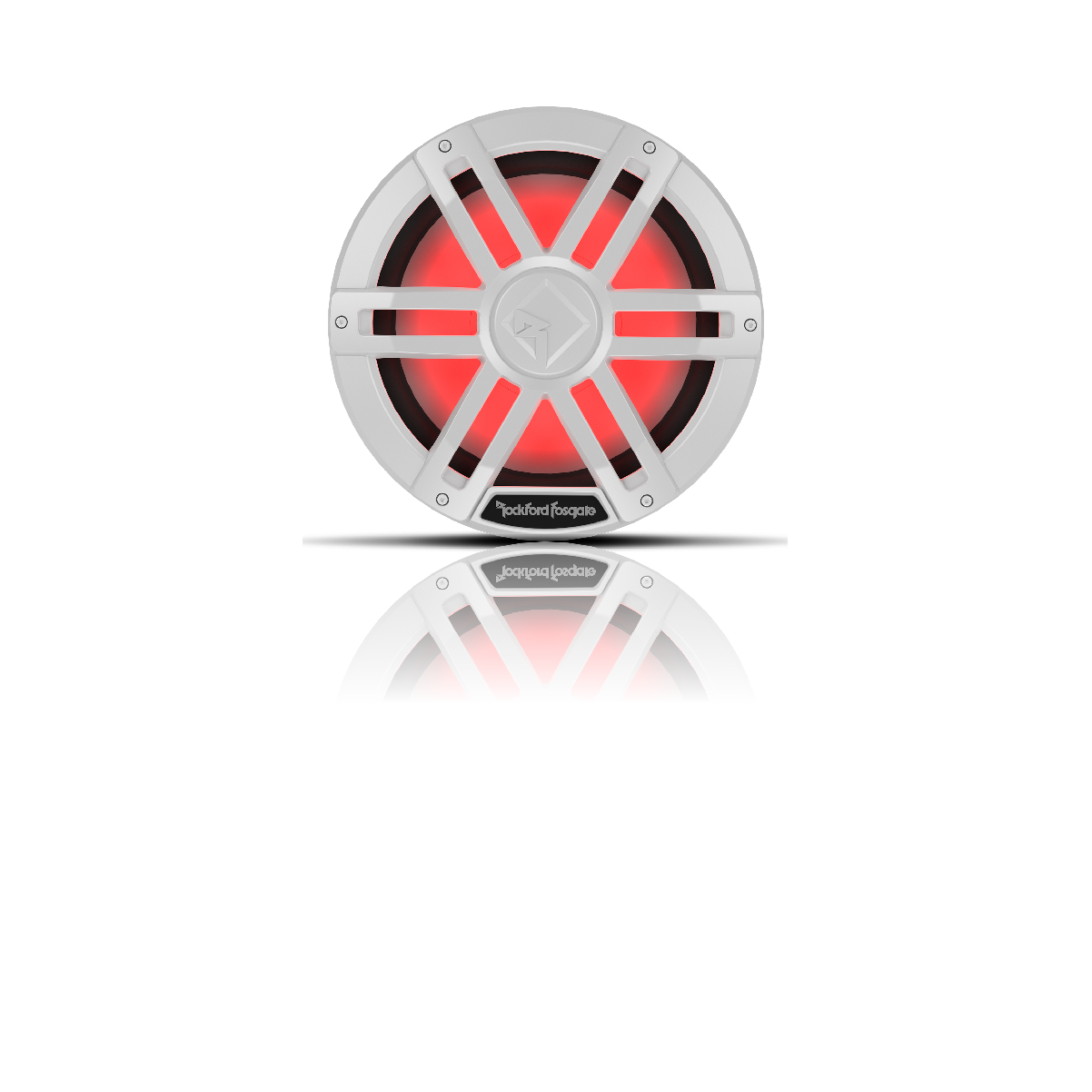

M1D2-12 – Rockford Fosgate – RGB Lighted 2ohm White Marine Sub

R7,100.00 inc. VAT

In stock

Description

The M1D4-12 Color Optix™ 12” DVC 4-Ohm subwoofers deliver loud, clear, accurate bass, and light the way for your journey! The subwoofers connect with the Rockford Fosgate Color Optix™ Controller and RF Connect App, allowing you to customize your own color patterns. The Element Ready™ design and IPX6 certification makes them truly purpose-built for marine or motorsport applications where protection from damaging UV rays and water spray is essential.



  • Optically clear UV stable RGB Lighting Encapsulation
  • 2″ (50mm) High Temp Kapton™ Woofer Voice Coil Former
  • Ultra-bright wide-angle RGB LEDs provide rich, reliable illumination
  • Vented motor design with water-repelling nano coated mesh screen
  • Fully insulated silicone tinsel leads
  • 100% UV Stable ASA plastic frame & grille design stands up to harsh marine environment
  • Industry’s first molded in-frame connectors for simple connectivity in addition to conventional spade terminals
  • Integrated Deutsch™/Amphenol™ connectors make wiring connections simple and error proof
  • Zinc Nickel-plated Marine grade brass connection terminals
  • Linear Synthetic Fiber Blend Spiders
  • Santoprene VAST Surround
  • VAST vertical attach surround technique increases effective radiating cone area up to 25%
  • Co-molded surround and mineral filled polypropylene cone body
  • Injection molded mineral filled polypropylene cone body with UV inhibitors

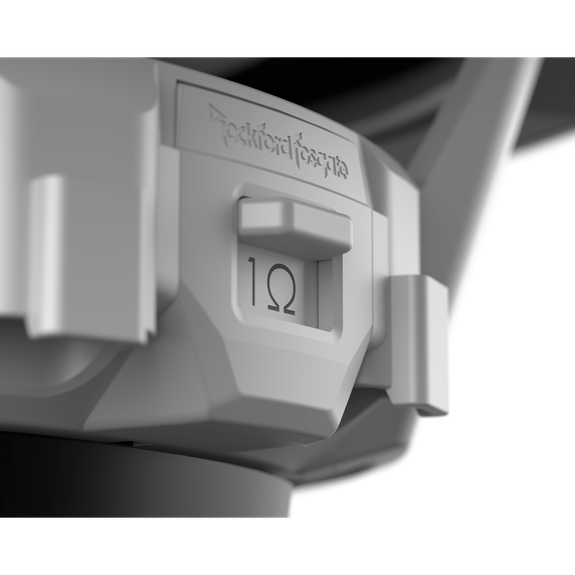

  • VERSA impedance switch quickly allows series or parallel configuration without additional wiring
  • 2-Year Warranty

Additional information

Weight 1 kg
Brand

Power Rating

Product Type

Subwoofer Depth

Overview

The M1 series of Element Ready™ subwoofers are designed to pair with the Rockford Fosgate Color Optix™ Controller and RF Connect App through its Deutsch™ and Amphenol™ connectors integrated into the basket. This combined with their IP67 certification make these speakers Element Ready™ and truly purpose built for marine applications. To compliment the plug and play connectivity and streamline installation, M1 subwoofers are equipped with a VersaSwitch™ to make changing impedance between 1 and 4 ohms as easy as flipping a switch.



FEATURES AT A GLANCE

  • Optically clear UV stable RGB Lighting Encapsulation
  • 2″ (50mm) High Temp Kapton™ Woofer Voice Coil Former
  • Vented motor design with water-repelling nano coated mesh screen
  • Industry’s first molded in-frame connectors for simple connectivity in addition to conventional spade terminals
  • 100% UV Stable ASA plastic frame & grille design stands up to harsh marine environment
  • Ultra-bright wide-angle RGB LEDs provide rich, reliable illumination
  • Fully insulated silicone tinsel leads
  • Linear Synthetic Fiber Blend Spiders
  • Santoprene VAST Surround
  • Zinc Nickel-plated Marine grade brass connection terminals
  • Integrated Deutsch™/Amphenol™ connectors make wiring connections simple and error proof
  • VAST vertical attach surround technique increases effective radiating cone area up to 25%
  • Injection molded mineral filled polypropylene cone body with UV inhibitors
  • VERSA impedance switch quickly allows series or parallel configuration without additional wiring
  • Co-molded surround and mineral filled polypropylene cone body
  • 2-Year Warranty

Specification

Voice Coil Type
Dual Voice Coil
Frequency Response
20 Hz – 750 Hz
Le (mH)
2.02
Re (Ohms)
3.8
Fs (Hz)
26
Magnet Weight (oz)
39.75 oz. (1.13 Kg)
Voice Coil Diameter
2″ (50 mm)
Power Handling (Watts RMS)
300 Watts RMS
1200 Watts PEAK
Nominal Impedance (Ohms)
1-Ohm or 4-Ohm Switchable
Size
12″
Sd (cm2)
585.4
Qms
7.47
Qes
0.57
Qts
0.53
Vas
114.2
SPL (dB @ 1w/1m)
92
Xmax (mm)
6.0
Woofer Displacement
3.49 cu. ft. (0.12 Liters)
Speaker Connector
Deutsch™
Cutout Diameter
10.85 in. (275.6 mm)
Mounting Depth
6.65 in. (169.1 mm)
Shipping Weight
9 Lbs. (4.1 Kg.)

Owner's Manual

Owners Manual – M1D2-12
