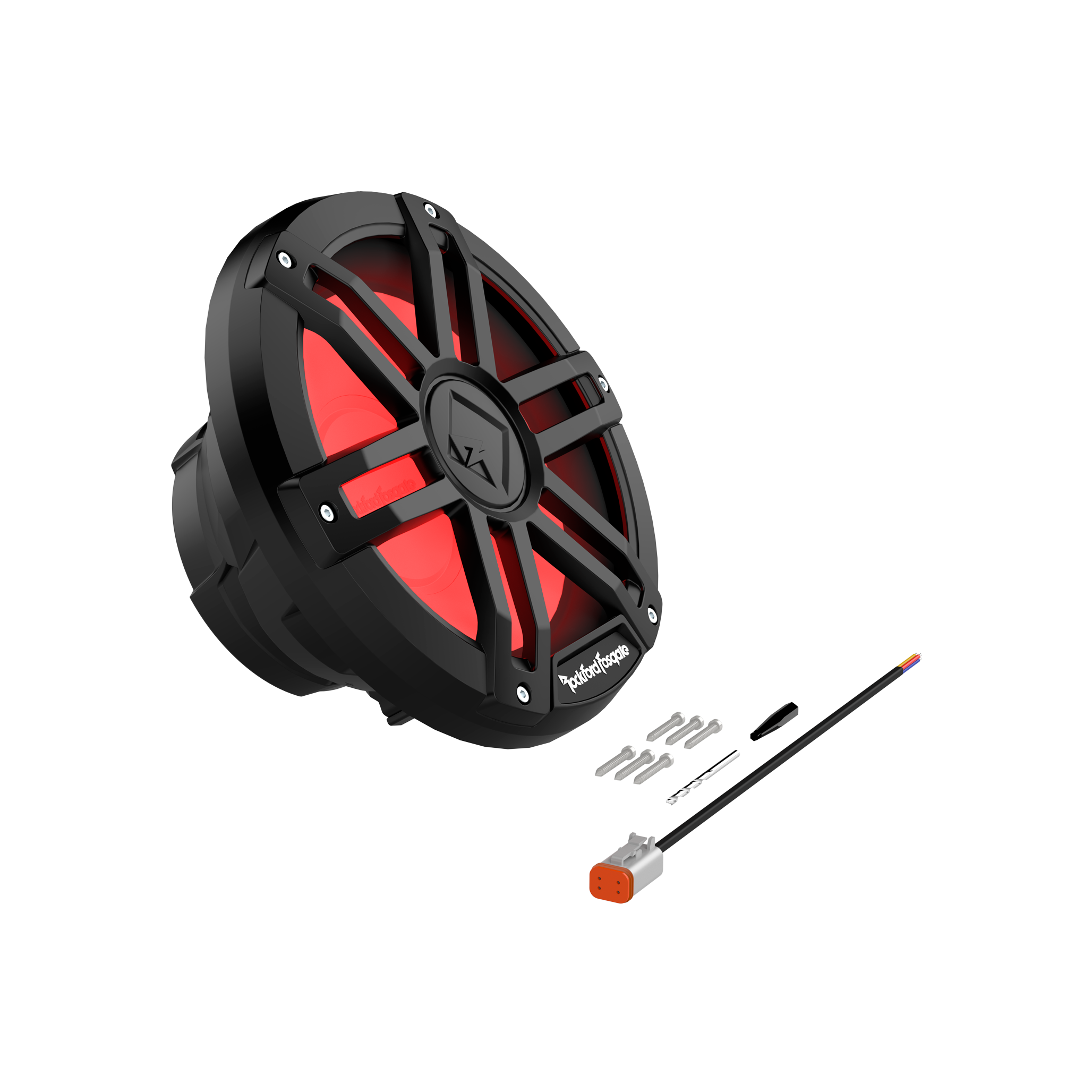

M1D2-10B – Rockford Fosgate – DVC 2O Color Optix Marine Sub-Blk

R6,050.00 inc. VAT

In stock

Description

The M1D2-10B Color Optix™ 10” DVC 2-Ohm subwoofers deliver loud, clear, accurate bass, and light the way for your journey! The subwoofers connect with the Rockford Fosgate Color Optix™ Controller and RF Connect App, allowing you to customize your own color patterns. The Element Ready™ design and IPX6 certification makes them truly purpose-built for marine or motorsport applications where protection from damaging UV rays and water spray is essential.



  • Optically clear UV stable RGB Lighting Encapsulation
  • Ultra-bright wide-angle RGB LEDs provide rich, reliable illumination
  • 2″ (50mm) High Temp Kapton™ Woofer Voice Coil Former
  • 100% UV Stable ASA plastic frame & grille design stands up to harsh marine environment
  • Vented motor design with water-repelling nano coated mesh screen
  • Fully insulated silicone tinsel leads
  • Zinc Nickel-plated Marine grade brass connection terminals
  • Industry’s first molded in-frame connectors for simple connectivity in addition to conventional spade terminals
  • Linear Synthetic Fiber Blend Spiders
  • Integrated Deutsch™/Amphenol™ connectors make wiring connections simple and error proof
  • Santoprene VAST Surround
  • Co-molded surround and mineral filled polypropylene cone body
  • VAST vertical attach surround technique increases effective radiating cone area up to 25%
  • Injection molded mineral filled polypropylene cone body with UV inhibitors
  • VERSA impedance switch quickly allows series or parallel configuration without additional wiring
  • 2-Year Warranty

Additional information

Weight 1 kg

Overview

The M1 series of Element Ready™ subwoofers are designed to pair with the Rockford Fosgate Color Optix™ Controller and RF Connect App through its Deutsch™ and Amphenol™ connectors integrated into the basket. This combined with their IP67 certification make these speakers Element Ready™ and truly purpose built for marine applications. To compliment the plug and play connectivity and streamline installation, M1 subwoofers are equipped with a VersaSwitch™ to make changing impedance between 1 and 4 ohms as easy as flipping a switch.

FEATURES AT A GLANCE
Optically clear UV stable RGB Lighting Encapsulation
2″ (50mm) High Temp Kapton™ Woofer Voice Coil Former
Ultra-bright wide-angle RGB LEDs provide rich, reliable illumination
Industry’s first molded in-frame connectors for simple connectivity in addition to conventional spade terminals
100% UV Stable ASA plastic frame & grille design stands up to harsh marine environment
Fully insulated silicone tinsel leads
Vented motor design with water-repelling nano coated mesh screen
Zinc Nickel-plated Marine grade brass connection terminals
Linear Synthetic Fiber Blend Spiders
Santoprene VAST Surround
Integrated Deutsch™/Amphenol™ connectors make wiring connections simple and error proof
VAST vertical attach surround technique increases effective radiating cone area up to 25%
Injection molded mineral filled polypropylene cone body with UV inhibitors
VERSA impedance switch quickly allows series or parallel configuration without additional wiring
Co-molded surround and mineral filled polypropylene cone body
2-Year Warranty

Specifications

Size10″
Frequency Response20 Hz – 750 Hz
Voice Coil TypeDual Voice Coil
Nominal Impedance (Ohms)1-Ohm or 4-Ohm Switchable
Power Handling (Watts RMS)300 Watts RMS
1200 Watts PEAK
Voice Coil Diameter2.0″ (50 mm)
Magnet Weight (oz)47.70 oz. (1.35 Kg)
Fs (Hz)34
Re (Ohms)3.7
Le (mH)2.22
Sd (cm2)394.1

Qms7.80
Qes0.47
Qts0.44
Vas44.2
SPL (dB @ 1w/1m)91.5
Xmax (mm)7.0
Woofer Displacement0.10 cu. ft. (2.80 Liters)
Speaker ConnectorDeutsch™
Cutout Diameter8.90 in. (226 mm)
Mounting Depth4.23 in. (107.4 mm)
Shipping Weight8.6 Lbs. (3.9 Kg)
