TOY-SUB-R2SD4-10 – Rockford Fosgate – Toyota Hilux Subwoofer Enclosure – Behind Seat

R6,979.40 inc. VAT

Out of stock

Description

When you have no space for bass, our R2 10″ shallow subwoofer can help satisfy your need for low frequency music. These drivers can fit in tight spaces due to an elevated motor structure that reduces speaker depth. Mica injected polypropylene cones make sure bass notes are clean and accurate. Stamp-cast baskets feature spider venting typically reserved for traditional depth mounted models to keep the motor cool! These shallow subwoofers are optimized for sealed enclosures.

  • 12 AWG compression terminals
  • Anodized aluminum voice coil former
  • Optimized for sealed enclosures
  • Mica injected polypropylene cone
  • Linear spider with embedded 16 AWG tinsel leads
  • StampCast basket with integrated spider venting
  • Integrated PVC trim ring
  • Shallow Motor Assembly
  • 1 Year Warranty

R2SD4-10 – Rockford Fosgate – Prime 10″ R2 4-Ohm DVC Shallow Subwoofer

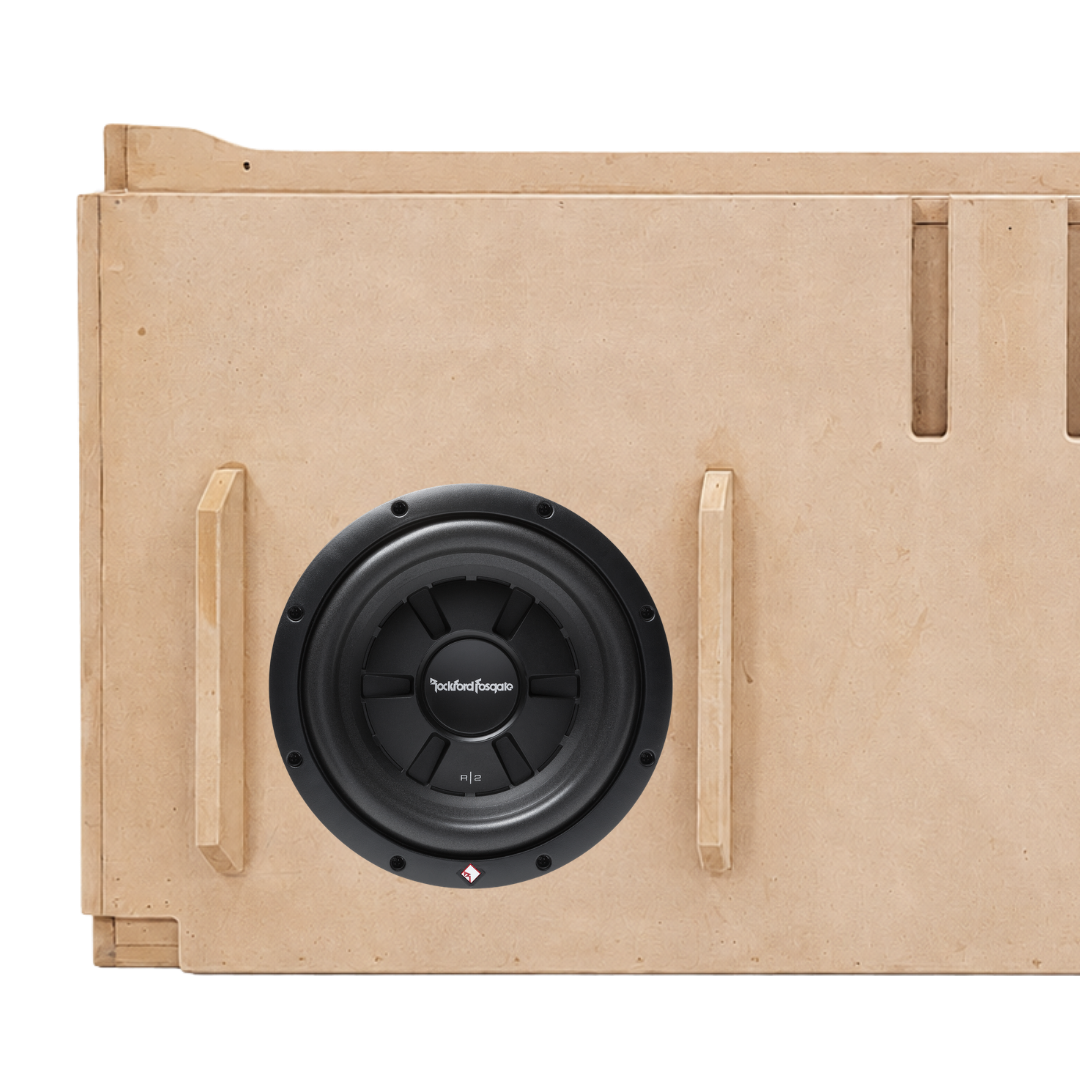

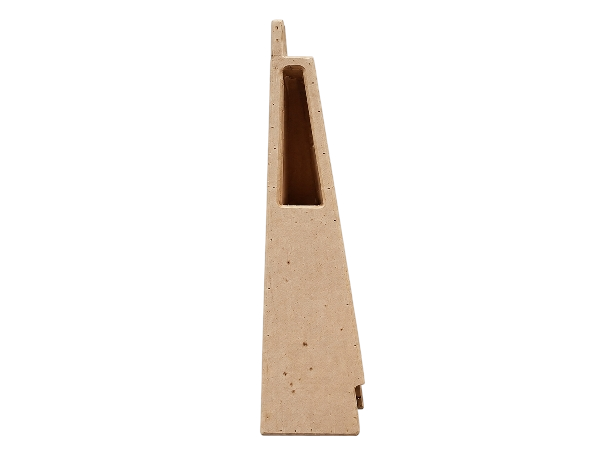

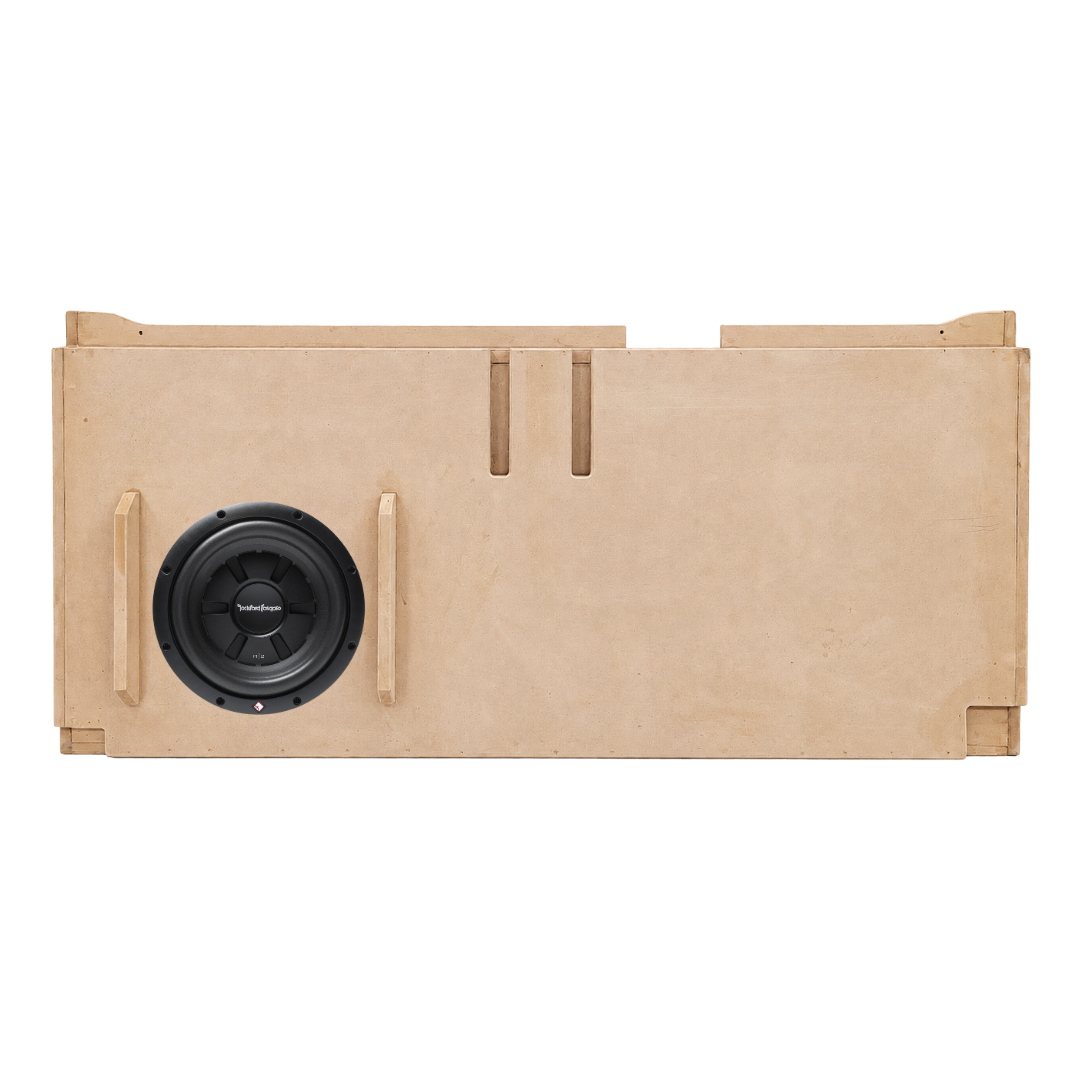

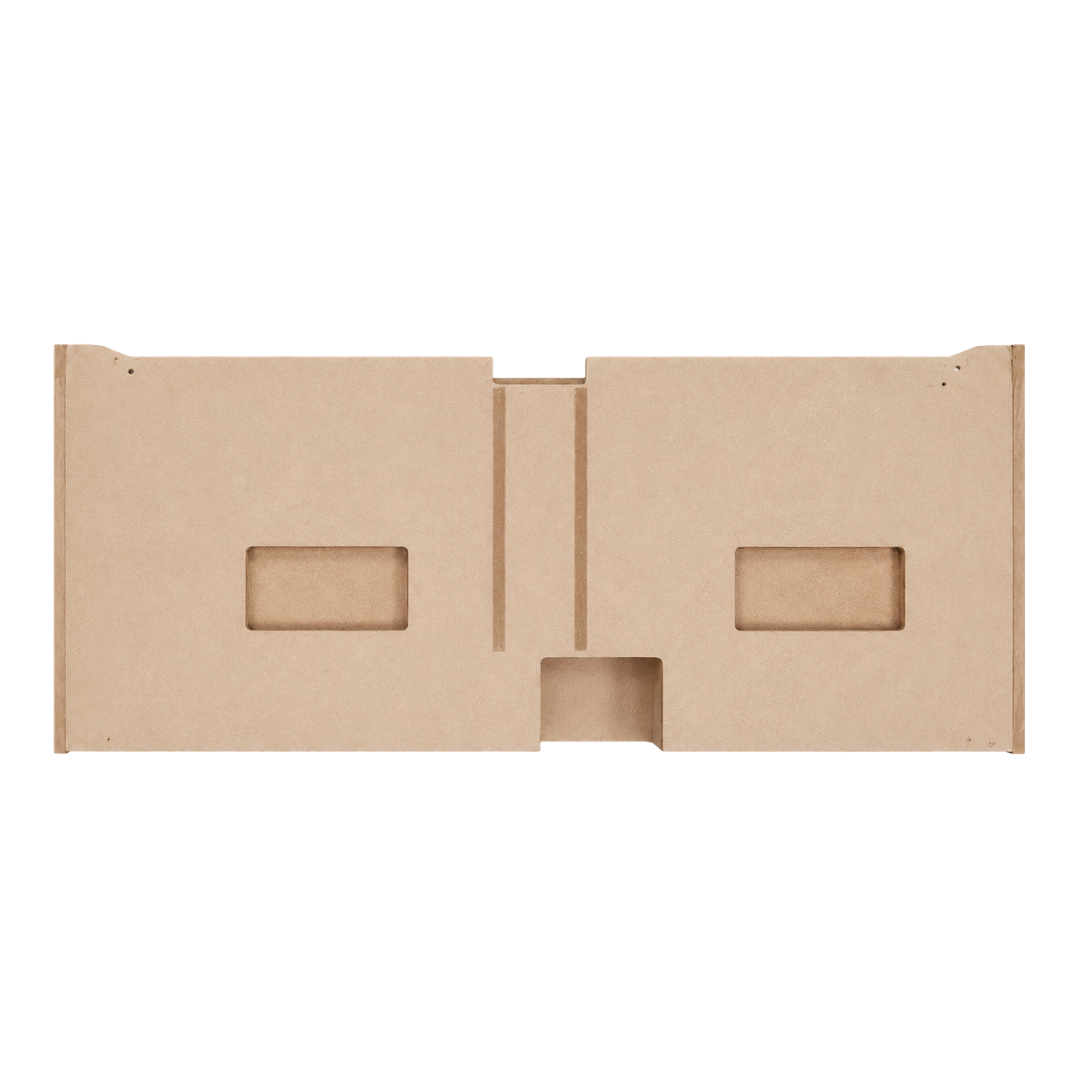

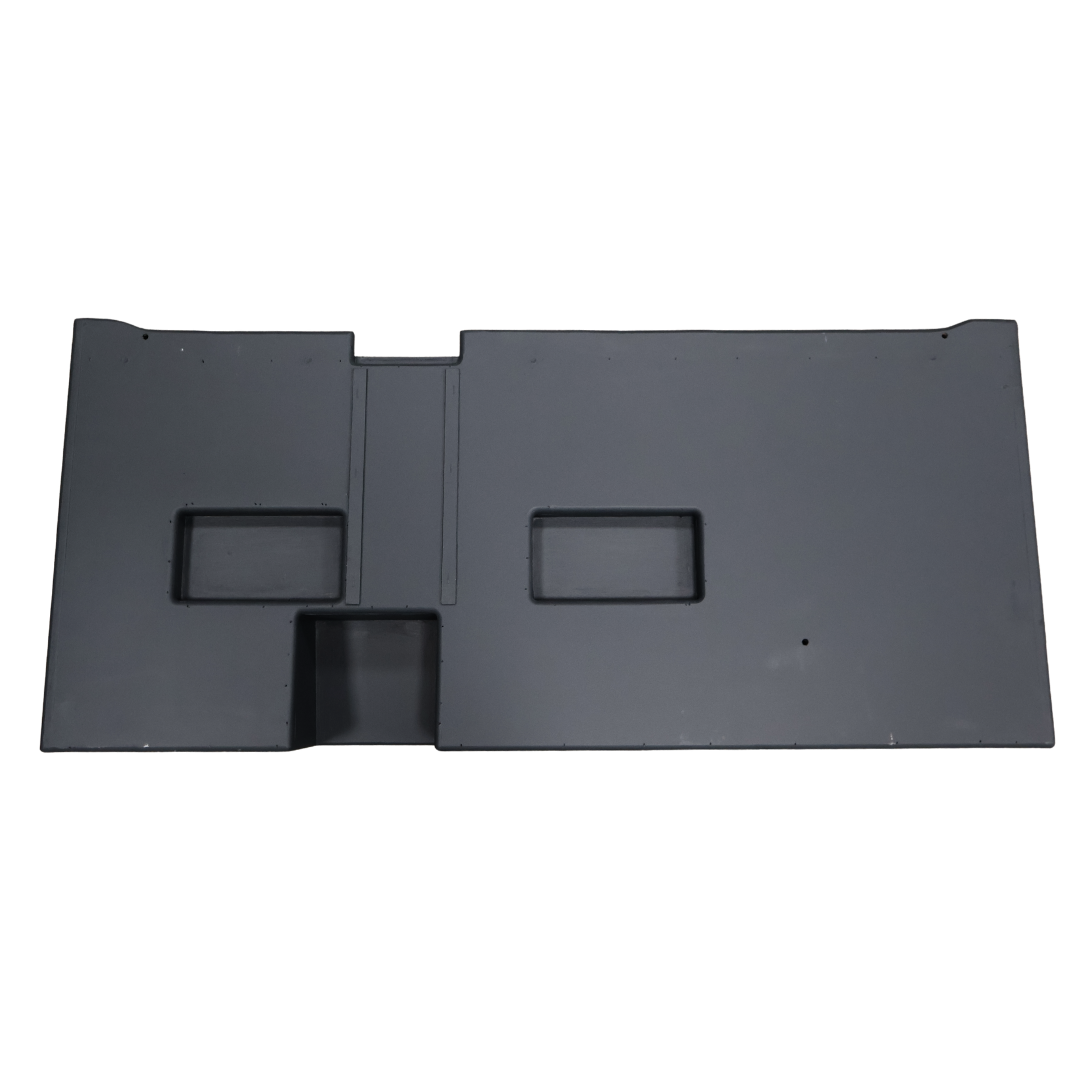

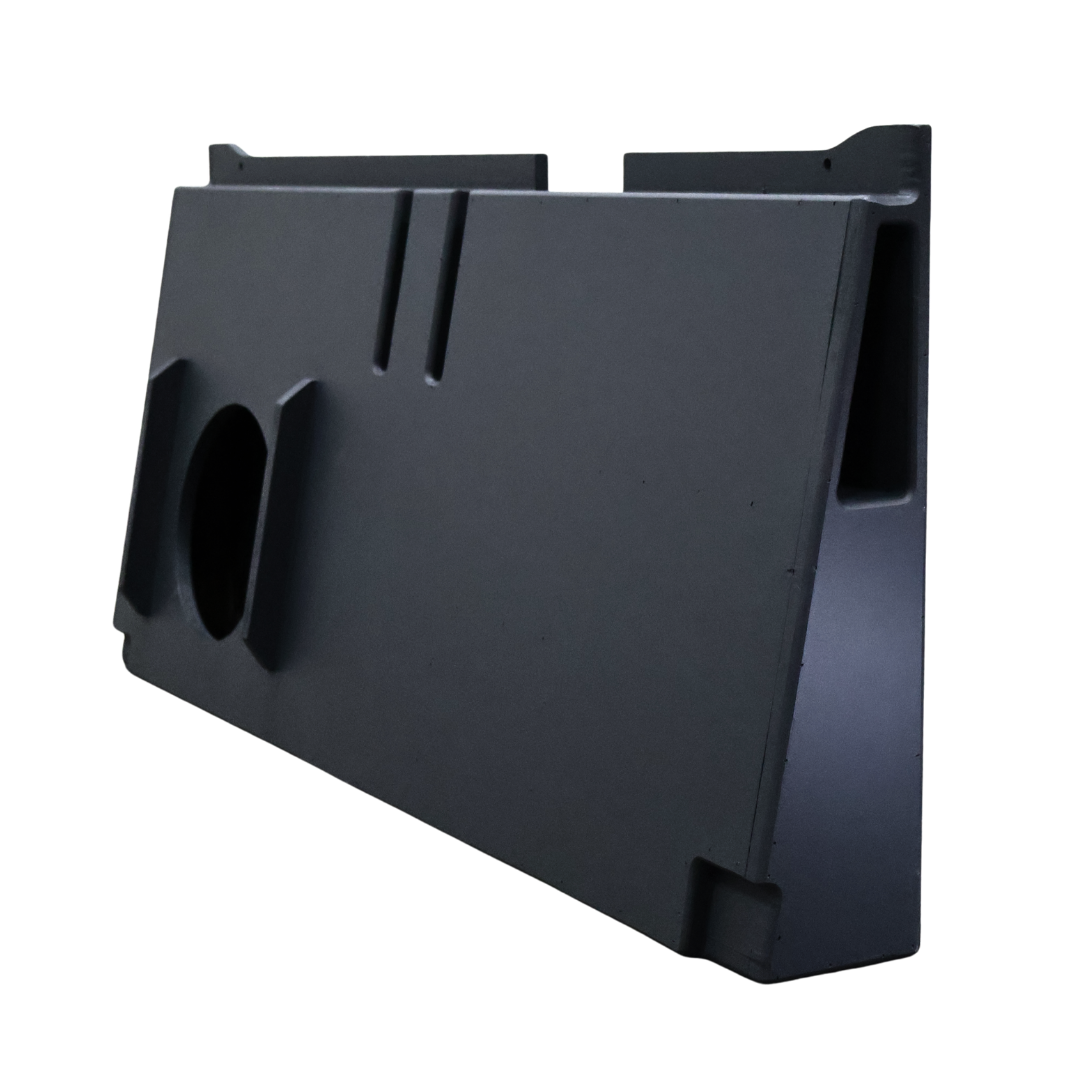

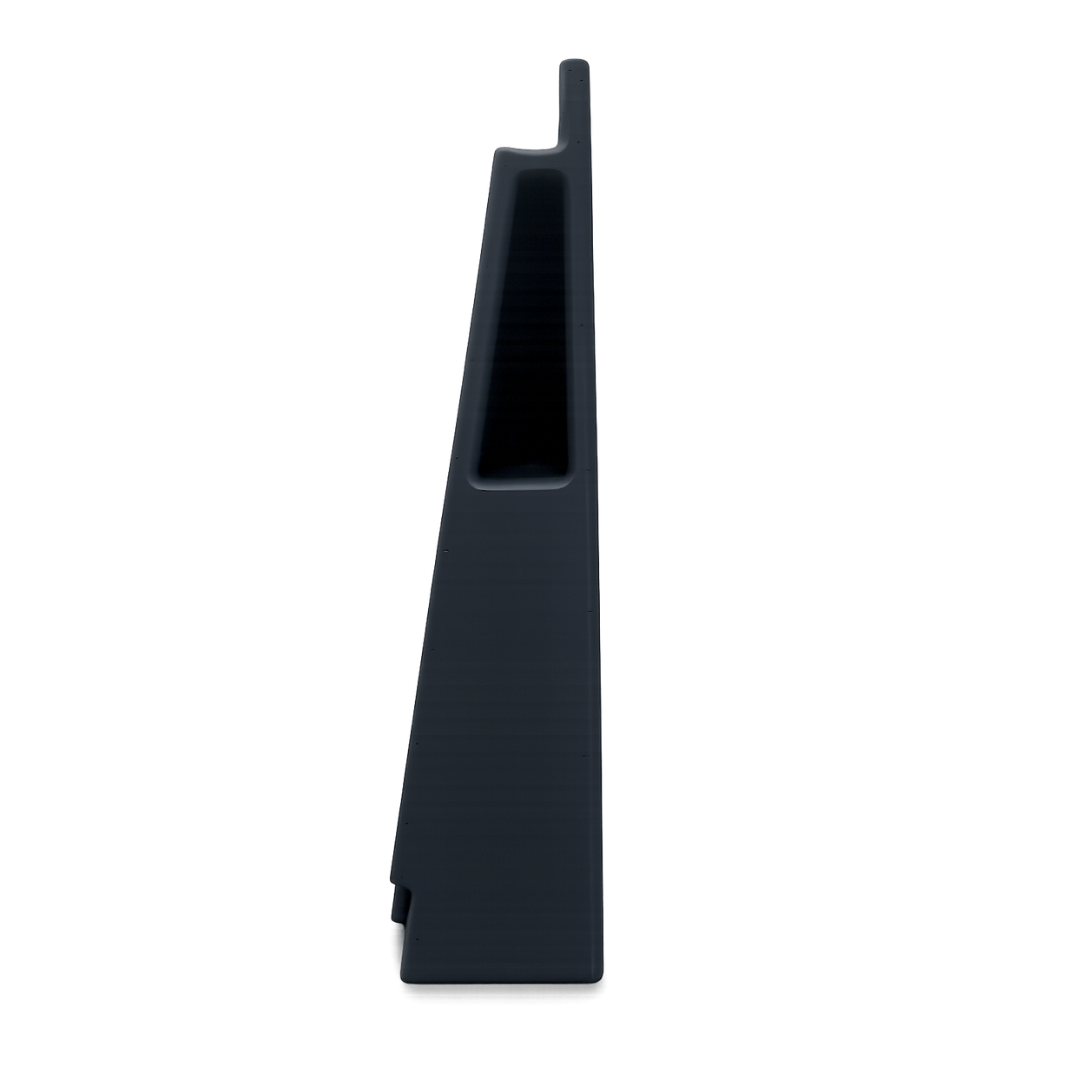

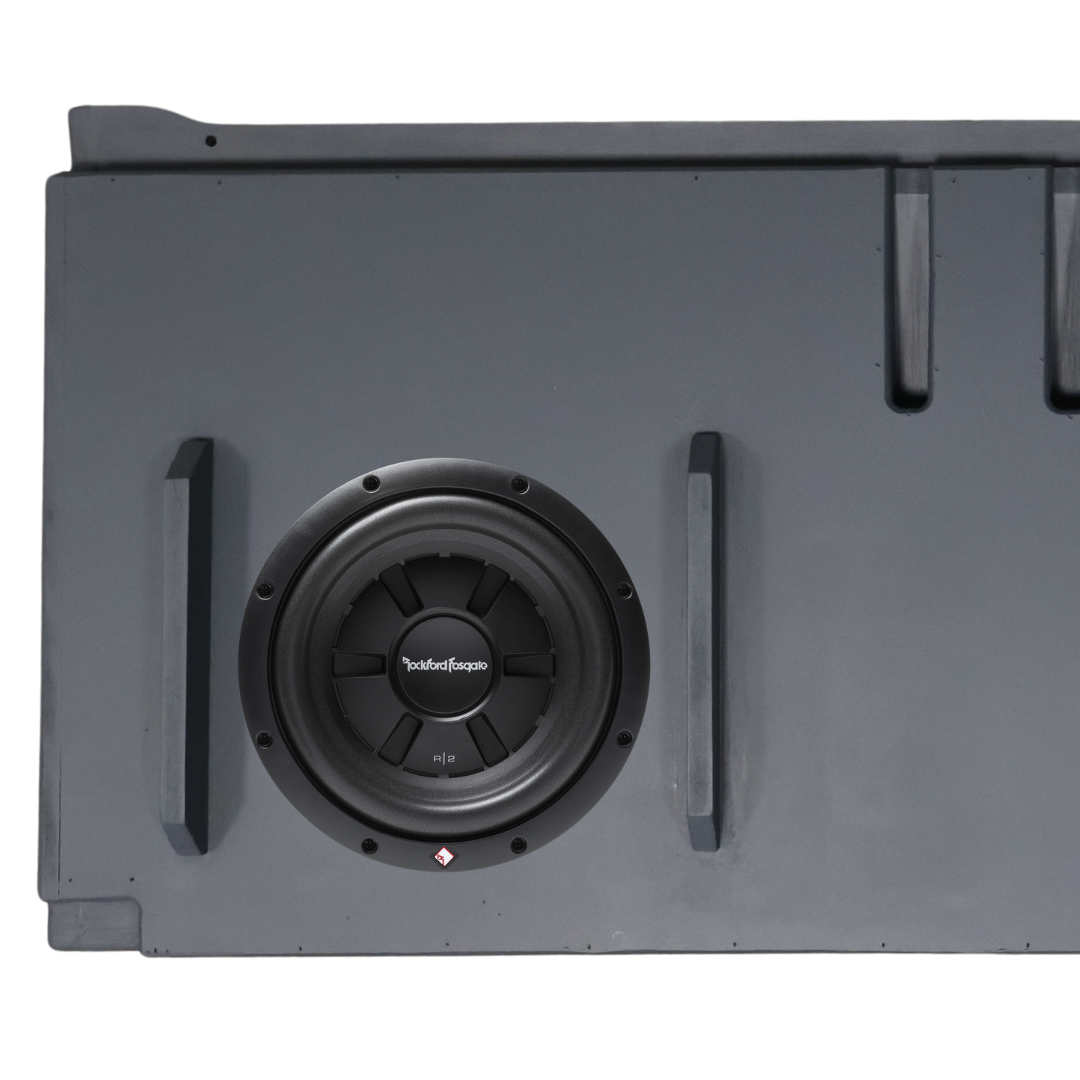

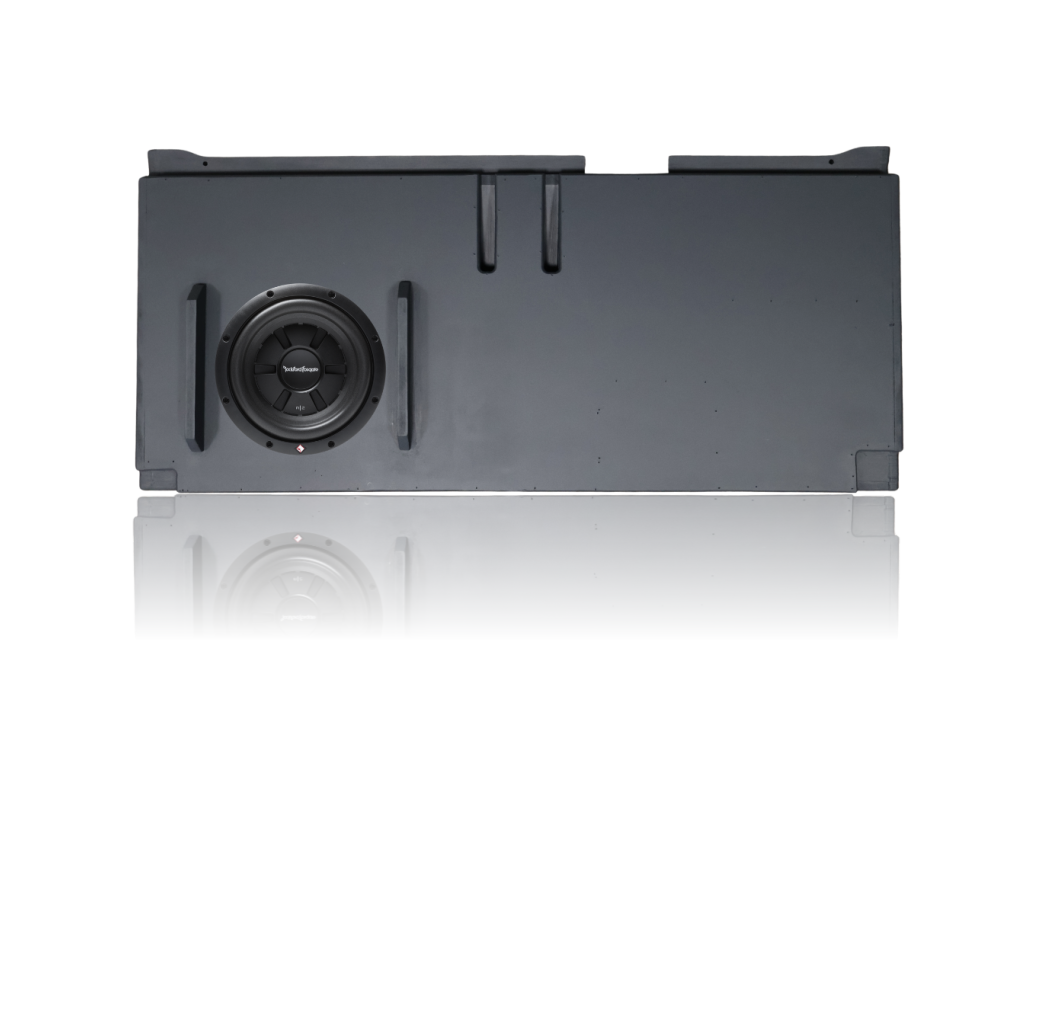

The specifically designed Subwoofer box hugs the rear of the vehicle for maximum
internal space giving the ultimate bass solution for your Hilux.

Additional information

Enclosures

unloaded

Product Type

Overview

When you have no space for bass, our R2 10″ shallow subwoofer can help satisfy your need for low frequency music. These drivers can fit in tight spaces due to an elevated motor structure that reduces speaker depth. Mica injected polypropylene cones make sure bass notes are clean and accurate. Stamp-cast baskets feature spider venting typically reserved for traditional depth mounted models to keep the motor cool! These shallow subwoofers are optimized for sealed enclosures.

Specifications

agnet Weight (oz)
45 oz. 1.28 kg.
Size
10″
Nominal Impedance
Dual 4-Ohm
Mounting Depth
3.417 in. (86 mm)
SPL (dB @ 1w/1m)
82.5
Fs (Hz)
39.3
Vas (Liters)
21.7
Xmax (mm)
8.0
Cutout Diameter
9.125 in. (232 mm)
Re (Ohms)
6.60
Sd (cm2)
333
Le (mH)
4.2
Power Handling (Watts RMS)
200 Watts RMS
400 Watts Max
Voice Coil Diameter
2″ (50 mm)
Shipping Weight
10.588 Lbs. (4.80 kg.)
Speaker Connector
Dual 12 AWG compression
Qts
0.73
Woofer Displacement
0.037 cu. ft. (1.05 Liters)
Qms
7.00
Qes
0.81
CEA-2031 Compliant
CEA-2031 Guidelines
Subwoofer Type
Shallow
Voice Coil Type
Dual Voice Coil
Sealed Box Volume (Vb)
0.7 cu. ft. (19.8 Liters)
Vented Box Volume (Vb)
1.4 cu. ft. (39.6 Liters)

Owners Manual

R2SD4-10
