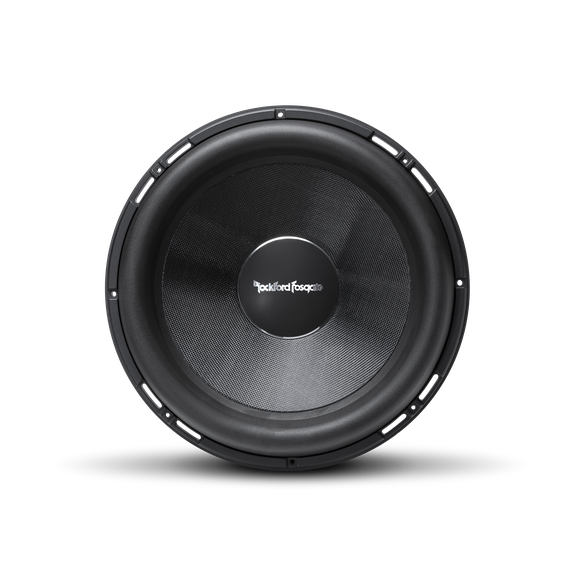

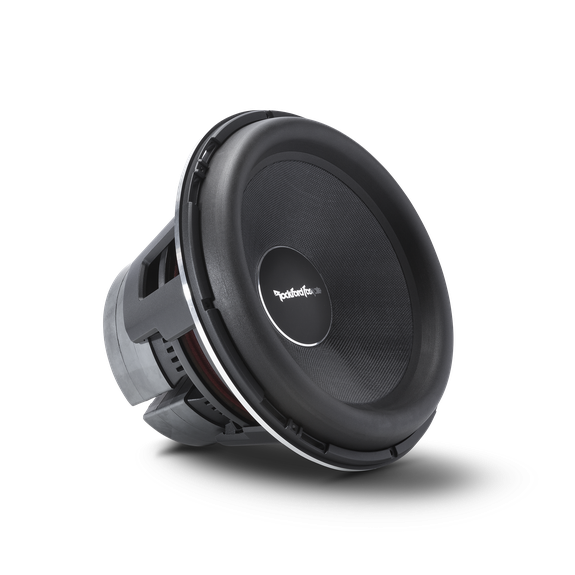

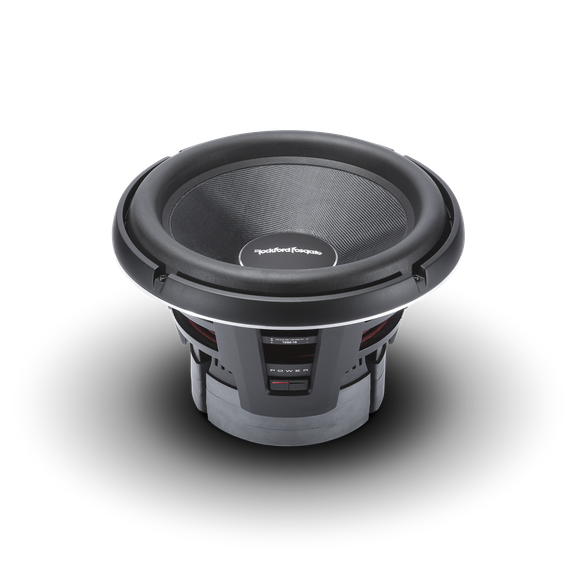

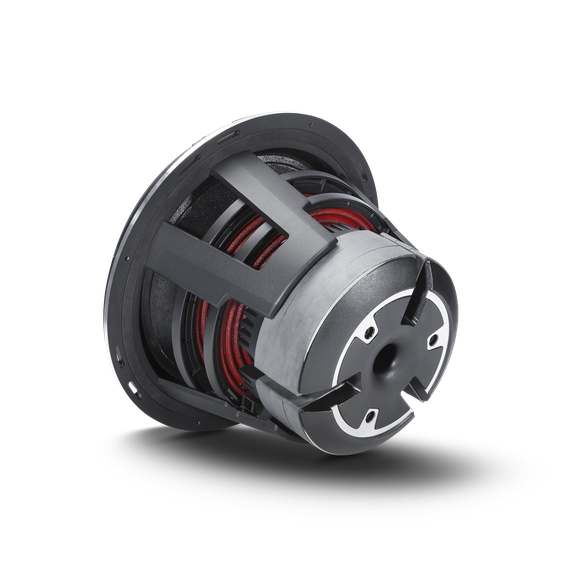

T2S2-16 – Rockford Fosgate Power 16″ Inch T2 Single 2-Ohm Subwoofer

R32,195.02 inc. VAT

In stock

Description

The Power T2S2-16 subwoofer features 16-inches of effective radiating cone area and a single 2-ohm voice coil for ease of wiring.

This subwoofer is not just another made with off-the-shelf parts, we wanted something better, and we knew our fanatics demand this as well. Since the original Power T2 subwoofer was designed by one of the leading loudspeaker engineers in the world, there were some lofty goals that had to be reached. Work was done from the ground-up to out-perform it’s previous family members, while incorporating valuable feedback from our great network of Rockford Fosgate dealers. They wanted it bigger and badder with dual everything, and we feel that goal was crushed.

Why 16-inches? Well, this is a combination of the cone and surround assembly described as the “total effective radiating area”. Since this model is so massive, we incorporated dual spiders for exceptional travel of the cone assembly. The motor structure operates very linear for exceptional sonic quality and the IDHS heat-sink gives the subwoofer impressive power handling capacity. Top it off with proprietary input terminals for large gauge cables to efficiently deliver the needed voltage, and this subwoofer is ready to drop the doom!

Additional information

Weight 9.48 kg
Dimensions 37 × 37 × 24 cm
Brand

Product Type

Good, Better, Best

Power Rating

Size

Nominal Impedance

Subwoofer Depth

Specification

Nominal Impedance
2-Ohm
Le (mH)
0.91
CEA-2031 Compliant
\"CEA-2031
Vas (Liters)
90.1
Qms
3.76
Qes
0.56
Voice Coil Diameter
3.96\” (100 mm)
Fs (Hz)
28.5
Power Handling (Watts RMS)
2500 Watts RMS
5000 Watts Max
Speaker Connector
8 AWG slot loaded
Mounting Depth
10.47 in. (266 mm)
Shipping Weight
100.80 Lbs. (45.7 Kg.)
Woofer Displacement
0.289 cu. ft. (8.2 Liters)
SPL (dB @ 1w/1m)
90
Xmax (mm)
34
Re (Ohms)
1.6
Sd (cm2)
1034
Qts
0.49
Cutout Diameter
15.04 in. (382 mm)
Size
16\”
Magnet Weight (oz)
529 oz. (15 Kg)
Subwoofer Type
Standard
Voice Coil Type
Single Voice Coil
Sealed Box Volume (Vb)
2.4 cu. ft. (67.9 Liters)
Vented Box Volume (Vb)
5.5 cu. ft. (155 Liters)
SPL (dB @ 2.8v/1m)
93

Key features

  • 1 Year Warranty
  • Injection molded foam surround with VAST™
  • Dual Nomex progressive spiders with stitched tinsel leads
  • Diecast aluminum frame with integrated heat sink fins
  • Detachable die cast aluminum trim ring
  • Vented pole piece
  • Integrated aluminum heat sinking shorting ring (IDHS)
  • Aluminum dustcap
  • Proprietary surround mechanical clamping ring
  • Custom push spring insulated 8 AWG terminals
  • Single layer edge wound aluminum 4\” voice coil
  • Triple stack segmented ferrite motor structure
  • Three layer glass fiber/Aramid honeycomb/Glass fiber cone

Owner\'s Manual

2015 Power T2 Woofers – owner\’s manual

Technologies

\"\"
VAST Surround – Subs
Patent: Patent Pending

The Vertical Attach Surround Technique significantly increases a subwoofer\’s effective radiating cone area up to 25%.

Learn more

x

\"\"

VAST Surround – Subs

Patent: Patent Pending

The Vertical Attach Surround Technique significantly increases a subwoofer\’s effective radiating cone area up to 25%.

\"\"
Anodized Aluminum Voice Coil Former

Rockford Fosgate subwoofers use anodized aluminum voice coil formers that provide superior heat dissipation (up to …

Learn more

x

\"\"

Anodized Aluminum Voice Coil Former

Rockford Fosgate subwoofers use anodized aluminum voice coil formers that provide superior heat dissipation (up to 100° at full power levels). Unlike traditional plastic substitutions, aluminum acts like a heat-sink to quickly dissipate thermal build-up on the voice coil. This keeps subwoofers cool during high SPL conditions.

\"\"
Klippel Verified

Klippel is a speaker certification program allowing us to deliver the best possible subwoofers.

Learn more

x

\"\"

Klippel Verified

Klippel is a speaker certification program allowing us to deliver the best possible subwoofers.

\"\"
Inductive Damping Heat Sink

Secures directly to the top of magnet structure to improve system efficiency by reducing both distortion …

Learn more

x

\"\"

Inductive Damping Heat Sink

Secures directly to the top of magnet structure to improve system efficiency by reducing both distortion and back EMF (Electo-Magnetic force). Also radiates heat to reduce voice coil temperature.

\"\"
CEA-2031

Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards.

Learn more

x

\"\"

CEA-2031

Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards.

\"\"
Stitched Tinsel Leads

Improved reliability and performance by reducing fatigue and possible shorting.

Learn more

x

\"\"

Stitched Tinsel Leads

Improved reliability and performance by reducing fatigue and possible shorting.

\"\"
FlexFit Basket – Subwoofer

The slot mounted frame pattern allows fine-tuning of the subwoofer\’s mounting position.

Learn more
