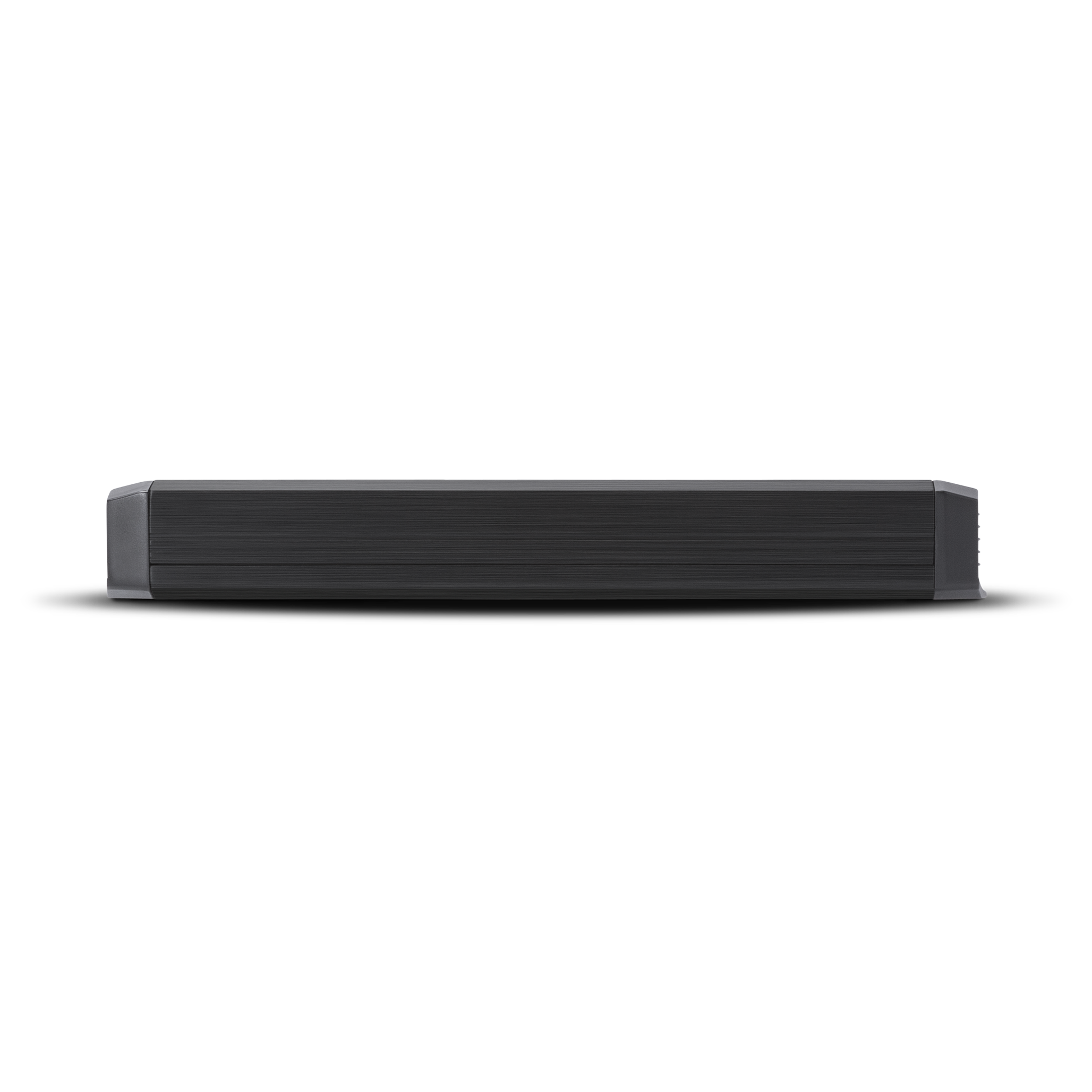

T1000X5AD – Rockford Fosgate – Power 1,000 Watt Class-ad 5-Channel Amplifier

R20,899.00 inc. VAT

In stock

Description

The Power T1000x5ad is an compact, Class ad 1000 Watt multi-channel amplifier. It features differential inputs with high-level auto turn-on, CLEAN circuit with input/output clip detection, top mounted controls and dual fan forced induction cooling. Additionally, it has our patented Punch EQ circuit built in and Differential inputs with auto turn-on capabilities making it perfect for hybrid, electric, small cars, trucks, motorcycles, and side-by-side UTVs.

Additional information

Weight 1 kg
Channels

Product Type

Brand

Power Rating

Overview

The T1000X5ad Element Ready multi-channel amplifier is a 1000 watt RMS unit built on our proprietary Class ad platform designed to deliver unprecidented sound quality with superior power efficiency. Combined with our Constant Power technology, this amplifier can easily exceed its rated power by up to 25% additional output per channel.

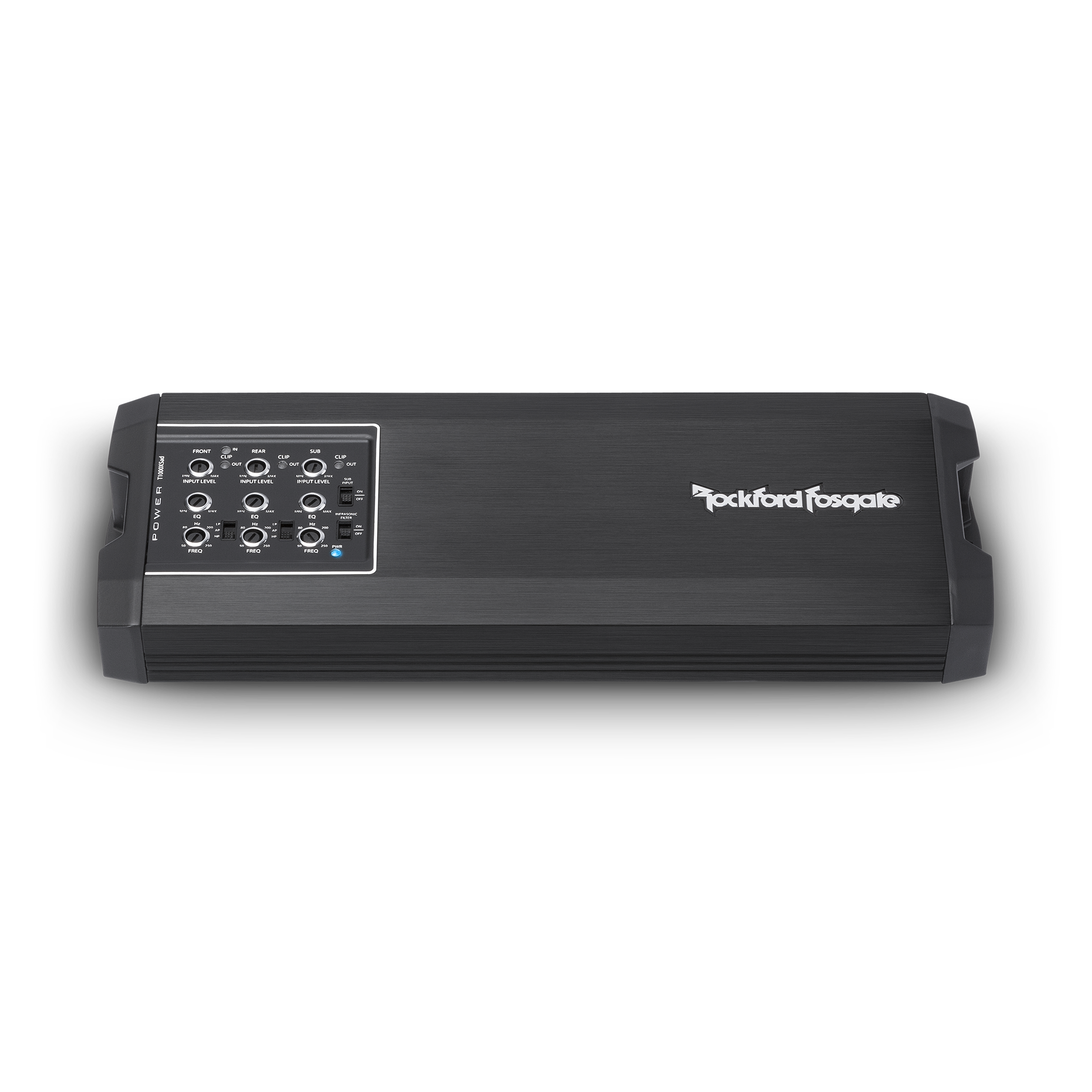

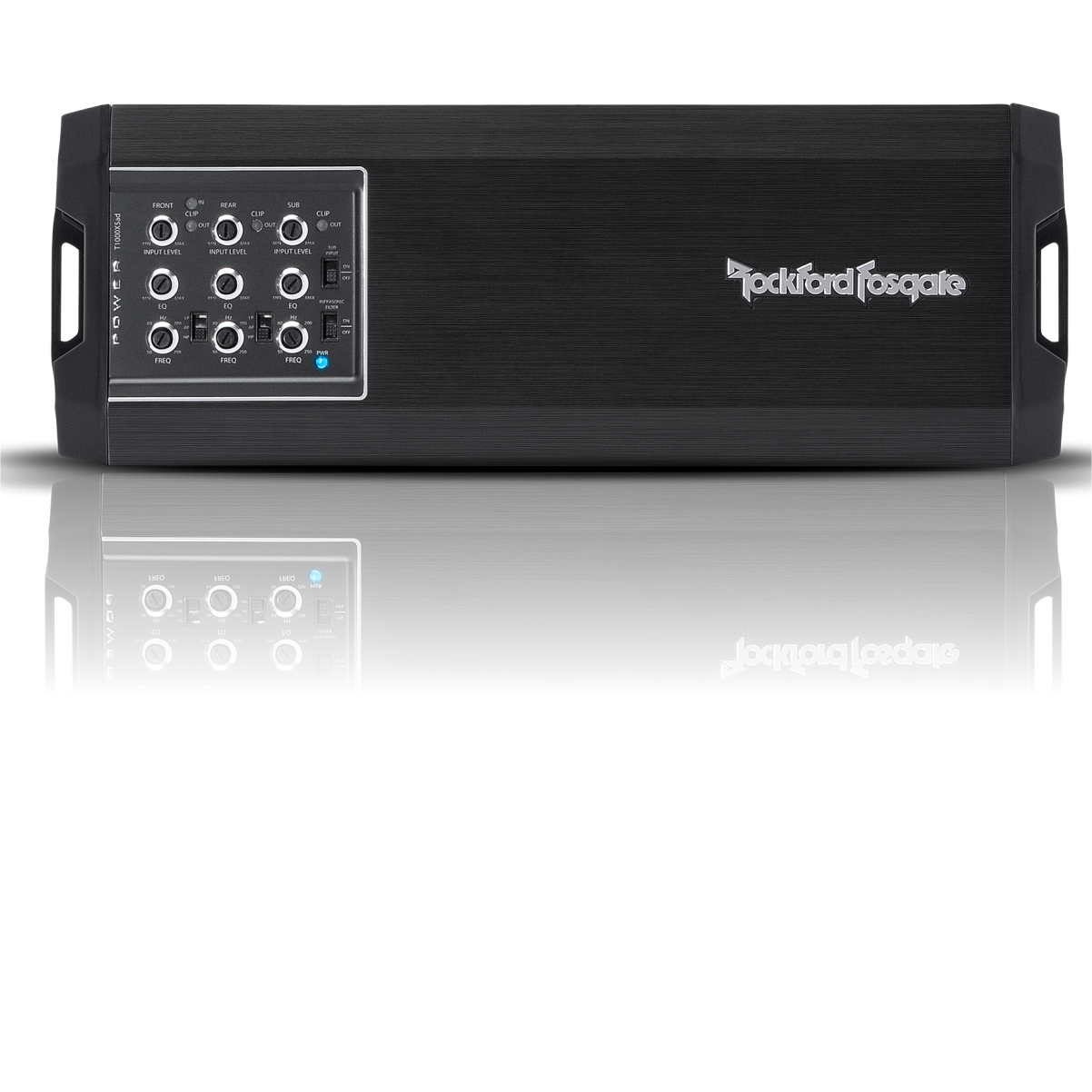

Amplifier top mounted controls include our C.L.E.A.N. level setting system, integrated high/ low pass crossovers, Input channel configuration switches and our Punch EQ boost circuit. Upgraded input RCA connectors allow for high or low level input signals to be used through our differential input circuit which eliminates incoming noise and can provide a remote out signal when using high level inputs.

Dual fan cooling, real time thermal monitoring and dual extruded heat sinks maintain heat dissipation even at high outputs keeping the amp cool. The Amplifier is also compatible with our PLC2 level remote control allowing remote output level control of the sub channel.

FEATURES AT A GLANCE

  • 4/2 Ohm muti-impedance Constant Power
  • Class-BD
  • Rockford Fosgate proprietary Class AD technology
  • Differential inputs with high level auto turn-on feature
  • Real time thermal sensing with Rollback technology
  • 2013 PLC2 remote ready
  • C.L.E.A.N. input/output clip detection and indicator LEDs
  • Dual extruded heat sinks
  • Dual fan cooled
  • Remote-Out feature when using high level inputs
  • Top mounted controls
  • 2-Year Warranty
  • All other normal Rockford protection schemes
  • Discrete surface mount technology
  • CEA-2006 and CE compliant

Specification

Cta-2006 Compliant
Number of Channels5
Total Power
(Sum of Rated Power)1000 Watts
Rated Power
(RMS Continuous Power)100 Watts x 4 + 400 Watts x 1 @ 4Ω
100 Watts x 4 + 600 Watts x 1 @ 2Ω
N/A Watts x 4 + 600 Watts x 1 @ 1Ω
200 Watts x 2 + N/A Watts x 1 @ 4Ω Bridged
Dynamic Power
(PVC/PowerCube®)138 Watts x 4 + 487 Watts x 1 @ 4Ω
118 Watts x 4 + 748 Watts x 1 @ 2Ω
N/A Watts x 4 + 663 Watts x 1 @ 1Ω
225 Watts x 2 + N/A Watts x 1 @ 4Ω Bridged
BridgeableYes
Front Terminals: Left (+) Right (-)
Rear Terminals: Left (+) Right (-)
Frequency Response20Hz – 20kHz
Input Sensitivity150 mV to 12 V
Circuit Topology ClassClass AD + Class BD (Sub)
Efficiency (average)>85%
Total Harmonic Distortion (THD+Noise)4 Ch 4-Ohm: <1.0%
4 Ch 2-Ohm: <1.0%
Sub 4-Ohm <1.0%
Sub 2-Ohm <1.0%
Sub 1-Ohm <1.0%
Signal InputFront High/Low Input: 4-Pin harness
Rear High/Low Input: 4-Pin harness
Sub High/Low Input: 4-Pin harness
Input Switch: 2CH/4CH
(2CH: sub signal derived from Front Left input)
Signal Output—
Tone ControlsFront/Rear Treble: 0 to +14dB @ 12.5kHz (HP mode)
Front/Rear: 0 to +18 dB @ 45Hz (LP mode)
Sub: 0 to +18 dB @ 45 Hz
Crossover ControlsHigh-Pass: 50Hz – 250Hz @ 12dB/Octave
Low-Pass: 50Hz – 250Hz @ 12dB/Octave
Subwoofer: 50Hz – 250Hz @ 12dB/Octave
Infrasonic: 28Hz @ 12dB/Octave
Butterworth Alignment on all filters



Remote Controls
Optional PLC2 provides Punch Level Control
Visual Indicators
Power: Blue LED
Protect: Red LED
Input Clip: Red LED3
Output Clip: Blue/Violet/Red LED1,2,3LED Color Legend:
1BLUE: <0.5% THD
2VIOLET: 1% THD
3RED: 10%+ THD

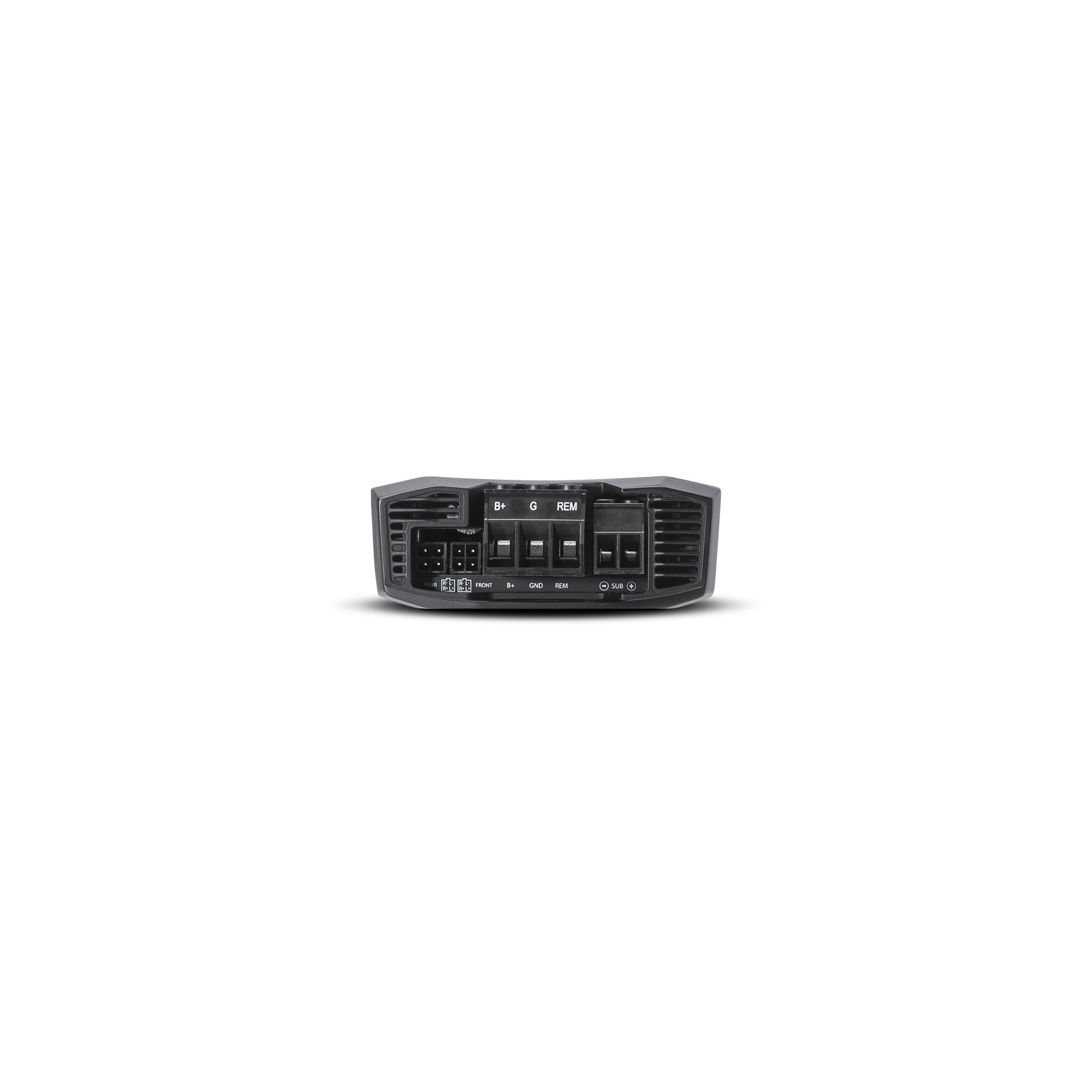

Power Wire Gauge
4 AWG
Power Input Connector
Detachable Compression Terminal
Speaker Wire Gauge
Front/Rear: 16 AWG
Sub: 10 AWG
Speaker Output Connector
Front: 4-Pin Harness
Rear: 4-Pin Harness
Sub: Detachable Compression Terminal
Cooling
Dual Fan Cooled
Heatsink
Extruded Aluminum
Operating Voltage
Recommended Fuse
(not included)
100 A
Average Current Draw (13.8V Music)
Max. Current Draw (13.8V Sinewave)
108 A
Suggested Alternator
Included In The Box
Dimensions (H x W x D)
1.6 x 4.3 x 12 (in.)
4.1 x 10.8 x 30.5 (cm)
