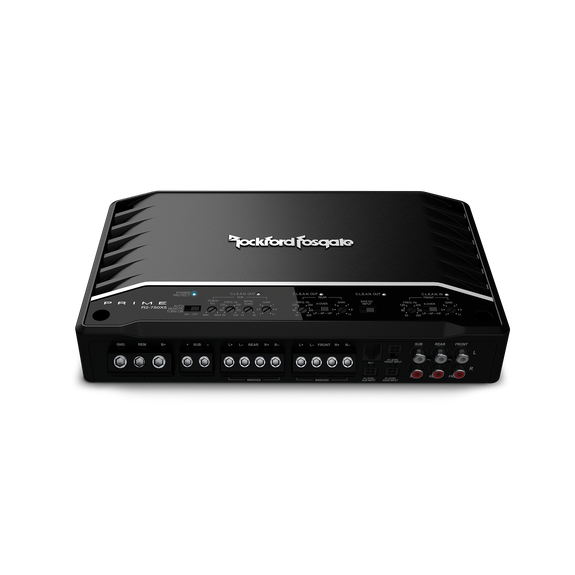

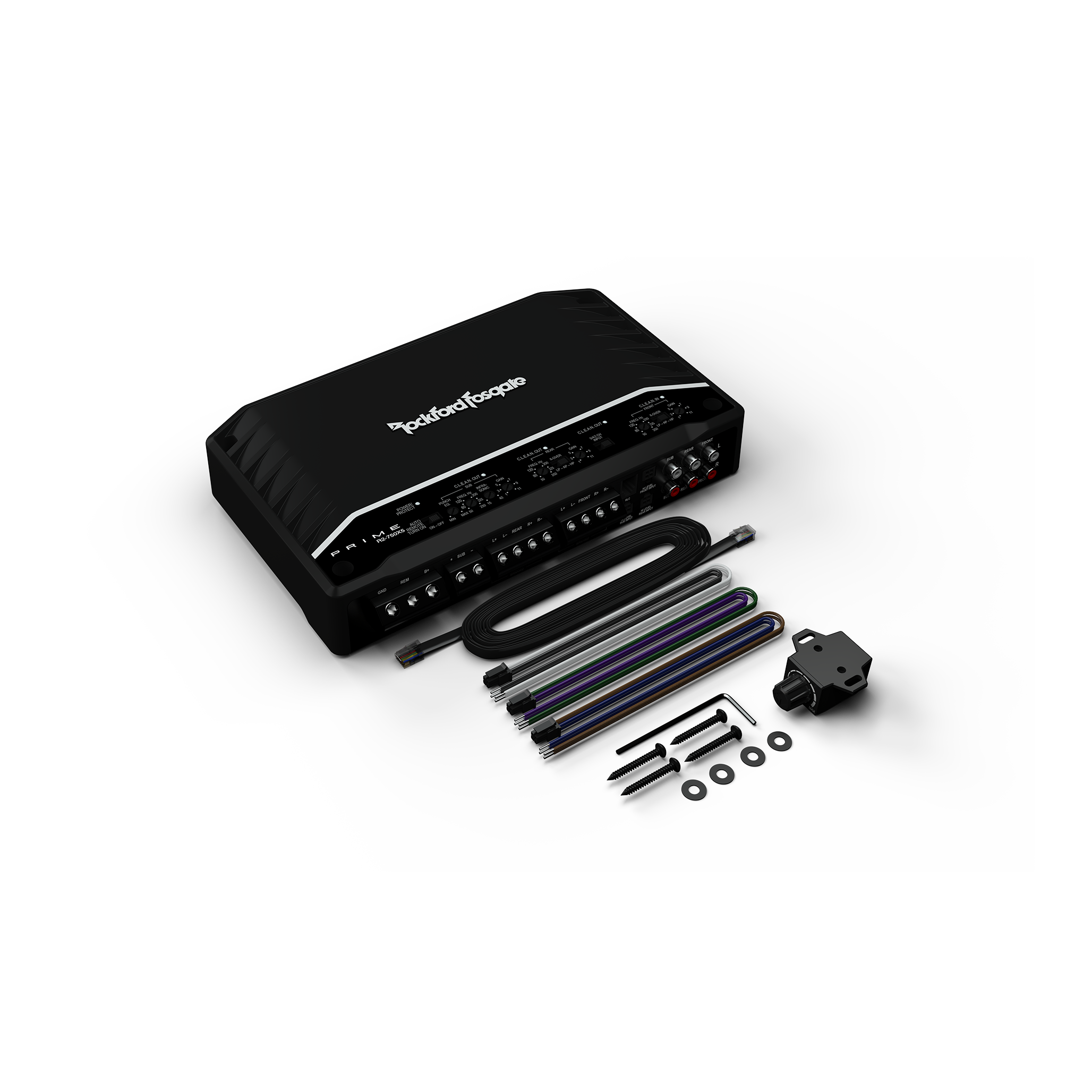

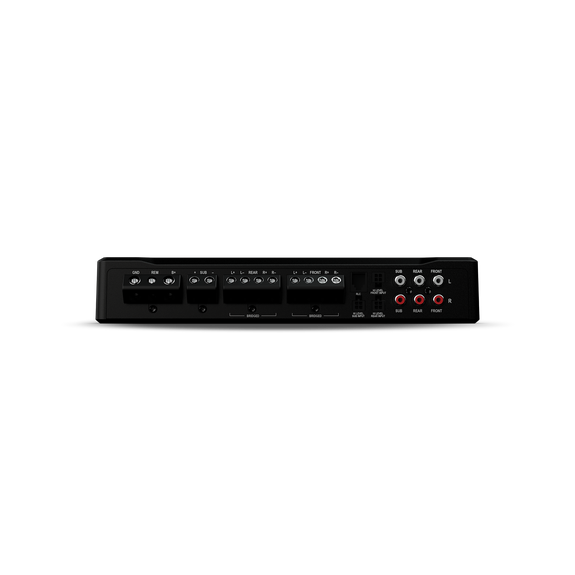

R2-750X5 – Rockford Fosgate – Prime 750 Watt 5-Channel Amplifier
R12,590.78 inc. VAT
In stock
Description
Prime 5 Channel 750 Watt Amp
Additional information
| Weight | 10 kg |
|---|---|
| Dimensions | 30 × 15 × 10 cm |
| Channels | |
| Good, Better, Best | |
| Power Rating | |
| Product Type | |
| Brand |
Overview
The R2 models were developed for car audio fanatics that want a reliable amplifier – with all the power and performance you’ve come to expect from Rockford Fosgate – at an economical price. Rockford Fosgate amplifiers are renowned world-wide for being “under rated,” easily surpassing all specifications, and most importantly, generating more power over their ratings. These 3rd generation of Prime Series amplifiers are refined with the latest Rockford Fosgate technology for easy setup and configuration, making them perfect for use with factory audio or custom aftermarket systems.
FEATURES AT A GLANCE
2/4/5 Channel Input Selection Switch
Auto-Sense bypass switch for vehicles with RAP (Retained Accessory Power)
High Level Input Capable
Balanced Differential Inputs with RCA Pass Through Outputs
Features C.L.E.A.N. Set-up
Continuously Variable On Board Punch EQ
Variable Infrasonic Filter

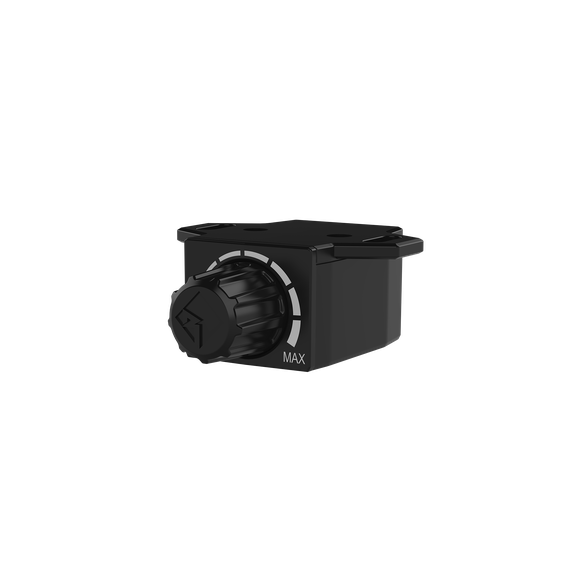

Includes RLC Remote Level Control
Short Circuit & Over Current Protection
Top Mounted Control Panel
Front, Rear and Sub Variable Input Gain adjustment level
Full Range Class-D
Fully Adjustable 12 dB/octave High and Low pass Butterworth Crossovers
Rollback Protection
1 Year Warranty
CEA-2006 Compliant & CE Compliant
Cast aluminum heat sink
Videos
Specifications
(Sum of Rated Power)
(RMS Continuous Power)
100 Watts x 4 + 350 Watts x 1 @ 2Ω
200 Watts x 2 + N/A @ 4Ω Bridged/Mono
(PVC/PowerCube®)
114 Watts x 4 + 426 Watts x 1 @ 2Ω
234 Watts x 2 + N/A @ 4Ω Bridged/Mono
High-Level: 450 mV – 12 V
Front/Rear 2Ω: <1.0%
Sub 4Ω: <1.0%
Sub 2Ω: <1.0%
Front High-Level: 4-Pin Molex
Rear Low-Level: 2 RCA
Rear High-Level: 4-Pin Molex
Sub Low-Level: 2 RCA
Sub High-Level: 4-Pin MolexInput Switch: 2/4/5 Input
(works for RCA/Hi-Level inputs)
50 Hz – 250 Hz @ 12dB/Octave ButterworthFront Low-Pass:
50 Hz – 250 Hz @ 12dB/Octave ButterworthRear High-Pass:
50 Hz – 250 Hz @ 12dB/Octave ButterworthRear Low-Pass:
50 Hz – 250 Hz @ 12dB/Octave ButterworthSub Low-Pass:
50 Hz – 250 Hz @ 12dB/Octave ButterworthSub Infrasonic:
15 Hz – 40 Hz @ 12dB/Octave Butterworth
C.L.E.A.N. In
C.L.E.A.N. Out (front)
C.L.E.A.N. Out (rear)
C.L.E.A.N. Out (sub)
(not included)
(4.9 cm x 17.3 cm x 28.5 cm)
