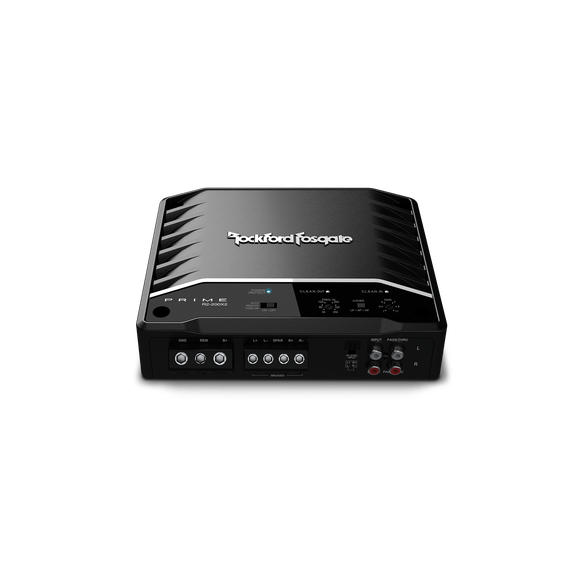

M-R2-200X2 – Rockford Fosgate – Prime 200 Watt 2-Channel Coated Marine Amp

M-R2-200X2 – Rockford Fosgate – Prime 200 Watt 2-Channel Coated Marine Amp

R5,735.74 inc. VAT

In stock

SKU: M-R2-200X2 Categories: , Tag:

Description

The M-R2-200X2 features UV resistant protection and special internal conformal coating that protect the electronics from water. Primed for Performance, the M-R2-200X2 amplifier is a 200 watt, full-range class-D, capable of operating at 4Ω or 2Ω stereo, and 4Ω bridged/mono. This amplifier is extremely efficient because of its class D technology which reduces demand on the vehicles electrical system. The amp also features C.L.E.A.N. circuitry to help you adjust your gain settings, a P.O.W.E.R. Supply that generates more power as voltage increases, and integrated Punch EQ that corrects for acoustic deficiencies while delivering up to 3X the bass.

Additional information

Weight 2.13 kg
Dimensions 27 × 24 × 10 cm
Brand

Product Type

Good, Better, Best

Channels

Power Rating

Circuit Topology Class

Power Wire Gauge

Overview

The R2 models are developed for car audio fanatics that want a reliable amplifier – with all the power and performance you’ve come to expect from Rockford Fosgate – at an economical price. Rockford Fosgate amplifiers are renowned world-wide for being “under rated,” easily surpassing all specifications, and most importantly, generating more power than their ratings. These 3rd generation of Prime Series amplifiers are refined with the latest Rockford Fosgate technology for easy setup and configuration, making them perfect for use with factory audio or custom aftermarket systems.

FEATURES AT A GLANCE
Balanced Differential Inputs with RCA Pass Through Outputs
Variable Input Gain adjustment level
Auto-Sense bypass switch for vehicles with RAP (Retained Accessory Power)
High Level Input Capable
Features C.L.E.A.N. Set-up
Fully Adjustable 12 dB/octave High and Low pass Butterworth Crossovers
Short Circuit & Over Current Protection
Top Mounted Control Panel
Cast aluminum heat sink
CEA-2006 Compliant & CE Compliant
Full Range Class-D
1 Year Warranty

Specification

Cta-2006 Compliant
Number of Channels2
Total Power
(Sum of Rated Power)200 Watts
Rated Power
(RMS Continuous Power)50 Watts x 2 @ 4Ω
100 Watts x 2 @ 2Ω
200 Watts x 1 @ 4Ω Bridged/Mono
Dynamic Power
(PVC/PowerCube®)60 Watts x 2 @ 4Ω
107 Watts x 2 @ 2Ω
215 Watts x 1 @ 4Ω Bridged/Mono
BridgeableYes
Frequency Response20 Hz – 20 kHz
Input SensitivityLow-Level: 150 mV – 4 V
High-Level: 450 mV – 12 V
Circuit Topology ClassClass-D
Efficiency (average)
Total Harmonic Distortion (THD+Noise)4Ω: <1.0% 2Ω: <1.0% Signal InputLow-Level: 2 RCA High-Level: 4-Pin Molex Signal OutputLow-Level: 2 RCA (Pass-Thru active with RCA or Hi-Level input) Tone ControlsNo Crossover ControlsHigh-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth Low-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth All-Pass: Yes Remote ControlsNo Visual IndicatorsPower/Protect C.L.E.A.N. In C.L.E.A.N. Out Power Wire Gauge4 AWG Power Input ConnectorCompression Terminal Block Speaker Wire Gauge8 AWG Speaker Output ConnectorCompression Terminal Block CoolingConvection Heatsink Operating Voltage9 - 16 VDC Recommended Fuse (not included)30 A Average Current Draw (13.8V Music) Max. Current Draw (13.8V Sinewave)18 A Suggested Alternator Included In The Box Dimensions (H x W x D)1.9" x 6.8" x 8.1" (4.9 cm x 17.3 cm x 20.5 cm)

Owners Manual

Download Owners Manual
