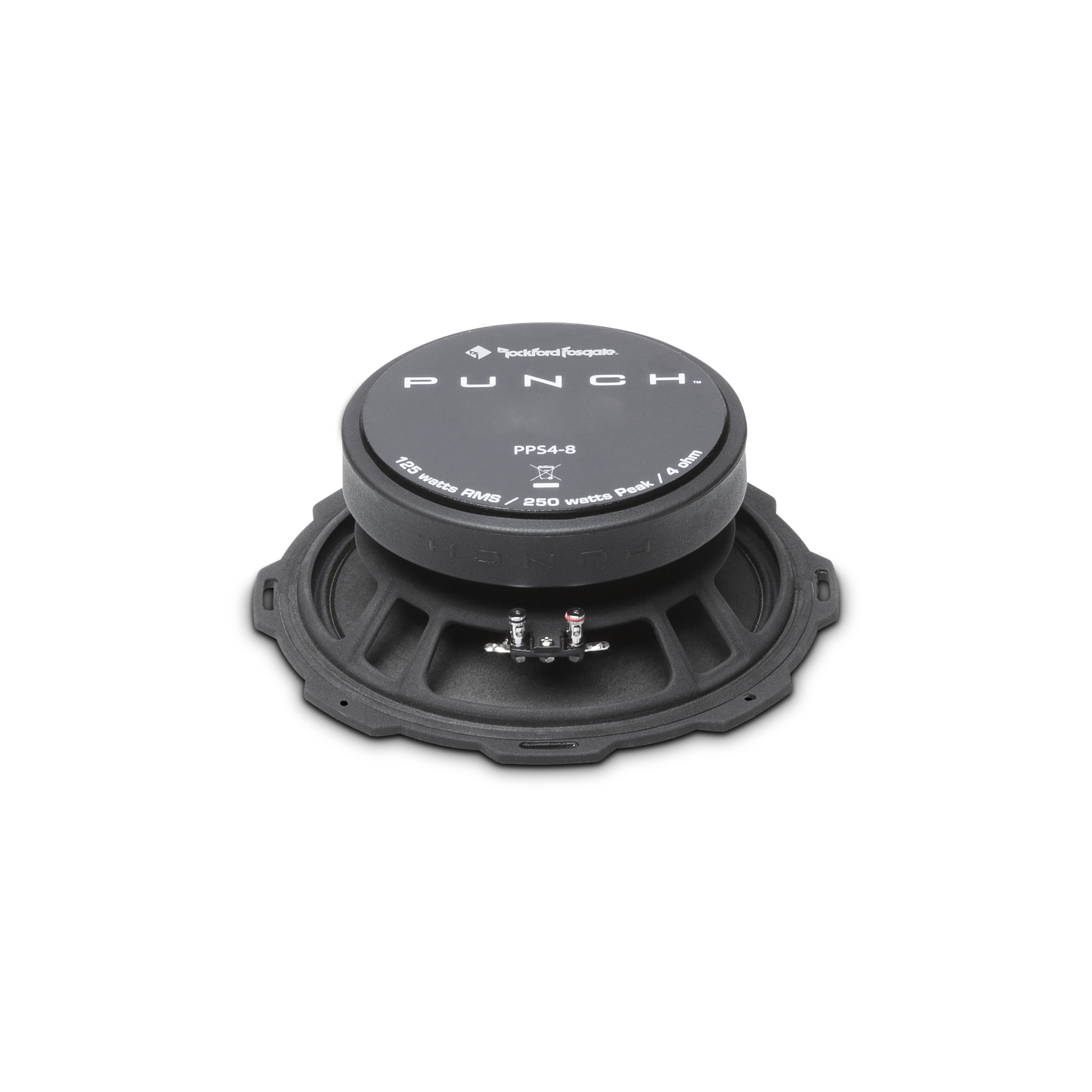

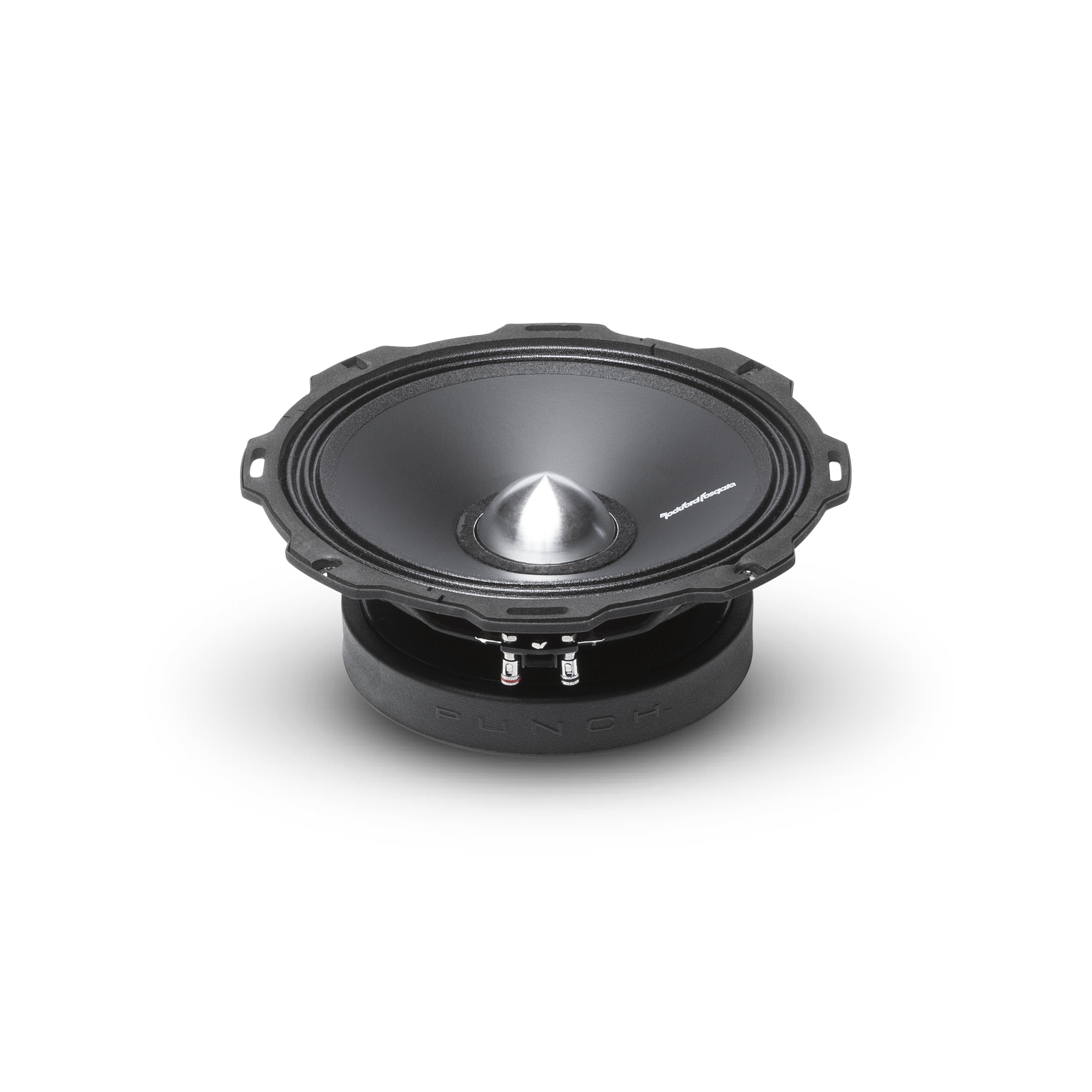

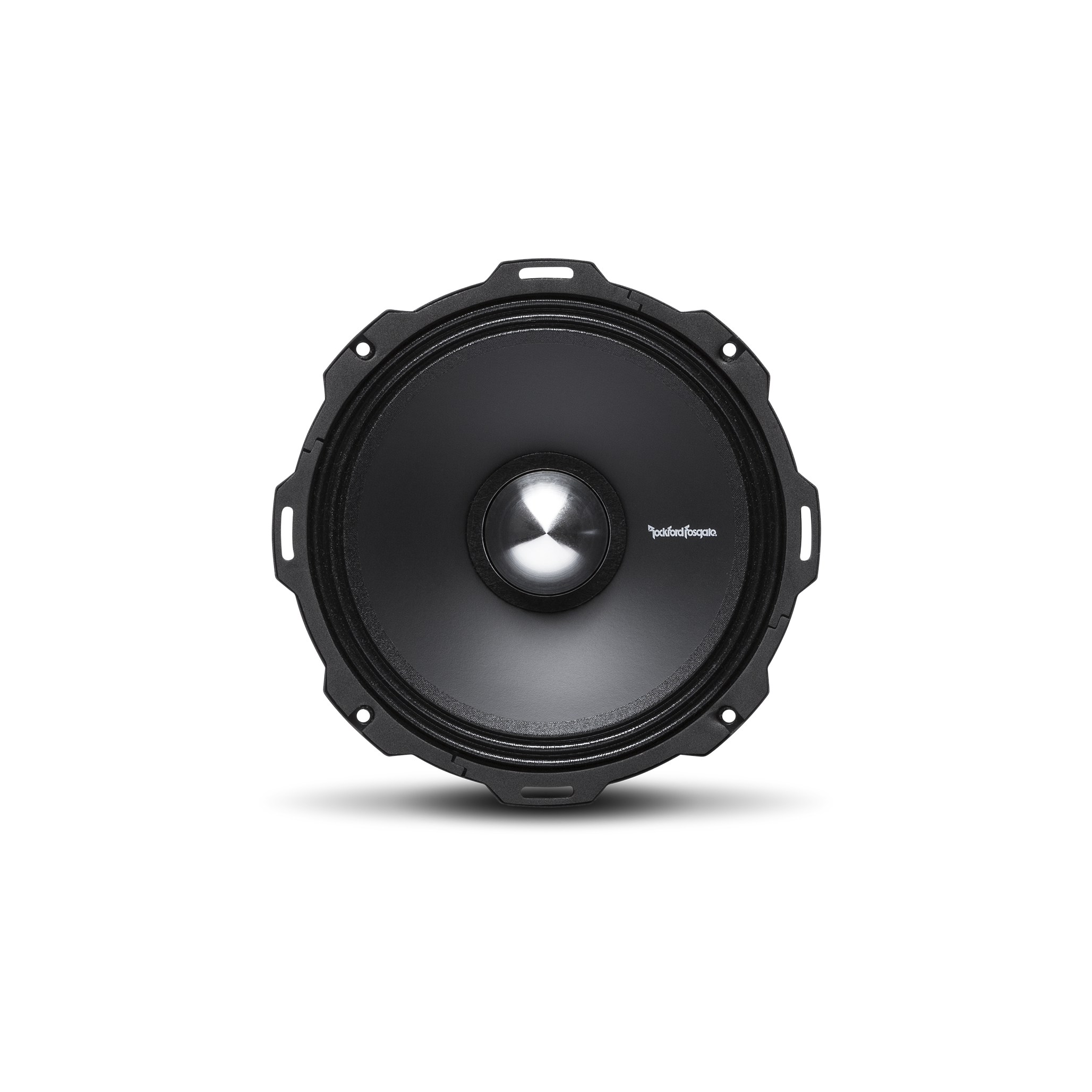

PPS4-8 – Punch Pro 8″ 4-Ohm Midrange/Midbass

R2,525.00 inc. VAT

Out of stock

SKU: PPS4-8 Categories: ,

Description

The Pro PPS4-8 is an 8” 4-Ohm woofer engineered specifically for high SPL (Sound Pressure Level) conditions. It features 125 watt RMS power handing and includes grilles with mounting hardware. Speakers sold as individual units (not pairs.)

Overview

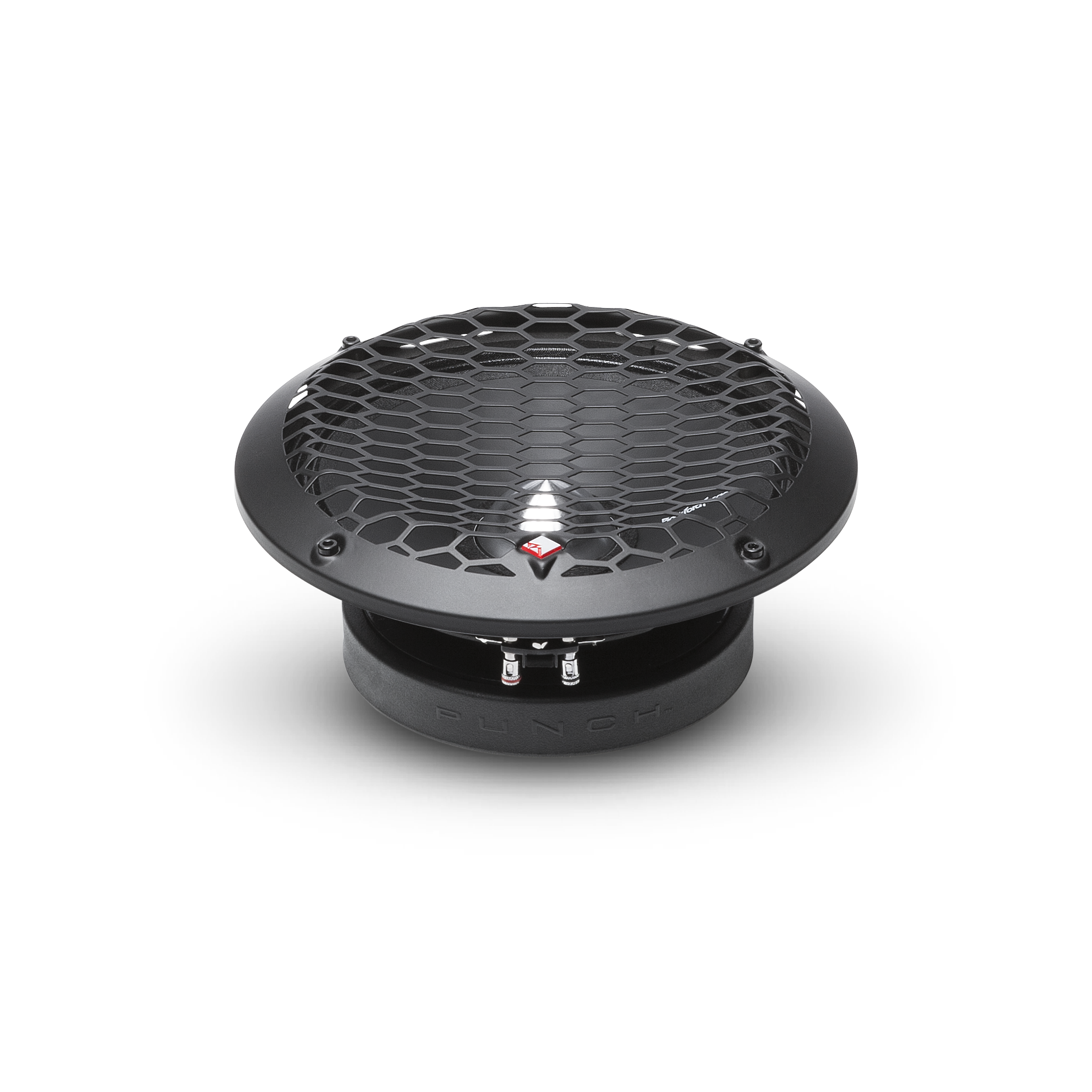

The PPS4-8 Punch Pro is a 8″ midrange loudspeaker engineered for high SPL (Sound Pressure Level) conditions. The oversized motor structure and high temperature voice coil, combined with a fiber reinforced paper cone and corrugated treated cloth surround create the foundation for a highly sensitive speaker that can handle plenty of power. You’ll be proud, because these things are loud! Package includes protective grilles.

FEATURES AT A GLANCE

  • Fiber reinforced high strength paper cone with treated “W” style surround
  • Stamp-cast aluminum frame
  • All Metal Input Spring Terminal Connection
  • Corrugated treated cloth surround
  • Fatigue and tear resistant poly cotton spider

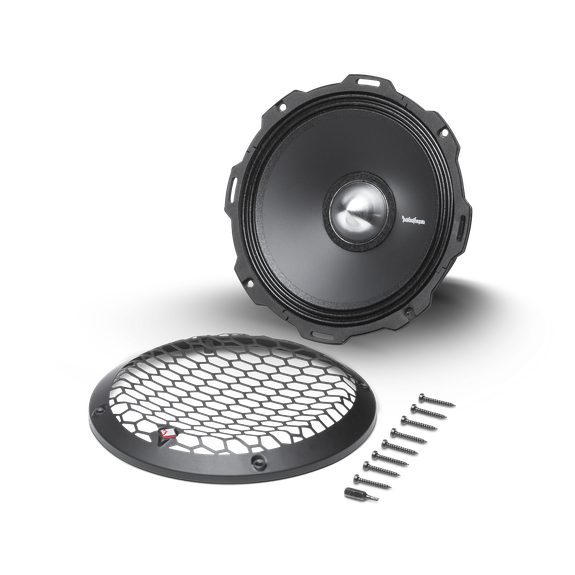

  • Grilles and mounting hardware included
  • Billet stock machined aluminum phase plug
  • Sold individually (1 each)
  • High temp aluminum voice coil
  • Periodic-stitched fatigue resistant lead wire
  • 1 Year Warranty

Specification

CEA-2031 Compliant
CEA-2031 Guidelines
Speaker Type
Midrange
Tweeter Size
(Nominal Diameter)
Tweeter Mounting Depth
Midrange Size
(Nominal Diameter)
8″
Midrange Mounting Depth
2.91″ (74 mm)
Power Handling (RMS)
125 Watts RMS
250 Watts Max
Crossover
Mounting Hardware
Yes
Shipping Weight
7.75 Lbs. (3.51 Kg.)
Grille/Trim Ring Included
Yes
Frequency Response (Hz)
80Hz-5kHz
Sensitivity
(dB @ 1W/1M)
94.5
Nominal Impedance (Ohms)
4-Ohm

Videos

Owners Manual

PPS4-8.pdf Owners Manual
