PMX-HD9813 – Rockford Fosgate – Digital Media Receiver for 1998-2013 Harley-Davidson

PMX-HD9813 - Rockford Fosgate - Digital Media Receiver for 1998-2013 Harley-Davidson

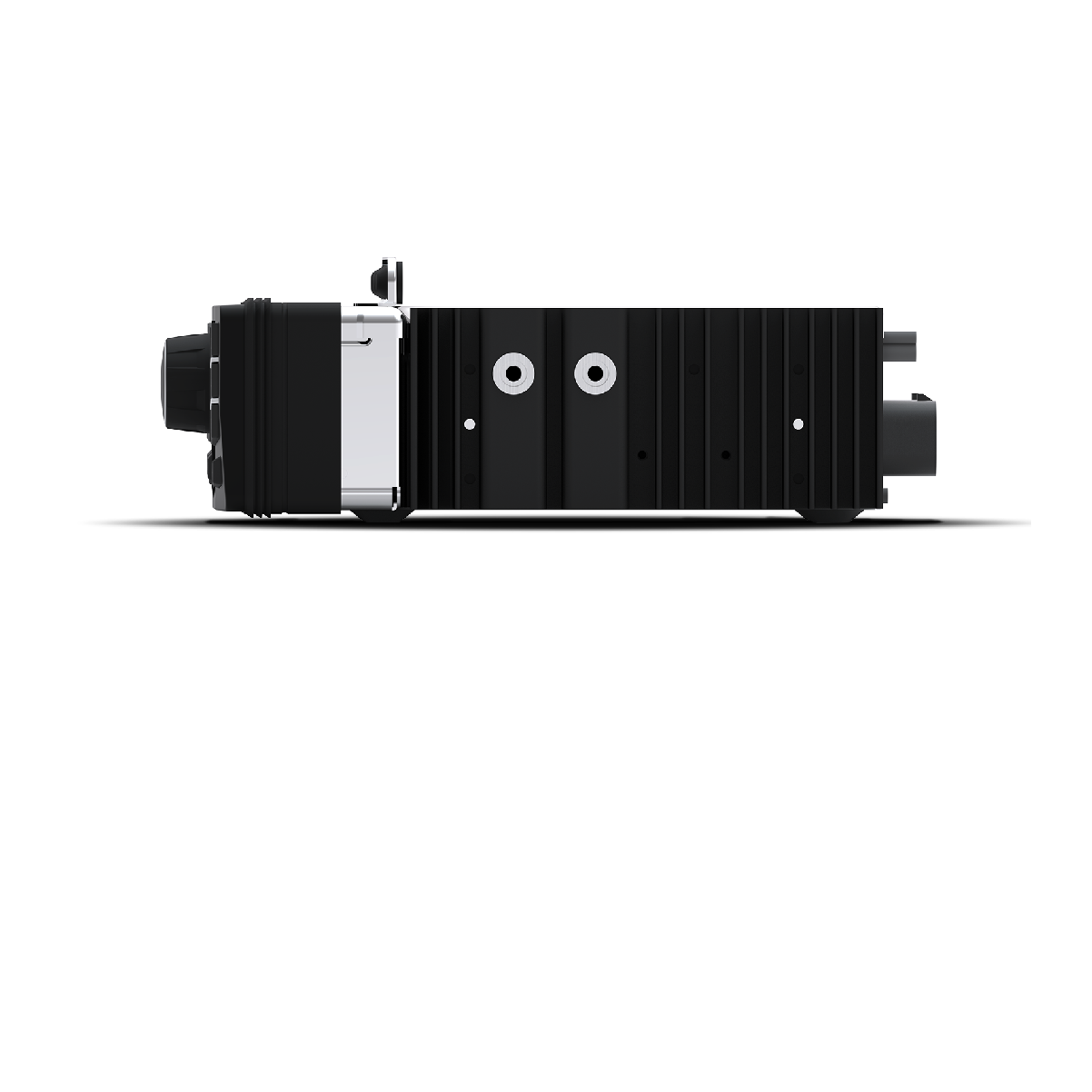

PMX-HD9813 - Rockford Fosgate - Digital Media Receiver for 1998-2013 Harley-Davidson - Image 2

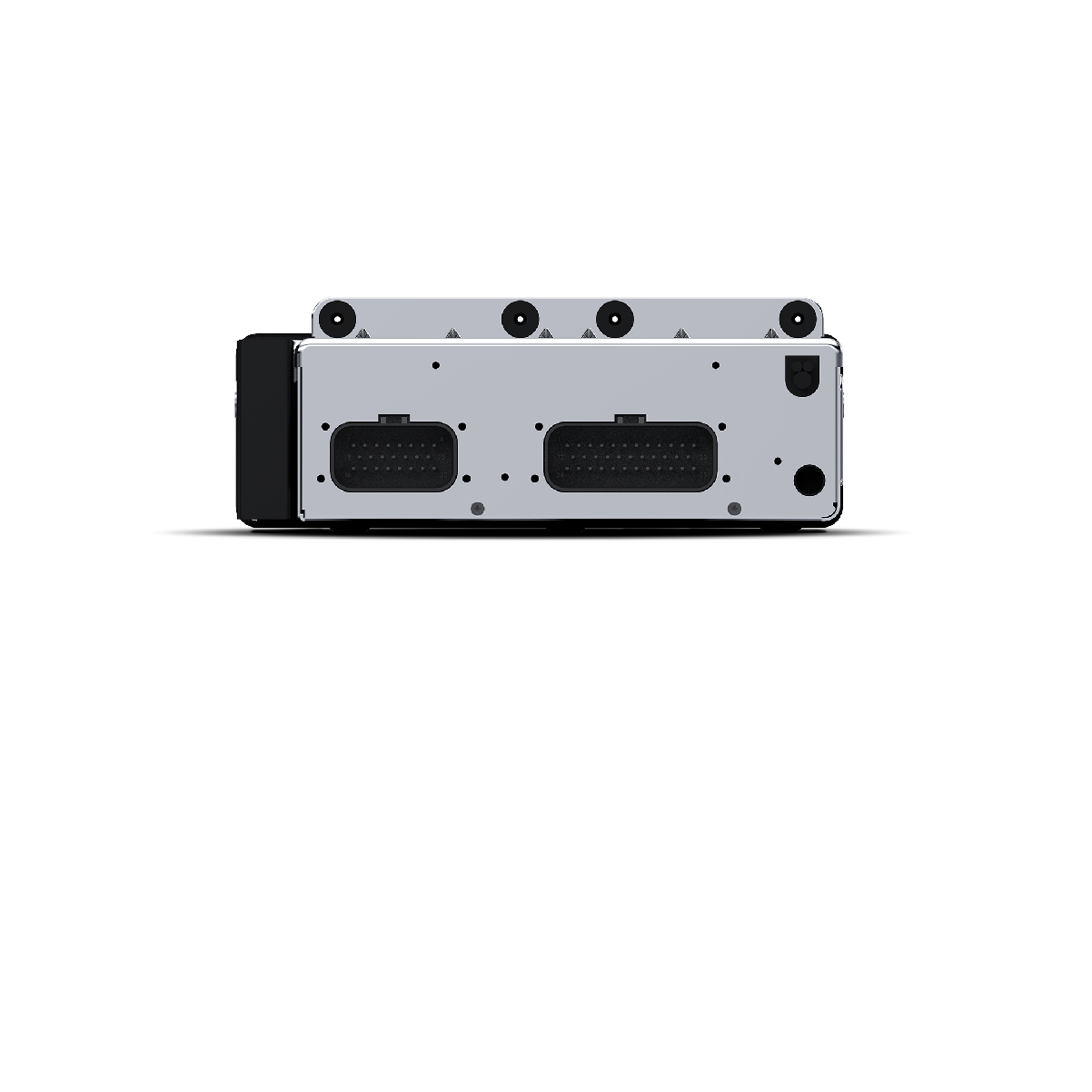

PMX-HD9813 - Rockford Fosgate - Digital Media Receiver for 1998-2013 Harley-Davidson - Image 3

PMX-HD9813 – Rockford Fosgate – Digital Media Receiver for 1998-2013 Harley-Davidson

R21,079.50 inc. VAT

Out of stock

SKU: PMX-HD9813 Categories: , ,

Description

Plug and play installation requires factory wiring harness and connectors in order to retain functionality. Systems requiring rear speaker-line outputs will require additional harness (sold separately.) PMX source unit not compatible with factory amplified systems, CB, Intercom, rear volume controls, rear speakers on 1998-2005 Ultra’s, and factory equipped satellite radio systems. Estimated Installation Time: 1 HOUR.

  • 1998-2013 Harley-Davidson® direct replacement Media Receiver
  • A2DP and AVRCP Bluetooth® Wireless Streaming
  • Pandora® Internet Radio Control
  • SiriusXM® Ready (requires SiriusXM® SXV300 tuner)
  • Digital AM / FM Tuner
  • USB Input with 1.5A USB Charging
  • AUX Input
  • 3″ Full Color TFT Display with Day/Night Mode
  • Retains Factory Handle Bar Audio Controls
  • Voltage gauge with Low voltage Warning
  • 7-Band Graphic EQ + PEQ
  • Plug and Play Installation with OEM electrical connectors
  • Independent Subwoofer Level Control
  • Compatible with PMX-BTUR Remote control
  • Multi Region Radio Frequencies
  • Selectable HP/LP/AP Crossover with Selectable 12/24 dB/Octave Slope
  • Software updatable via USB
  • 2-Year Warranty
  • *Antenna not included

Additional information

Weight 2.15 kg
Dimensions 20.93 × 63.5 × 19.1 cm
Brand

Product Type

Overview

Plug and play installation requires factory wiring harness and connectors in order to retain functionality.  Systems requiring rear speaker-line outputs will require additional harness (sold separately.) PMX source unit not compatible with factory amplified systems, CB, Intercom, rear volume controls, rear speakers on 1998-2005 Ultra’s, and factory equipped satellite radio systems. Estimated Installation Time: 1 HOUR.

FEATURES AT A GLANCE

  • 1998-2013 Harley-Davidson® direct replacement digital media receiver
  • USB Input with 1.5A USB Charging
  • 3″ Full Color TFT Display with Day/Night Mode
  • A2DP and AVRCP Bluetooth® Wireless Streaming
  • Pandora® Internet Radio Control
  • SiriusXM-Ready® satellite radio (requires SXV300 tuner)
  • Digital AM/FM tuner with presets
  • Selectable HP/LP/AP Crossover with Selectable 12/24 dB/Octave Slope
  • AUX Input
  • Software updatable via USB
  • Retains factory thumb control functionality
  • Voltage gauge with Low voltage Warning
  • 7-Band Graphic EQ + PEQ
  • Plug and Play Installation with OEM electrical connectors
  • Independent Subwoofer Level Control
  • Compatible with PMX-BTUR Remote control
  • Multi-region radio frequencies

Specification

Crossover
Sub-Out variable from 60 Hz – 120 Hz
Channel Separation
RCA: > 50 dB
High-Level: > 50 dB
Output Power
CEA-2006 Power RatingCEA-2006 Power Rating
25W x 4 @ 4Ω RMS
50W x 4 @ 2Ω MAX
≤1.0% THD+N
Signal-to-Noise Ratio
RCA 2V: > 85 dB
High Level (CEA-2006): > 75 dB
Max Wrms: > 80 dB
RCA Output Voltage
Front: 4 V Max
Rear: 4 V Max
Sub: 4 V Max
Idle Current
< 2 Amps
Frequency Response
RCA: 20Hz – 20 kHz
High-Level: 20Hz – 20 kHz
Operating Voltage
9.5 – 16 VDC
THD+N
4-Ohms: < 1.0 %
Output Impedance
< 500 Ohms
AM Tuner
Range: 530 – 1710 kHz
Sensitivity: 40 dB
Frequency Response: 45 to 2.4 kHz
USB Version
2.0
Bluetooth®
3.0+EDR
A2DP 1.3
FM Tuner
Range: 87.9 – 107.9 MHz
Sensitivity: 8 dB
Frequency Response: 20 – 15 kHz
Supported Media Formats
MP3
WMA
Clock
Yes
USB Output Current
1.5A
USB Capacity
32 Gb max
255 Folders max
999 Songs max
Format Win USB as FAT32
Format Mac USB as MS-DOS (FAT)
Display Size:
Nominal Size: 3″ Color TFT
Resolution: 960 x 240
Brightness: 380 nits
Contrast: 400
Pixels: 320 x 240
View Angle: 120

Compatibility

Plug and play installation requires factory wiring harness and connectors in order to retain functionality. Systems requiring rear speaker-line outputs will require additional harness available in the RFK-HD9813 or separately with the 1130-72997-01.

1 Not compatible with factory amplified systems, CB, Intercom, rear volume controls, rear speakers on 1998-2005 Ultra’s, and factory equipped satellite radio systems.

YEAR MAKE MODEL
2006-2013 Harley Davidson® Street Glide®1
1998-2013 Harley Davidson® Road Glide®1
1998-2013 Harley Davidson® Electra Glide®1
