PMX-HD14 – Infotainment Source Unit for Select 2014+ Harley-Davidson Models

R31,000.00 inc. VAT

In stock

Description

The PMX-HD14 source unit was purpose built to deliver iconic performance. With class leading features like Apple Car Play®, plug-and-play installation, CB wireless headset connectivity as well as Street Party Mode™ which allows you to pair and stream the same music across to multiple radios simultaneously.

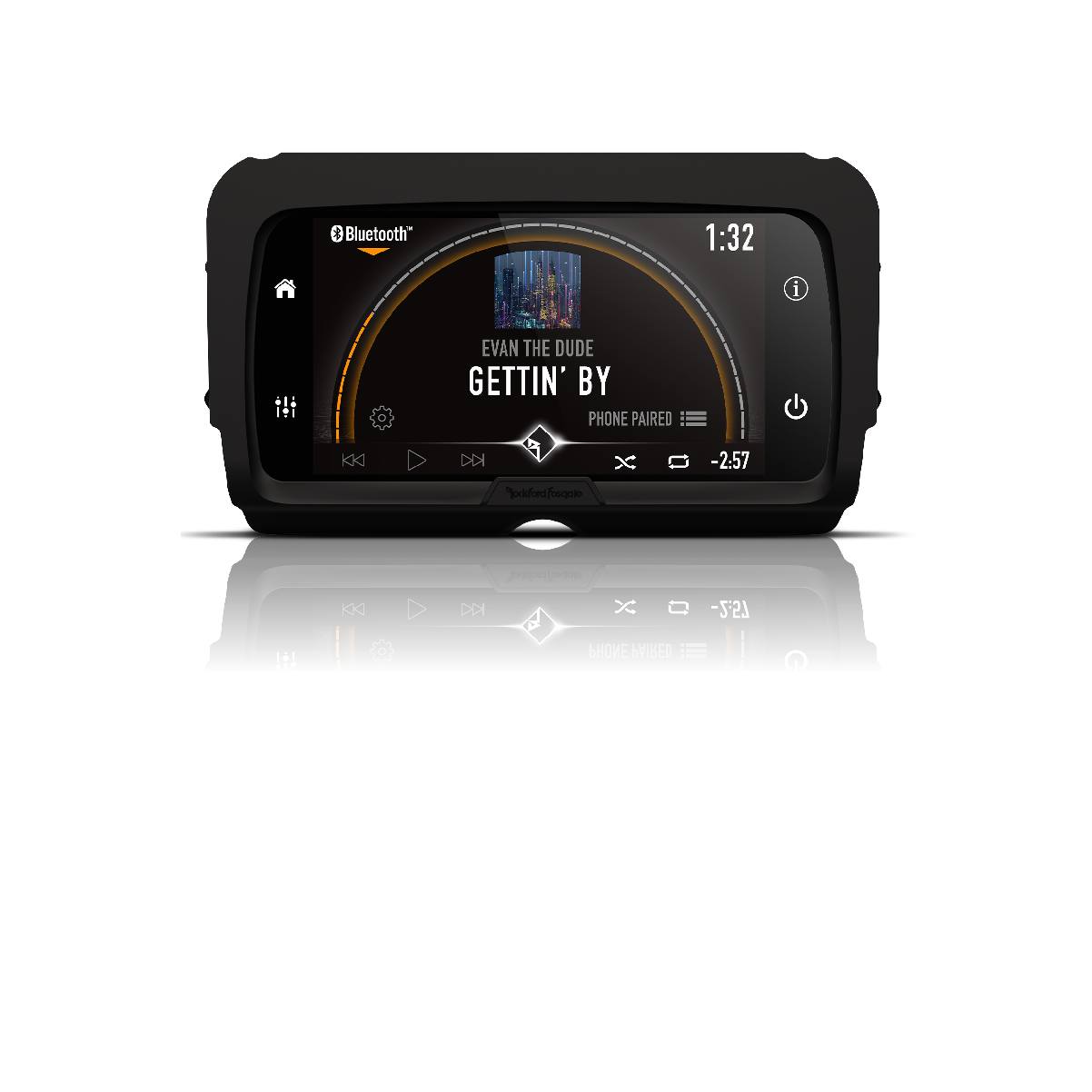

Full Color Display: Equipped with a 7” TFT display, this ultra-crisp infotainment center not only looks amazing, but features full touchscreen functionality that even works with riding gloves.

Complete Control: Control however you want it. This source unit keeps all factory handlebar controls as well as CB and wireless headset connectivity, without additional parts, and with built in Apple Car Play®, controlling your playlists and apps has never been easier.

Optimized Tunes: Designed specifically for your current Rockford Fosgate motorcycle audio system, we have optimized speaker specific location tunes, so no matter your current audio system you will get class leading sound.

Street Party Mode™: Bring the party to the streets. Street Party Mode allows up to 8 radios to pair and stream the same song from one broadcasting PMX-HD14.

Additional information

Weight 2.15 kg
Dimensions 20.93 × 63.5 × 19.1 cm
Brand

Product Type

Features

FEATURES AT A GLANCE

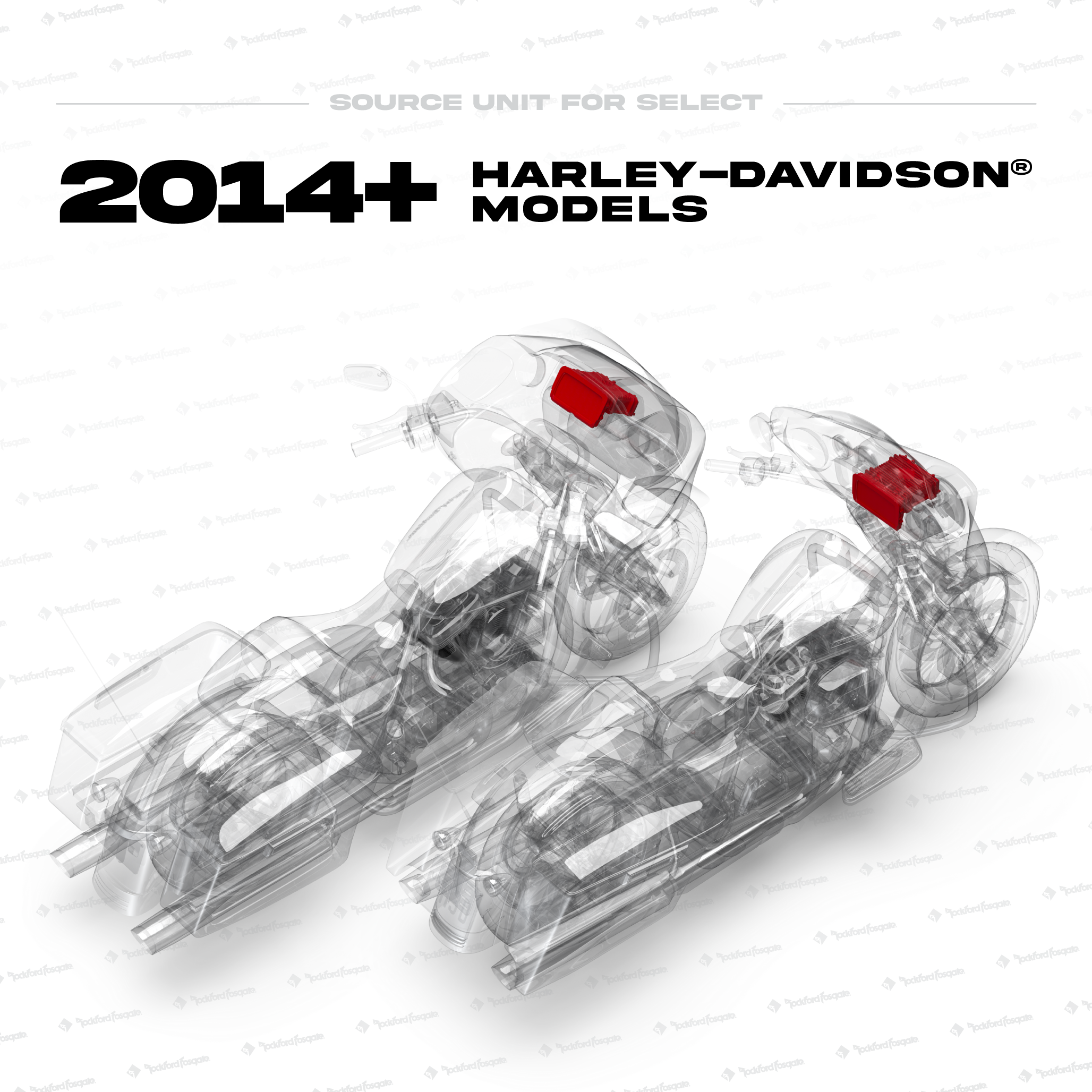

  • 2014+ Harley-Davidson® direct replacement digital media receiver
  • 7″ full color, glove friendly, capacitive multi-touch screen
  • Plug and Play Installation with OEM electrical connectors
  • No need to “flash” your bike
  • Retains factory thumb control functionality with no additional parts
  • Works with wireless headsets and OEM CB (WHIM & CB modules required)
  • Glove friendly touch controls
  • Bluetooth® connectivity with A2DP wireless audio streaming
  • Apple CarPlay® built in
  • Street Party Mode™ can broadcast audio up to 100 feet to 8 additional PMX-HD14
  • USB Input with 1.5A USB Charging
  • SiriusXM® Ready (requires SiriusXM® SXV300 tuner)
  • Digital AM/FM/WB tuner with presets
  • Built in DSP with Subwoofer control
  • Optimized DSP presets for all 2014+ Rockford Fosgate H-D stage kits
  • Software updatable via USB
  • AUX Input
  • 14 band graphic EQ
  • Multi-region radio frequencies
  • 2-Year Warranty
  • *Antenna not included

Specifications

Output Power
CEA-2006 Power Rating
25W x 4 @ 4Ω RMS
50W x 4 @ 2Ω MAX
≤1.0% THD+N
Output Power
Display Size
7″
Display Type
Color TFT
EQ Bands
14
EQ Type
Graphic
Source Zones
1.0
Audio Zones
1.0
Output Impedance
< 500Ω
Frequency Response
20 Hz – 20 kHz
Pre-Amp Outputs
6 (Left/Right)
Pre-Amp Output Voltage
4.0 VRMS Front
4.0 VRMS Rear
iPhone via USB
Yes
Android via USB
Charge Only
USB Type
Type A
USB Charging Current
1.5 A
USB Max Folders/Files
999
USB Max Capacity
32 GB
AUX Inputs
1 (left/right)
AUX Input Sensitivity
800 mV – 4 V
AM/FM Tuner
Yes
Bluetooth
5.0
SiriusXM®
Yes (SXV300)
Made for iPhone
Yes
Apple CarPlay
Yes
Android Auto
No
Clock
Yes
SD Card Input
No
Street Party Mode
Broadcast: 100 ft. max
Receiving: 8 radios max
Playback: MP3
Yes
Playback: FLAC
Yes
Playback: WMA
Yes
Playback: AAC
No
Playback: LC3
No
Playback: DRM
Yes
Playback: USB
Yes

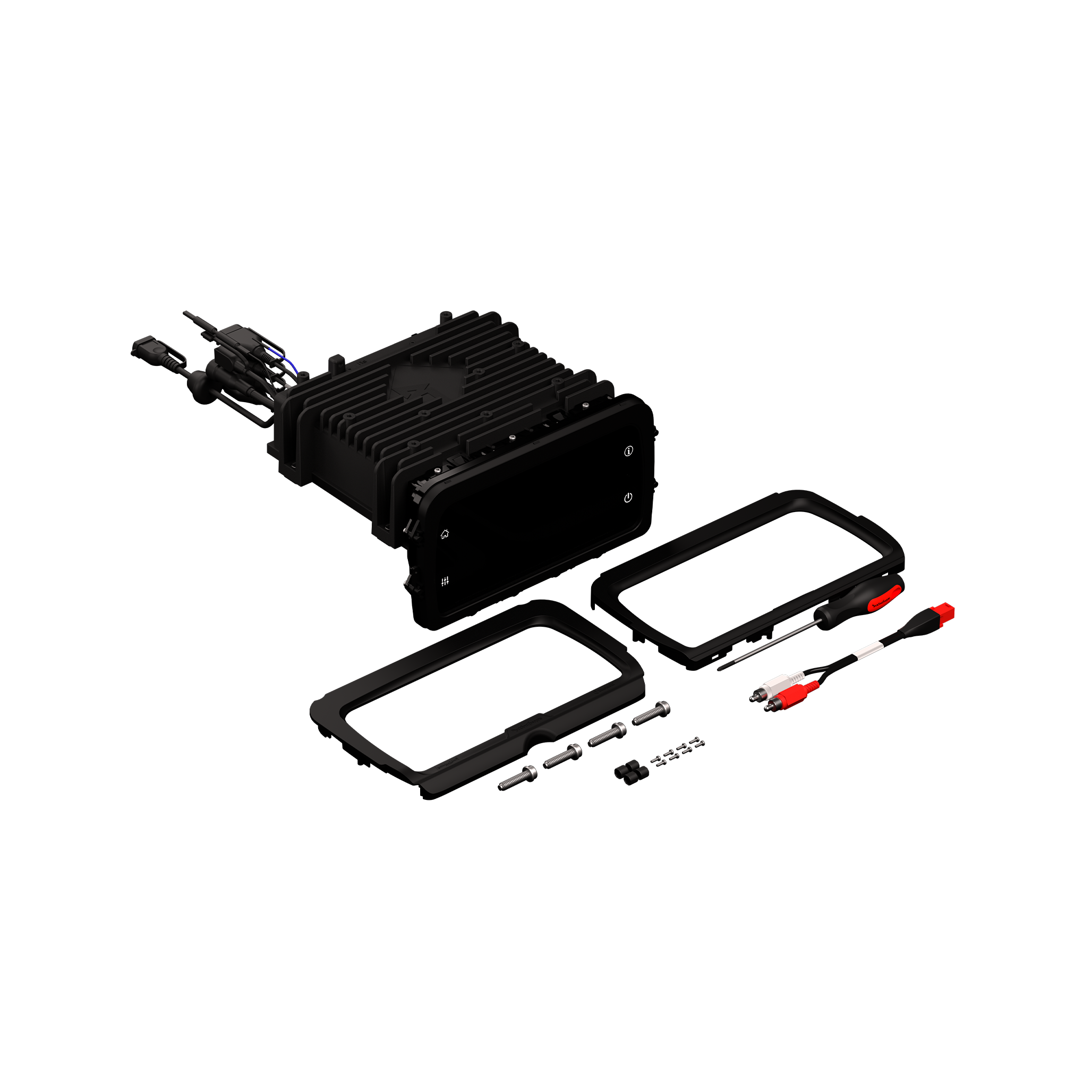

Included In The Box
(1) Road Glide trim bezel
(1) Street Glide trim bezel
(8) Trim Panel Screws
(1) Mini Phillips screwdriver for trim bezel
(4) Radio Chassis Mount screws
(8) Rubber sleeves for radio chassis screws
Operating Voltage
9 – 16 VDC

Compatibility

LEGEND

YES

YES Compatible!Model IS compatible

NO

NOT Compatible!Model NOT compatible

NOT AVAILABLE

Model NOT producedModel not produced this year

FITMENT

YES

Harley-Davidson CBH-D® CB

YES

SiriusXM® SXV300SiriusXM™ SXV300

NO

Harley-Davidson XMH-D® SiriusXM™

COMPATIBLE

Boom! AudioBoom!™ Audio1

NO

Boom! Audio Stage IBoom!™ Stage I2

NO

Boom! Audio Stage IIBoom!™ Stage II2

COMPATIBLE

Harley-Davidson Audio Powered by Rockford Fosgate Stage IH-D® by RF® Stage IRF2

COMPATIBLE

Harley-Davidson Audio Powered by Rockford Fosgate Stage IIH-D® by RF® Stage IIRF2

HARLEY-DAVIDSON® TOURING
MODEL CHASSIS 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023
Electra Glide® RevivalElectra Glide® Revival FLH
Electra Glide® StandardElectra Glide® Standard NR FLHT XNR XNR XNR XNR
Road GlideRoad Glide® FLTRX
Road Glide STRoad Glide® ST FLTRXST
Road Glide SpecialRoad Glide® Special FLTRXS
Road Glide Special 120th AnniversaryRoad Glide® Special 120th Anniversary FLTRXSANV
Street GlideStreet Glide® FLHX
Street Glide STStreet Glide® ST FLHXST
Street Glide 115th AnniversaryStreet Glide® 115th Anniversary FLHXANV
Street Glide SpecialStreet Glide® Special FLHXS
Street Glide Special 115th AnniversaryStreet Glide® Special 115th Anniversary FLHXSANV
Street Glide Special 120th AnniversaryStreet Glide® Special 120th Anniversary FLHXSANV
HARLEY-DAVIDSON® ROAD KING®
MODEL CHASSIS 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023
CVO Road KingCVO Road King® FLHRSE X
CVO Softail DeluxeCVO Softail Deluxe FLSTNSE X X
Electra Glide Highway KingElectra Glide Highway King FLHFB X
Road KingRoad King® FLHR X X X X X X X X
Road King ClassicRoad King® Classic FLHRC X X X X X X
Road King SpecialRoad King® Special FLHRXS X X X X X X X
HARLEY-DAVIDSON® ULTRA
MODEL CHASSIS 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023
Road Glide® LimitedPTT FLTRK
Road Glide® UltraPTT FLTRU
Electra Glide® Ultra Classic®PTT FLHTCU
Electra Glide® Ultra Classic® Twin-CooledPTT FLHTCU
Electra Glide® Ultra Classic® LowPTT FLHTCUL
Electra Glide® Ultra Classic® Low Twin-CooledPTT FLHTCUL
Ultra LimitedUltra LimitedPTT FLHTK
Ultra Limited 115th AnniversaryUltra Limited 115th AnniversaryPTT FLHTKANV
Ultra Limited 120th AnniversaryUltra Limited 120th AnniversaryPTT FLHTKANV
Ultra Limited LowUltra Limited LowPTT FLHTKL
Ultra Limited Shrine EditionUltra Limited Shrine EditionPTT FLHTK
HARLEY-DAVIDSON® CVO
MODEL CHASSIS 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023
CVO LimitedCVO Ultra Limited FLHTKSE X X X X X X X X
CVO Limited 115th AnniversaryCVO Limited 115th Anniversary FLHTKSEANV X
CVO Pro Street BreakoutCVO Pro Street Breakout FXSE X X
Road GlideCVO Road Glide® FLTRXSE X X X RF2 RF2 XRF2G2
CVO Road Glide LimitedCVO Road Glide® Limited FLTRKSE RF1
CVO Road Glide Limited 120th AnniversaryCVO Road Glide® Limited 120th Anniversary FLTRKSEANV RF1
CVO Road Glide UltraCVO Road Glide® Ultra FLTRUSE X X
CVO Softail BreakoutCVO Softail Breakout FXSBSE X
CVO Street GlideCVO Street Glide® FLHXSE X X X X X X RF2 RF2 XRF2G2
HARLEY-DAVIDSON® TRIKE
MODEL CHASSIS 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023
FreewheelerFreewheeler®NR FLRT X X X X X X X X X
Road Glide 3Road Glide 3 FLTRT
Tri Glide UltraTri Glide® Ultra Classic®PTT FLHTCUTG
Tri Glide Ultra 115th AnniversaryTri Glide® Ultra 115th AnniversaryPTT FLHTCUTGANV
Tri Glide Ultra 120th AnniversaryTri Glide® Ultra 120th AnniversaryPTT FLHTCUTGANV
CVO Tri GlideCVO Tri Glide® FLHTCUTGSE X X RF1
