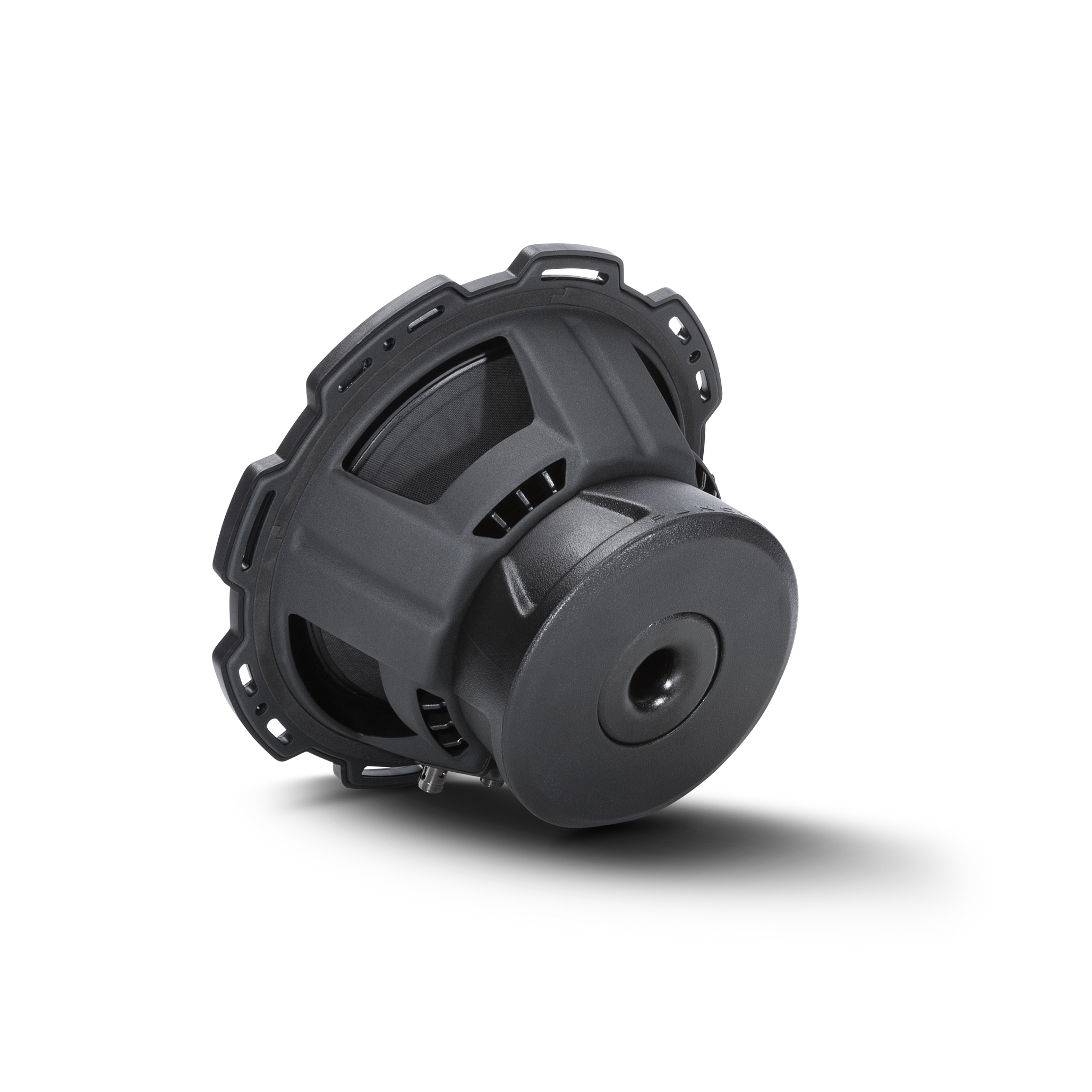

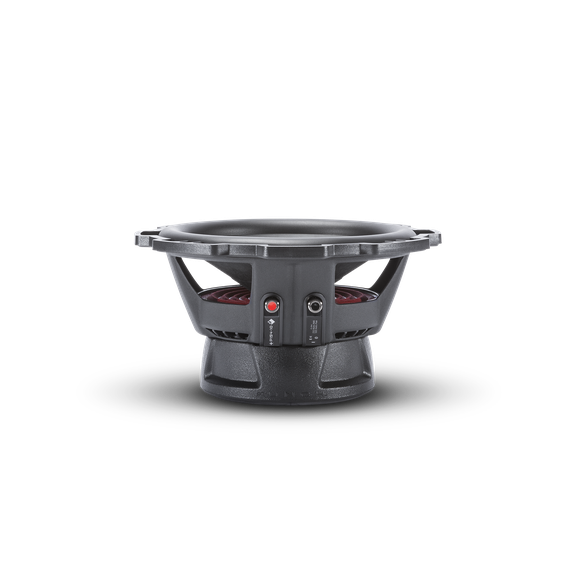

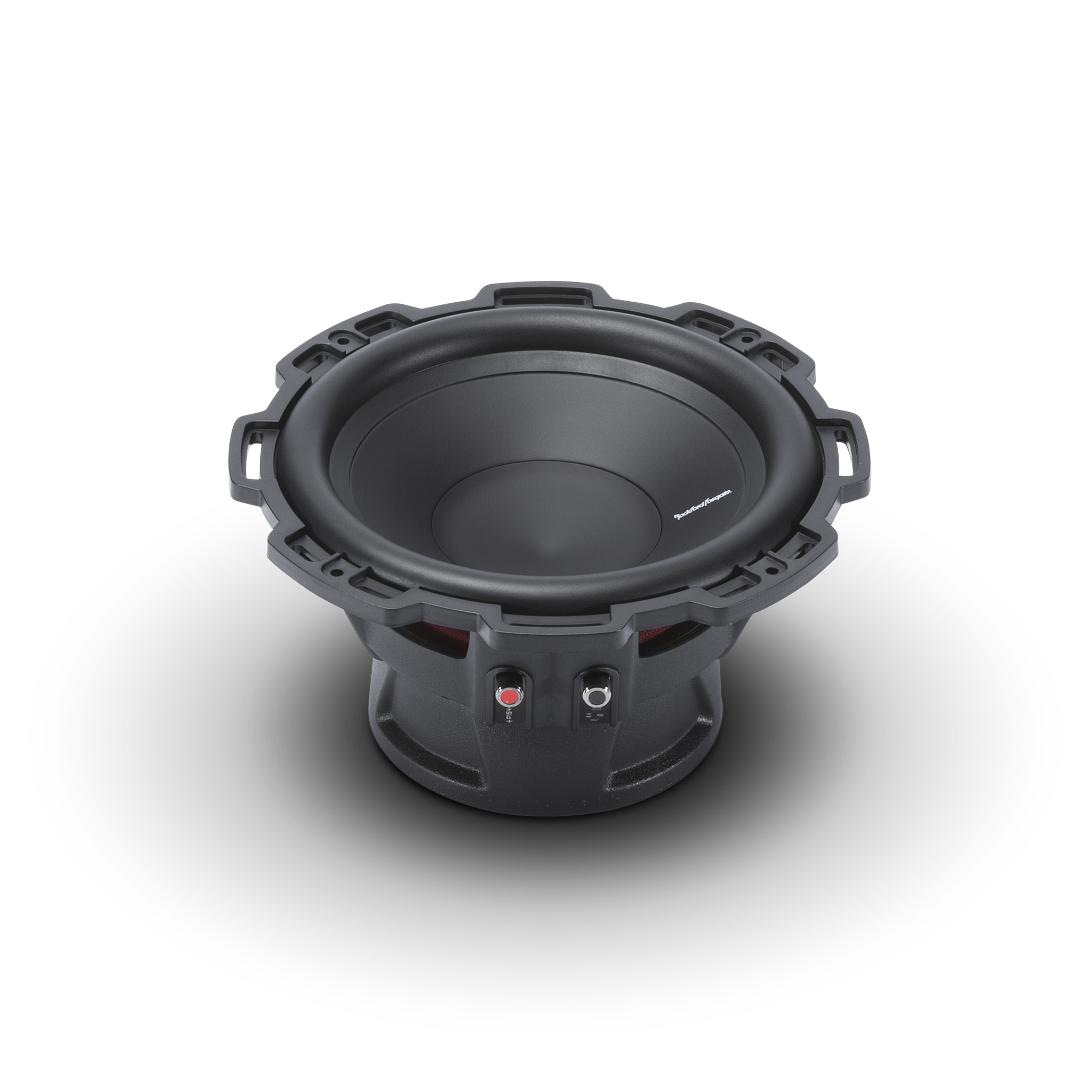

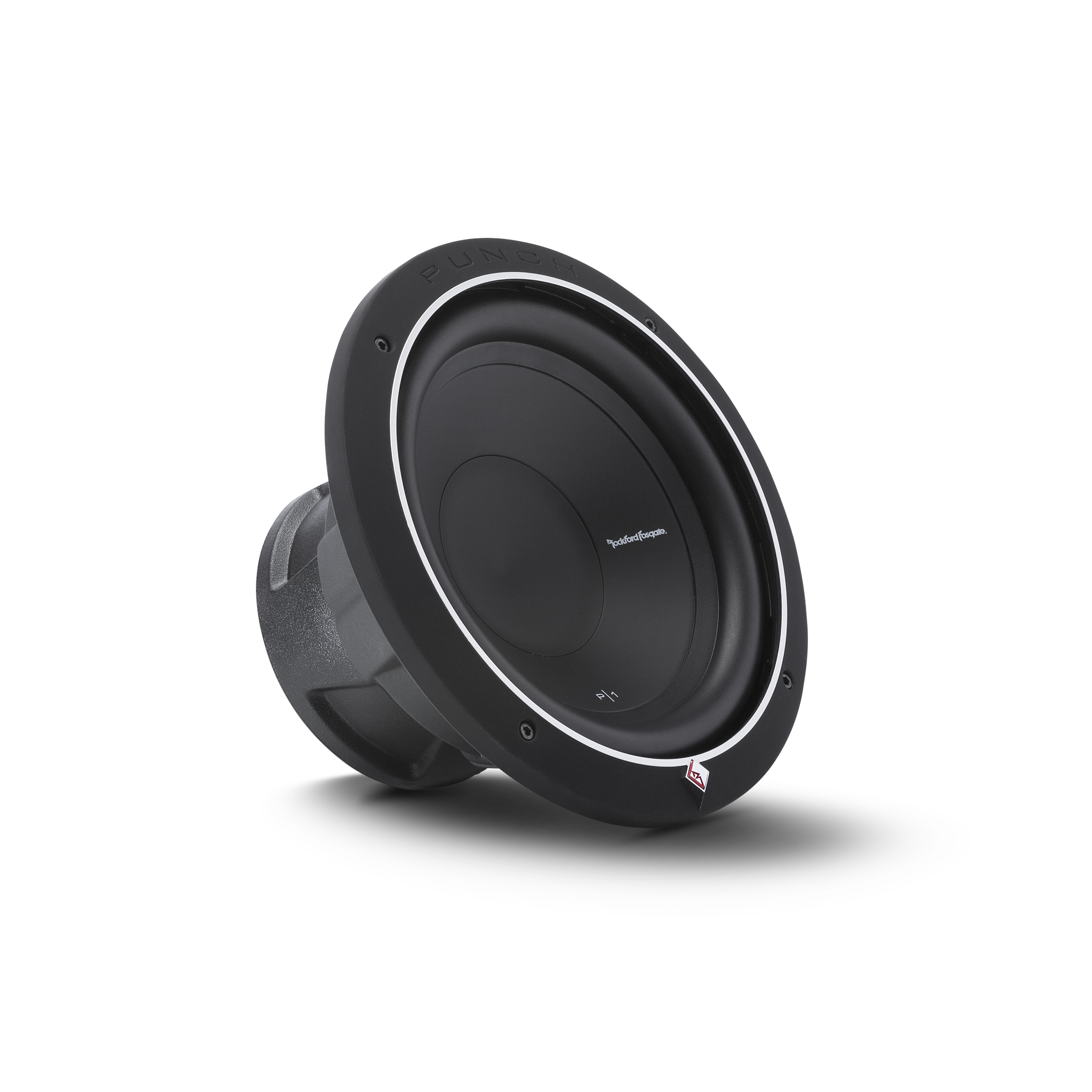

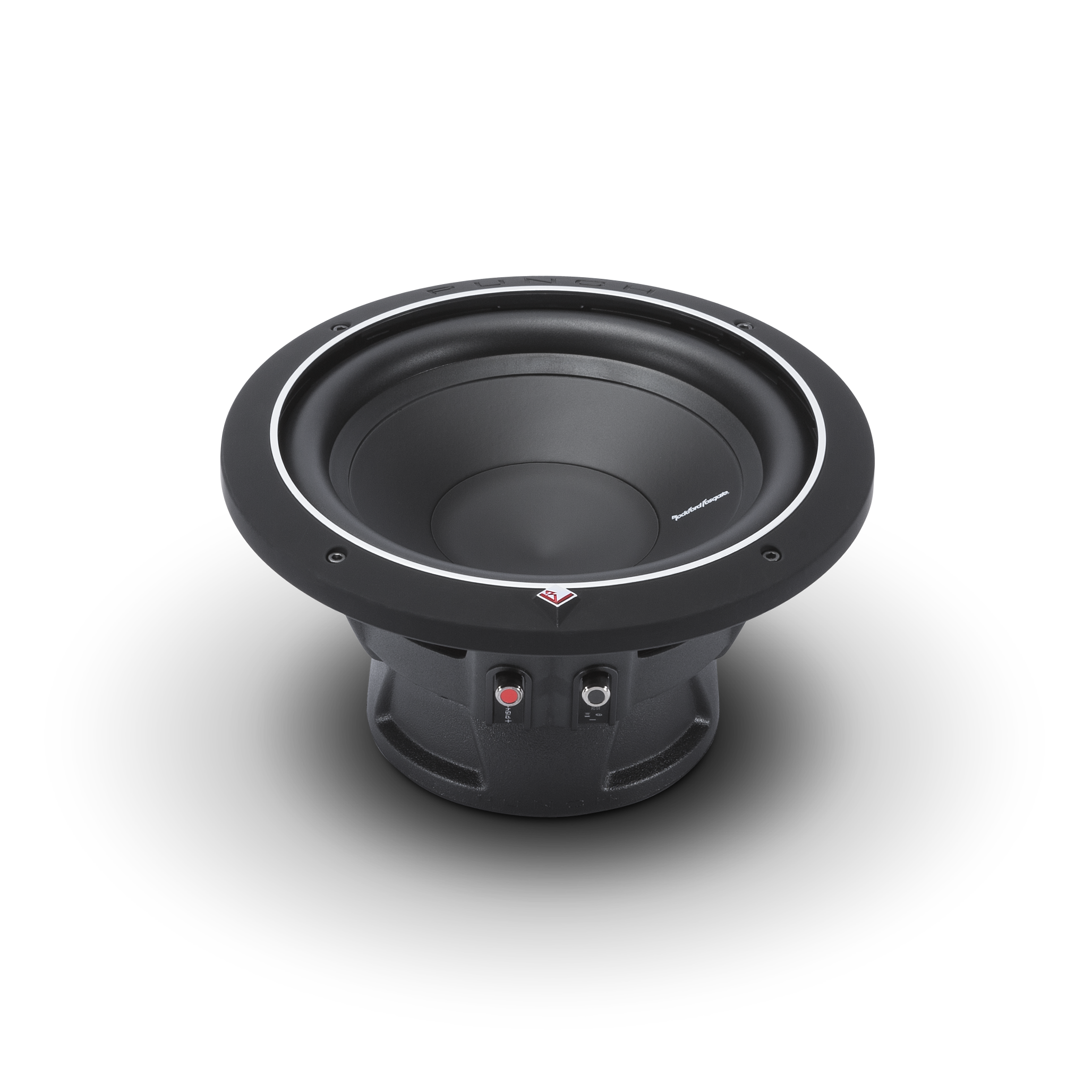

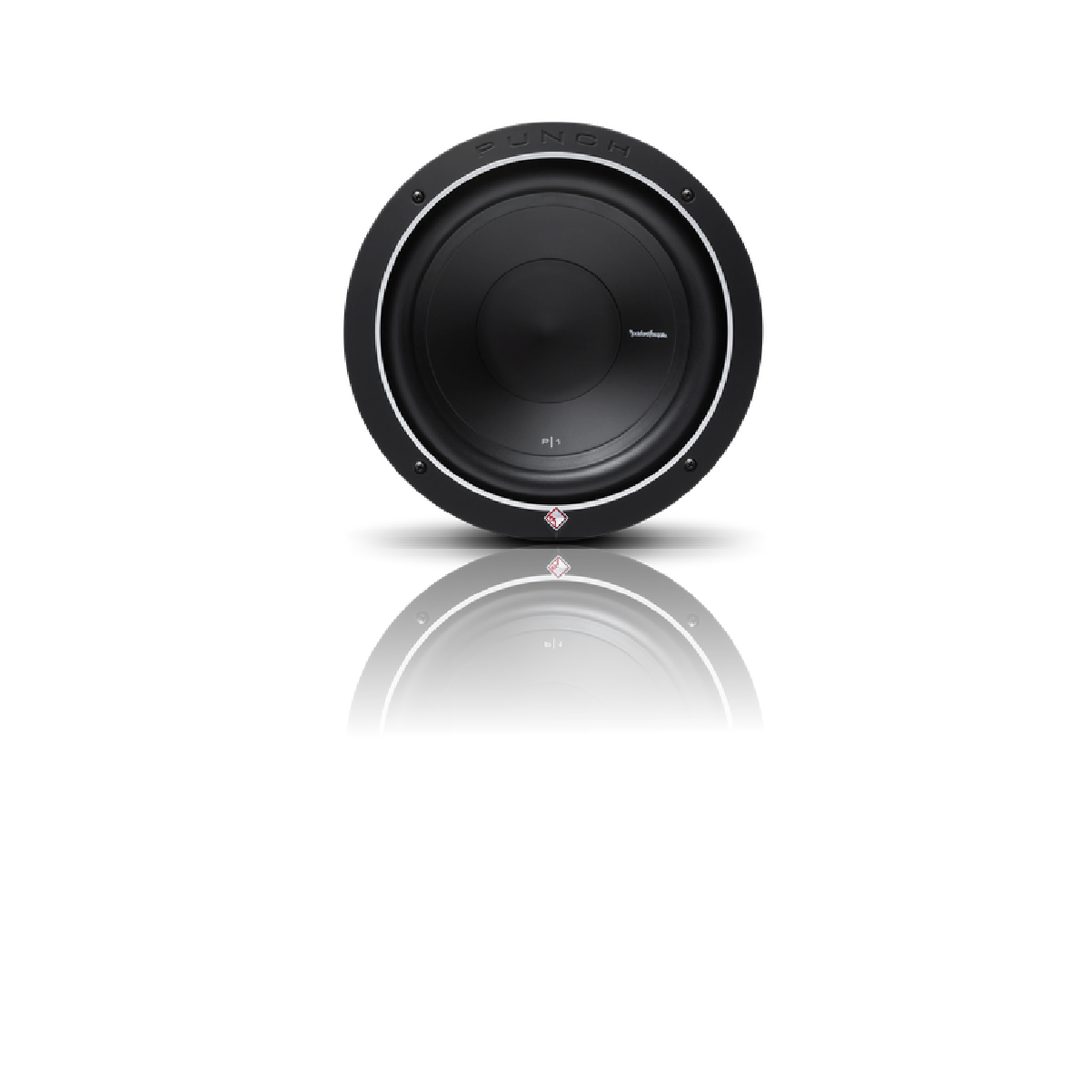

P1S4-10 – Rockford Fosgate – Punch 10″ P1 4-Ohm SVC Subwoofer

R2,910.01 inc. VAT

In stock

Description

Rockford Fosgate P1 10″ are the first in a family of world famous subwoofers called “The Punch”. During their inception in the 1980’s, they quickly became “The Woofer of Choice” for fanatic car audio systems, with a continued tradition today. Kevlar fiber reinforced paper cones deliver bass impact you can feel, and our VAST technology increases surface cone area up to 25%. Best in standard sealed and vented enclosures. Includes soft touch ABS tri trim ring.

  • Linear spider with embedded 16 AWG tinsel leads
  • High-temp voice coil with spun-laced Nomex® re-inforcement collar
  • Kevlar fiber reinforced paper cone
  • StampCast basket with integrated spider venting
  • Rubberized ABS trim ring with optional grille
  • Custom 10-AWG nickel plated push terminals
  • Extended pole piece and bumped vented backplate
  • Protective PVC textured magnet cover
  • 1 Year Warranty

Additional information

Weight 4.94 kg
Dimensions 31 × 31 × 21 cm
Brand

Product Type

Good, Better, Best

Power Rating

Size

Nominal Impedance

Subwoofer Depth

Overview

Rockford Fosgate P1 10″ are the first in a family of world famous subwoofers called “The Punch”. During their inception in the 1980’s, they quickly became “The Woofer of Choice” for fanatic car audio systems, with a continued tradition today. Kevlar fiber reinforced paper cones deliver bass impact you can feel, and our VAST technology increases surface cone area up to 25%. Best in standard sealed and vented enclosures. Includes soft touch ABS trim ring.

FEATURES AT A GLANCE

  • Rubberized ABS trim ring with optional grille
  • StampCast basket with integrated spider venting
  • Linear spider with embedded 16 AWG tinsel leads
  • Kevlar fiber reinforced paper cone
  • Custom 10-AWG nickel plated push terminals
  • Extended pole piece and bumped vented backplate
  • High-temp voice coil with spun-laced Nomex® re-inforcement collar
  • 1 Year Warranty
  • Protective PVC textured magnet cover

Specification

Speaker Connector
Dual 10 AWG compression
CEA-2031 Compliant
CEA-2031 Guidelines
Size
10″
Nominal Impedance
4-Ohm
Subwoofer Type
Standard
Voice Coil Diameter
2.0″ (51.6 mm)
Magnet Weight (oz)
45 oz. (1.28 kg.)
Voice Coil Type
Single Voice Coil
Power Handling (Watts RMS)
250 Watts RMS
500 Watts Max
Fs (Hz)
30
Qts
0.52
Qes
0.61
Qms
3.00
Re (Ohms)
3.6
Vas (Liters)
40
Xmax (mm)
9.0
Le (mH)
2.81
Sd (cm2)
370
SPL (dB @ 1w/1m)
85
SPL (dB @ 2.8v/1m)
88
Mounting Depth
5.33 in. (135.4 mm)
Cutout Diameter
9.14 in. (232 mm)
Woofer Displacement
0.056 cu. ft. (1.6 Liters)
Sealed Box Volume (Vb)
0.59 cu. ft. (16.7 Liters)
Vented Box Volume (Vb)
1.4 cu. ft. (39.6 Liters)

Videos

Owners Manual

P1S4-10.pdf Owners Manual
