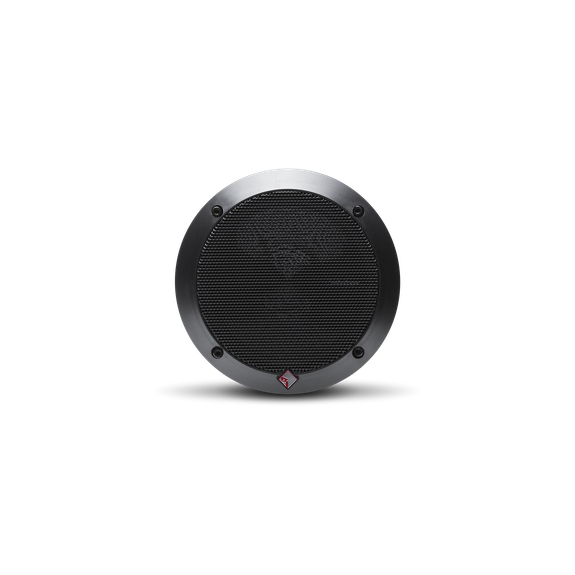

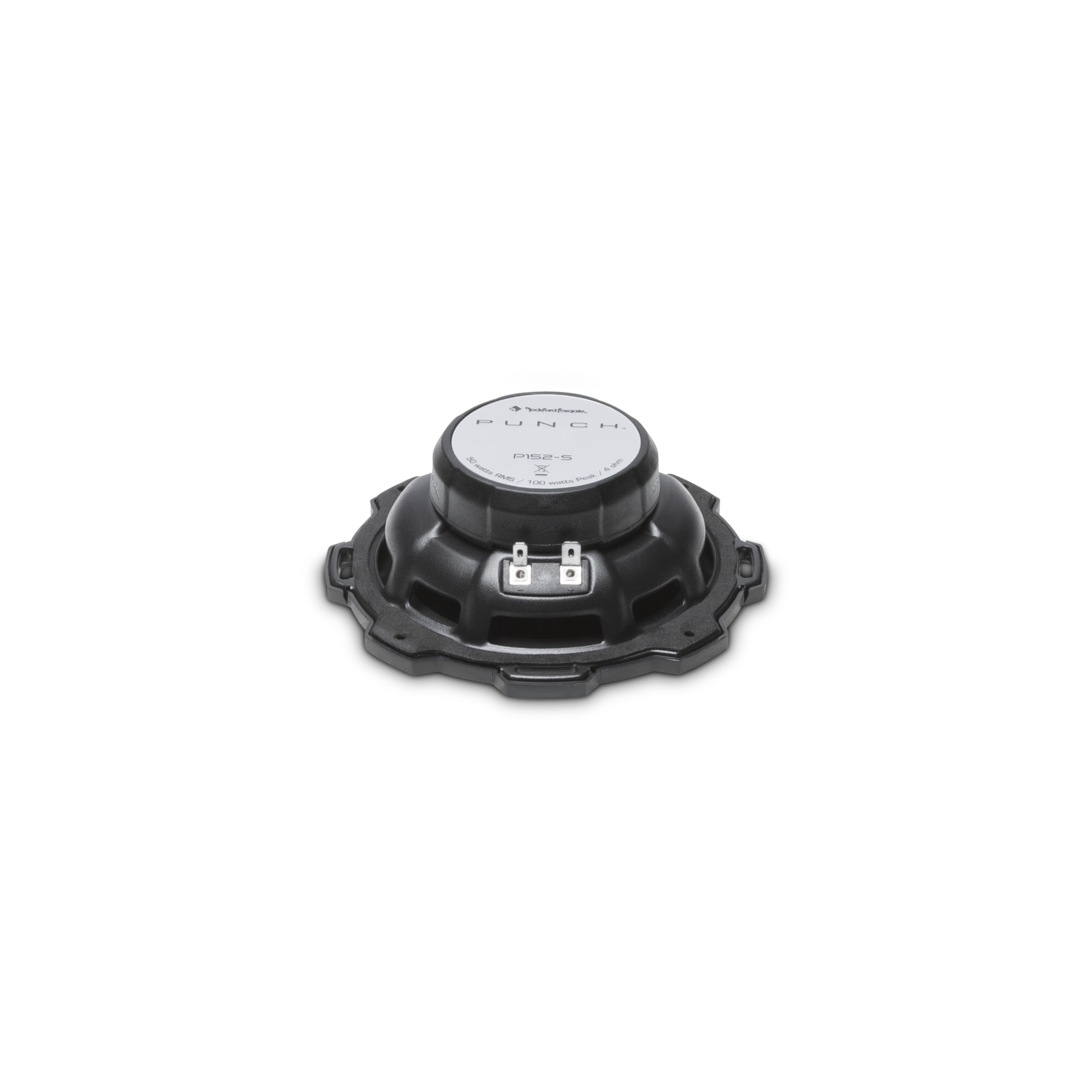

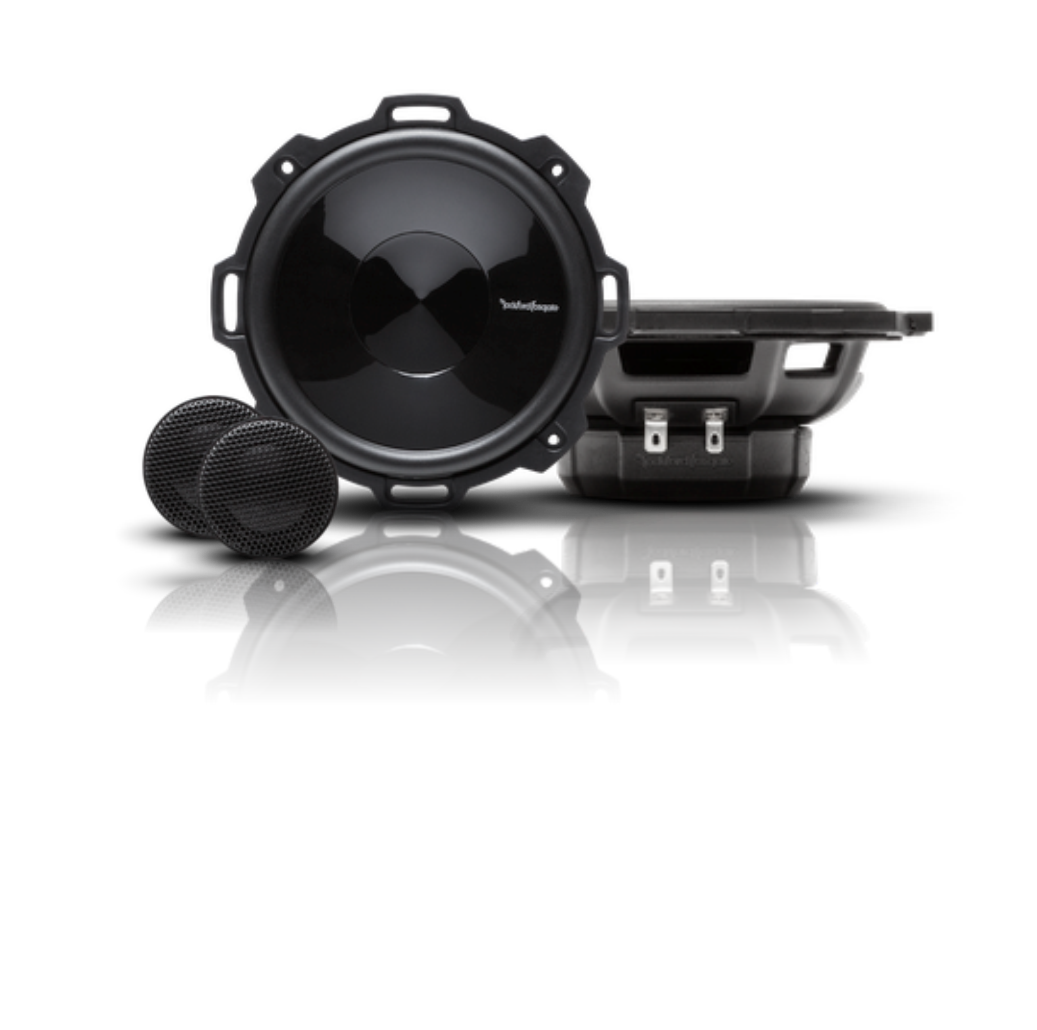

P152-S – Rockford Fosgate – Punch 5.25″ Series Component System

P152-S – Rockford Fosgate – Punch 5.25″ Series Component System

R5,580.00 inc. VAT

SKU: P152-S Categories: , , , Tag:

Description

Car audio fanatics will love the Punch series 5.25″ component system. It features a Flex Fit™ basket for compatibility with various factory speaker mounting locations and a sweet ICC (Integrated Concealed Crossover), eliminating the need to mount any black boxes.

  • FlexFit basket design
  • OEM adapter plate included
  • ICC (Integrated Concealed Crossover)
  • PEI dome tweeter
  • Recessed tweeter mount uses standard 1-3/4″ hole saw
  • Butyl midrange rubber surround
  • Injection molded mineral filled polypropylene cone
  • 1 Year Warranty

Additional information

Weight 2.49 kg
Dimensions 40 × 21 × 12 cm
Product Type

Good, Better, Best

Power Rating

Speaker Type

Size

Overview

Car audio fanatics will love the Punch series 5.25″ component system. It features a Flex Fit™ basket for compatibility with various factory speaker mounting locations and a sweet ICC (Integrated Concealed Crossover), eliminating the need to mount any black boxes.

FEATURES AT A GLANCE

  • Recessed tweeter mount uses standard 1-3/4″ hole saw
  • FlexFit basket design
  • PEI dome tweeter
  • ICC (Integrated Concealed Crossover)
  • Butyl midrange rubber surround
  • OEM adapter plate included
  • Injection molded mineral filled polypropylene cone
  • Sold in pairs (2 each)
  • 1 Year Warranty

Specification

CEA-2031 Compliant
CEA-2031 Guidelines
Speaker Type
Component System
Tweeter Size
(Nominal Diameter)
1.0″ (25.4 mm)
Tweeter Mounting Depth
0.50″ (13 mm)
Midrange Size
(Nominal Diameter)
5.25″
Midrange Mounting Depth
1.87″ (47 mm)
Nominal Impedance (Ohms)
4-Ohm
Sensitivity
(dB @ 1W/1M)
87
Crossover
High-Pass (HP): 3.5KHz @ 12dB/octave Butterworth
Low-Pass (LP): midrange has natural acoustic 12dB/octave roll-off
Frequency Response (Hz)
70Hz – 22kHz
Grille/Trim Ring Included
Yes
Power Handling (RMS)
50 Watts RMS
100 Watts Max
Mounting Hardware
Yes

Videos

Owners Manual

P152-S.pdf owners manual
