M2WL-8HB – Rockford Fosgate – M2 8” Color Optix™ 2-Way Horn Loaded Wake Tower Speakers (B)

Description

The next evolution of on-water audio, the M2 wake tower speakers create an experience like never before, with class-leading output, total lighting control and grille customization. Sold in pairs (2 each).

Color Optix™: Adjust your own bright, wide, and limitless lighting experience with the Rockford Fosgate Color Optix™ plug-and-play controller and App.

Element Ready™: Purpose Built for the marine environment, Rockford’s Element Ready™ products are built to stand up to Water, Salt, and UV, making sure your speakers stand the test of time.

Infinite Customization: Multiple grille options, 3DIL™ technology for 360-degree rotating rear illuminated logo, a universal clamping system are all designed to dial in your personalized on-water experience.

True Marine Ecosystem Dual Integrated Deutsch™ /Amphenol™ connections provide industry leading marine plug-and-play connectivity and flexible install options.

Additional information

Weight 1 kg
Speaker Type

,

Size

Product Type

Power Rating

Brand

Overview

LIGHT THE WAY

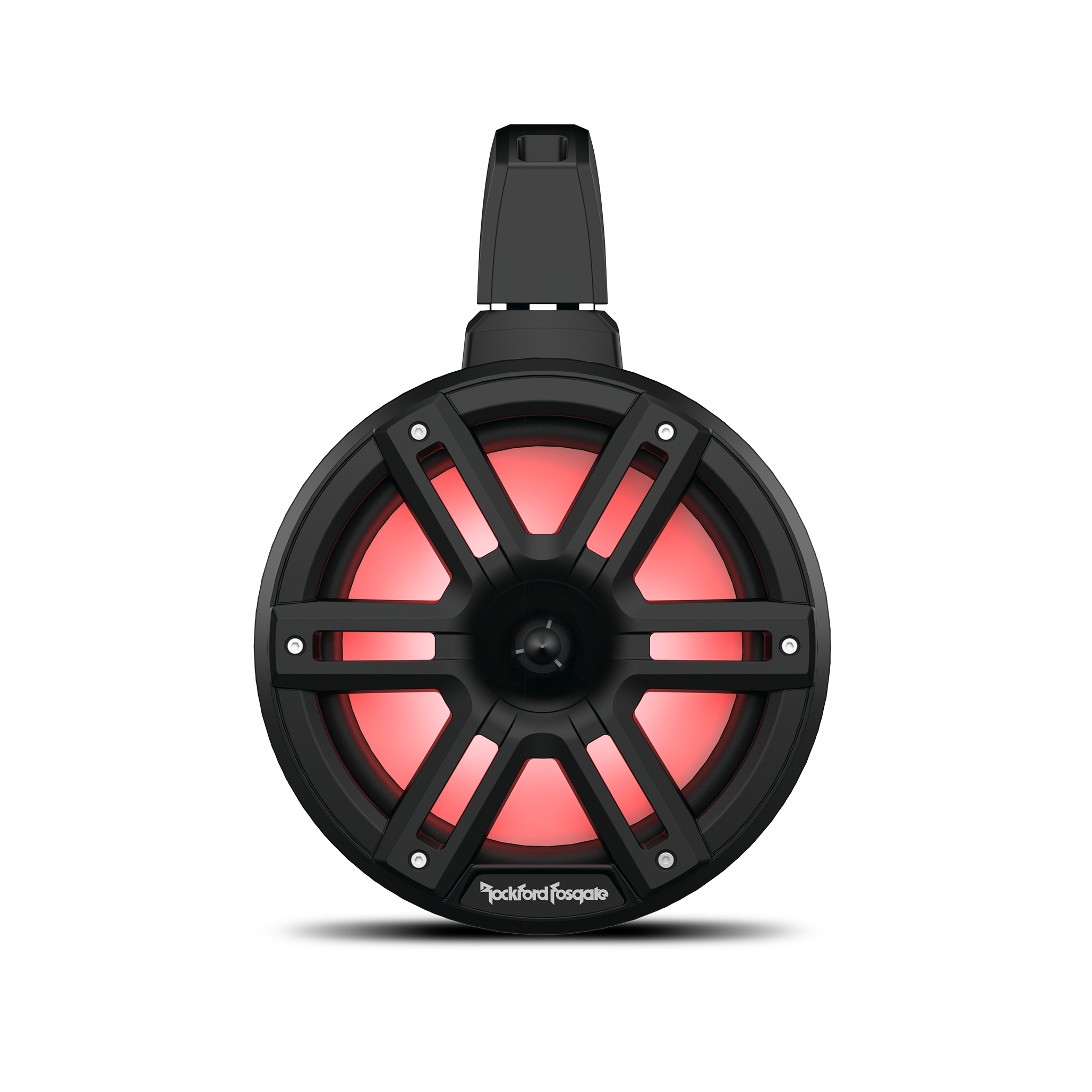

The M2WL-8HB Color Optix™ 8″ 2-way speakers deliver loud, clear, accurate sound, and light the way for your fresh or salt-water journey! Exceptional clarity and distance is possible with the built-in loaded horn, designed to project music to the skier or wakeboarder. The M2 can be installed using direct mount or a clamp mount method that provides 360-degree rotation on wake tower bar sizes from 1.5” to 3”. The M2 includes stainless-steel and black “sport” grille inserts and features a rear illuminated 3DIL™ medallion that can be rotated 360-degrees for proper orientation. The speakers connect with the Rockford Fosgate Color Optix™ Controller (sold separately) and RF Connect App, allowing you to customize both front speaker and rear medallion with your own color patterns.

Requires ColorOptix™ (PMX-RGB) controller to change LED color functions.



FEATURES AT A GLANCE

  • Adjust color experience to suit your taste with Rockford Fosgate® Color Optix™ controller (optional)
  • Integrated 1” (25 mm) high efficiency horn tweeter
  • Gold plated marine grade brass terminals provide a corrosion resistant connection

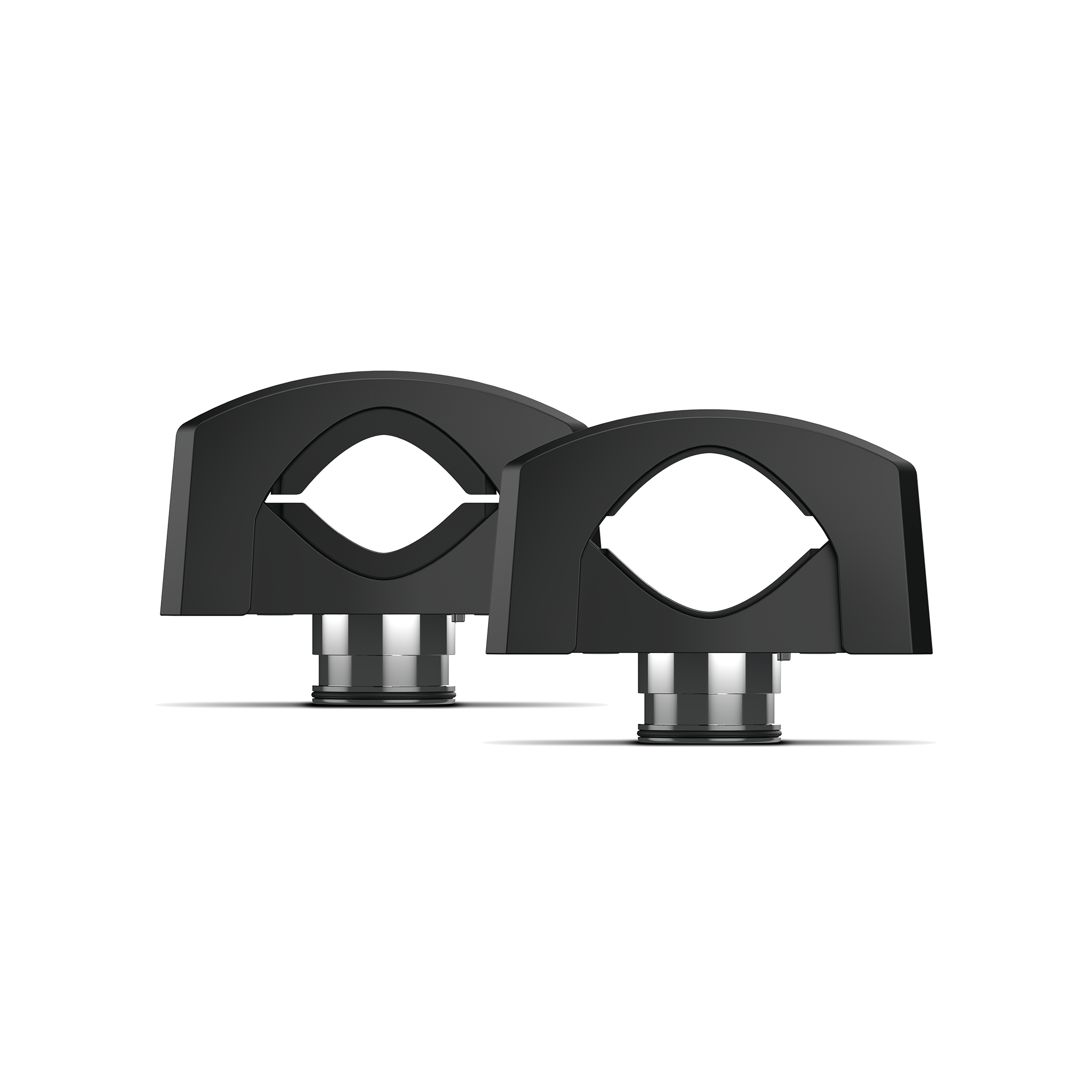

  • Universal clamp with near 360-degree rotation fits bar sizes from 1.5” to 3” diameter
  • Integrated Deutsch™/Amphenol™ inputs in 2 locations for thru-clamp and direct-mount configurations
  • Bright, wide-angle LEDs provide rich, reliable illumination

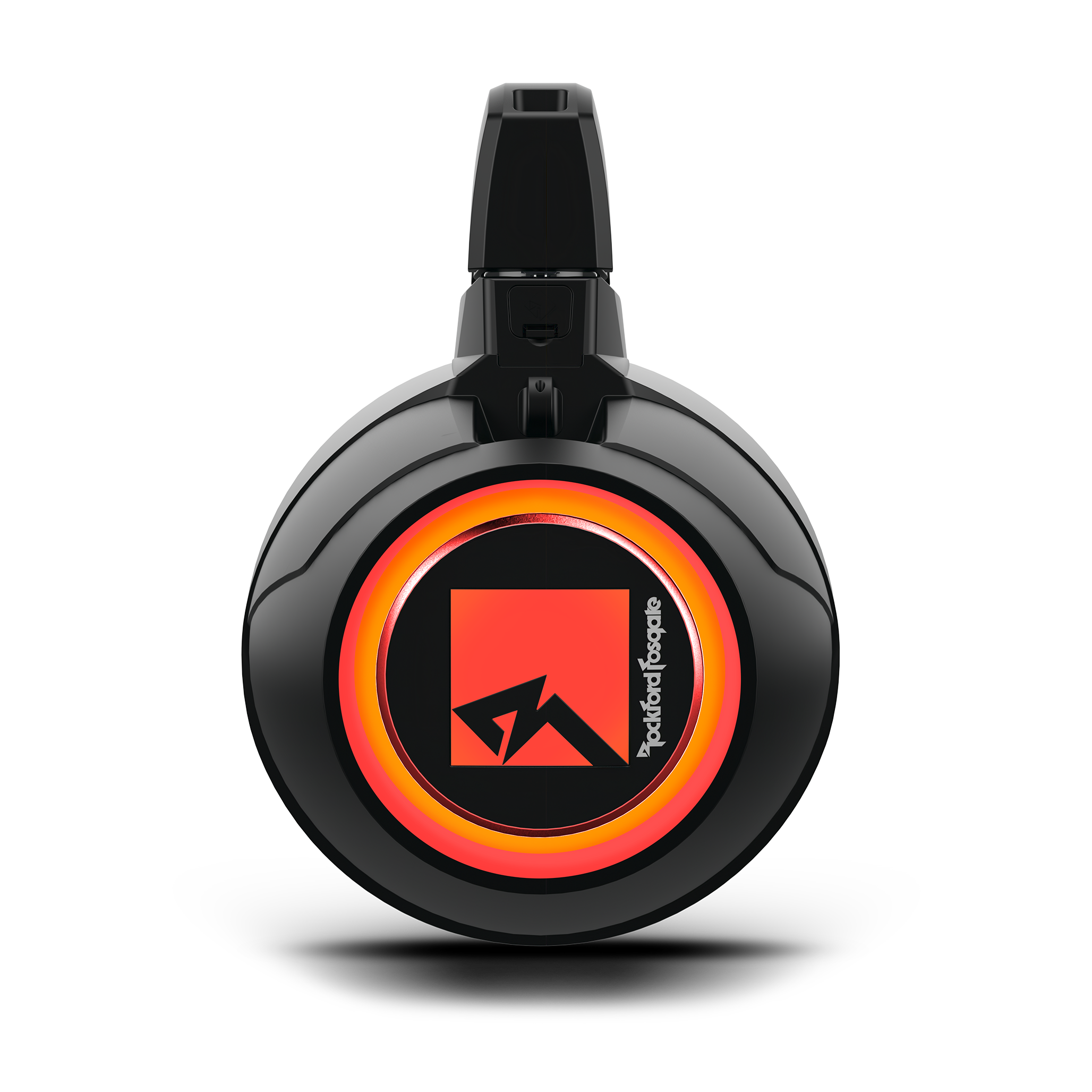

  • RGB rear lighted medallion with 360-degree rotation ensures properly oriented logo
  • 100% UV Stable ASA plastic frame & grille design stands up to harsh marine environment
  • Deutsch DT connectors incorporate front/rear silicone seals to protect against environmental ingress
  • VAST vertical attach surround technique increases effective radiating cone area up to 25%
  • Injection molded mineral filled polypropylene cone body with UV inhibitors
  • Sold in pairs (2 each)

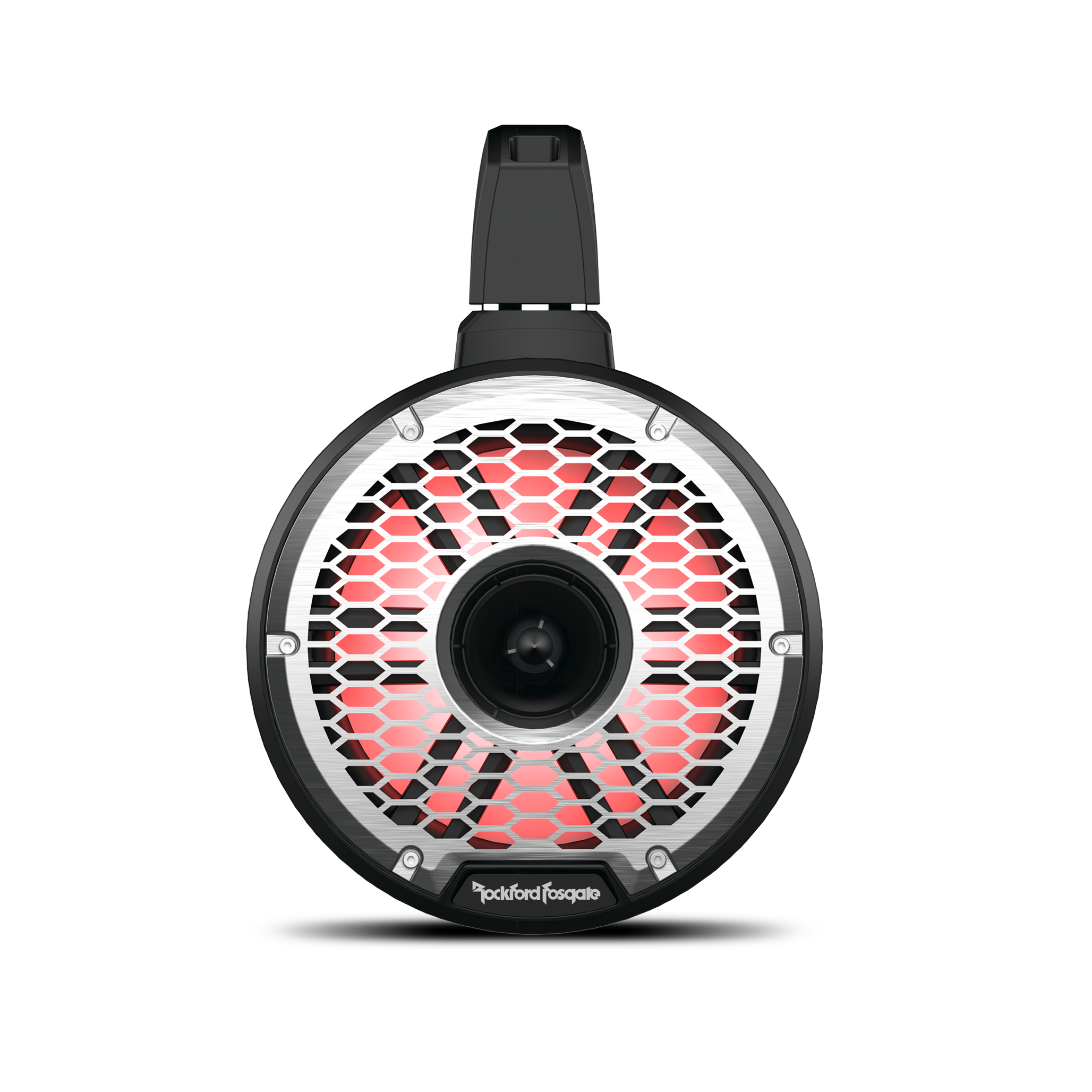

  • Stainless steel grilles pre-installed and includes sport grille option
  • Klippel Verified certification program delivers the best possible loudspeakers
  • Provides superb low and midrange frequency reproduction with smooth high frequency roll-off
  • 2-Year Warranty
  • IPX6 Water Intrusion Rated

Specifications

Speaker Size
8″
Speaker Type
2-Way Loaded Enclosure
Speaker Series
M2 (M2-8HB)
Speaker Connector
6-pin Deutsch™/Amphenol™
Power Handling (Watts RMS)
300 Watts (RMS)
1200 Watts (PEAK)
Nominal Impedance (Ohms)
Frequency Response (Hz)
20 Hz – 25 kHz
Enclosure Material
High density ASA
Enclosure Design
Sealed
Speaker Quantity
2
LED Current Draw
0.25 A

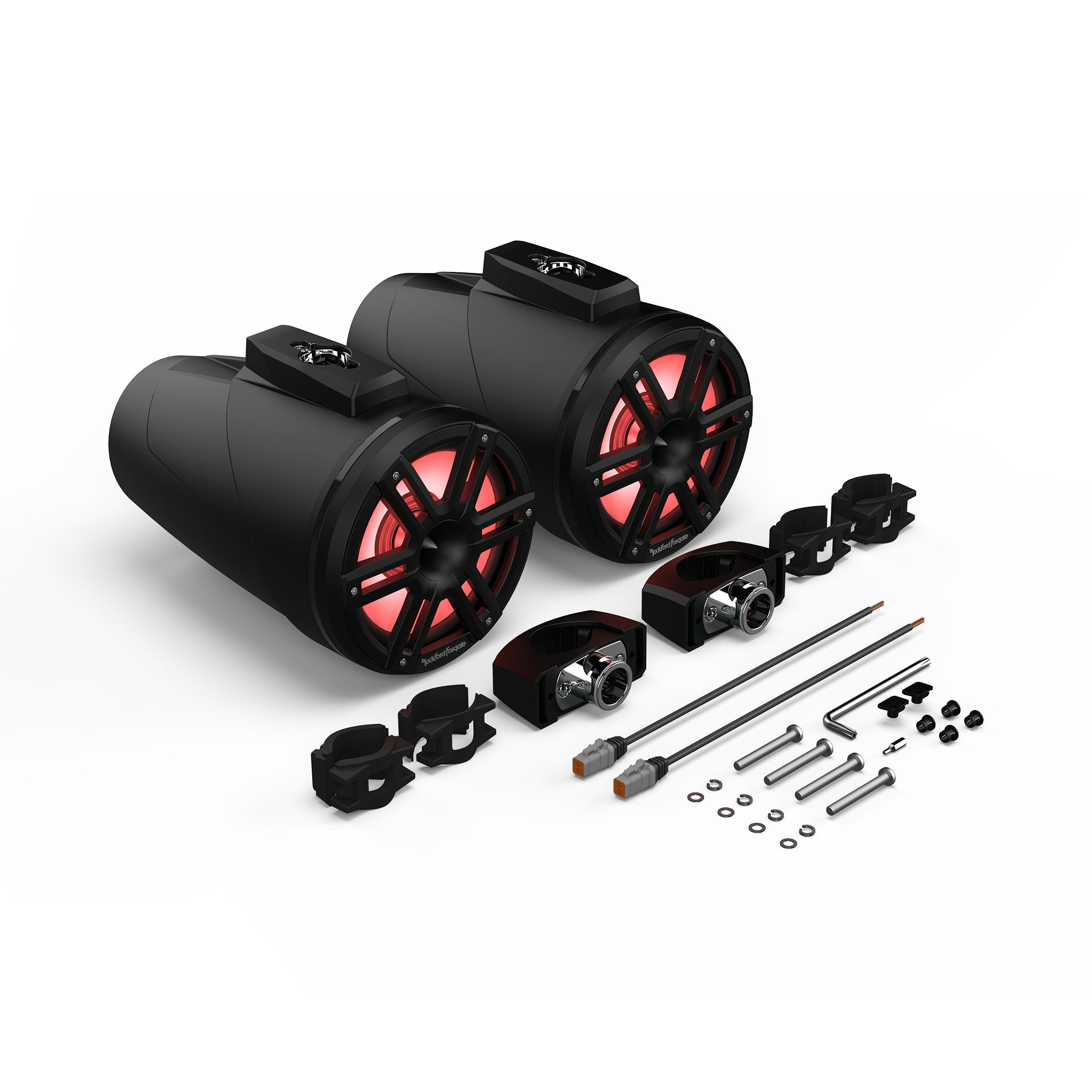

In The Box
(2) Loaded wake cans
(2) Universal clamps (replacement 1130-74671-A1)
(4) Grommets
(2) Spare safety inserts for screw clamp
(1) Safety Torx wrench
(2) 1.5″ to 2.5″ rubber inserts and stainless screws
(2) 2.5″ to 3″ rubber inserts and stainless screws
(2) Stainless steel grilles
(2) Sport grilles
(1) Allen bit for rotating speakers
(2) 6-pin Deutsch™ harnesses (1130-73416-C1)
LED Recommended Fuse
1 A
LED Voltage Range
9 – 16 VDC
Dimensions
12.75″ x 9″ x 14.4″
(324.0 mm x 230.4 mm x 365.7 mm)
Shipping Weight
21.5 Lbs. (9.8 Kg)

Owners Manual

1230-73789-01_b_wake-cans-man
