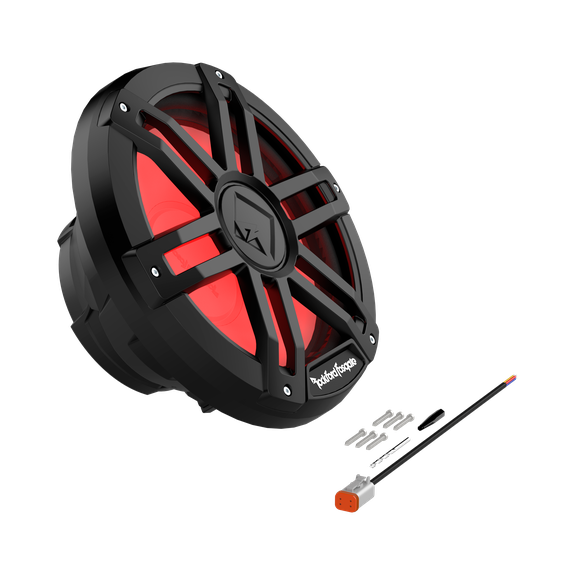

M1D4-12B – Rockford Fosgate – M1 12″ DVC 4Ω Color Optix Marine Subwoofer – Black

R7,529.00 inc. VAT

In stock

Description

The M1D4-12B Color Optix™ 12” DVC 4-Ohm subwoofers deliver loud, clear, accurate bass, and light the way for your journey! Sold individually (1 each).

Color Optix™: Adjust your own bright, wide, and limitless lighting experience with the Rockford Fosgate Color Optix™ plug-and-play controller (sold separately) and App.

Element Ready™: Purpose Built for the Marine Environment, Rockford’s Element Ready™ products are built to stand up to Water, Salt, and UV rays, making sure your subwoofers stand the test of time.

True Marine Ecosystem: Integrated Deutsch™ / Amphenol™ connections provide industry leading marine plug-and-play connectivity and flexible install options.

Overview

The M1 series of Element Ready™ subwoofers are designed to pair with the Rockford Fosgate Color Optix™ Controller and RF Connect App through its Deutsch™ and Amphenol™ connectors integrated into the basket. This combined with their IP67 certification make these speakers Element Ready™ and truly purpose built for marine applications. To compliment the plug and play connectivity and streamline installation, M1 subwoofers are equipped with a VersaSwitch™ to make changing impedance between 2 and 8 ohms as easy as flipping a switch.

Features

  • 2-Year Warranty
  • Injection molded mineral filled polypropylene cone body with UV inhibitors
  • Santoprene VAST Surround
  • VAST vertical attach surround technique increases effective radiating cone area up to 25%
  • Vented motor design with water-repelling nano coated mesh screen
  • Fully insulated silicone tinsel leads

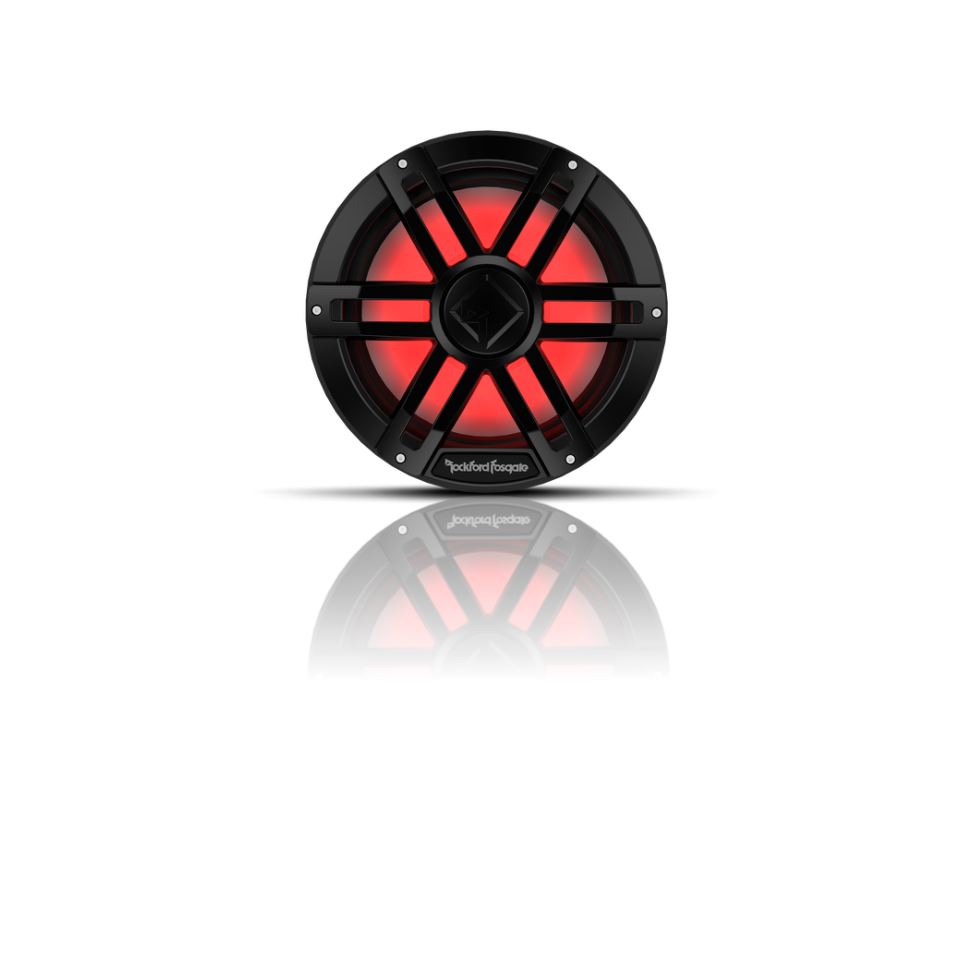

  • Ultra-bright wide-angle RGB LEDs provide rich, reliable illumination
  • Industry’s first molded in-frame connectors for simple connectivity in addition to conventional spade terminals
  • Integrated Deutsch™/Amphenol™ connectors make wiring connections simple and error proof

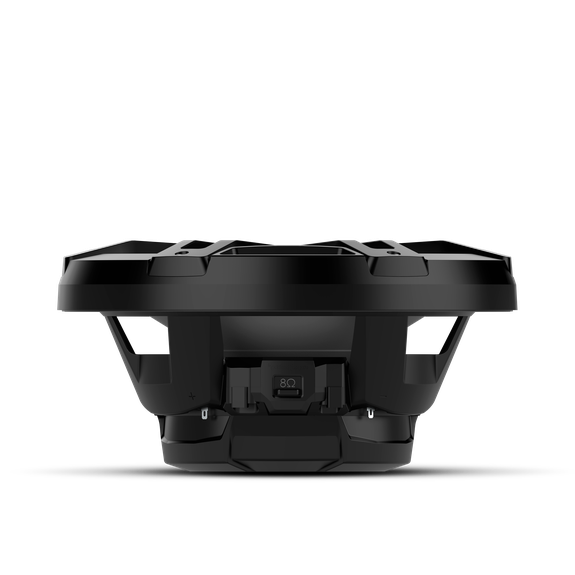

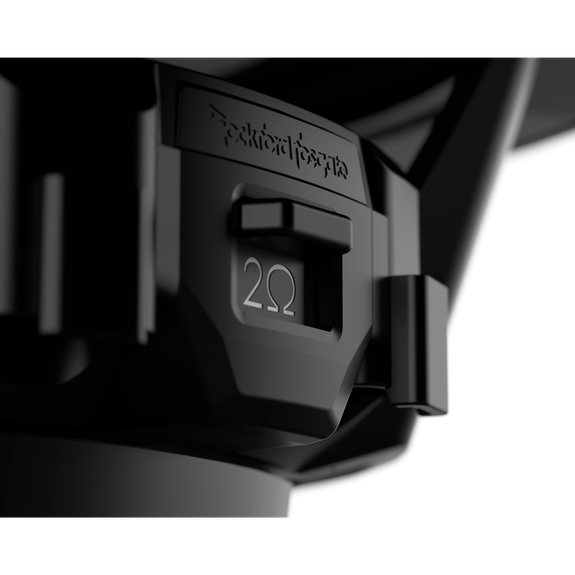

  • VERSA impedance switch quickly allows series or parallel configuration without additional wiring
  • 2″ (50mm) High Temp Kapton™ Woofer Voice Coil Former
  • Linear Synthetic Fiber Blend Spiders
  • Co-molded surround and mineral filled polypropylene cone body
  • Optically clear UV stable RGB Lighting Encapsulation
  • 100% UV Stable ASA plastic frame & grille design stands up to harsh marine environment
  • Zinc Nickel-plated Marine grade brass connection terminals

Specifications

Size
12″
Voice Coil Type
Dual Voice Coil
Nominal Impedance (Ohms)
2-Ohm or 8-Ohm Switchable
Frequency Response
20 Hz – 750 Hz
Power Handling (Watts RMS)
300 Watts RMS
1200 Watts PEAK
Voice Coil Diameter
2″ (50 mm)
Magnet Weight (oz)
39.75 oz. (1.13 Kg)
Fs (Hz)
27
Re (Ohms)
7.6
Le (mH)
3.40
Sd (cm2)
585.4
Qms
8.20
Qes
0.63
Vented Box Volume (Vb)
2.45 cu. ft. (69.38 Liters)
Sealed Box Volume (Vb)
1.65 cu. ft. (46.72 Liters)
Qts
0.59
Vas
113.1
SPL (dB @ 1w/1m)
92
Xmax (mm)
6.0
Woofer Displacement
3.49 (0.12 Liters)
Speaker Connector
Deutsch™
Cutout Diameter
10.85″ (275.6 mm)
Mounting Depth
6.65″ (169.1 mm)
Shipping Weight
9 Lbs. (4.1 Kg.)

Video

Owners Manual

Owners Manual – M1D4-12
