R2-500X1 – Rockford Fosgate – Prime 500 Watt Mono Amp

R2-500X1 - Rockford Fosgate - Prime 500 Watt Mono Amp
R2-500X1 - Rockford Fosgate - Prime 500 Watt Mono Amp - Image 2

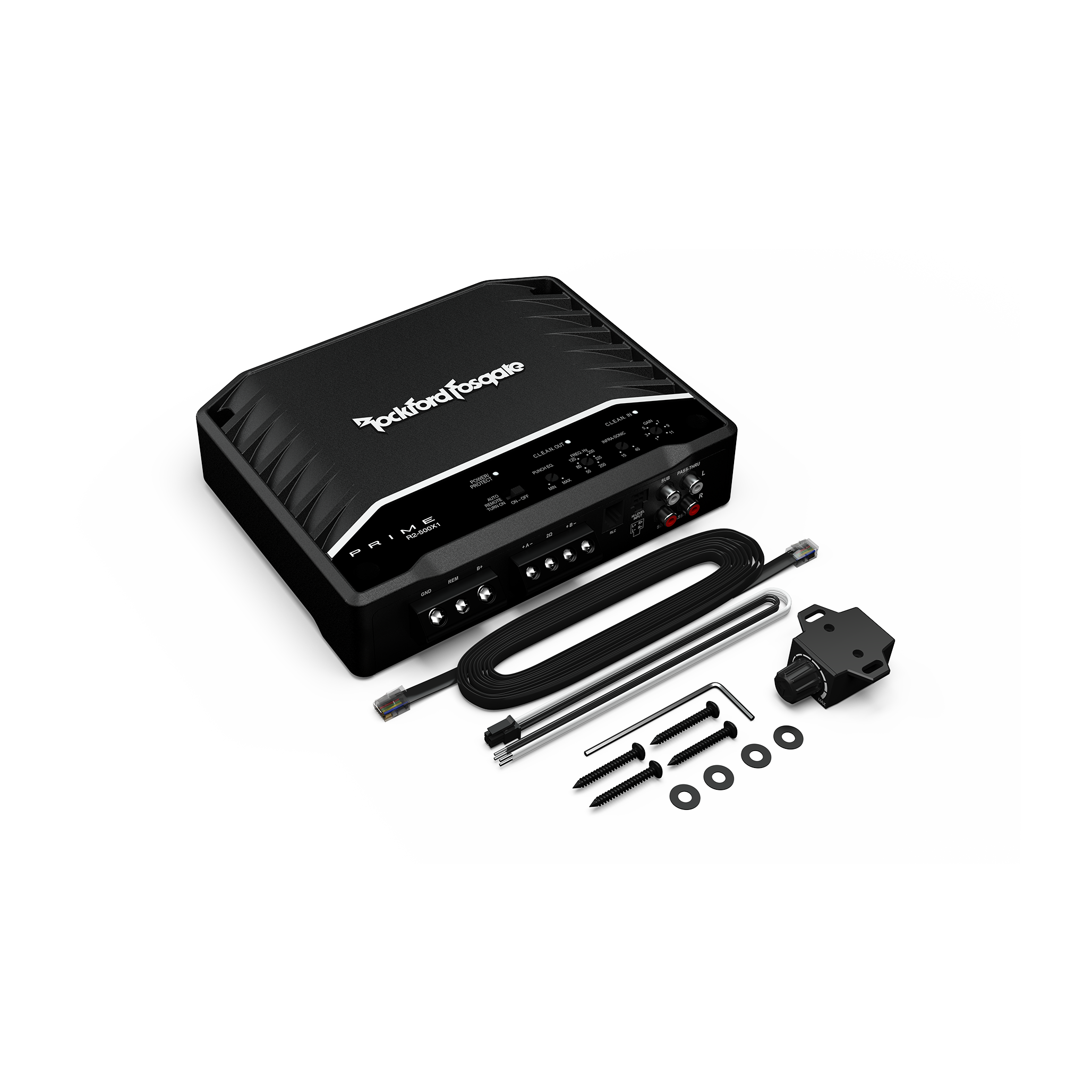

R2-500X1 - Rockford Fosgate - Prime 500 Watt Mono Amp - Image 3
R2-500X1 - Rockford Fosgate - Prime 500 Watt Mono Amp - Image 4

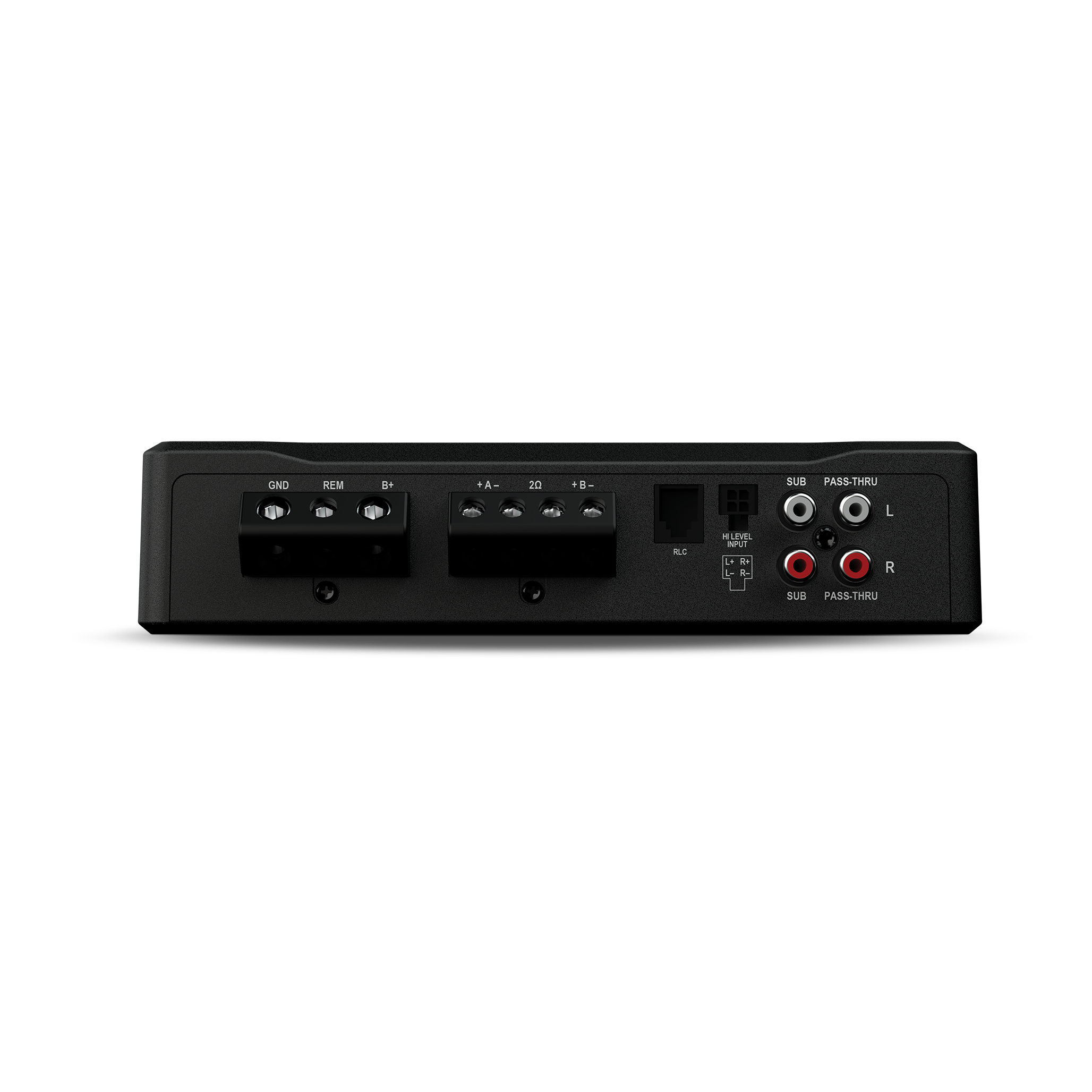

R2-500X1 - Rockford Fosgate - Prime 500 Watt Mono Amp - Image 5
R2-500X1 - Rockford Fosgate - Prime 500 Watt Mono Amp - Image 6

R2-500X1 – Rockford Fosgate – Prime 500 Watt Mono Amp

R6,915.00 inc. VAT

Limited Stock!

In stock

SKU: R2-500X1 Categories: , , , Tag:

Description

Primed for Performance, the R2-500X1 amplifier is a 500 watt, class-D, capable of operating at 4Ω or 2Ω mono. This amplifier is extremely efficient because of its class D technology which reduces demand on the vehicles electrical system. The amp also features C.L.E.A.N. circuitry to help you adjust your gain settings, a P.O.W.E.R. Supply that generates more power as voltage increases, and integrated Punch EQ that corrects for acoustic deficiencies while delivering up to 3X the bass. For subwoofers, a variable infrasonic filter and remote level control allows you to tune the bass for the desired level for the music.

Additional information

Weight 2.66 kg
Dimensions 21.5 × 17.3 × 4.9 cm
Brand

Product Type

Good, Better, Best

Channels

Power Rating

Circuit Topology Class

Power Wire Gauge

Overview

The R2 models were developed for car audio fanatics that want a reliable amplifier – with all the power and performance you’ve come to expect from Rockford Fosgate – at an economical price. Rockford Fosgate amplifiers are renowned world-wide for being “under rated,” easily surpassing all specifications, and most importantly, generating more power than their ratings. These 3rd generation of Prime Series amplifiers are refined with the latest Rockford Fosgate technology for easy setup and configuration, making them perfect for use with factory audio or custom aftermarket systems.

FEATURES AT A GLANCE

  • Variable Input Gain adjustment level
  • High Level Input Capable
  • Balanced Differential Inputs with RCA Pass Through Outputs
  • Auto-Sense bypass switch for vehicles with RAP (Retained Accessory Power)

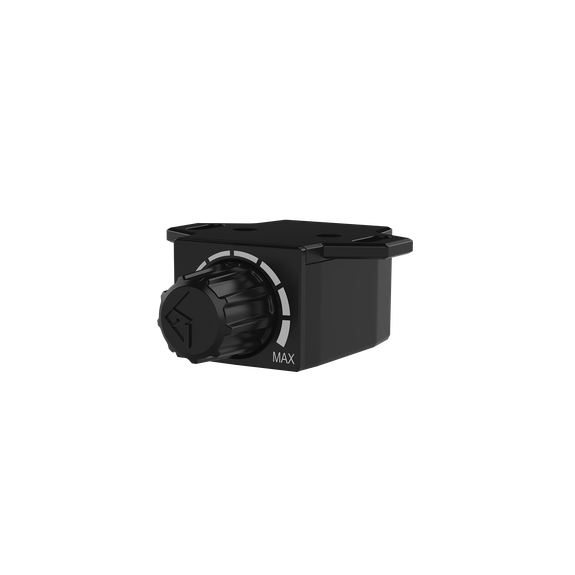

  • Includes RLC Remote Level Control
  • Top Mounted Control Panel
  • Features C.L.E.A.N. Set-up
  • Variable Infrasonic Filter
  • Short Circuit & Over Current Protection
  • Cast aluminum heat sink
  • Continuously Variable On Board Punch EQ
  • Rollback Protection
  • CEA-2006 Compliant & CE Compliant
  • Fully Adjustable 12 dB/octave High and Low pass Butterworth Crossovers
  • Class-D Topology
  • 1 Year Warranty

Specification

CTA-2006 Compliant Yes
Number of Channels 1
Total Power (Sum of Rated Power) 500 Watts
Rated Power (RMS Continuous Power) 300 Watts x 1 @ 4Ω
500 Watts x 1 @ 2Ω
Dynamic Power (PVC/PowerCube®) 350 Watts x 1 @ 4Ω
590 Watts x 1 @ 2Ω
Bridgeable No
Frequency Response 20 Hz – 250 Hz
Input Sensitivity Low-Level: 150 mV – 4 V
High-Level: 450 mV – 12 V
Circuit Topology Class Class-D
Total Harmonic Distortion (THD+Noise) 4Ω: <1.0%
2Ω: <1.0%
Signal Input Low-Level: 2 RCA
High-Level: 4-Pin Molex
Signal Output Low-Level: 2 RCA
(Pass-Thru active with RCA or Hi-Level input)
Tone Controls 0 to +18 dB @ 45 Hz
Crossover Controls Low-Pass: 50 Hz – 250 Hz @ 12dB/Octave Butterworth
Infrasonic: 15 Hz – 40 Hz @ 12dB/Octave Butterworth
Remote Controls Yes
Visual Indicators POWER (Blue) / PROTECT (Red)
C.L.E.A.N. IN (Red)
C.L.E.A.N. OUT (Blue/Red)
Power Wire Gauge 4 AWG
Power Input Connector Compression Terminal Block
Speaker Wire Gauge 8 AWG
Speaker Output Connector Compression Terminal Block
Cooling Convection Heatsink
Operating Voltage 9 – 16 VDC
Recommended Fuse (not included) 80 A
Average Current Draw (13.8V Music) —
Max. Current Draw (13.8V Sinewave) 52 A
Suggested Alternator —
Included In The Box —
Dimensions (H x W x D) 1.9″ x 6.8″ x 8.5″
(4.9 cm x 17.3 cm x 21.5 cm)
Shipping Weight —

Videos

Owners Manual

R2-500X1

Technologies
