FRDNG-SUB-P2D4-10″ P2 4-Ohm DVC Subwoofer and Ford Ranger Enclosure – Under Seat

FRDNG-SUB-P2D4-10″ P2 4-Ohm DVC Subwoofer and Ford Ranger Enclosure - Under Seat
FRDNG-SUB-P2D4-10″ P2 4-Ohm DVC Subwoofer and Ford Ranger Enclosure - Under Seat - Image 2
FRDNG-SUB-P2D4-10″ P2 4-Ohm DVC Subwoofer and Ford Ranger Enclosure - Under Seat - Image 3
FRDNG-SUB-P2D4-10″ P2 4-Ohm DVC Subwoofer and Ford Ranger Enclosure - Under Seat - Image 4

FRDNG-SUB-P2D4-10″ P2 4-Ohm DVC Subwoofer and Ford Ranger Enclosure – Under Seat

R9,015.00 inc. VAT

Out of stock

SKU: FRDNG-SUB-P2D4-10 Categories: ,

Description

Rockford Fosgate has always been known as “The PUNCH” and the P2 10″ subwoofer certainly continues with the tradition. Kevlar fiber reinforced paper cones deliver bass impact you can feel along with VAST technology to increase surface cone area up to 25%. The P2 subwoofers perform best in standard sealed and vented enclosures. Includes diamond cut cast aluminum trim ring. Optional grille insert available.

  • Dual linear spider with embedded 16 AWG tinsel leads
  • Custom 10-AWG nickel plated push terminals
  • Extended pole piece and bumped vented backplate
  • High-temp voice coil with spun-laced Nomex® re-inforcement collar
  • Protective PVC textured magnet cover
  • Kevlar fiber reinforced paper cone
  • StampCast basket with integrated spider venting
  • Diamond cut cast aluminum trim ring with optional grille
  • 1 Year Warranty



P2D4-10 – Rockford Fosgate – Punch 10″ P2 4-Ohm DVC Subwoofer

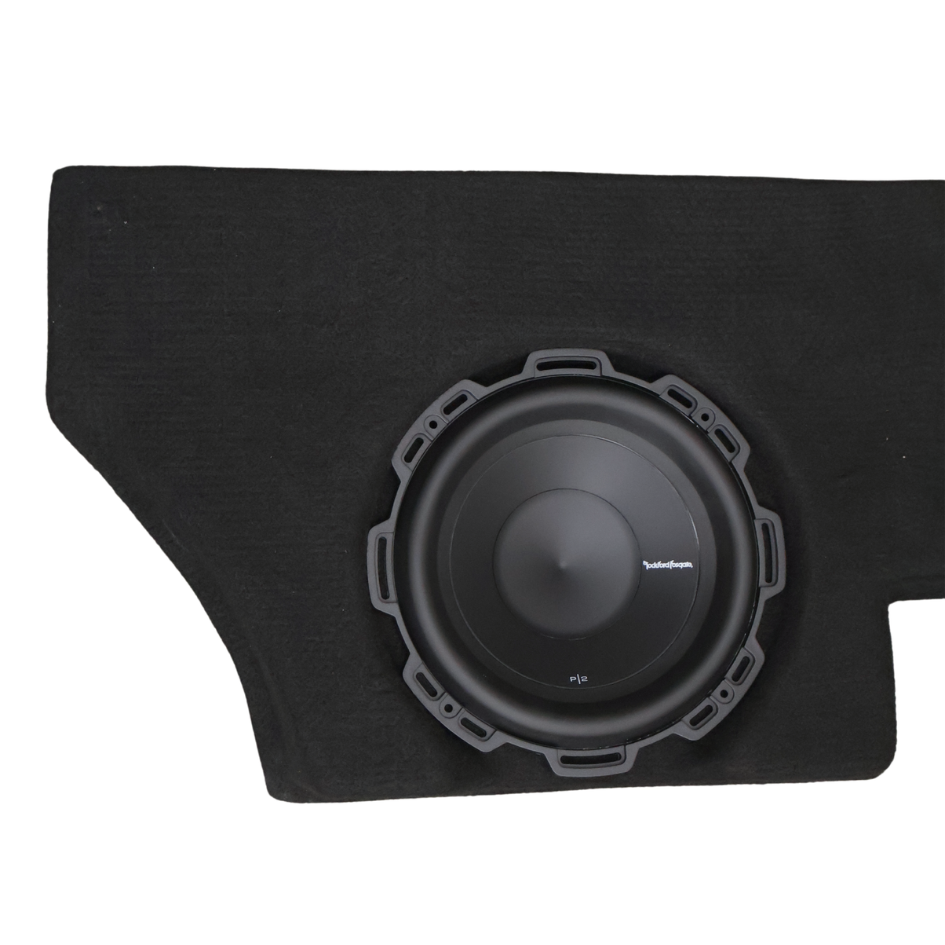

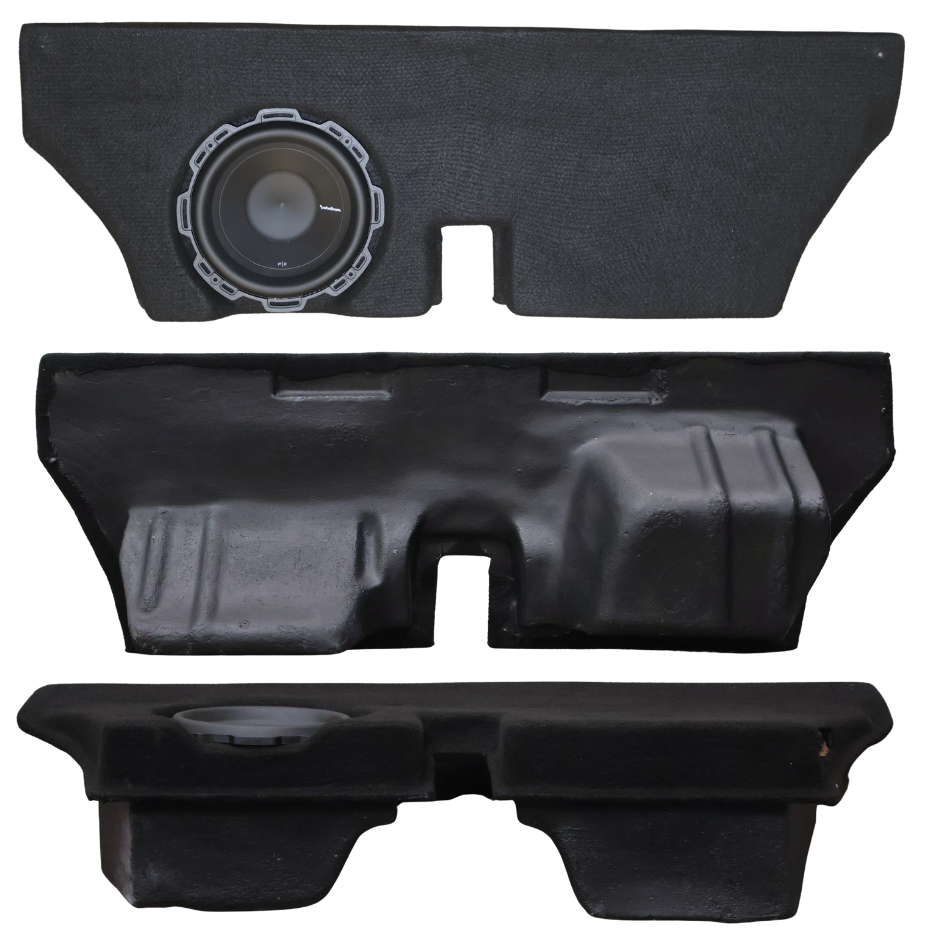

The specifically designed Subwoofer box under the seat of the vehicle for maximum
internal space giving the ultimate bass solution for your Ranger.

Additional information

Enclosures

unloaded
Product Type

Overview

P2D4-10

Rockford Fosgate has always been known as “The PUNCH” and the P2 10″ subwoofer certainly continues with the tradition. Kevlar fiber reinforced paper cones deliver bass impact you can feel along with VAST technology to increase surface cone area up to 25%. The P2 subwoofers perform best in standard sealed and vented enclosures. Includes diamond cut cast aluminum trim ring. Optional grille insert available.

FEATURES AT A GLANCE

  • High-temp voice coil with spun-laced Nomex® re-inforcement collar
  • Dual linear spider with embedded 16 AWG tinsel leads
  • Extended pole piece and bumped vented backplate
  • Protective PVC textured magnet cover
  • Custom 10-AWG nickel plated push terminals
  • StampCast basket with integrated spider venting
  • Diamond cut cast aluminum trim ring with optional grille
  • Kevlar fiber reinforced paper cone
  • 1 Year Warranty

Specifications

P2D4-10

Power Handling (Watts RMS)
300 Watts RMS
600 Watts Max
Magnet Weight (oz)
66.4 oz. (1.88 kg.)
Speaker Connector
Dual 10 AWG compression
Shipping Weight
13.6 Lbs. (6.16 kg)
Qts
0.57
Cutout Diameter
9.13 in. (232 mm)
Size
10″
Nominal Impedance
Dual 4-Ohm
Voice Coil Diameter
2.25″ (57.15 mm)
Mounting Depth
5.92 in. (150.4 mm)
SPL (dB @ 1w/1m)
84
Fs (Hz)
30.8
Qes
0.62
Qms
7.00
Vas (Liters)
35.4
Xmax (mm)
11
Woofer Displacement
0.060 cu. ft. (1.7 Liters)
CEA-2031 Compliant
CEA-2031 Guidelines
Le (mH)
5.3
Re (Ohms)
6.40
Sd (cm2)
360
Subwoofer Type
Standard
Voice Coil Type
Dual Voice Coil
Sealed Box Volume (Vb)
0.59 cu. ft. (16.7 Liters)
Vented Box Volume (Vb)
1.4 cu. ft. (39.6 Liters)
