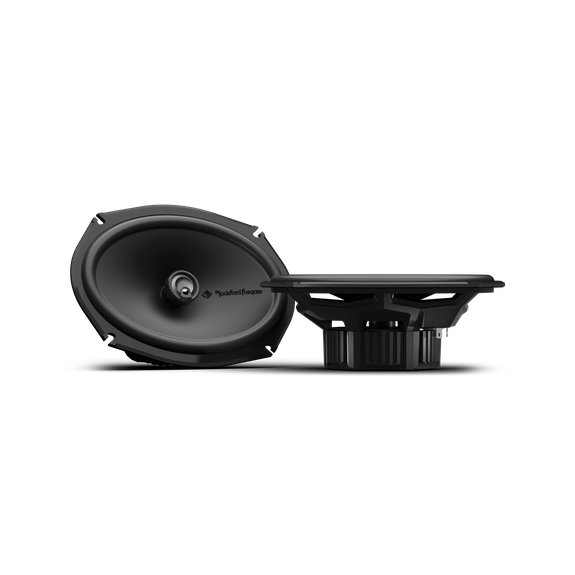

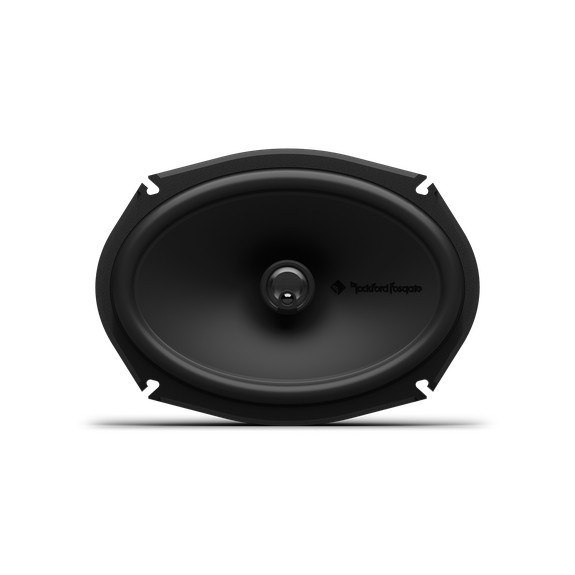

P1V2-69 – Rockford Fosgate – Punch P1 6″x9” 3-Way Coaxial Speaker
R4,120.00 inc. VAT
In stock
Description
The family of P1 PUNCH speakers were engineered to fit and built to put you in control. The vehicle-specific adapters and redesigned frame geometry ensures seamless integration and installation. A larger motor, precision-tuned tweeter configurations, and ultra-durable materials deliver relentless output and uncompromising reliability.

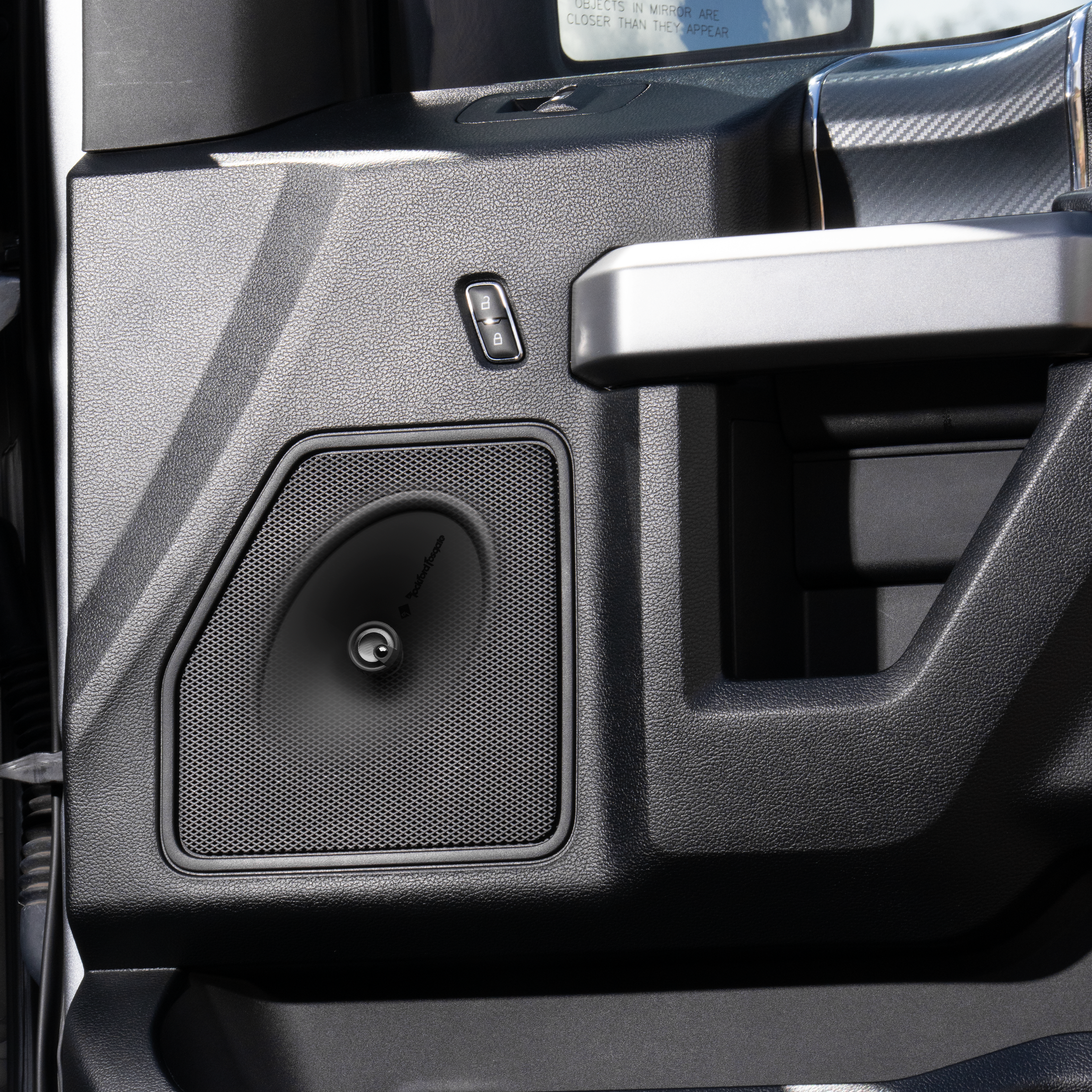

Auto Fit Architecture: Everything was engineered to fit. A re-designed frame, mounting holes, removable motor cover and speaker diameter were all engineered to ensure seamless integration into today’s modern vehicles. Our Factory Location Woofer Ring (F.L.W.R.) and mounting flanges provide a flexible yet precise alignment for drop-in integration into most factory mounting locations.
Superior Flexibility: No matter the application, the PUNCH series offers exceptional flexibility for your build. Every detail has been carefully considered, from frame geometry to mounting holes and diameter all to ensure a seamless fit in most modern vehicles and to make installation as smooth and adaptable as possible.
Performance Driven: Powered by our advanced VAST 2.0™ technology, the PUNCH series delivers a 25% increase in cone area, resulting in maximum output and deeper, more impactful bass. The Tru-Sight™ tweeter ensures precise high-frequency alignment, so every note comes through with clarity and accuracy. Rated at 75W RMS and 150W peak, PUNCH speakers deliver the output you demand, loud, clean, and relentless.
Built to Last: Every component. Every material. Chosen for strength. Built for the long haul. From reinforced carbon fiber baskets to Santoprene™ surrounds and Nomex® spiders, every part of the PUNCH speaker is engineered to be a workhorse. No matter how hard you drive them, the class-leading construction delivers relentless performance that lasts.
Additional information
| Weight | 1.54 kg |
|---|---|
| Dimensions | 27 × 19 × 10 cm |
| Brand | |
| Product Type | |
| Good, Better, Best | |
| Power Rating | |
| Speaker Type | |
| Size |
Overview
FEATURES AT A GLANCE
- Updated mounting flanges for direct fitment in new vehicles
- 3/4” (19 mm) Tetolon® inverted dome tweeter for reliable performance under stress
- 3/8” (9 mm) Polypropylene piezo super tweeter for enhanced high-frequency response
- 20-40% Mica reinforced Polypropylene curvilinear cone for enhanced rigidity and sonic quality
- Santoprene™ half-roll surround for low distortion and unmatched fatigue resistance
- Co-molded surround and cone body chemically bonded for high durability
- Fatigue and tear resistant linear Nomex® spider
- Ultra-flexible braded tinsel leads securely stitched to spider
- 15% glass-fiber reinforced PA66 injected molded composite basket
- Vented Kapton® voice coil former for excellent heat dissipation
- Overhung voice coil ensures consistent magnetic flux for less speaker distortion
- High strength Y35 ferrite motor structure (5mm larger over previous generation)

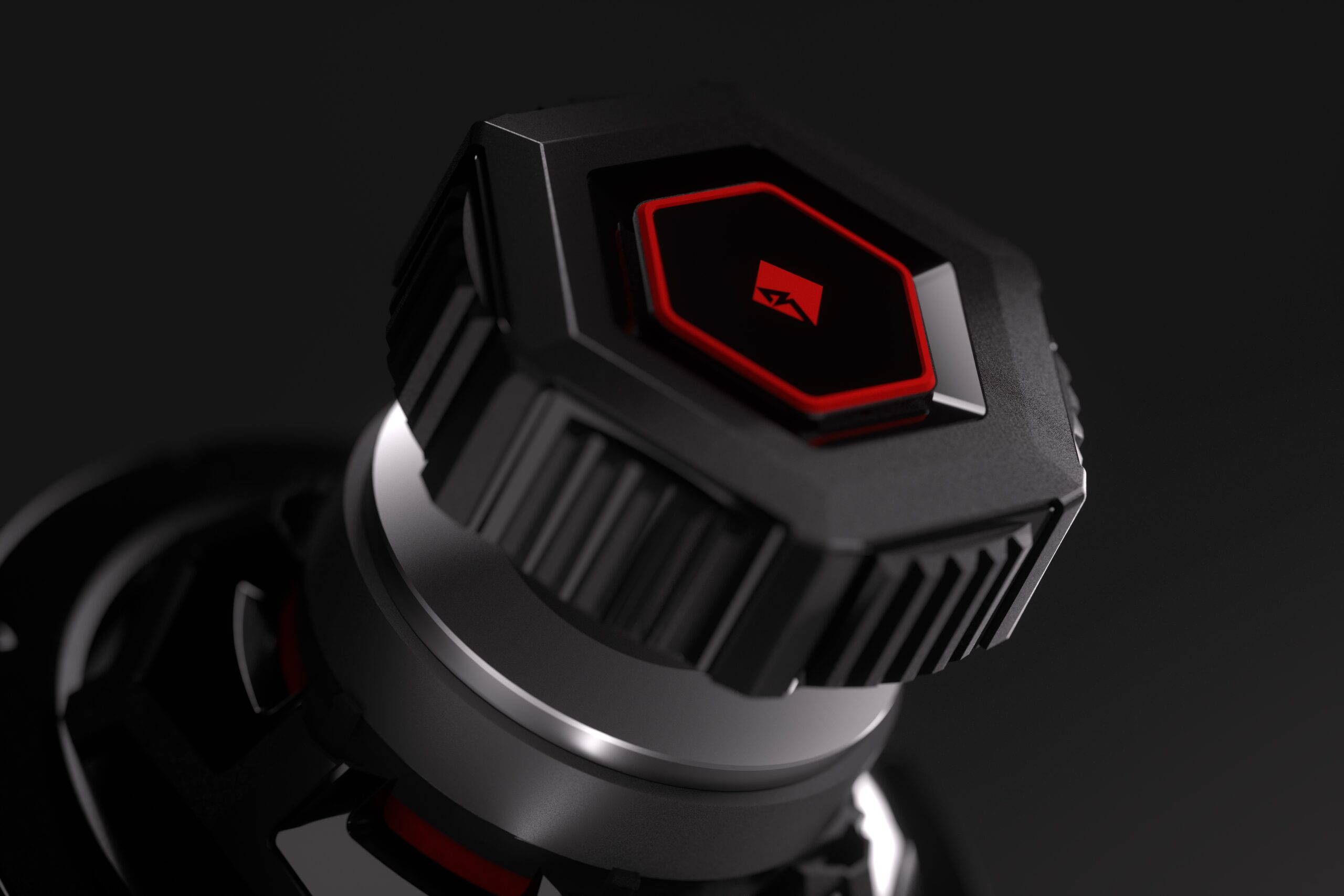

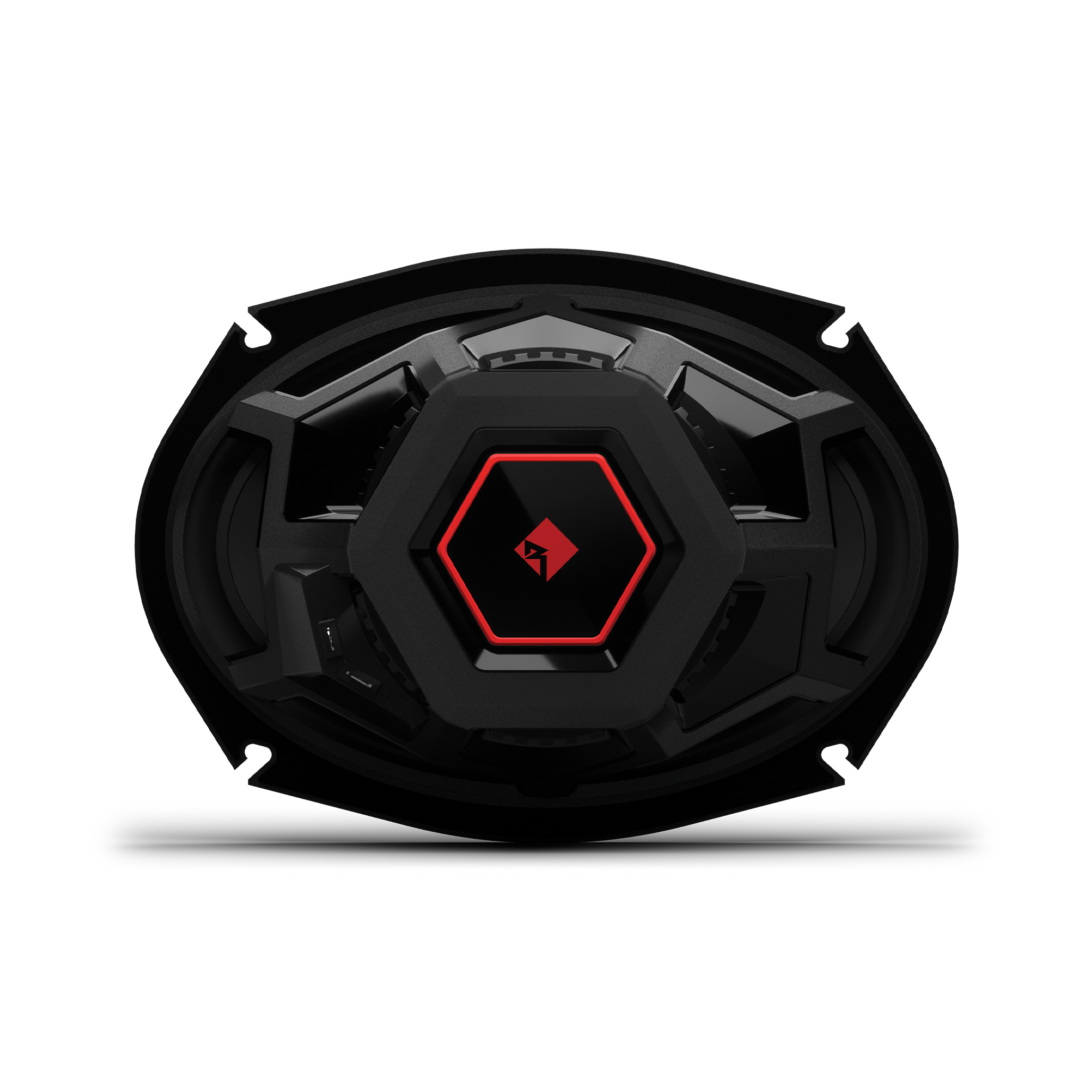

- Removable motor cover for fitment in tight applications
- Co-molded basket terminals for secure connectivity
- ICC+ internal concealed 6dB/octave crossover network
- Includes mounting hardware
- Includes cut-out template
- Grilles sold separately
- Sold in pairs (2 each)
- 2-Year Warranty
Specification
(Nominal Diameter)
(Nominal Diameter)
Inverted Dome
(Nominal Diameter)
Co-Witnessed Convex
(Ohms)
(Hz)
(in/mm)
(Watts RMS)
150 Watts Peak
(dB @ 1W/1M)
(2.83V/1M)
(Twist-Lock Adaptor)
(Twist-Lock Adaptor)
(With Motor Cover)
(No Motor Cover)
(1) 6”x9” Speaker Cutout Template
(8) Self-Tapping Phillips #8x32mm (Speaker)
(2) 18 AWG Red/Black Speaker Wire, 205 mm
(3) 18 AWG (–) Female Crimp Spade Conn. (.187”)
(3) 18 AWG (+) Female Crimp Spade Conn. (.250”)
(4) 18 AWG Crimp Butt Connectors
Videos
Owner's Manual
Coming Soon. Not yet available.
